330103-00-11-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-11-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

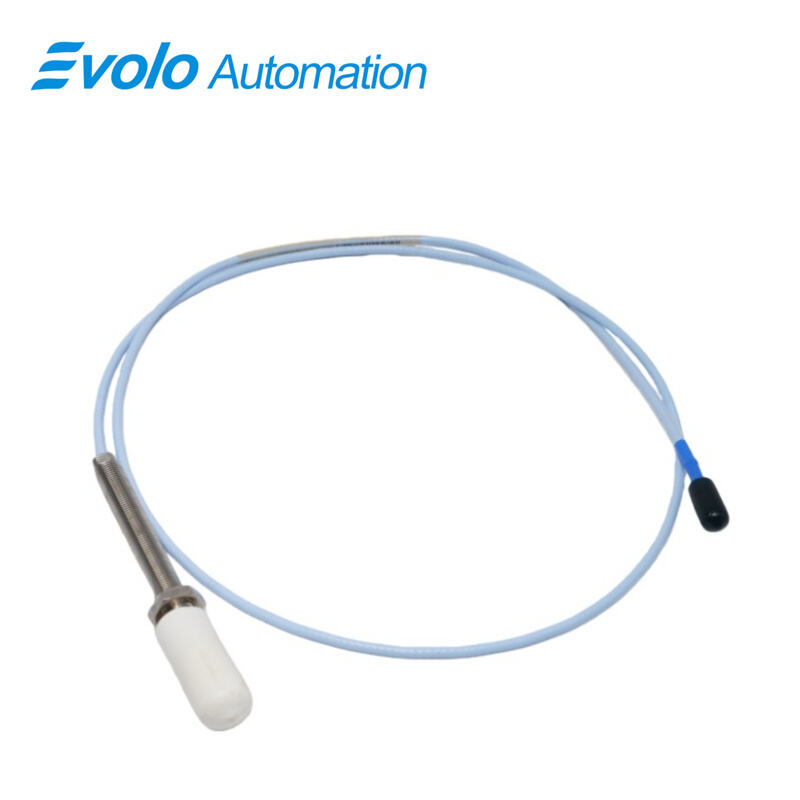

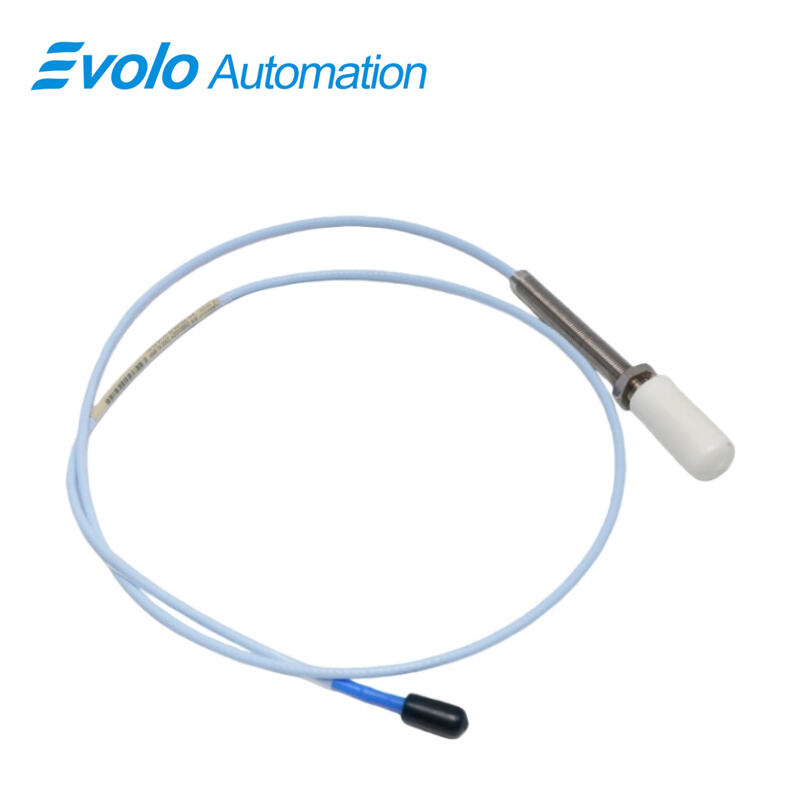

The 330103-00-11-10-02-00 3300 XL 8 mm Proximity Probe delivers an output voltage directly proportional to the distance between its tip and the observed conductive surface, supporting both static (position) and dynamic (vibration) measurements. Designed for automation systems, the 330103-00-11-10-02-00 3300 XL 8 mm probe measures vibration on fluid-film bearing machines and provides Keyphasor reference and speed signals. With a 2 mm linear range, 50 Ω output resistance, and M10x1 probe thread, it integrates seamlessly into automated monitoring loops. Operating temperatures span -52°C to +177°C, while supply sensitivity is under 2 mV per volt input, ensuring reliable signals for process control. Field wiring supports 16–24 AWG (0.2–1.5 mm²) cables, and extension capacitance is 69.9 pF/m. The 330103-00-11-10-02-00 3300 XL 8 mm probe uses a miniature coaxial ClickLoc connector and can be paired with optional FluidLoc cables to prevent oil leakage in automated systems. Patented TipLoc and CableLoc designs strengthen probe-to-cable connections, allowing secure and accurate automated measurement in industrial plants.

Applications

Measure shaft vibration on fluid-film bearings
The 330103-00-11-10-02-00 3300 XL 8 mm probe measures vibration with a 2 mm linear range and 50 Ω output resistance. Its real-time readings allow automated systems to detect misalignment or imbalance in turbines and pumps, enhancing predictive maintenance routines. The probe’s capability to operate from -52°C to +177°C (-62°F to +350°F) ensures reliable operation in extreme industrial conditions.

Provide Keyphasor signals for speed control
The 330103-00-11-10-02-00 3300 XL 8 mm probe generates Keyphasor pulses for automated speed monitoring. Its 1.0 meter cable length and 69.9 pF/m typical extension cable capacitance support integration into SCADA and DCS systems, enabling accurate rotational feedback for industrial automation.

Integrate into automated process monitoring loops
With field wiring support for 16–24 AWG (0.2–1.5 mm²), the 330103-00-11-10-02-00 3300 XL 8 mm probe connects directly to Proximitor sensors and controllers. This allows continuous data acquisition and analysis in automated machinery monitoring and predictive maintenance workflows.

Specifications

Competitive Advantage

High-temperature operation range
The 330103-00-11-10-02-00 3300 XL 8 mm probe operates from -52°C to +177°C (-62°F to +350°F), allowing its use in high-temperature industrial automation environments where continuous monitoring is required.

Robust probe-to-cable connection
Patented TipLoc molding and CableLoc designs provide 330 N (75 lbf) pull strength, ensuring the 330103-00-11-10-02-00 3300 XL 8 mm probe maintains secure electrical and mechanical connections during automated vibration and position monitoring.

Precision output for closed-loop automation
With supply sensitivity under 2 mV per volt change in input and a 50 Ω output resistance, the 330103-00-11-10-02-00 3300 XL 8 mm probe provides accurate signals for automated speed and vibration control, improving equipment performance analysis and fault detection.
