Overview

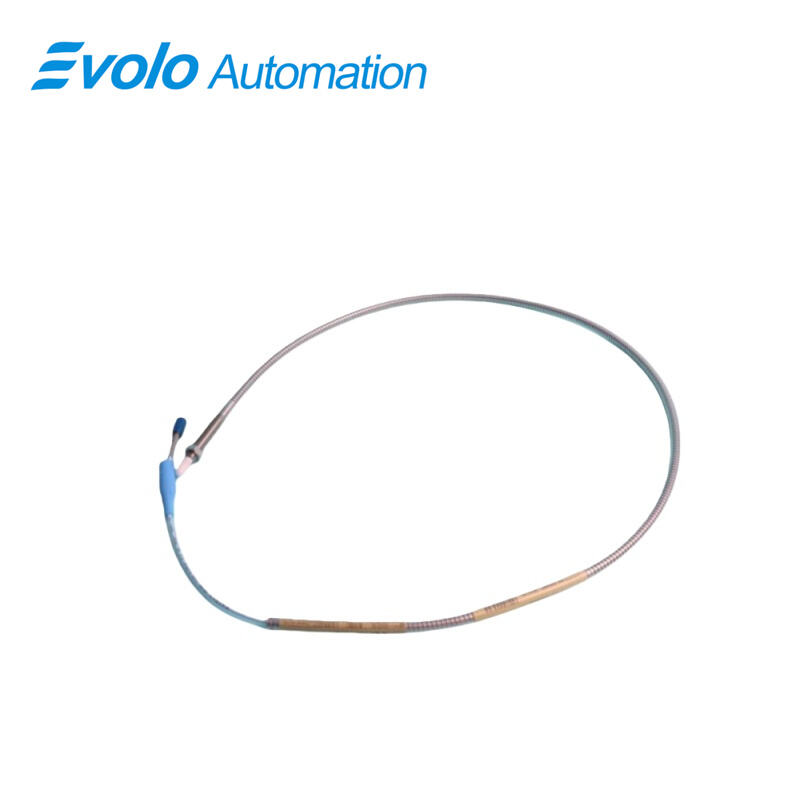

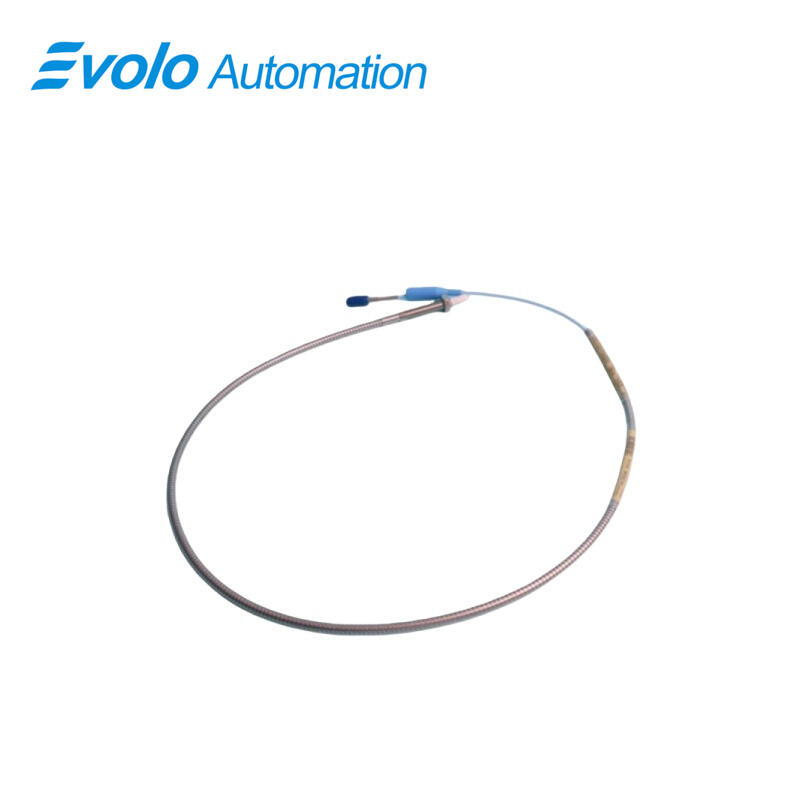

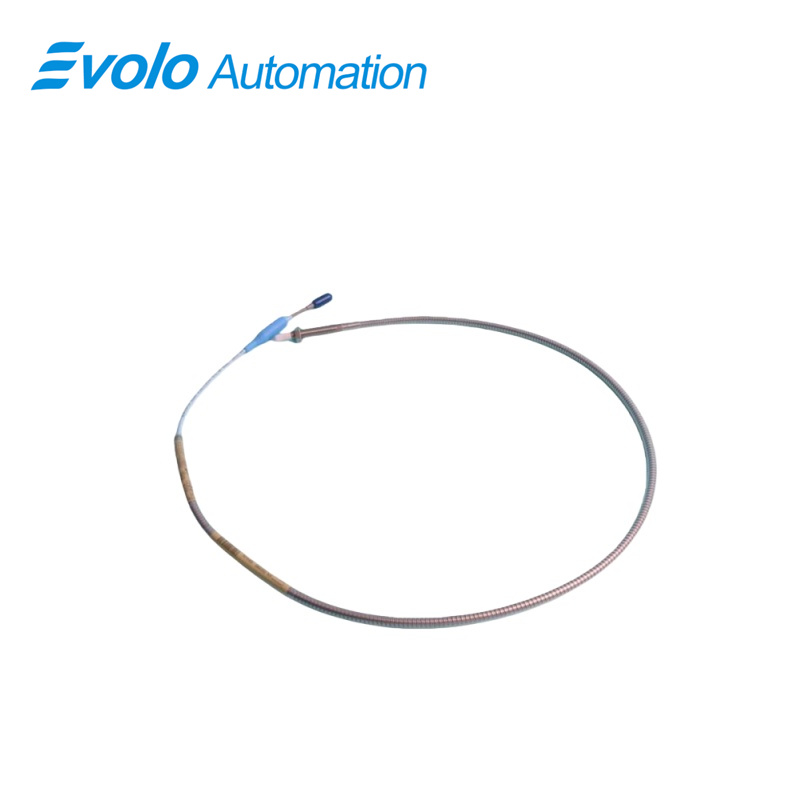

330909-00-20-10-01-05 3300 NSv Proximity Probes
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330909-00-20-10-01-05 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330909-00-20-10-01-05 3300 NSv Proximity Probes emerge as a flexible, forward-looking solution designed to replace legacy monitoring setups—specifically the 3300 RAM Transducer Systems and 3000-series/7000-series 190 Transducer Systems. Serving as a core component of the 3300 XL NSv Transducer System, the 330909-00-20-10-01-05 3300 NSv Proximity Probes reimagines upgrade flexibility for industrial rotating equipment monitoring, blending cost-effectiveness with performance improvements. For those transitioning from 3300 RAM systems, the 330909-00-20-10-01-05 3300 NSv Proximity Probes supports seamless integration with existing probes, extension cables, and monitoring platforms—needing only the proximitor sensor to be swapped out for 3300 XL NSv equivalents. This partial upgrade approach avoids full system overhauls, cutting down on downtime and deployment expenses while unlocking the NSv platform’s advanced functionalities.
For upgrades from 3000-series or 7000-series 190 Transducer Systems, however, a complete shift to NSv components is necessary—including the 330909-00-20-10-01-05 3300 NSv Proximity Probes, extension cables, and proximitor sensors. This full-component transition guarantees optimal compatibility and performance, addressing the shortcomings of older systems through the NSv’s refined design. A key technical strength of the 330909-00-20-10-01-05 3300 NSv Proximity Probes lies in its industry-standard average scale factor of 7.87 V/mm (200 mV/mil)—the most commonly used output for eddy current transducers. This standardization allows easy integration with most industrial monitoring systems, eliminating the need for complicated parameter adjustments and simplifying cross-brand compatibility and data analysis—especially valuable for global operations and multi-vendor configurations.
Key Functions
Applications
The 330909-00-20-10-01-05 3300 NSv Proximity Probes stand as a high-reliability detection solution engineered for vibration, displacement, and position monitoring of rotating equipment across power generation, oil and gas, chemical, and pharmaceutical industries. Certified with multiple agency approvals, this probe ensures safe operation in hazardous, corrosive, and extreme environments, while its ultra-wide operating and storage temperature range of -52°C to +178°C (-62°F to +350°F) guarantees consistent performance from freezing outdoor substations to high-heat industrial enclosures. Featuring a slender 1.5cm×1.3cm×121cm footprint, 0.1kg lightweight design, 0.0in minimum unthreaded length, and 2in overall case length, it fits seamlessly into narrow equipment gaps, complemented by a 1.0-meter (39 in) standard cable for flexible installation. The miniature coaxial ClickLoc connector with a protector ensures vibration-resistant, secure connections, while compatibility with 0.2 to 1.5 mm² (15 to 24 AWG) field wiring enables seamless integration with existing industrial systems. Boasting a 1.5mm (60 mils) linear range, 1.0mm (40 mils) recommended gap setting, 50 Ω output resistance, and supply sensitivity of less than 2 mV/V, it captures high-precision data with minimal signal interference, maintaining stability even amid voltage fluctuations (-17.5 Vdc to -26 Vdc power requirement, 12V compatible without barriers).
Official Specifications
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0in |
|
Overall Case Length Option: |
2 in |
|
Total Length Option: |
1.0 meter (39 in) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval Option: |
Multiple Approvals |
|
Dimension: |
1.5x1.3x121cm |
|
Weight: |
0.1kg |
Specifications
|
Operating and Storage Temperature: |
-52°C to +178°C (-62°F to+350°F) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output Resistance: |
50 Ω |
|
Linear Range: |
1.5 mm (60 mils) |
|
Field Wiring: |
0.2 to 1.5 mm2 (15 to 24 AWG) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Power： |
Requires -17.5 Vdc to -26 Vdc without barriers at 12 |
Frequently Asked Questions
What is the model number?
The listed model number is 330909-00-20-10-01-05.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1. Precise Measurement & Stable Signal Transmission
Boasting a 1.5mm (60 mils) linear range, 1.0mm (40 mils) recommended gap setting, 50 Ω output resistance, and supply sensitivity of <2 mV/V, the probe captures precise vibration, displacement, and position data with minimal signal attenuation. It maintains stable output even amid voltage fluctuations (-17.5 Vdc to -26 Vdc power range, 12V compatible without barriers), resisting electromagnetic interference for consistent performance.
2. Multi-Certified Compliance for Global Regulated Sectors
Backed by multiple agency approvals, the probe meets stringent international safety, explosion-proof, and corrosion-resistant standards, making it suitable for high-risk sectors such as oil and gas, chemical, and power generation. This compliance removes market access barriers for global deployments and supports project bidding requirements, outperforming non-certified alternatives.
3. Low Total Cost of Ownership with Minimal Maintenance
The probe’s durable structural design, wide environmental adaptability, and universal compatibility reduce maintenance frequency and replacement costs. Its lightweight construction lowers installation labor expenses, while the reliable ClickLoc connector and oil-resistant cable minimize downtime from connection failures—delivering a lower total cost of ownership over its service life.
