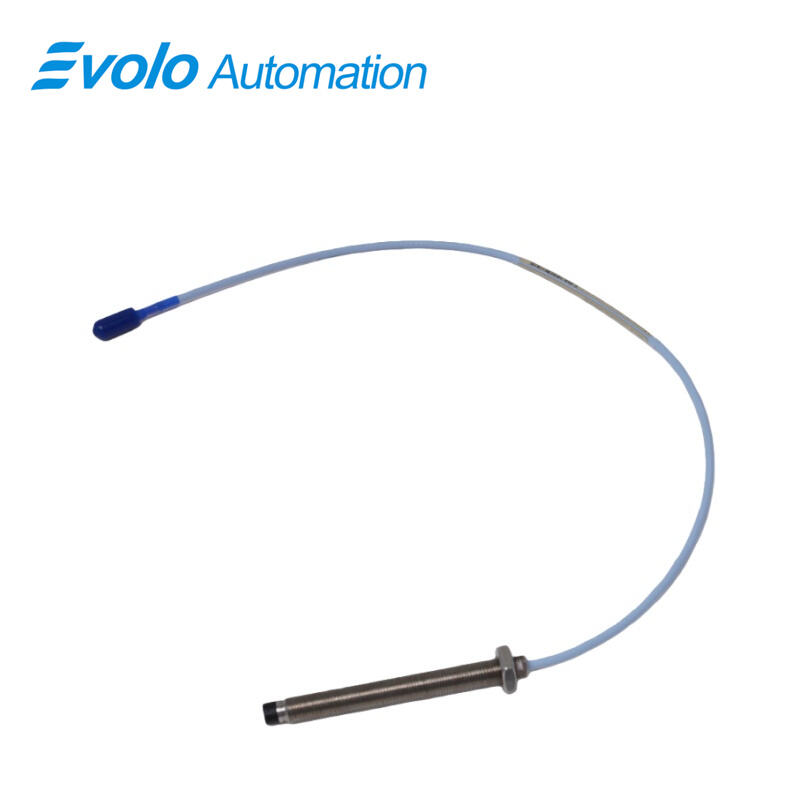

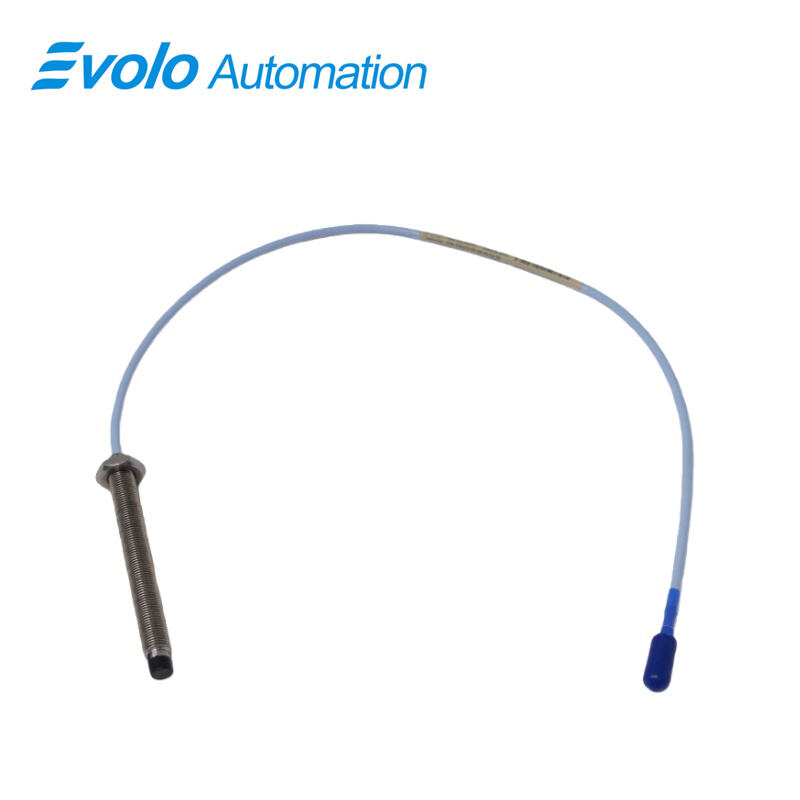

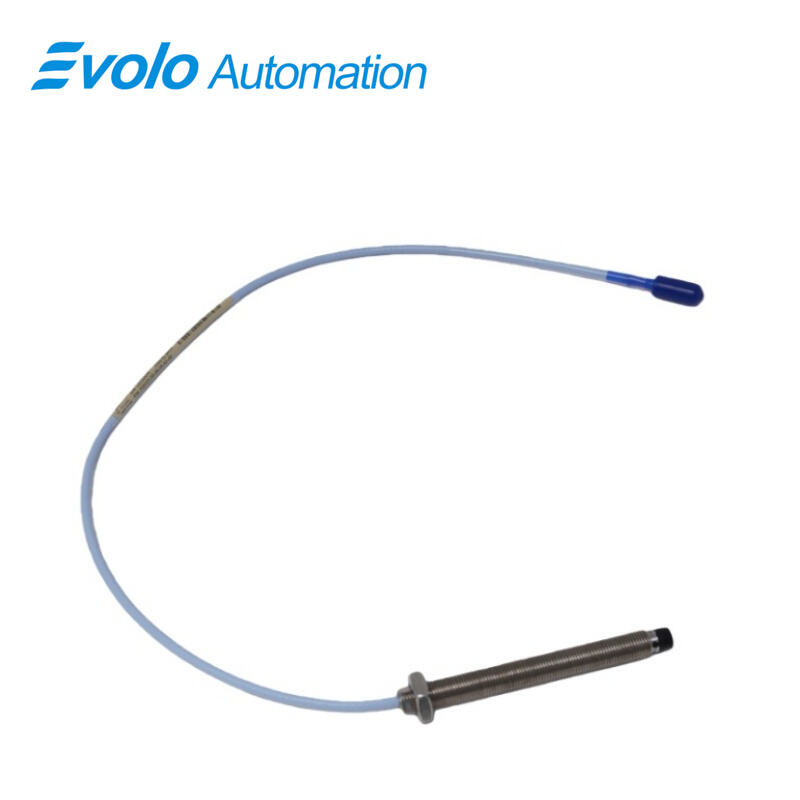

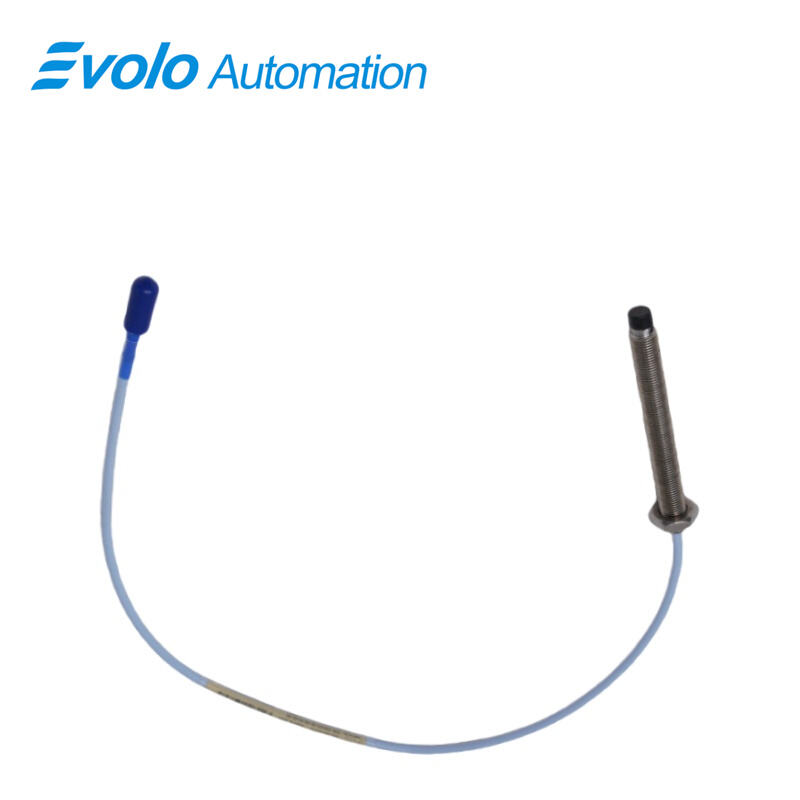

330103-00-09-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-09-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-09-10-02-00 3300 XL 8 mm Proximity Probe outputs a voltage proportional to the distance between the probe tip and the target conductive surface, capturing both static (position) and dynamic (vibration) data. With a 90 mm overall case length, M10x1 probe thread, and maximum 15 mm thread engagement, the 330103-00-09-10-02-00 probe integrates into automated monitoring systems for real-time feedback. The 1.0-meter standard cable features a miniature coaxial ClickLoc connector and 69.9 pF/m capacitance, supporting field wiring from 0.2 to 1.5 mm² (16–24 AWG). Operating between -52°C and +177°C (-62°F to +350°F) and with 50 Ω output resistance, the 330103-00-09-10-02-00 3300 XL 8 mm probe delivers reliable signals for PLCs, DCS, and other automated control systems. Its 2 mm linear range ensures precise measurements in fluid-film bearing machines, while optional FluidLoc cables prevent leakage and improve safety in automated operations. This probe allows backward compatibility with non-XL 3300 series probes and extension cables, providing flexible deployment in industrial automation applications.

Applications

Measure Shaft Vibration on Fluid-Film Bearings
The 330103-00-09-10-02-00 3300 XL 8 mm probe detects minute shaft displacements within a 2 mm linear range, allowing automated systems to monitor vibration in real-time for predictive maintenance.

Monitor Rotor Position for Speed Control
With output proportional to distance, the 330103-00-09-10-02-00 3300 XL 8 mm probe provides accurate position feedback to PLCs and DCS, enabling automated speed adjustments in pumps, turbines, and compressors.

Keyphasor Reference Signal Generation
The 330103-00-09-10-02-00 3300 XL 8 mm probe outputs a reliable signal for Keyphasor timing, allowing automated systems to synchronize data collection and trigger events in rotating machinery.

Remote Condition Monitoring Integration
Using its 1.0-meter miniature coaxial ClickLoc cable with 69.9 pF/m capacitance, the 330103-00-09-10-02-00 3300 XL 8 mm probe connects easily to extension cables and Proximitor modules for automated remote diagnostics.

Specifications

Competitive Advantage

High-Temperature Operation Range
The 330103-00-09-10-02-00 3300 XL 8 mm probe operates from -52°C to +177°C, ensuring consistent automated measurements in extreme industrial environments.

Enhanced Pull Strength with CableLoc Design
Its patented CableLoc provides 330 N pull strength, allowing secure probe attachment in automated systems without signal loss.

FluidLoc Option to Prevent Leaks
Optional FluidLoc cable prevents oil and liquids from escaping through the probe interface, reducing maintenance interruptions and improving automated system reliability.

Backward Compatibility with 3300 Series Components
The 330103-00-09-10-02-00 3300 XL 8 mm probe supports interchangeability with non-XL 3300 series probes and cables, allowing automated systems to upgrade without reconfiguring layouts.

Direct Voltage Output for Automation Control
With 50 Ω output resistance and supply sensitivity under 2 mV/V, the 330103-00-09-10-02-00 3300 XL 8 mm probe delivers consistent signals for integration into PLC, DCS, or SCADA systems.
