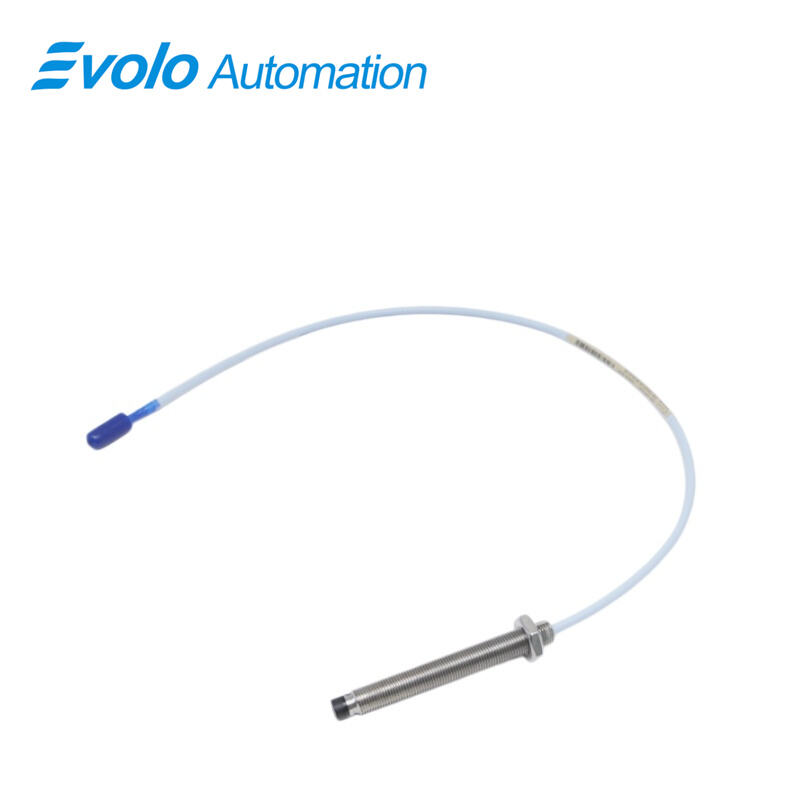

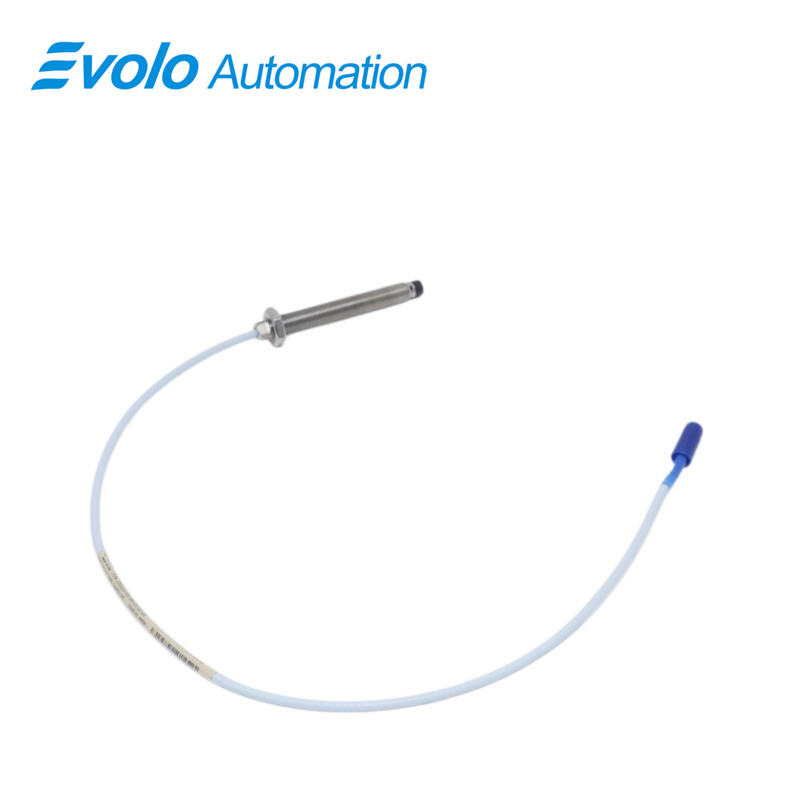

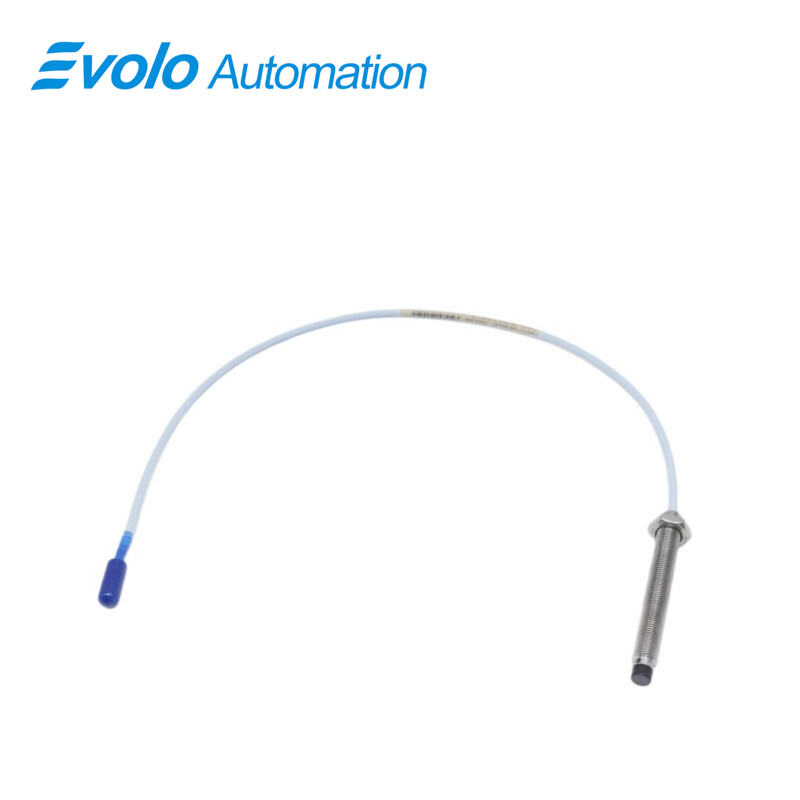

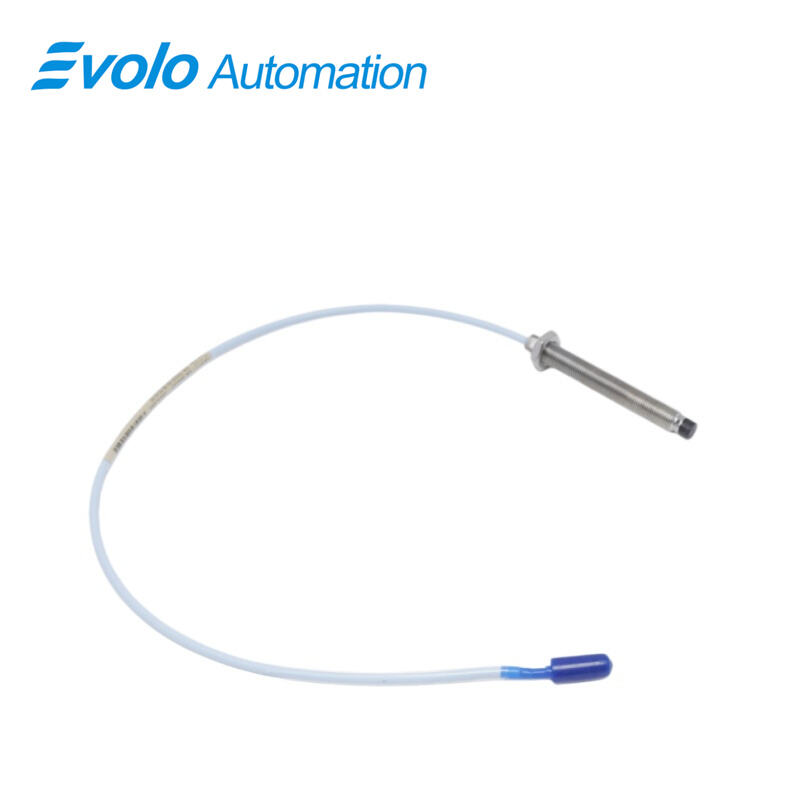

330103-00-08-05-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-08-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-08-05-02-00 3300 XL 8 mm Proximity Probe measures distance between the probe tip and conductive surfaces with a 2 mm linear range, supporting static position and dynamic vibration detection in automated machinery. Its 0.5-meter total length, M10x1 case thread, and 15 mm maximum thread engagement allow secure installation. The 330103-00-08-05-02-00 3300 XL 8 mm Proximity Probe operates from -52°C to +177°C, with 50 Ω output resistance and less than 2 mV change per volt supply variation. The miniature coaxial ClickLoc connector and 69.9 pF/m cable capacitance maintain accurate signal transmission. Ideal for position monitoring, vibration analysis, and Keyphasor speed measurement, the 330103-00-08-05-02-00 3300 XL 8 mm Proximity Probe features TipLoc and CableLoc designs providing 330 N pull strength and optional FluidLoc cabling to prevent fluid leakage, ensuring precise automated measurements in fluid-film bearing and rotating machinery applications.

Applications

Measure Shaft Position on Fluid-Film Bearings
The 330103-00-08-05-02-00 measures shaft displacement within a 2 mm linear range. Its M10x1 thread with 15 mm maximum engagement and 0.5-meter total cable length allows secure mounting on fluid-film bearing machinery. The probe operates from -52°C to +177°C and produces less than 2 mV output variation per volt supply change.

Monitor Vibration in Rotating Equipment
The 330103-00-08-05-02-00 captures dynamic vibration signals in turbines, pumps, and compressors. With 50 Ω output resistance and 69.9 pF/m cable capacitance, it maintains accurate vibration readings over the 0.5-meter cable.

Generate Keyphasor Signals for Speed Control
The 330103-00-08-05-02-00 delivers precise Keyphasor signals for automated speed monitoring. Its miniature coaxial ClickLoc connector and 0.2–1.5 mm² compatible field wiring allow direct integration with control systems.

Specifications

Competitive Advantage

Direct Voltage Output Linked to Probe Distance
The 330103-00-08-05-02-00 produces an output voltage directly proportional to probe tip displacement, keeping variations under 2 mV per volt supply change across a 2 mm linear range.

Robust Probe-Cable Connection
TipLoc and CableLoc designs give the 330103-00-08-05-02-00 330 N pull strength, reducing probe or cable detachment during automated operations.

Plug-and-Play Integration with 3300 Series Components
The 330103-00-08-05-02-00 can replace other 8 mm probes without bench calibration. Its 0.5-meter cable length and 69.9 pF/m capacitance enable immediate deployment in automated measurement setups.

High-Temperature Operation for Automation
Operating from -52°C to +177°C, the 330103-00-08-05-02-00 supports accurate position and vibration measurements in high-temperature rotating machinery.

Compact Installation for Limited Space
With an overall case length of 80 mm and 0.5-meter cable, the 330103-00-08-05-02-00 fits in tight mounting areas while maintaining signal accuracy.
