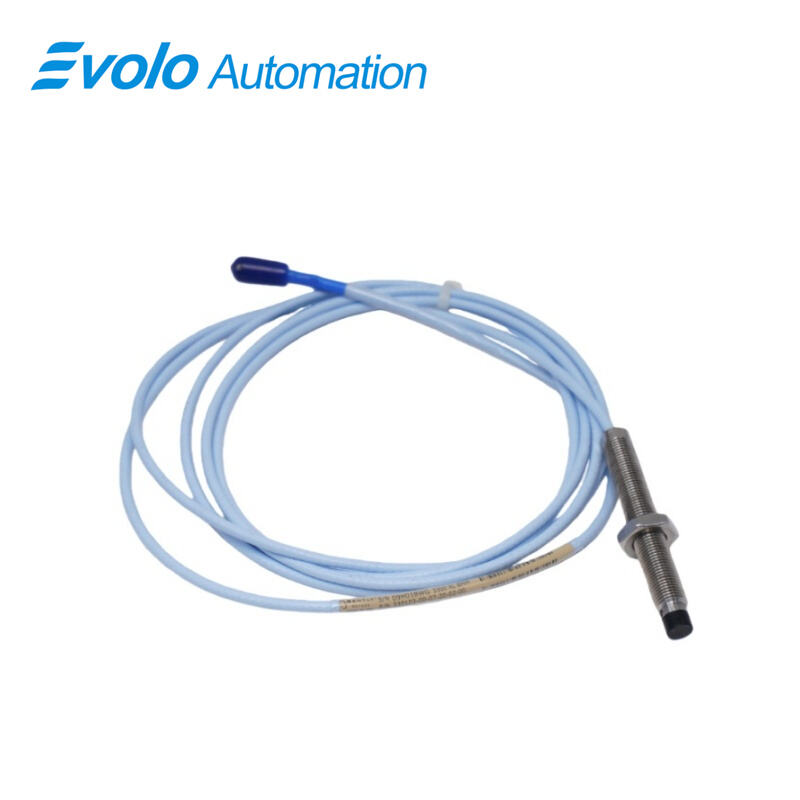

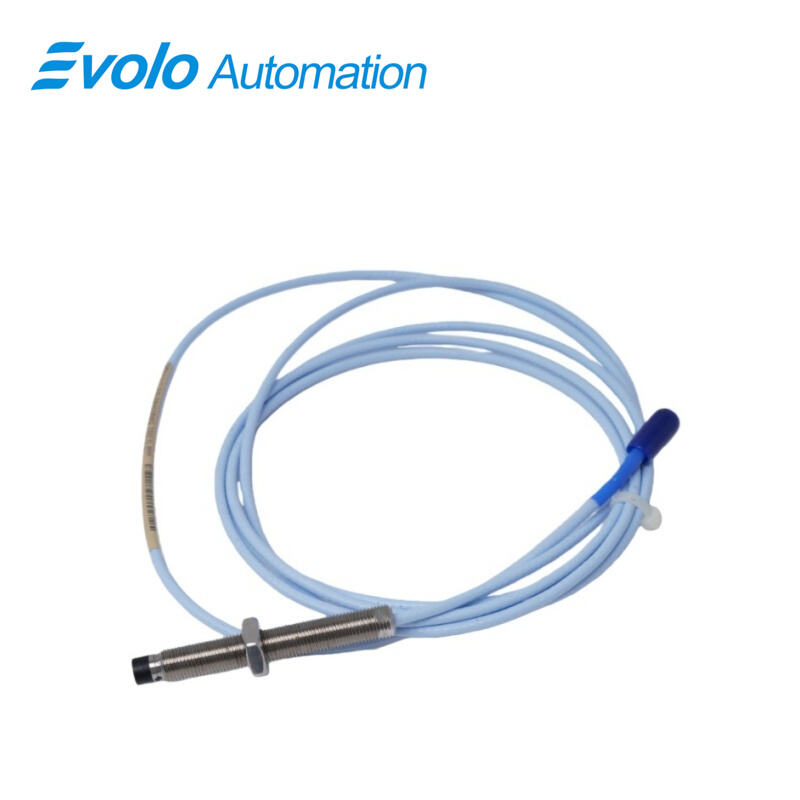

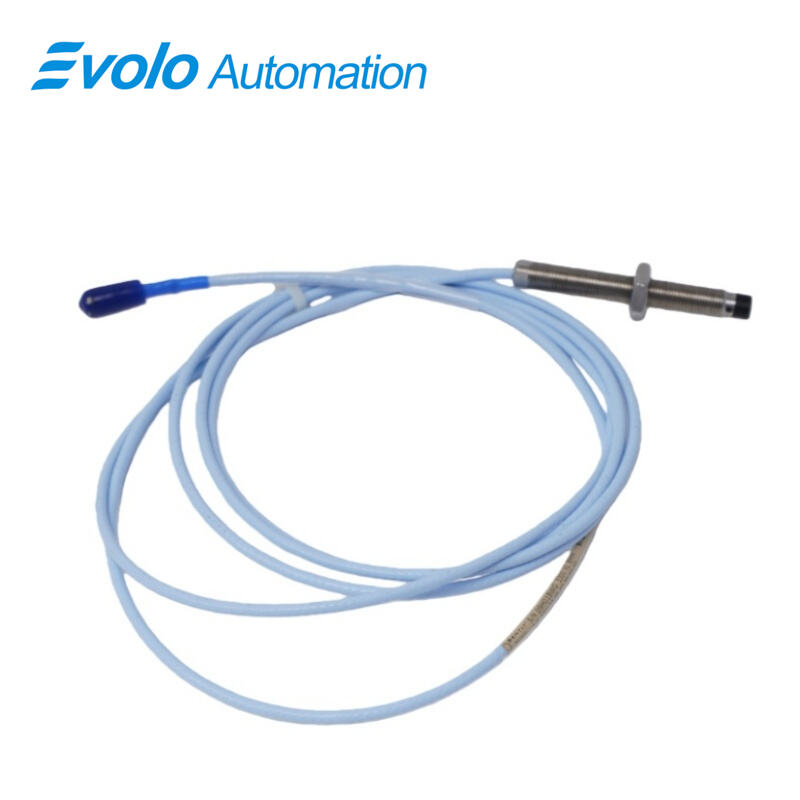

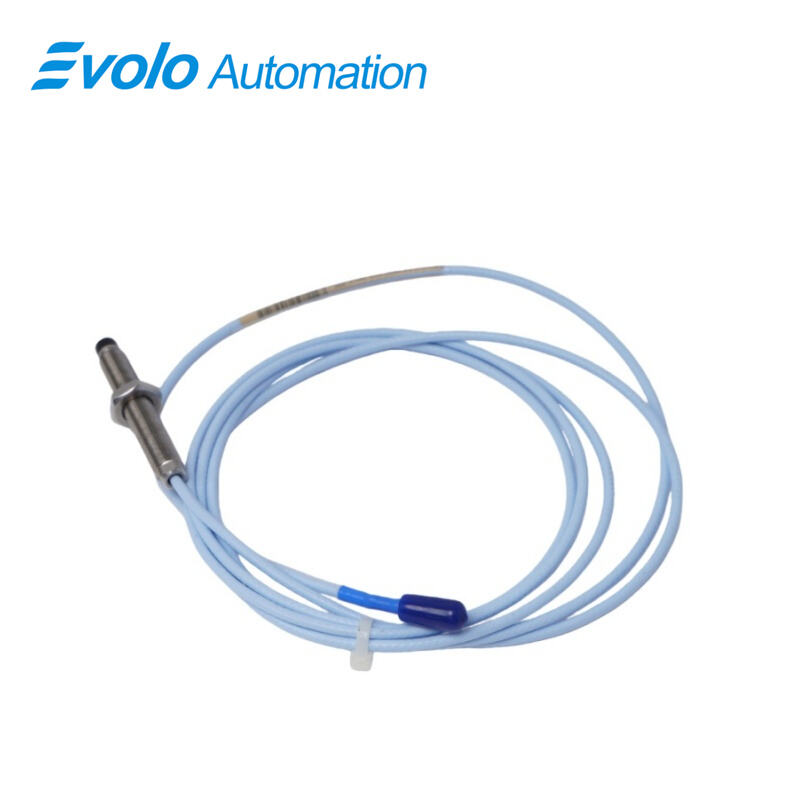

330103-00-07-20-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-07-20-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-07-20-02-00 3300 XL 8 mm Proximity Probe delivers precise distance measurement between the probe tip and conductive surfaces, supporting both static position and dynamic vibration detection. With a total length of 2.0 meters, an M10x1 probe case thread, and 15 mm maximum thread engagement, the 330103-00-07-20-02-00 3300 XL 8 mm operates across -52°C to +177°C. Its linear range of 2 mm and output resistance of 50 Ω ensure accurate signal output with less than 2 mV variation per volt supply change. The probe uses a miniature coaxial ClickLoc connector and standard cable with typical capacitance of 69.9 pF/m, compatible with 0.2–1.5 mm² field wiring. The 330103-00-07-20-02-00 3300 XL 8 mm is ideal for position monitoring, vibration analysis, and Keyphasor speed measurement in automated fluid-film bearing machinery. Optional FluidLoc cabling prevents oil or fluid leakage, and patented TipLoc and CableLoc designs provide secure probe-cable attachment, supporting reliable automated measurements.

Applications

Measure Shaft Position on Fluid-Film Bearings
The 330103-00-07-20-02-00 3300 XL 8 mm measures shaft displacement within a 2 mm linear range. Its M10x1 thread with 15 mm maximum engagement and total 2.0-meter cable length allows secure mounting in fluid-film bearing machines. Operating from -52°C to +177°C, the 330103-00-07-20-02-00 3300 XL 8 mm captures precise position changes with less than 2 mV output variation per volt supply change.

Monitor Vibration in Rotating Machinery
The 330103-00-07-20-02-00 3300 XL 8 mm detects vibration in turbines, compressors, and pumps. Its 50 Ω output resistance and 69.9 pF/m cable capacitance ensure accurate dynamic signal transmission over the 2.0-meter cable.

Generate Keyphasor Signals for Speed Control
The 330103-00-07-20-02-00 3300 XL 8 mm produces precise Keyphasor signals for phase and speed monitoring. The miniature coaxial ClickLoc connector and 0.2–1.5 mm² compatible field wiring facilitate direct integration with automated speed control systems.

Prevent Fluid Leakage in Lubrication Monitoring
Optional FluidLoc cabling on the 330103-00-07-20-02-00 3300 XL 8 mm blocks oil or other fluid leakage through the 2.0-meter cable, enabling continuous automated fluid-level monitoring.

Specifications

Competitive Advantage

Direct Voltage Output Proportional to Displacement
The 330103-00-07-20-02-00 3300 XL 8 mm produces an output voltage directly linked to shaft distance, maintaining less than 2 mV change per volt of supply fluctuation across a 2 mm linear range.

Secure Probe-Cable Attachment
TipLoc and CableLoc designs provide the 330103-00-07-20-02-00 3300 XL 8 mm with 330 N pull strength, minimizing cable detachment during automated operation.

Easy Integration with 3300 Series Components
The 330103-00-07-20-02-00 3300 XL 8 mm can replace other 3300 8 mm probes without bench calibration. The 2.0-meter cable and 69.9 pF/m capacitance enable immediate integration in automated measurement systems.

High-Temperature Operation for Automation
Operating from -52°C to +177°C, the 330103-00-07-20-02-00 3300 XL 8 mm reliably measures position and vibration in high-temperature bearings and rotating machinery.

Long Cable Length for Remote Sensor Placement
With a 2.0-meter total cable length, the 330103-00-07-20-02-00 3300 XL 8 mm allows installation at a safe distance from machinery while maintaining accurate signal transmission for automated monitoring.
