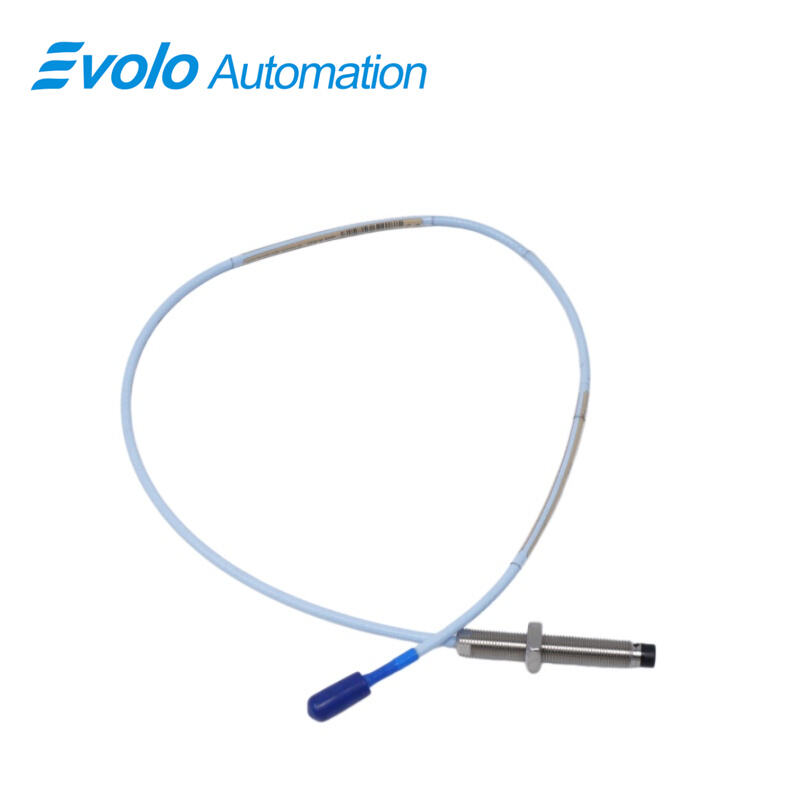

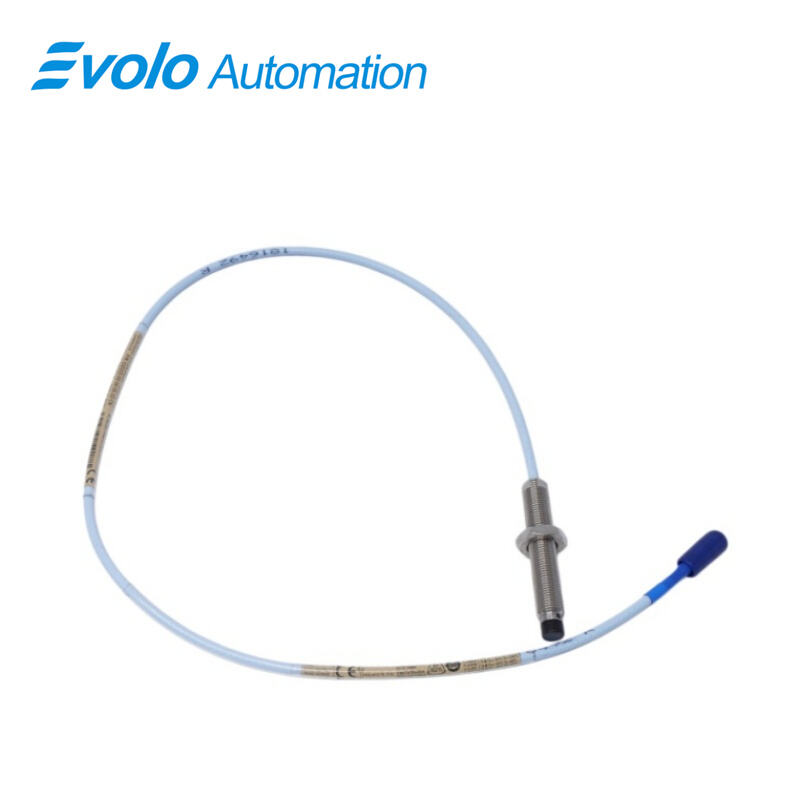

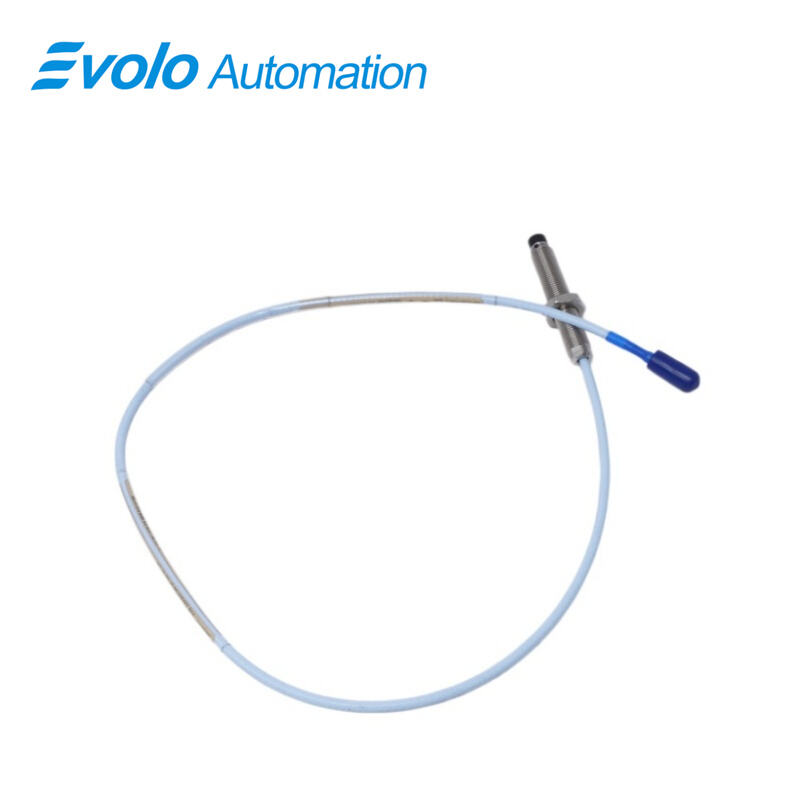

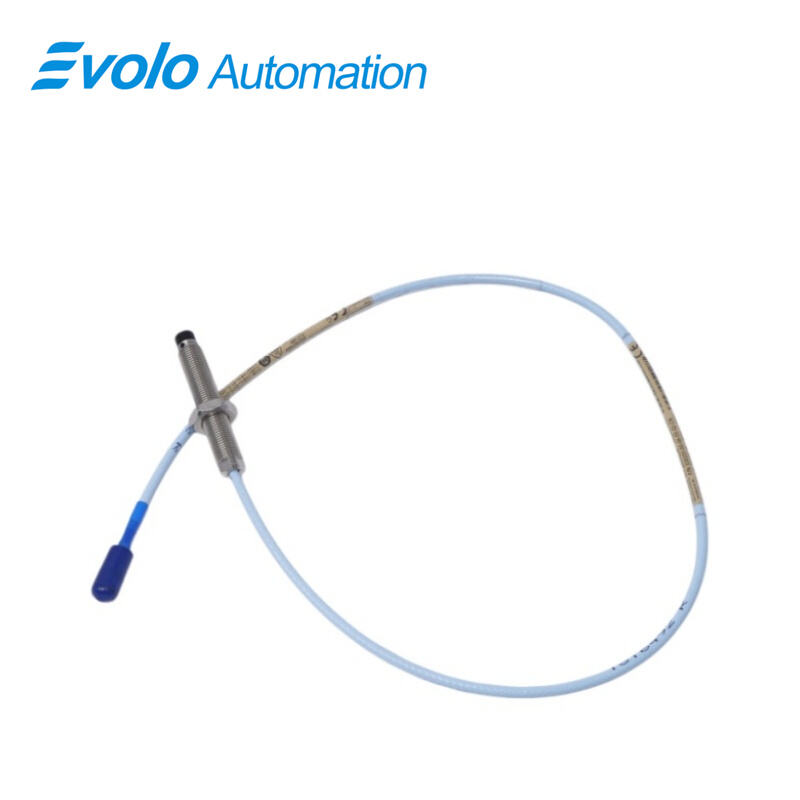

330103-00-06-05-02-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-06-05-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-06-05-02-CN 3300 XL 8 mm Proximity Probe delivers output voltage proportional to the 8 mm probe tip distance from conductive surfaces, measuring static position and dynamic vibration. Operating from -52°C to +177°C (-62°F to +350°F), the 3300 XL 8 mm probe features M10x1 thread with 15 mm maximum engagement, 50 Ω output resistance, 2 mm linear range, and 60 mm overall case length. Its 0.5 m total cable with miniature coaxial ClickLoc connector and 69.9 pF/m capacitance transmits precise signals for shaft vibration, rotor position, and Keyphasor monitoring in automated machinery. The 330103-00-06-05-02-CN 3300 XL 8 mm Proximity Probe supports fast installation and all 3300 XL 8 mm components interchange with extension cables and Proximitor sensors, reducing setup and maintenance time in industrial automation systems.

Applications

Measure Shaft Vibration in Turbines and Compressors
The 330103-00-06-05-02-CN 3300 XL 8 mm Proximity Probe captures precise shaft vibration signals. Its 2 mm linear range and 50 Ω output resistance deliver accurate readings for automated monitoring in turbines, pumps, and compressors.

Monitor Rotor Position in High-Speed Motors
Install the 3300 XL 8 mm probe to track rotor displacement. The 15 mm thread engagement and 69.9 pF/m cable capacitance maintain accurate voltage signals over 0.5 m cable for automated position monitoring.

Generate Keyphasor Pulses for Speed Control
The 330103-00-06-05-02-CN 3300 XL 8 mm Proximity Probe outputs Keyphasor reference pulses with less than 2 mV/V supply sensitivity, enabling real-time speed measurement and synchronization in automated machinery.

Detect Axial Shaft Movement in Confined Spaces
Use 3300 XL 8 mm probes to measure axial shaft displacement. The 60 mm overall case length and 0.5 m cable length allow installation in tight spaces while maintaining accurate automated monitoring.

Specifications

Competitive Advantage

High-Temperature Operation with Minimal Voltage Drift
The 330103-00-06-05-02-CN 3300 XL 8 mm Proximity Probe operates from -52°C to +177°C with less than 2 mV/V supply sensitivity. The 3300 XL 8 mm probe maintains accurate readings for turbines, compressors, and automated machinery under varying temperatures.

Quick Installation Using ClickLoc Connector
The miniature coaxial ClickLoc connector and M10x1 thread on the 330103-00-06-05-02-CN 3300 XL 8 mm Proximity Probe allow secure installation in under one minute. The 3300 XL 8 mm probe’s 15 mm thread engagement ensures firm attachment for automated shaft and rotor measurement setups.

Strong Probe-to-Cable Bond with CableLoc Design
The 330103-00-06-05-02-CN 3300 XL 8 mm Proximity Probe features CableLoc design with 330 N pull strength. The 3300 XL 8 mm probe maintains firm cable attachment during high-vibration monitoring, preventing signal loss in automated systems.

Optional FluidLoc Cable Prevents Oil Leakage
The 330103-00-06-05-02-CN 3300 XL 8 mm Proximity Probe with FluidLoc cable blocks fluid ingress along the 0.5 m cable. The 3300 XL 8 mm probe ensures clean signal transmission for Keyphasor, shaft vibration, and rotor position monitoring in automated machinery.
