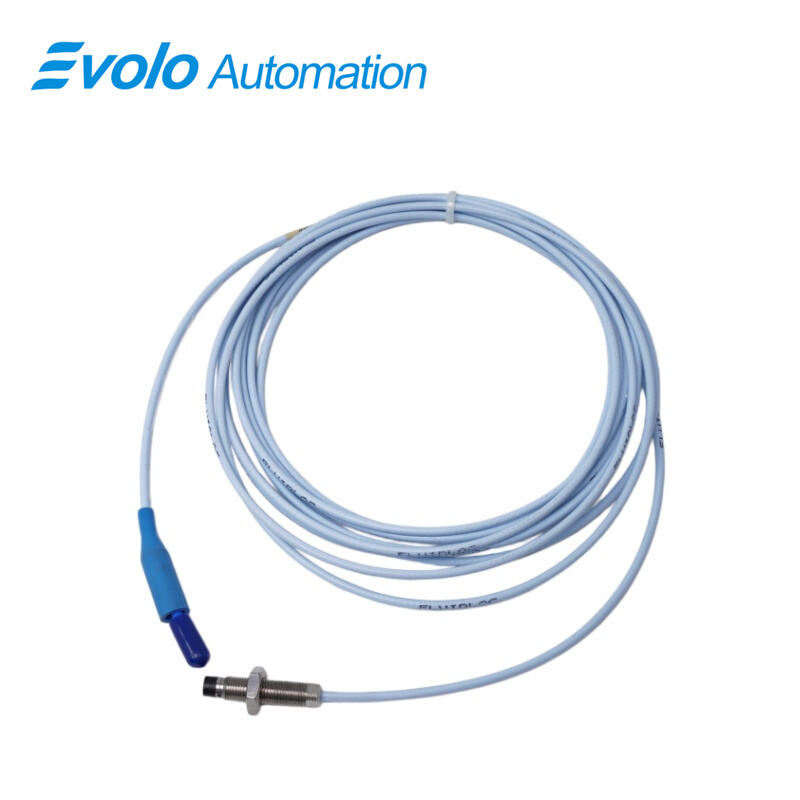

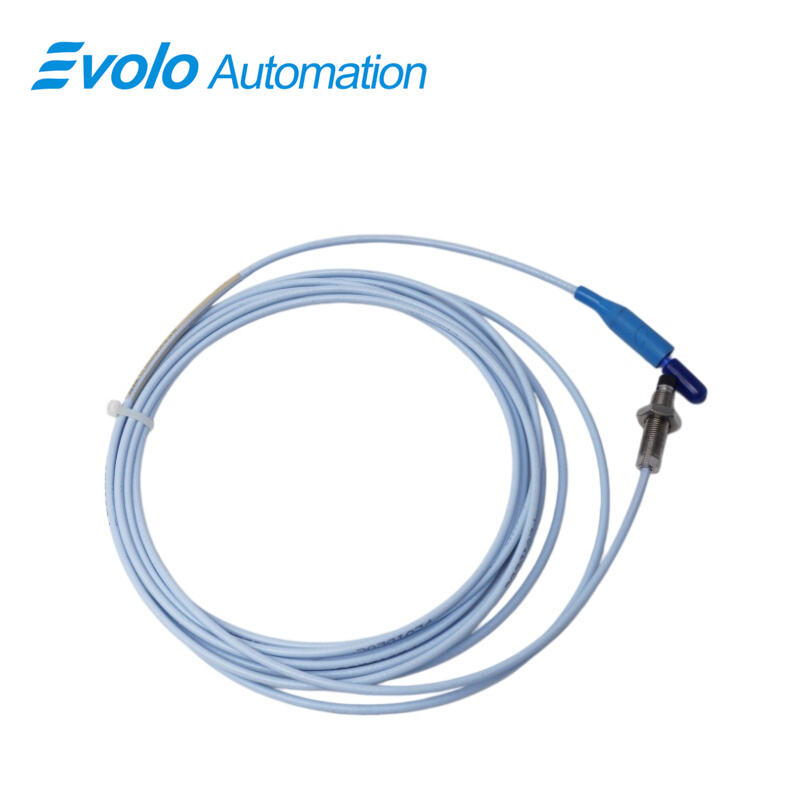

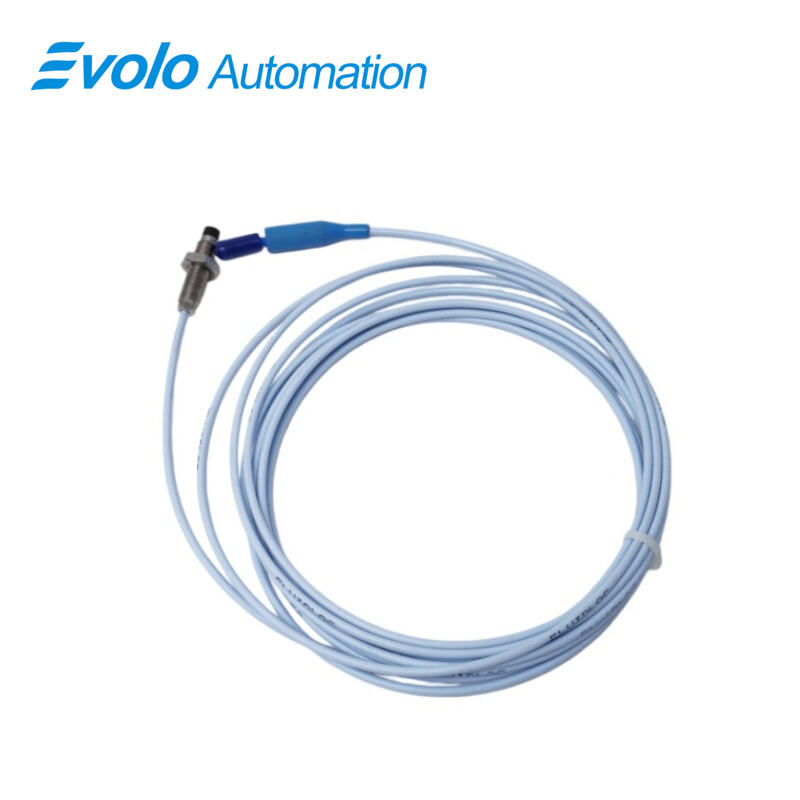

330103-00-04-50-11-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-04-50-11-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-04-50-11-00 3300 XL 8 mm Proximity Probe produces output voltage proportional to the 8 mm probe tip distance from conductive surfaces, measuring static position and dynamic vibration. Operating from -52°C to +177°C (-62°F to +350°F), the 330103-00-04-50-11-00 3300 XL 8 mm Proximity Probe features M10x1 thread with 15 mm maximum engagement, 50 Ω output resistance, and 2 mm linear range. Its 40 mm overall case length and 5.0 m total cable, combined with miniature coaxial ClickLoc connector and FluidLoc cable, deliver accurate signals for shaft vibration, rotor position, and Keyphasor monitoring in automated machinery. The 330103-00-04-50-11-00 3300 XL 8 mm Proximity Probe supports extended cable runs while preventing fluid leaks, and all 330103-00-04-50-11-00 3300 XL 8 mm Proximity Probe components interchange with extension cables and Proximitor sensors, reducing setup and maintenance time in industrial automation systems.

Applications

Measure Shaft Vibration in Turbines and Pumps
The 330103-00-04-50-11-00 3300 XL 8 mm Proximity Probe captures micrometer-level shaft vibration signals. Its 2 mm linear range and 50 Ω output resistance deliver precise readings for turbines, compressors, and pumps in automated monitoring systems.

Monitor Rotor Position in High-Speed Motors
Install the 330103-00-04-50-11-00 3300 XL 8 mm Proximity Probe to track rotor position. The 15 mm thread engagement and 69.9 pF/m cable capacitance maintain accurate voltage signals over the 5.0 m cable for automated position control.

Generate Keyphasor Pulses for Speed Measurement
The 330103-00-04-50-11-00 3300 XL 8 mm Proximity Probe outputs Keyphasor reference pulses with less than 2 mV/V supply sensitivity, enabling real-time speed measurement and synchronization in automated machinery.

Detect Axial Shaft Movement in Turbines
Use 330103-00-04-50-11-00 3300 XL 8 mm Proximity Probe to measure axial shaft displacement. The 40 mm overall case length and FluidLoc cable allow installation in confined spaces while preventing fluid leaks, supporting accurate automated monitoring.

Specifications

Competitive Advantage

High-Temperature Operation with Minimal Voltage Drift
The 330103-00-04-50-11-00 3300 XL 8 mm Proximity Probe operates from -52°C to +177°C (-62°F to +350°F) while maintaining output voltage change under 2 mV per volt input. This ensures the 3300 XL 8 mm probe provides precise readings for automated turbine and compressor monitoring without recalibration.

Quick Installation Using ClickLoc Connector
The miniature coaxial ClickLoc connector with protector and M10x1 thread of the 330103-00-04-50-11-00 3300 XL 8 mm Proximity Probe allows installation in under one minute. The 3300 XL 8 mm probe’s 15 mm thread engagement ensures secure attachment for automated shaft and rotor measurement setups.

Strong Probe-to-Cable Bond with CableLoc Design
The 330103-00-04-50-11-00 3300 XL 8 mm Proximity Probe features CableLoc with 330 N pull strength. The 3300 XL 8 mm probe maintains firm cable attachment during high-vibration monitoring over 5.0 m total cable length, reducing signal loss and maintenance interruptions in automation systems.

FluidLoc Cable Prevents Oil Leakage
Optional FluidLoc cable on the 330103-00-04-50-11-00 3300 XL 8 mm Proximity Probe blocks oil ingress along the 5.0 m cable. The 3300 XL 8 mm probe ensures clean signal transmission for Keyphasor, shaft vibration, and rotor position monitoring in automated machinery.
