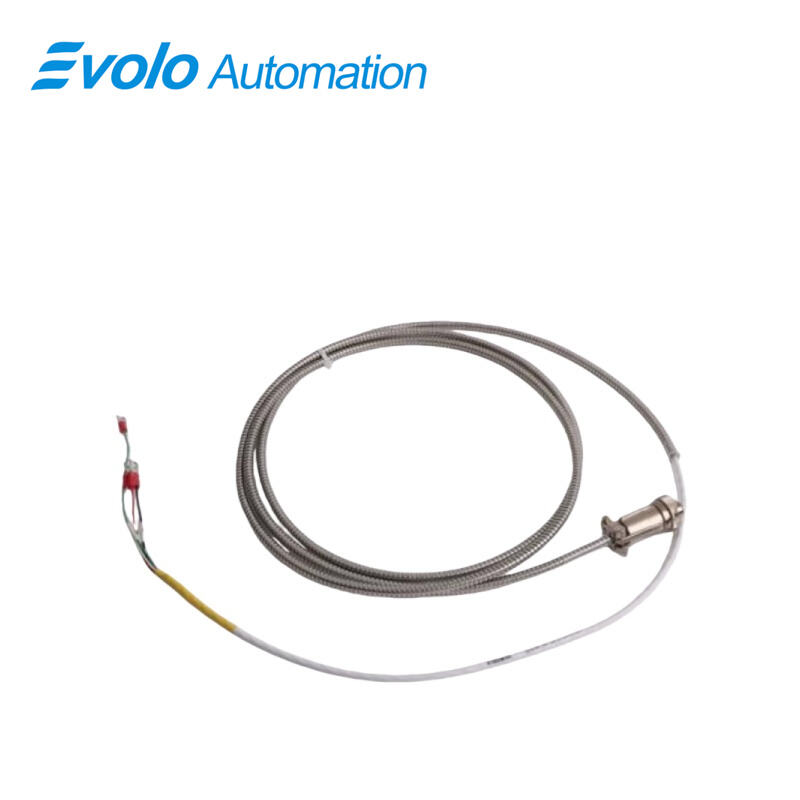

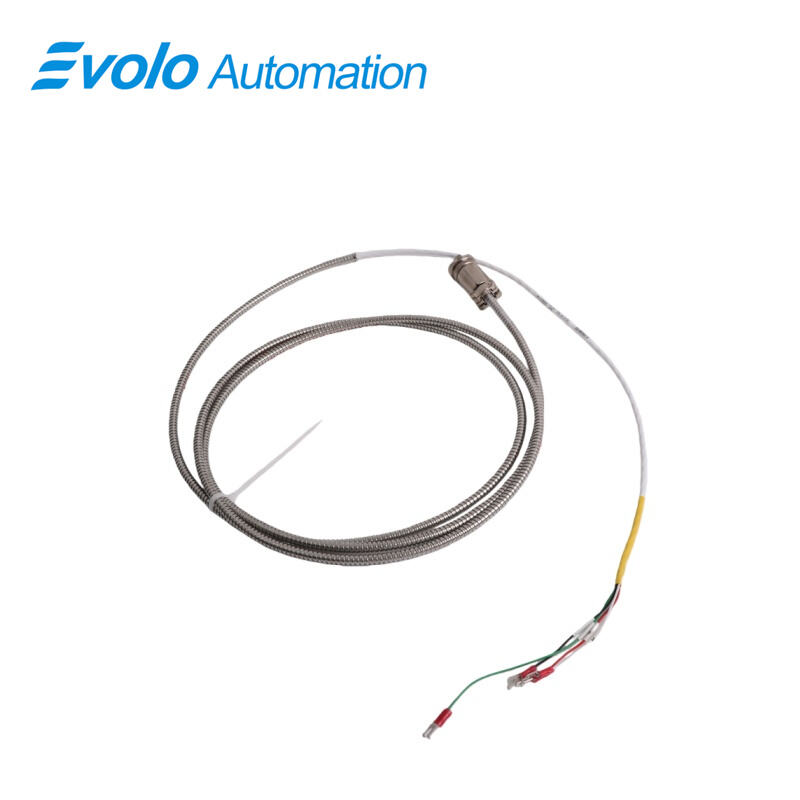

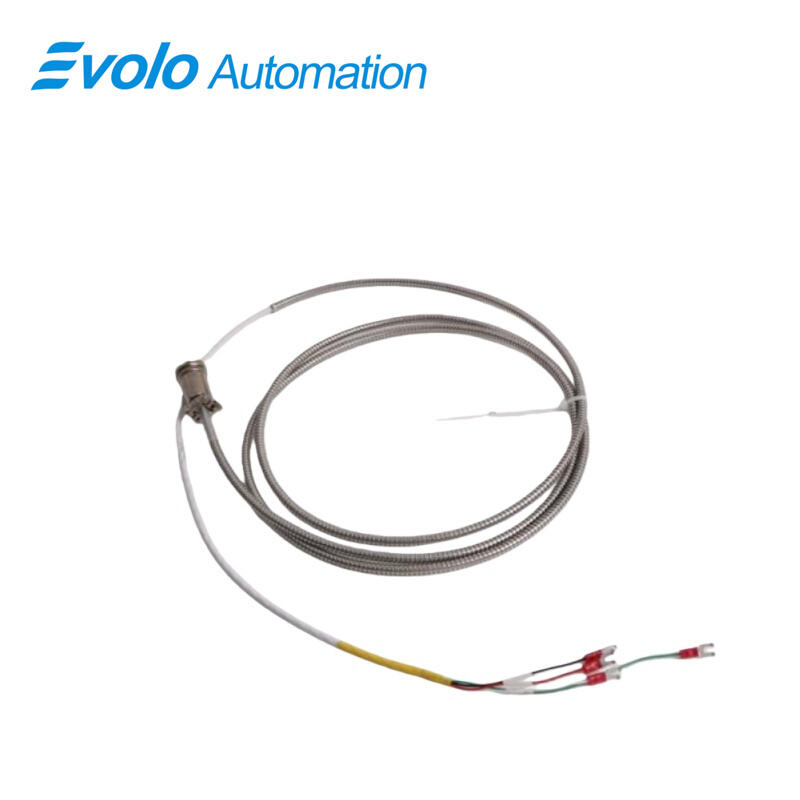

16710-09 Interconnect Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	16710-09
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 16710-09 Interconnect Cable is a high-performance connection solution designed for precision industrial monitoring systems, particularly in conjunction with Bently Nevada Proximitor sensor networks and related machinery protection systems. Engineered for reliability, the 16710-09 Interconnect Cable ensures consistent electrical signal transmission, even in demanding environments with high vibration, temperature variations, and exposure to industrial contaminants.

Constructed with a durable tinned copper cable core and high-quality PTFE insulation, the 16710-09 Interconnect Cable offers excellent electrical conductivity while providing resistance to chemical exposure, abrasion, and thermal degradation. This design guarantees long-term stability and reduces the risk of signal loss or interference over extended operational periods. The cable’s insulation and outer jacket materials are carefully selected to meet stringent industrial standards, making it suitable for use in turbines, compressors, pumps, and generators.

The 16710-09 Interconnect Cable supports various length options, with a standard total length of 3.0 meters (9.8 feet), and custom lengths available to fit specific installation requirements. Its flexible design and compact diameter allow easy routing within machinery enclosures and tight spaces, without compromising the integrity of the electrical connection. The cable is compatible with ClickLoc, miniature coaxial, and standard Bently Nevada connectors, ensuring secure and vibration-resistant interfaces throughout the system.

In addition to mechanical and electrical performance, the 16710-09 Interconnect Cable is built to operate reliably across a wide temperature range from -55°C to +200°C (-67°F to +392°F). Its low capacitance (~70 pF/m typical) and consistent 50 Ω impedance ensure accurate signal propagation, supporting high-fidelity monitoring of shaft displacement, rotor vibration, and other critical machinery parameters. The cable’s robust construction minimizes susceptibility to external electromagnetic interference, maintaining the integrity of the monitoring system in industrial environments.

Applications

1.Flexible and Compact Installation

Designed with a tinned copper 24 AWG conductor and compact dimensions of 27 × 27 × 2.5 cm, the 16710-09 Interconnect Cable allows easy routing in confined spaces or complex industrial setups. Its bend radius of ≥10 × cable diameter for static and 15 × cable diameter for dynamic conditions provides the flexibility needed for tight machinery layouts without compromising performance.

2.Robust Performance in Harsh Environments

This interconnect cable operates reliably across extreme temperatures, from -55°C to +200°C (-67°F to +392°F), and can be safely stored between -50°C and +150°C (-58°F to +302°F). Its durable construction and shielding ensure long-term performance in high-temperature, high-vibration, and chemically aggressive industrial environments.

3.Superior Electromagnetic Shielding

The 16710-09 Interconnect Cable provides excellent protection against electromagnetic interference, with a shielding effectiveness of ≥85 dB at 1 GHz. This ensures that sensitive signals from Proximitor sensors remain accurate and free from noise, even in electrically noisy industrial areas.

4.Easy Field Integration and Global Compliance

Supporting field wiring from 0.2 to 1.5 mm² (16 to 24 AWG), the cable is compatible with standard industrial installation practices. The cable also carries multiple agency approvals, allowing safe deployment in hazardous or regulated industrial zones worldwide. With a standard length of 3.0 meters (9.8 feet) and a lightweight design (0.24 kg), the 16710-09 Interconnect Cable can be integrated seamlessly into existing monitoring systems with minimal installation effort.

Specifications

Competitive Advantage

1.Versatile Field Compatibility

Supporting field wiring from 0.2 to 1.5 mm² (16 to 24 AWG), the cable integrates seamlessly with existing Proximitor sensors and extension systems. Its robust construction ensures a stable connection under vibration and mechanical stress, improving the longevity and reliability of monitoring systems.

2.Global Compliance and Safety

The 16710-09 Interconnect Cable carries multiple agency approvals, enabling deployment in regulated and hazardous industrial zones worldwide. This certification ensures safety, regulatory compliance, and operational reliability across diverse industrial applications.

3.Extreme Temperature Endurance

Designed to operate in harsh conditions, this cable maintains performance across -55°C to +200°C (-67°F to +392°F) and can be safely stored between -50°C and +150°C (-58°F to +302°F). This wide thermal range ensures reliable operation in both high-temperature industrial equipment and subzero environments.and hassle-free deployment across regions.
