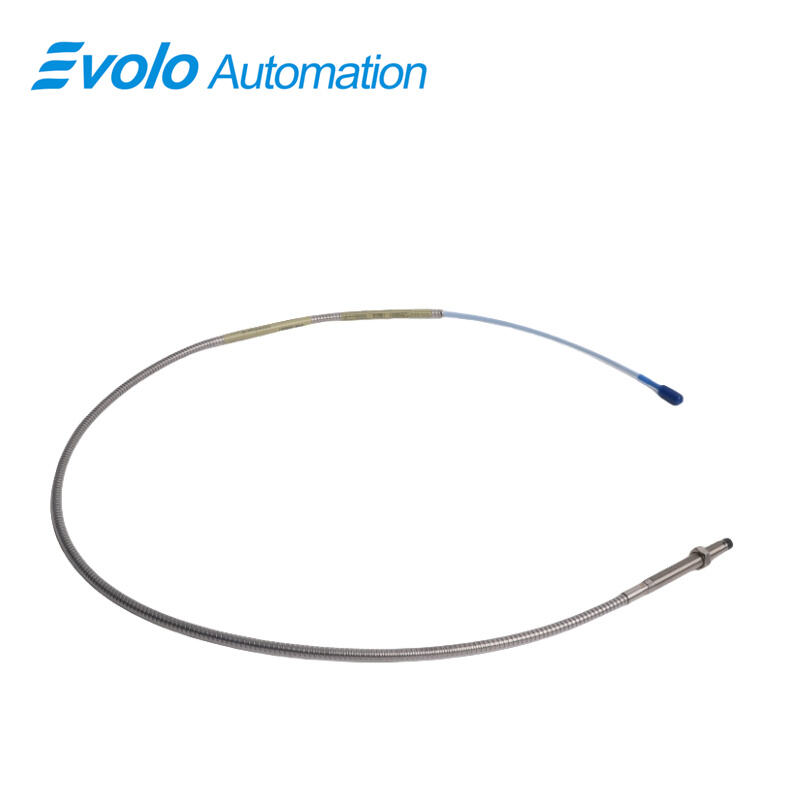

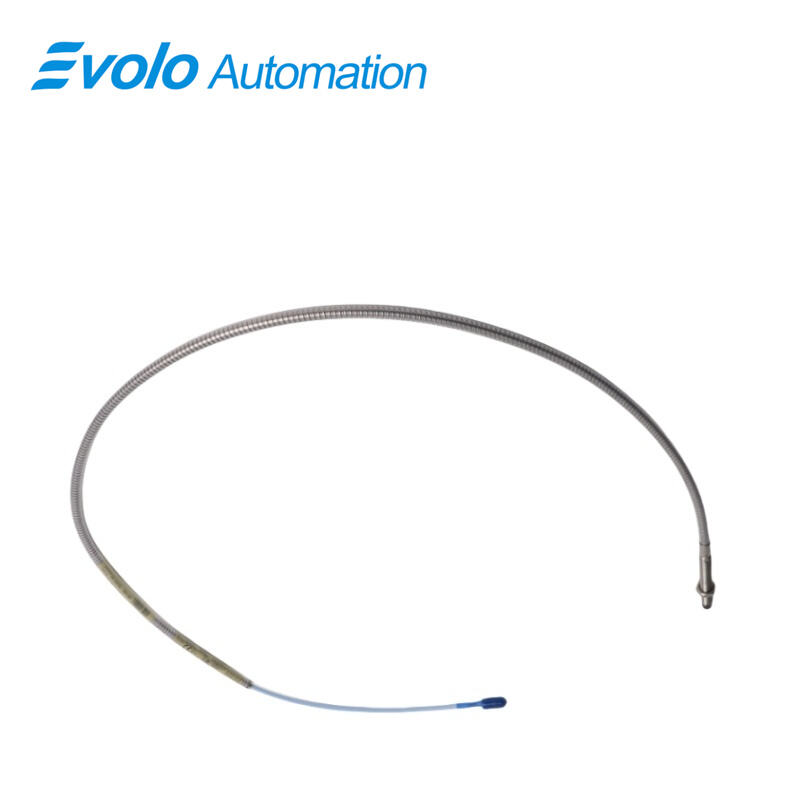

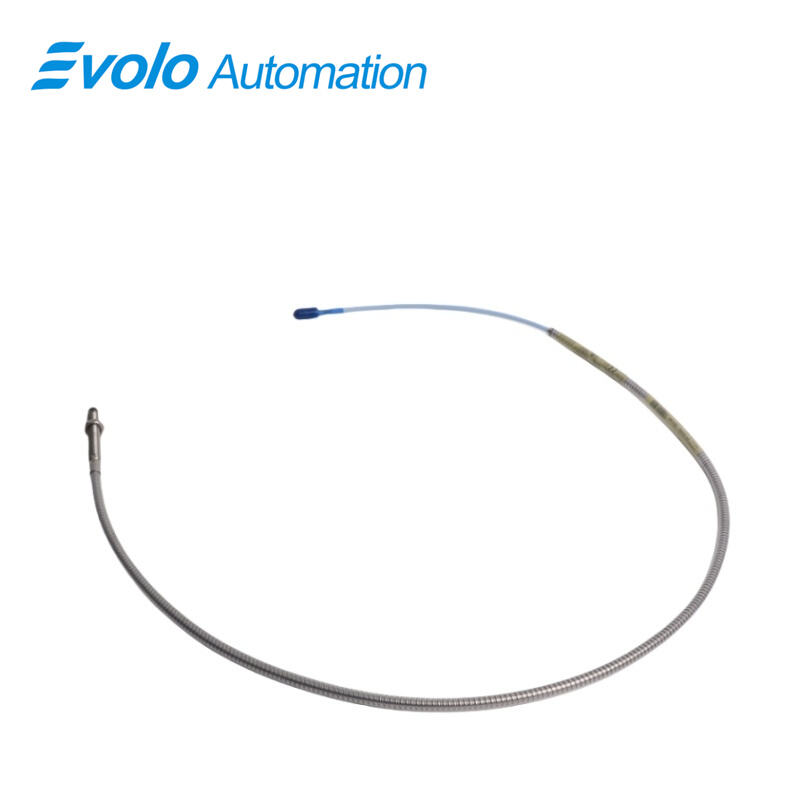

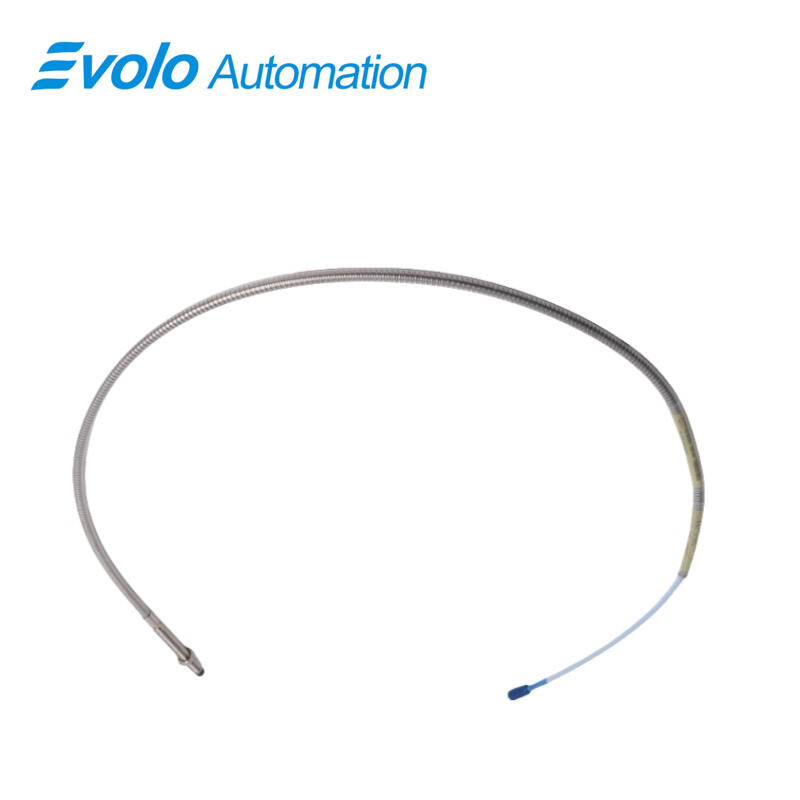

330102-00-28-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-28-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-28-10-02-00 3300 XL 8 mm Proximity Probes delivers precise measurement of both static position and dynamic vibration in automated machinery. The 330102-00-28-10-02-00 3300 XL 8 mm Proximity Probes features a 3/8-24 UNF threaded probe case with a minimum unthreaded length of 0.0 in and overall case length of 2.8 in, supporting installation in compact industrial setups. The total length of 1.0 meter (3.3 feet) and miniature coaxial ClickLoc connector enables quick integration with extension cables. Operating across a temperature range of -52°C to +177°C (-62°F to +350°F), the 330102-00-28-10-02-00 3300 XL 8 mm Proximity Probes maintains consistent output voltage with less than 2 mV variation per volt of input change. With a linear range of 2 mm (80 mils) and output resistance of 50 Ω, this probe supports high-precision monitoring of fluid-film bearing machines. The patented TipLoc and CableLoc designs on 330102-00-28-10-02-00 3300 XL 8 mm Proximity Probes ensure robust tip bonding and secure cable attachment, while optional FluidLoc cables prevent leakage of oil and other fluids, making the 330102-00-28-10-02-00 3300 XL 8 mm Proximity Probes ideal for automated industrial environments.

Applications

Radial Vibration Measurement on Shafts
The 330102-00-28-10-02-00 3300 XL 8 mm Proximity Probes measures radial vibration on shafts with diameters down to 50 mm, using its linear range of 2 mm (80 mils) and precision output of 50 Ω, ensuring accurate monitoring of fluid-film bearing machinery.

Axial Position Monitoring
Using the 1.0 meter (3.3 feet) total length and miniature coaxial ClickLoc connector, the 330102-00-28-10-02-00 3300 XL 8 mm Proximity Probes captures axial displacement on flat targets, supporting dynamic control systems and automated gap adjustments in process machinery.

Keyphasor Signal Generation
The 330102-00-28-10-02-00 3300 XL 8 mm Proximity Probes generates precise Keyphasor reference signals for speed detection and phase synchronization, with supply sensitivity under 2 mV per volt ensuring minimal drift during high-speed operations.

Retrofit in Compact Installations
The 330102-00-28-10-02-00 3300 XL 8 mm Proximity Probes fits into tight mounting spaces due to its 3/8-24 UNF threaded case and minimum unthreaded length of 0.0 in, allowing automation upgrades without major mechanical redesign.

Specifications

Competitive Advantage

Secure Cable and Probe Bonding
The patented TipLoc method in 330102-00-28-10-02-00 3300 XL 8 mm Proximity Probes provides a stronger bond between the probe tip and body, while CableLoc design offers 330 N (75 lbf) pull strength, reducing maintenance in automated systems.

Leak Prevention for Industrial Fluids
Optional FluidLoc cables in 330102-00-28-10-02-00 3300 XL 8 mm Proximity Probes prevent oil or liquid intrusion into the ClickLoc connectors, protecting signals in process environments.

Field-Ready Wiring
Compatible with 16–24 AWG field wiring and an extension cable capacitance of 69.9 pF/m, the 330102-00-28-10-02-00 3300 XL 8 mm Proximity Probes ensures long-range signal integrity without bench calibration.

Direct Voltage-to-Displacement Output
The 330102-00-28-10-02-00 3300 XL 8 mm Proximity Probes converts probe-target distance directly into voltage with linear range of 2 mm, simplifying integration with automated monitoring and control systems.
