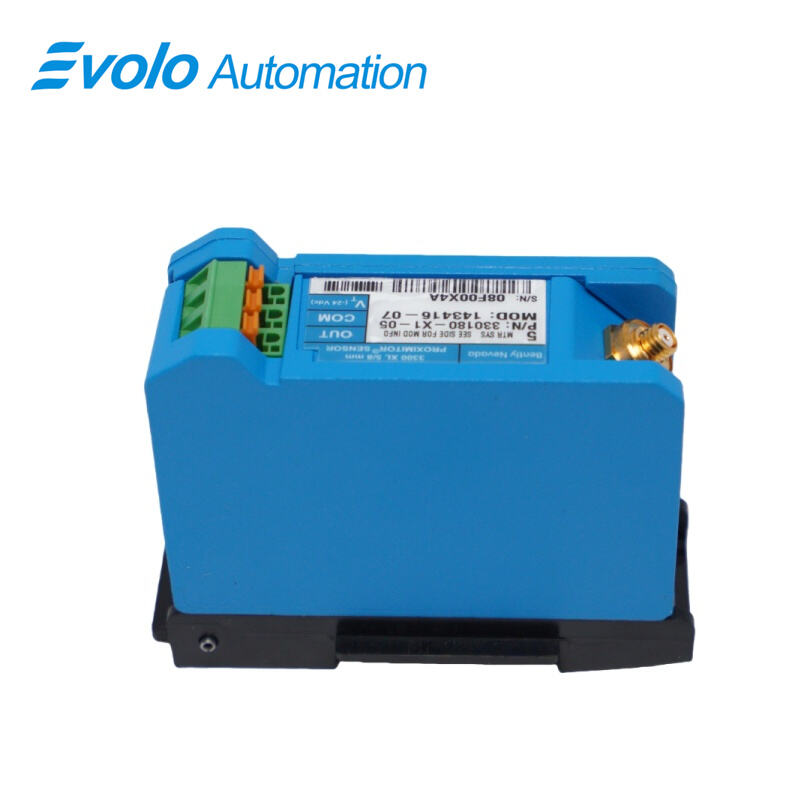

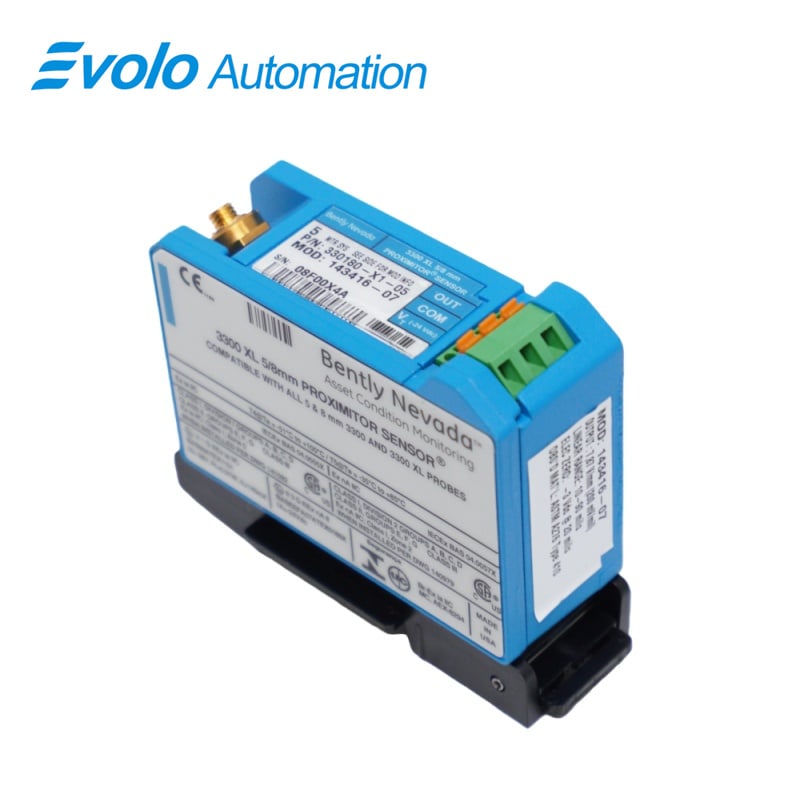

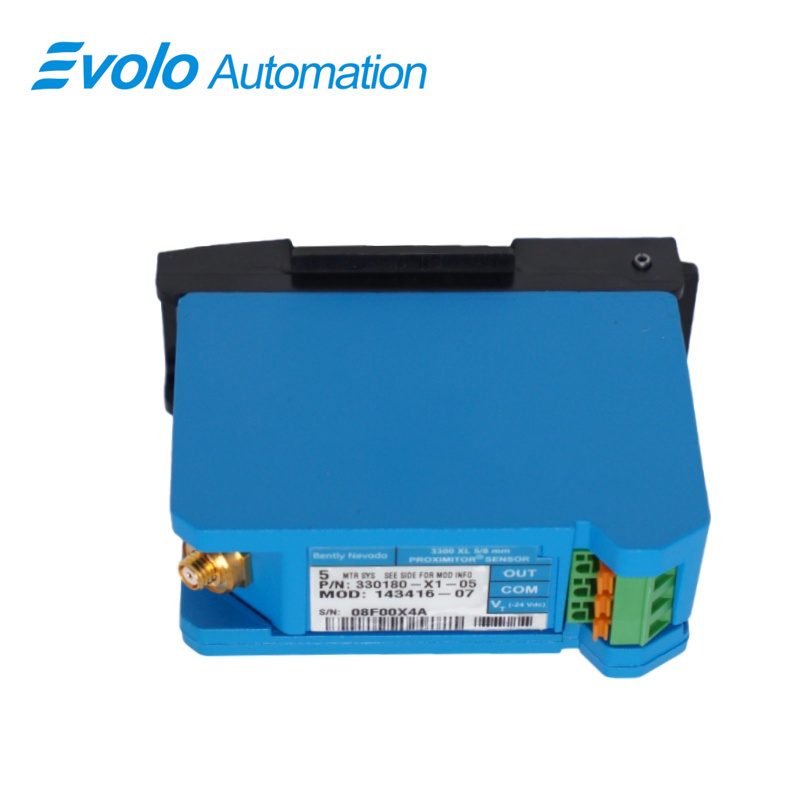

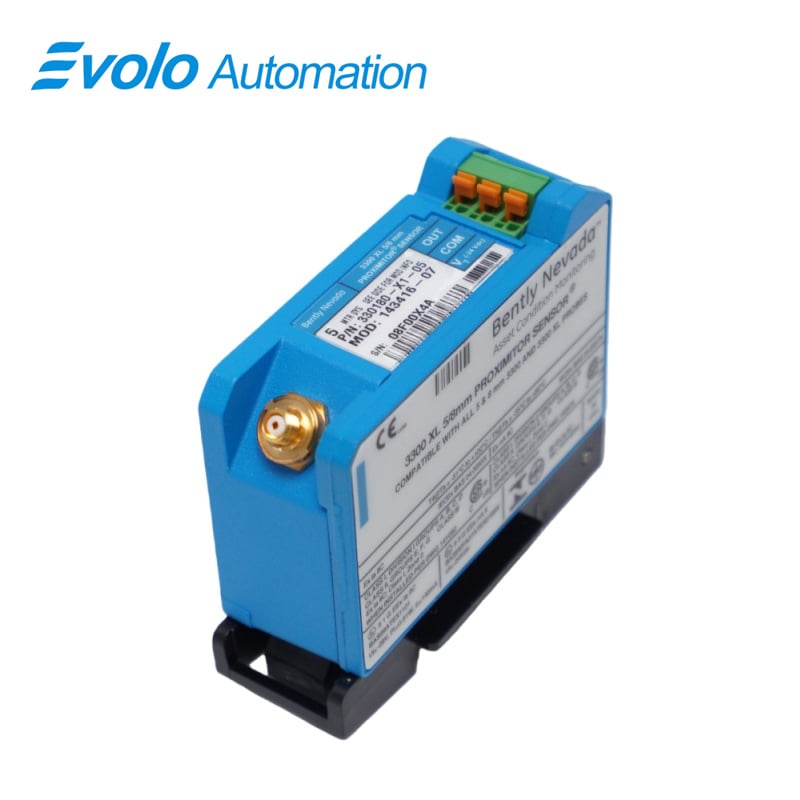

330180-X1-05 MOD: 145193-01 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-X1-05 MOD: 145193-01
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-X1-05 MOD: 145193-01 3300 XL Proximitor Sensor is a high-performance proximity transducer designed for industrial automation and machinery monitoring. Compatible with 3300-series 5 mm and 3300 XL 8 mm Proximity Probes and extension cables, it provides precise measurements of both static position and dynamic vibration. Operating over a temperature range of -52°C to +100°C (-62°F to +212°F) and with power requirements of -17.5 Vdc to -26 Vdc, this sensor delivers stable performance with a frequency response of 0–10 kHz and a linear range supporting targets as small as 15.2 mm (0.6 in) diameter. The sensor is constructed from durable A308 aluminum, features 50 Ω output resistance, and maintains output sensitivity changes below 2 mV per volt of input variation. Approved for CSA, ATEX, and IECEx, it supports high-density DIN-rail or traditional panel mounting, and its advanced SpringLoc terminal strips allow secure, fast field wiring. Designed for harsh environments, the 3300 XL Proximitor Sensor ensures accurate, reliable feedback for condition monitoring and predictive maintenance in automated industrial systems.

Applications

1. Fluid-Film Bearing Machine Monitoring
The 3300 XL Proximitor Sensor measures both vibration and shaft displacement in turbines, compressors, and generators. With a minimum target size of 15.2 mm and linear output proportional to distance, it provides precise rotational position data to prevent bearing failure.

2. Keyphasor Reference and Speed Measurement
Integrated directly into automation systems, the sensor outputs high-accuracy timing pulses from rotating machinery, allowing for speed monitoring and synchronization. Its 0–10 kHz frequency response ensures real-time detection of high-speed rotor motion.

3. Condition-Based Maintenance Automation
The sensor feeds reliable vibration and proximity data into predictive maintenance systems. Its RFI/EMI immunity ensures clean signals in industrial environments with high electrical noise, supporting automated maintenance alerts.

4. Panel and DIN-Rail Integration
The compact design allows installation in high-density DIN-rail racks or standard panel mounts. Its identical 4-hole footprint with legacy designs ensures seamless upgrades without reconfiguring existing automation layouts.

5. Harsh Environment Industrial Machinery Protection
With CSA, ATEX, and IECEx approvals, the sensor withstands extreme conditions including high temperatures, oil exposure (with optional FluidLoc cables), and electromagnetic interference, making it ideal for petrochemical and energy plants.

Specifications

Competitive Advantage

1. Backward Compatibility and Interchangeability
Fully compatible with 3300-series 5 mm and 8 mm probes and extension cables, the 3300 XL allows easy system upgrades without bench calibration, reducing installation complexity by up to 40%.

2. High-Accuracy Output and Low Sensitivity Drift
Output voltage changes less than 2 mV per volt of input variation ensures stable, precise measurements, supporting critical vibration monitoring and automation control.

3. Robust Construction and Fluid Containment
The A308 aluminum housing and optional FluidLoc cable prevent oil leakage and ensure mechanical integrity. CableLoc design supports 330 N pull strength, protecting field connections under high mechanical stress.

4. Enhanced RFI/EMI Immunity
The sensor can be installed near high-power electronics and in fiberglass housings without signal degradation, meeting CE mark standards and reducing the need for costly shielded conduits.

5. Flexible Installation Options
Supports panel mount or high-density DIN-rail configurations with electrical isolation built into the mounting base. SpringLoc terminal strips allow fast, reliable wiring without specialized tools, saving installation time and reducing maintenance errors.
