Overview

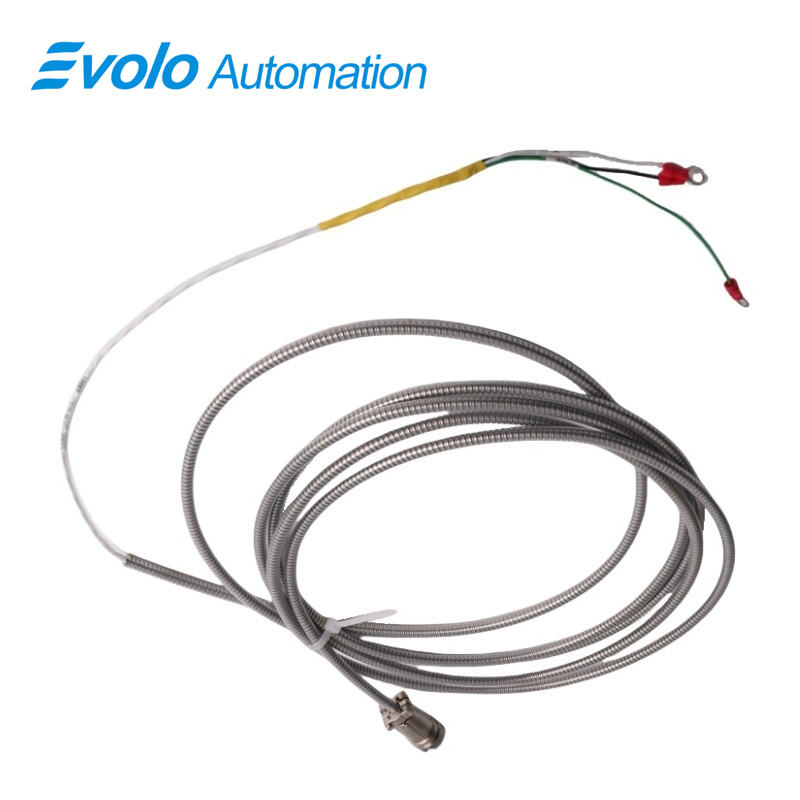

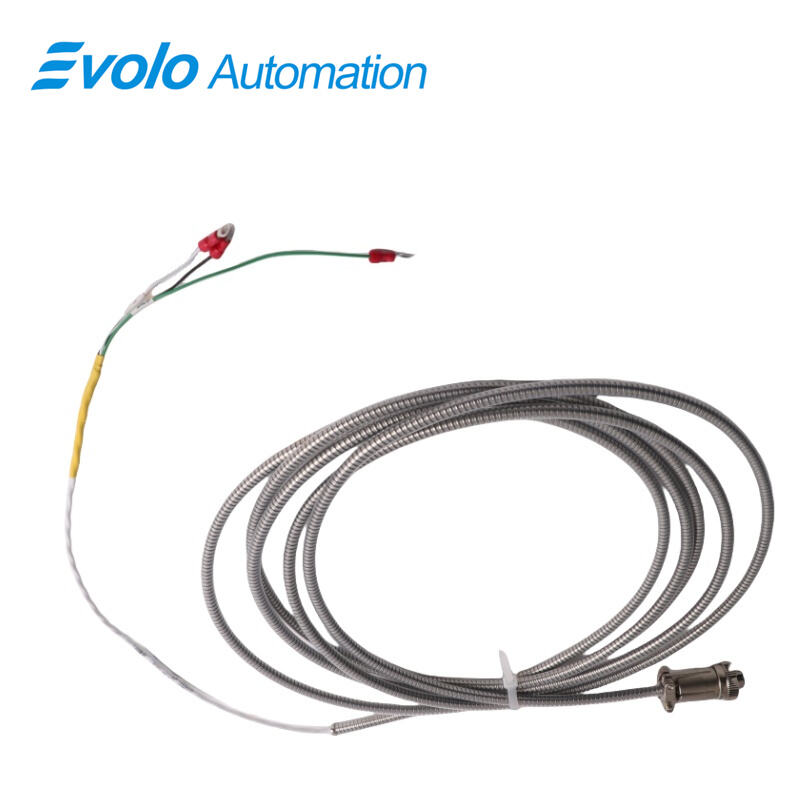

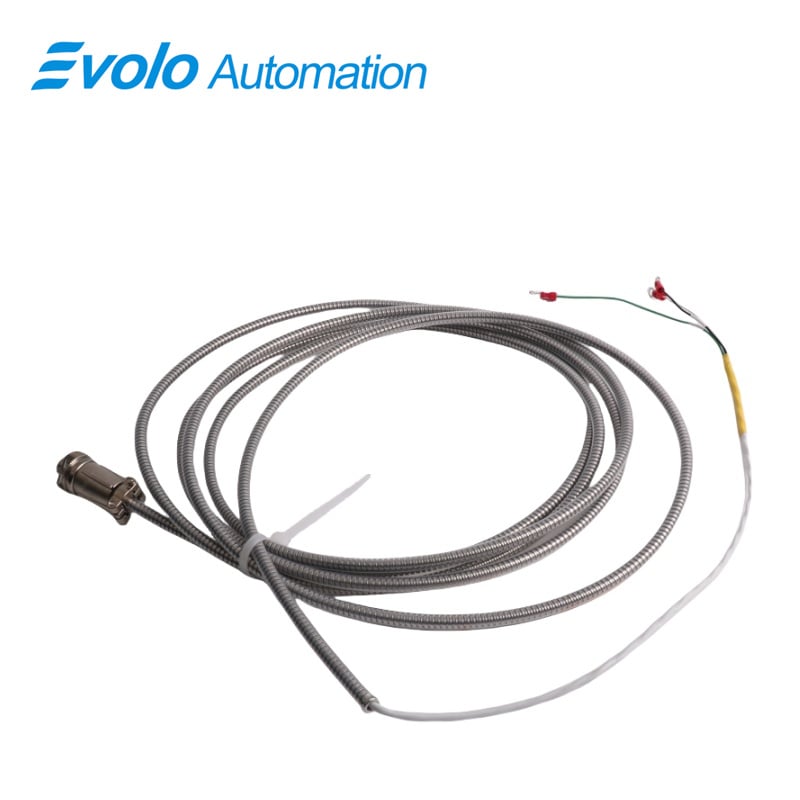

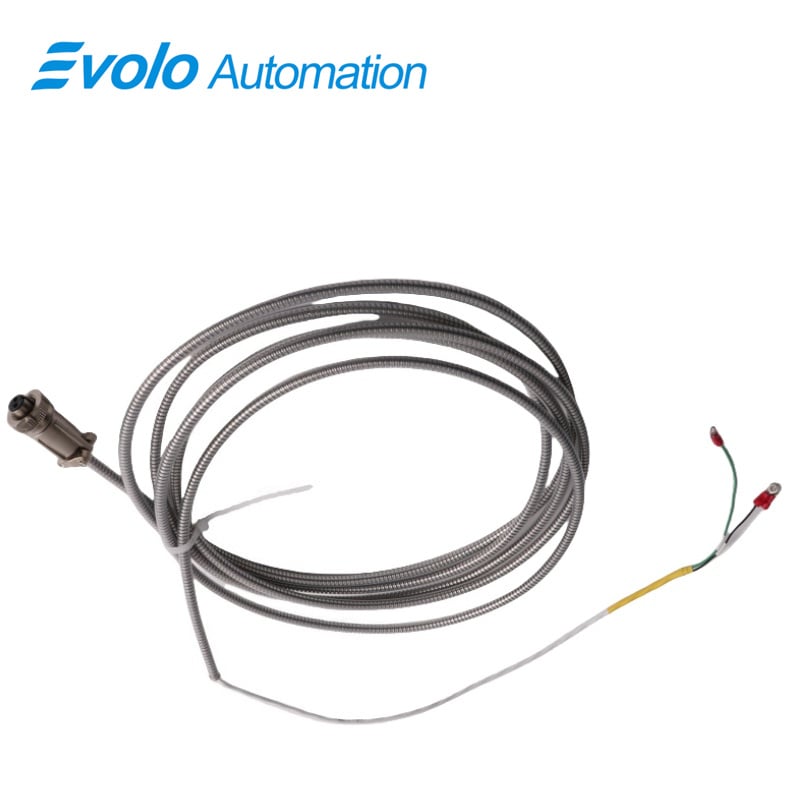

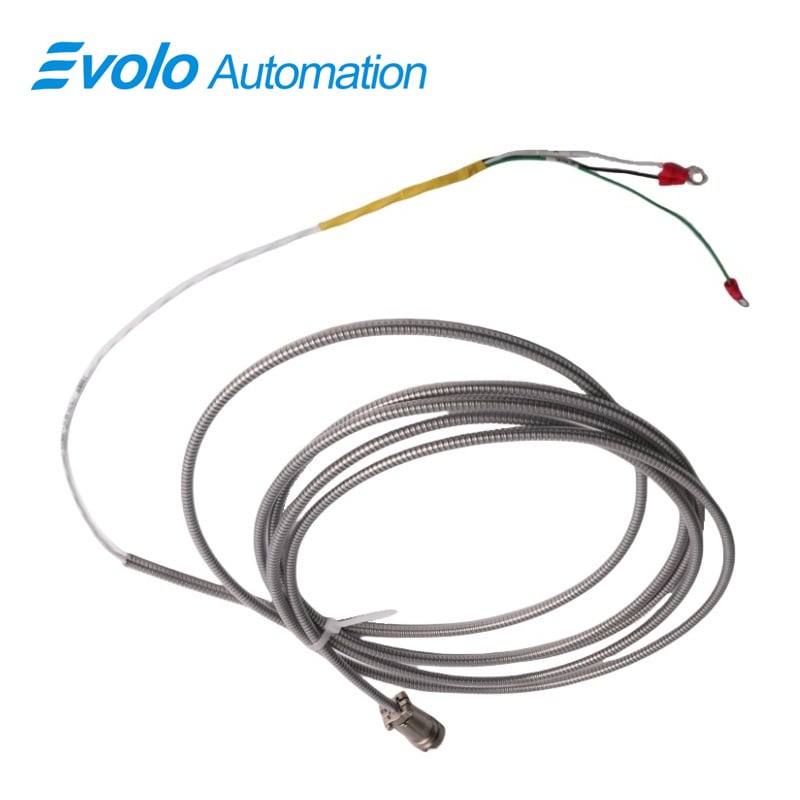

84661-06 Interconnect Cable
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
84661-06 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 84661-06 Interconnect Cable is a high-performance 18 AWG multi-conductor cable designed for industrial automation systems requiring reliable signal transmission in harsh environments. Featuring three tinned copper conductors with industrial-grade PVC insulation and a durable PVC jacket resistant to oil, heat, and mechanical stress, this cable ensures long-term operational stability. It incorporates a foil shield with a drain wire to minimize electromagnetic interference (EMI) and provides precise connectivity through a pre-terminated straight industrial connector. With an overall length of 6.0 inches (152.4 mm) ±10%, it supports operating temperatures from -20°C to +80°C, voltage ratings up to 300 V, and current ratings up to 5 A. Its minimum bend radius of 1 inch (25.4 mm) allows flexible installation in tight spaces. Fully RoHS compliant, the 84661-06 is ideal for high-precision automation, process control, and factory instrumentation applications.
Key Functions
Applications
1. PLC Signal Connectivity
Used to connect programmable logic controllers (PLCs) to field sensors and actuators, ensuring reliable signal integrity even in environments with temperatures ranging from -20°C to +80°C and up to 5 A current loads.
2. Industrial Control Panels
Ideal for wiring inside industrial control panels, supporting multiple conductors and reducing electromagnetic interference through its foil shield and drain wire, enhancing the accuracy of control signals.
3. Robotic Automation Systems
Facilitates communication between robotic controllers and motors, maintaining stable data transfer in compact setups due to its flexible 1-inch minimum bend radius and 6-inch length.
4. Factory Instrumentation Wiring
Supports connection of pressure, temperature, and flow sensors in automated production lines, providing durable, oil-resistant insulation for harsh industrial conditions.
5. Process Control Equipment
Integrates with process control modules to deliver consistent electrical performance at 300 V, ensuring continuous operation of pumps, valves, and monitoring devices in industrial plants.
Official Specifications
Quick Detail
|
Cable Type: |
18 AWG multi-conductor cable |
|
Number of Conductors: |
3 (typical) |
|
Conductor Material: |
Tinned copper |
|
Insulation Material: |
PVC (industrial grade) |
|
Jacket Material: |
PVC, oil & heat resistant |
|
Shielding: |
Foil shield with drain wire |
|
Connector Type: |
Pre-terminated industrial connector |
|
Connector Orientation: |
Straight |
|
Dimension: |
30x26x3cm |
|
Weight: |
0.4kg |
Specifications
|
Overall Length: |
6.0 in (152.4 mm) ±10% |
|
Operating Temperature: |
-20°C to +80°C |
|
Voltage Rating: |
300 V |
|
Current Rating: |
5 A |
|
Bend Radius: |
1 in (25.4 mm) minimum |
|
Compliance: |
RoHS compliant |
Frequently Asked Questions
What is the model number?
The listed model number is 84661-06.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1. Robust Electrical Performance
Tinned copper conductors with 18 AWG rating provide low-resistance connections capable of handling 5 A current with minimal voltage drop.
2. EMI Protection
Foil shielding with a drain wire significantly reduces electromagnetic interference, ensuring accurate signal transmission in noisy industrial environments.
3. Temperature and Chemical Resistance
PVC insulation and jacket are resistant to oils, heat, and chemicals, maintaining cable integrity and performance in temperatures from -20°C to +80°C.
4. Installation Flexibility
The 1-inch minimum bend radius and pre-terminated straight connector simplify installation in compact spaces and complex routing scenarios.
5. Compliance and Reliability
RoHS compliance ensures environmentally safe materials, while industrial-grade construction guarantees longevity in demanding automation applications, reducing maintenance downtime.
