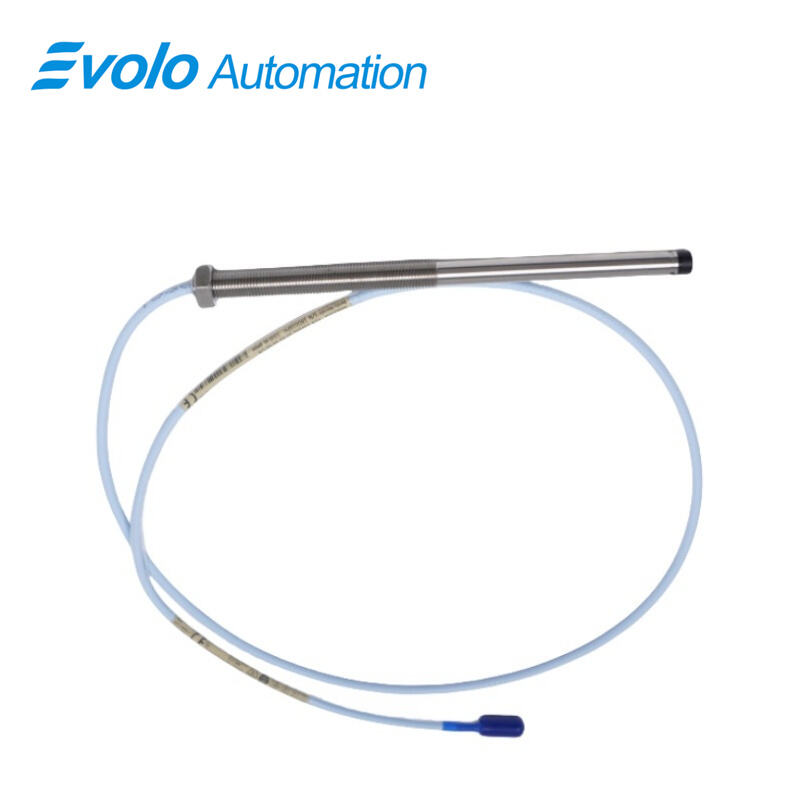

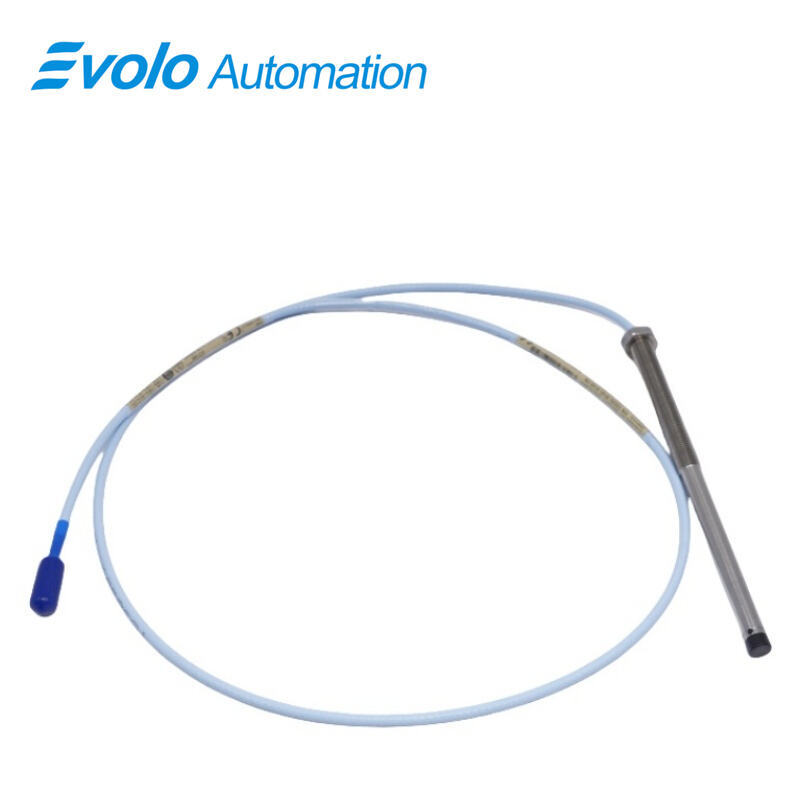

330101-30-60-90-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-30-60-90-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-30-60-90-02-00 3300 XL 8 mm Proximity Probe provides precise output voltage proportional to the distance between the probe tip and a conductive surface, supporting both static (position) and dynamic (vibration) measurements. Featuring a 3/8-24 UNF threaded case with 0.563 in maximum engagement, the 330101-30-60-90-02-00 3300 XL 8 mm Proximity Probe includes a 3.0 in unthreaded length and 6.0 in overall case length. The standard 9.0-meter (29.5 ft) extension cable with miniature coaxial ClickLoc connector ensures reliable connection to automation control systems. Operating temperatures range from -52°C to +177°C (-62°F to +350°F), with supply sensitivity under 2 mV per volt change. Output resistance is 50 Ω, and cable capacitance is 69.9 pF/m (21.3 pF/ft). The 330101-30-60-90-02-00 3300 XL 8 mm Proximity Probe supports 0.2–1.5 mm² (16–24 AWG) field wiring, enabling flexible integration in automated plants. Optional FluidLoc cable prevents oil or fluid leakage, and patented TipLoc and CableLoc designs secure probe and cable attachment, ensuring precise signal transmission in industrial monitoring systems.

Applications

Measure Shaft Vibration in Fluid-Film Bearings
The 330101-30-60-90-02-00 3300 XL 8 mm Proximity Probe delivers vibration readings with 2 mm linear range and 50 Ω output resistance, feeding precise data to automated monitoring systems for turbines, compressors, and motors.

Monitor Axial and Radial Shaft Position
The 330101-30-60-90-02-00 3300 XL 8 mm Proximity Probe tracks axial and radial displacement over its 9.0-meter extension cable, providing real-time position data to control loops in automated plants.

Generate Keyphasor Signals for Speed Measurement
Using the 330101-30-60-90-02-00 3300 XL 8 mm Proximity Probe, Keyphasor pulses are output to calculate rotational speed accurately in high-speed machinery with minimal signal loss over the 9.0-meter cable.

Connect to Automation Control Systems
The miniature coaxial ClickLoc connector on the 330101-30-60-90-02-00 3300 XL 8 mm Proximity Probe enables secure integration into plant automation networks, ensuring reliable measurement in extended field wiring (up to 1.5 mm² / 16–24 AWG).

Specifications

Competitive Advantage

Prevent Fluid Leakage in Automation Systems
The optional FluidLoc cable on the 330101-30-60-90-02-00 3300 XL 8 mm Proximity Probe blocks oil and other liquids from entering the probe or wiring, keeping automated measurement circuits clean.

Secure Probe and Cable Connection Under Vibration
Patented TipLoc molding and CableLoc attachment on the 330101-30-60-90-02-00 3300 XL 8 mm Proximity Probe provide 330 N pull strength, ensuring the probe stays firmly connected during operation and maintenance.

Operate in Extreme Temperatures
The 330101-30-60-90-02-00 3300 XL 8 mm Proximity Probe works from -52°C to +177°C, allowing installation in high-temperature automation environments without signal deviation.

Long-Range Signal Transmission for Remote Monitoring
The 9.0-meter extension cable of the 330101-30-60-90-02-00 3300 XL 8 mm Proximity Probe transmits precise static and dynamic measurements to distant control panels, supporting flexible automation layouts
