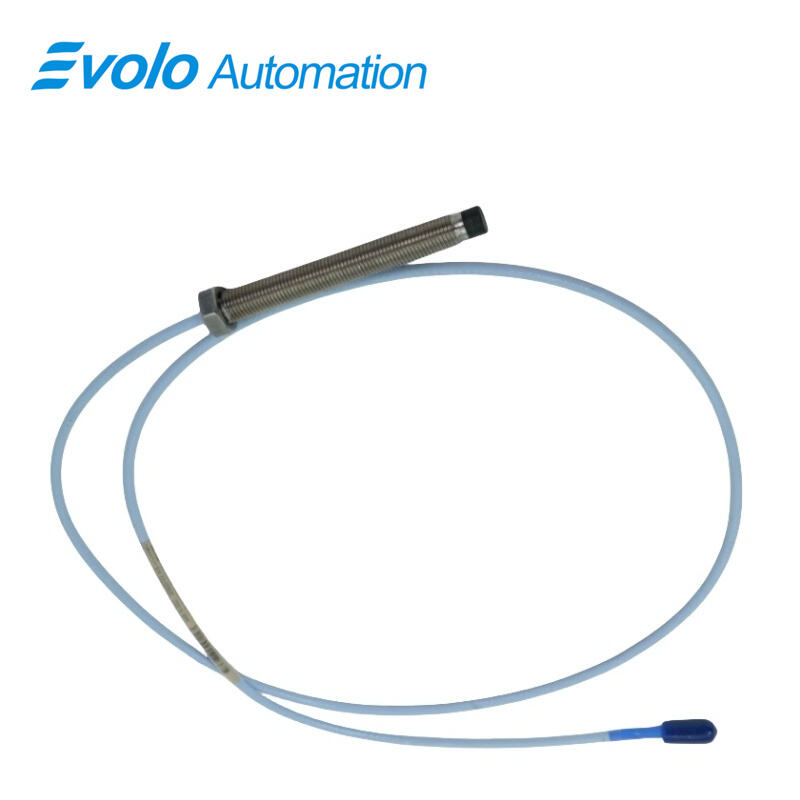

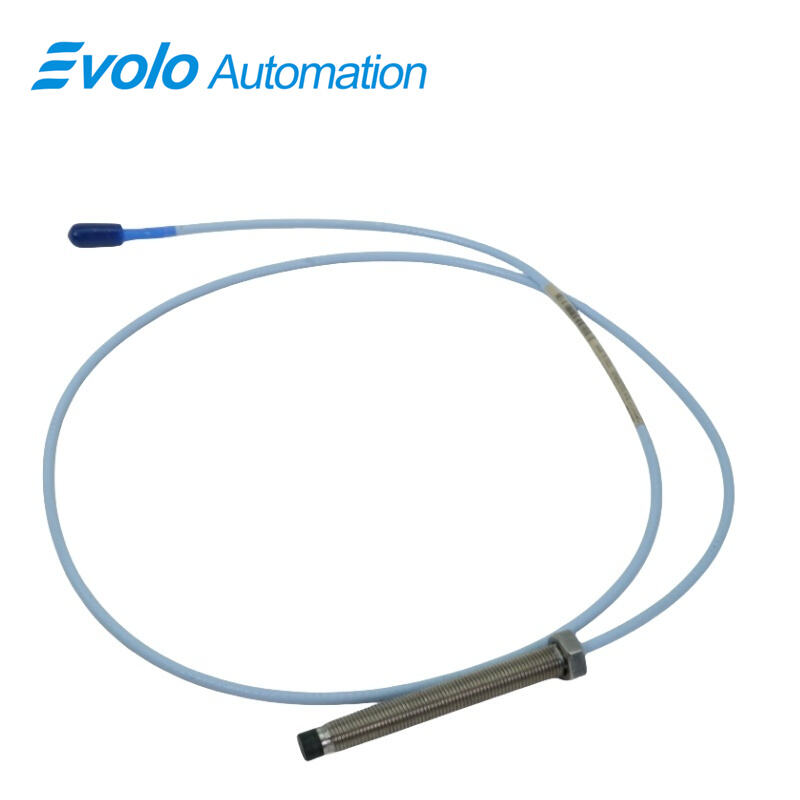

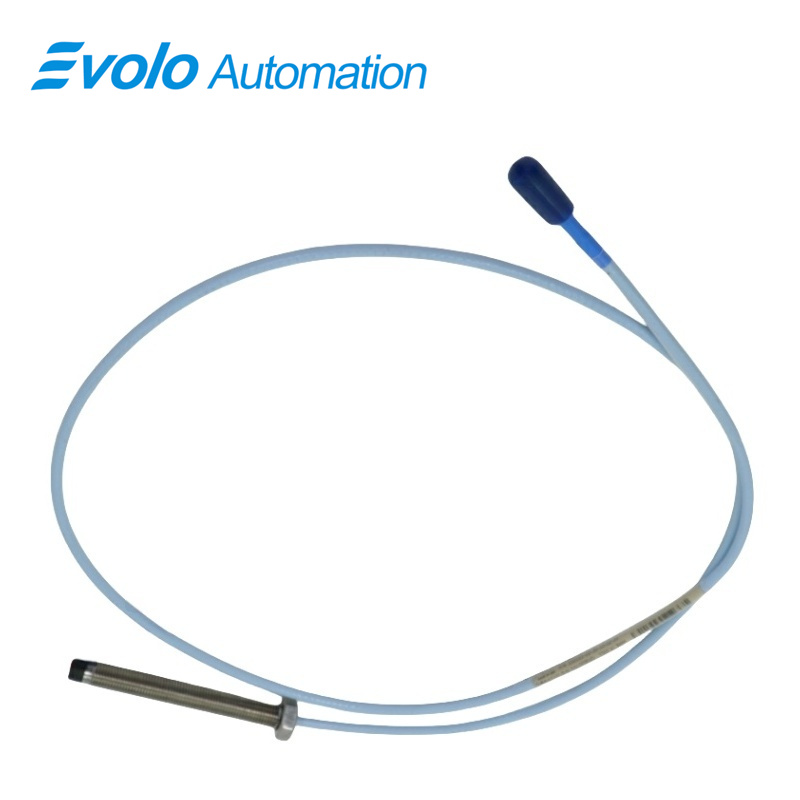

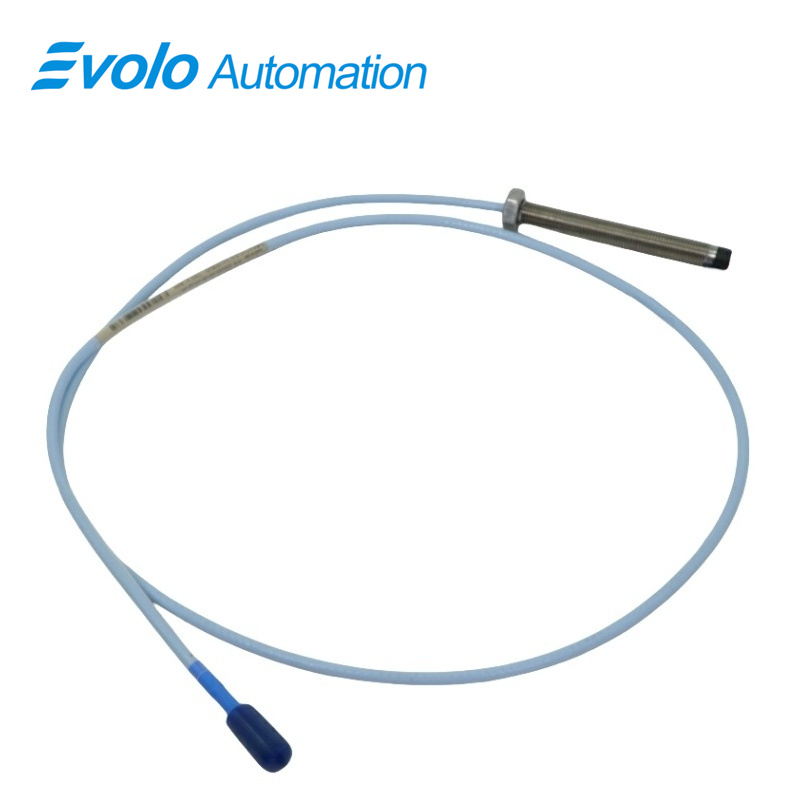

330101-00-30-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-30-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-30-10-02-00 3300 XL 8 mm Proximity Probe delivers precise distance measurement between the probe tip and conductive surfaces, supporting both static (position) and dynamic (vibration) monitoring in automated systems. With a linear range of 2 mm (80 mils), output resistance of 50 Ω, and extension cable capacitance of 69.9 pF/m, the 330101-00-30-10-02-00 3300 XL 8 mm Proximity Probe ensures accurate signal transmission for rotor speed and Keyphasor reference measurements. The probe features a 3/8-24 UNF threaded case, ClickLoc miniature coaxial connector, and standard 1-meter cable, enabling straightforward installation in fluid-film bearing machinery. Operating from -52°C to +177°C, and supporting field wiring from 0.2–1.5 mm² (16–24 AWG), the 330101-00-30-10-02-00 3300 XL 8 mm Proximity Probe integrates seamlessly with 3300 series Proximitor sensors and extension cables. Patented TipLoc and CableLoc designs provide 330 N pull strength, securing the probe and cable in automated environments. Optional FluidLoc cable prevents oil and liquid leakage, maintaining accurate measurements and continuous operation. The 330101-00-30-10-02-00 3300 XL 8 mm Proximity Probe meets API 670 configuration standards, delivering reliable automation-ready performance across rotating machinery systems.

Applications

Vibration Monitoring on Rotating Machinery
The 330101-00-30-10-02-00 3300 XL 8 mm Proximity Probe measures dynamic displacement and vibration in fluid-film bearing systems. Its 2 mm linear range and high-frequency response up to 10 kHz enable precise detection of rotor oscillations, supporting predictive maintenance.

Position Tracking in Automation Systems
Equipped with a 3/8-24 UNF threaded case and ClickLoc miniature coaxial connector, the 330101-00-30-10-02-00 3300 XL 8 mm Proximity Probe provides accurate position feedback for automated assembly or rotor alignment tasks, with minimal field wiring (0.2–1.5 mm², 16–24 AWG).

Keyphasor Reference and Speed Measurement
The probe’s 50 Ω output resistance and 69.9 pF/m cable capacitance ensure reliable Keyphasor pulse generation and rotor speed measurement in API 670-compliant machinery systems.

Integration with 3300 Series Proximitor Sensors
The 330101-00-30-10-02-00 3300 XL 8 mm Proximity Probe works seamlessly with extension cables and Proximitor modules, allowing rapid deployment in industrial monitoring networks without bench calibration.

Specifications

Competitive Advantage

Robust Probe-Cable Connection
Patented TipLoc and CableLoc designs provide 330 N pull strength, securing the probe tip and cable under automated vibration and rotational loads.

High-Temperature Operation
Supports -52°C to +177°C (-62°F to +350°F), enabling use in extreme industrial environments including high-speed turbine housings.

Optional FluidLoc Cable
Prevents oil and liquid leakage into the probe cable, maintaining measurement accuracy during operation in lubrication-heavy systems.

Backward Compatibility
The 330101-00-30-10-02-00 3300 XL 8 mm Proximity Probe is interchangeable with non-XL 3300 series 5 mm and 8 mm probes, allowing easy upgrades without system redesign.

API 670 Compliance
Mechanical configuration, linear range, and output parameters meet API 670 standards, ensuring precise alignment and regulatory adherence in power generation and petrochemical plants.
