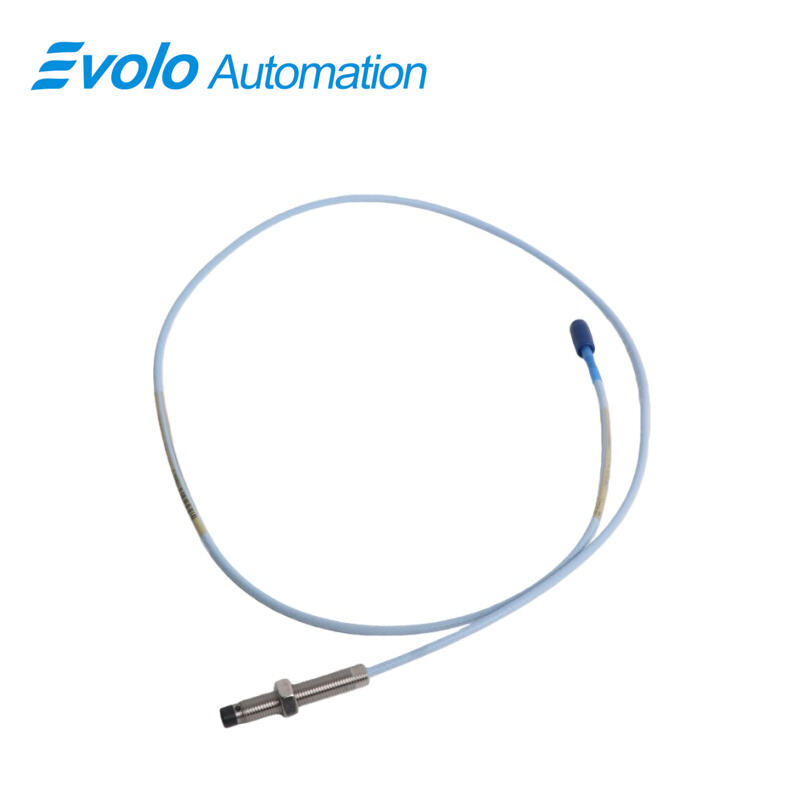

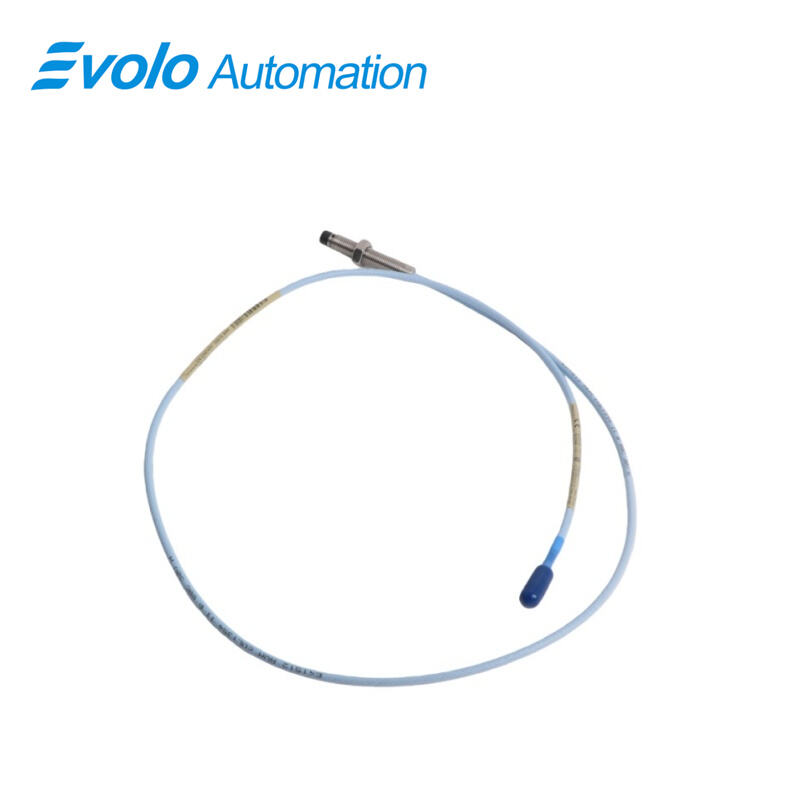

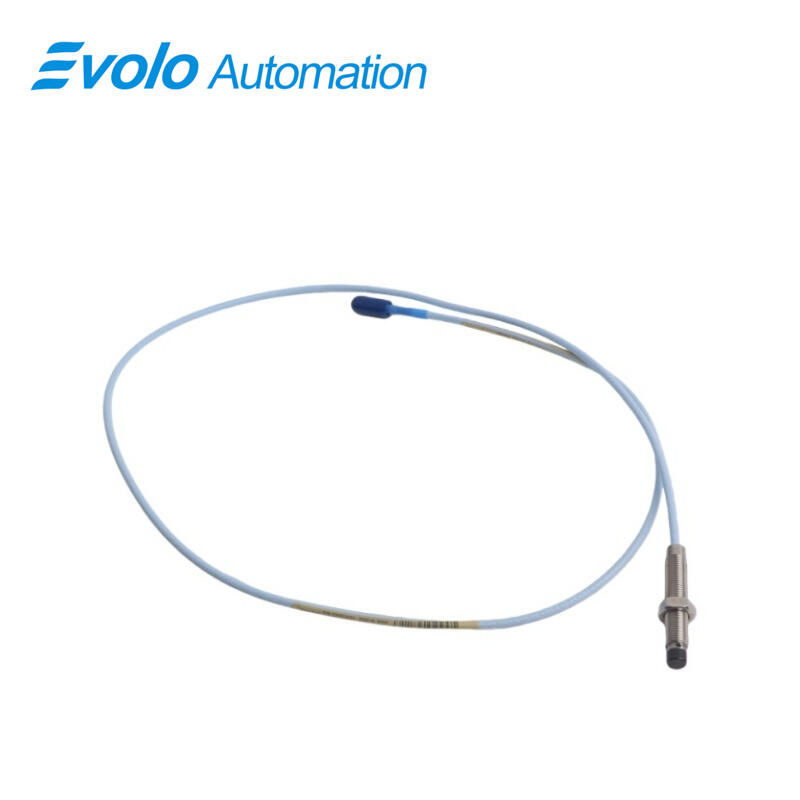

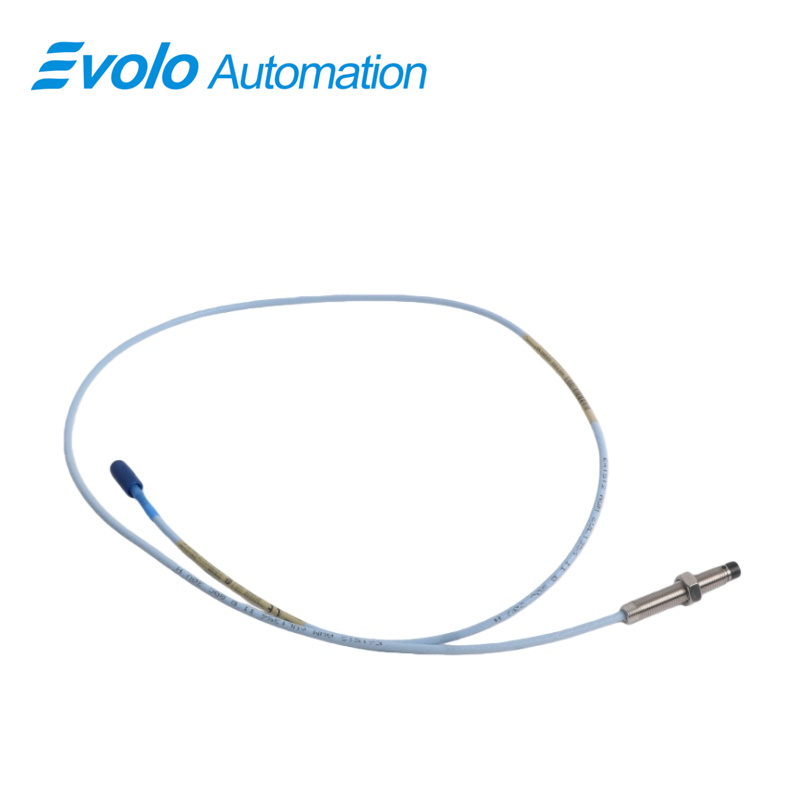

330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-20-10-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe delivers precise voltage output directly proportional to the distance between its 8 mm probe tip and conductive surfaces, measuring both static (position) and dynamic (vibration) values. With a 2 mm linear range (80 mils), 50 Ω output resistance, and extension cable capacitance of 69.9 pF/m (21.3 pF/ft), the 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) over a 1-meter cable. It features a 3/8-24 UNF threaded case, miniature coaxial ClickLoc connector, and operates from -52°C to +177°C, making the 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe suitable for automated monitoring of turbines, generators, and rotating machinery. Approved for CSA, ATEX, and IECEx, this probe integrates directly with Proximitor sensors and PLC/DCS systems, enabling real-time position and vibration feedback. Optional FluidLoc cable prevents oil leakage, while patented TipLoc and CableLoc ensure secure probe tip attachment. The 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe supports API 670 compliance and backward compatibility with non-XL 3300 series components, providing consistent automated data acquisition without recalibration.

Applications

Monitor Turbine Shaft Position with ±0.02 mm Accuracy
The 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe measures shaft displacement within its 2 mm linear range (80 mils), delivering real-time voltage output proportional to shaft movement. Field wiring from 0.2–1.5 mm² (16–24 AWG) allows automated systems to process signals over 1-meter extension cable lengths.

Measure Vibration up to 10 kHz
Using the 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe, vibration data from fluid-film bearing machines can be captured up to 10 kHz frequency response. Output resistance of 50 Ω and extension cable capacitance of 69.9 pF/m ensures accurate signal transmission to automated monitoring devices.

Track Bearing Clearance in Automated Control Loops
The 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe can detect changes in bearing clearance with its precise 2 mm linear range. Real-time feedback supports automated adjustment of operating parameters to maintain optimal bearing film thickness.

Integrate Keyphasor Reference Signals for Speed Monitoring
The 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe provides consistent Keyphasor signals for speed measurement, utilizing its 1-meter ClickLoc connector cable and CSA/ATEX/IECEx approvals for automated machine synchronization.

Specifications

Competitive Advantage

Extended Operating Temperature for Harsh Automation Environments
The 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe operates from -52°C to +177°C, enabling automated monitoring in extreme industrial conditions without additional cooling or heating equipment.

High-Precision Linear Output
With less than 2 mV change per volt of supply variation and 50 Ω output resistance, the 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe ensures accurate voltage feedback for automated data acquisition and real-time control systems.

Mechanical Security via TipLoc and CableLoc
The 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe features TipLoc and CableLoc, delivering 330 N (75 lbf) pull strength. This ensures the probe tip and cable remain fixed, avoiding signal drift in automated monitoring setups.

Backwards Compatibility Across 3300 Series
The 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe integrates seamlessly with non-XL 3300 series probes, extension cables, and Proximitor sensors, eliminating the need for recalibration or bench setup in automated systems.
