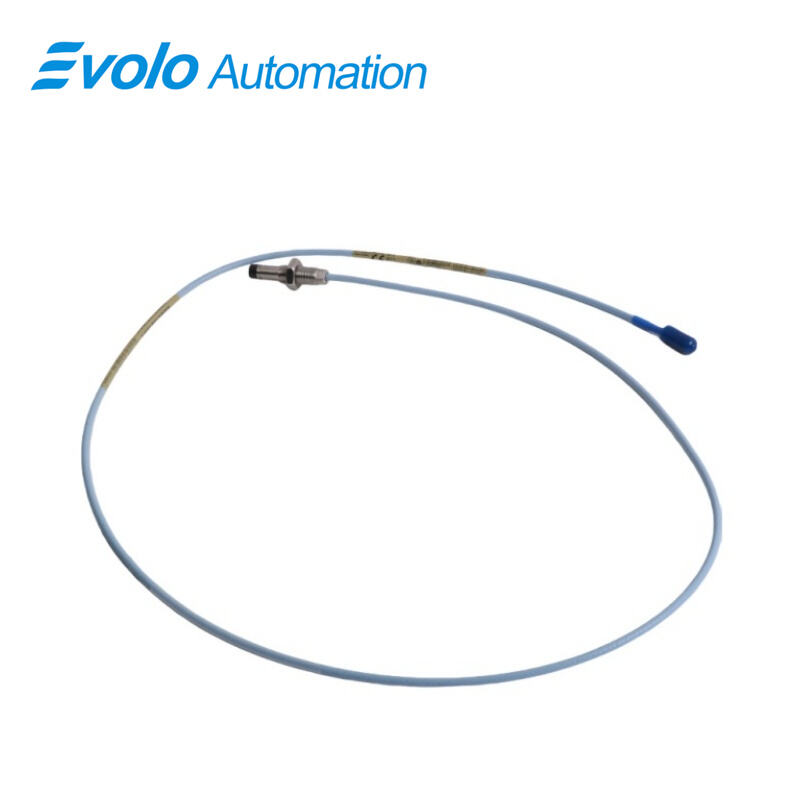

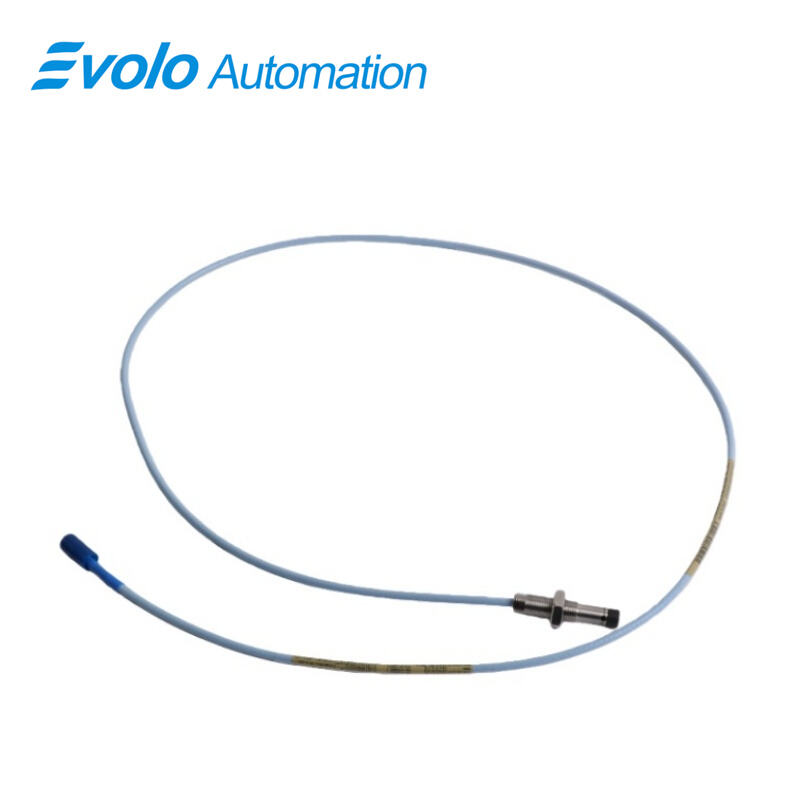

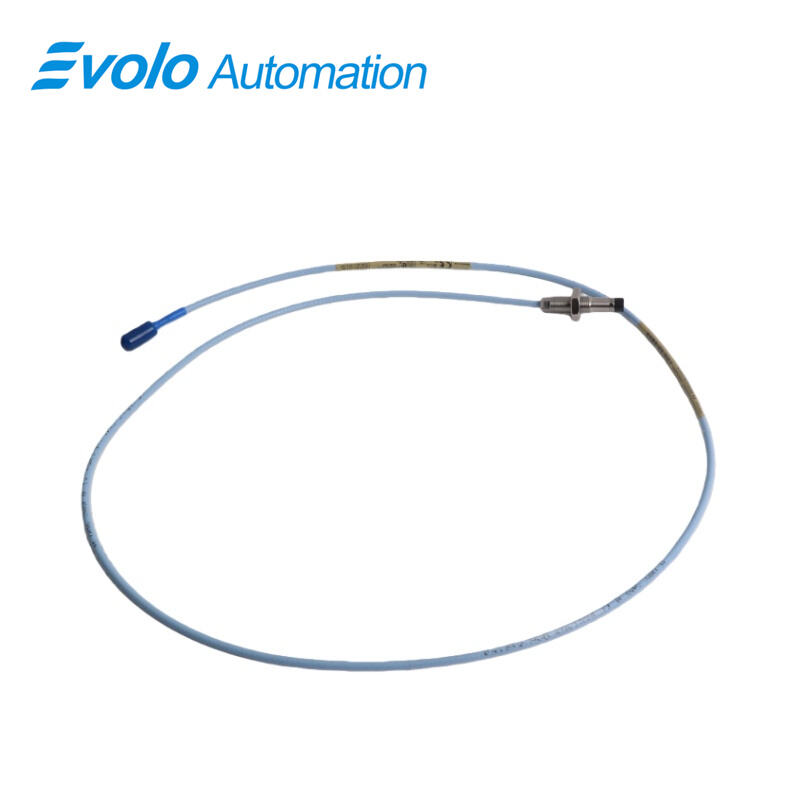

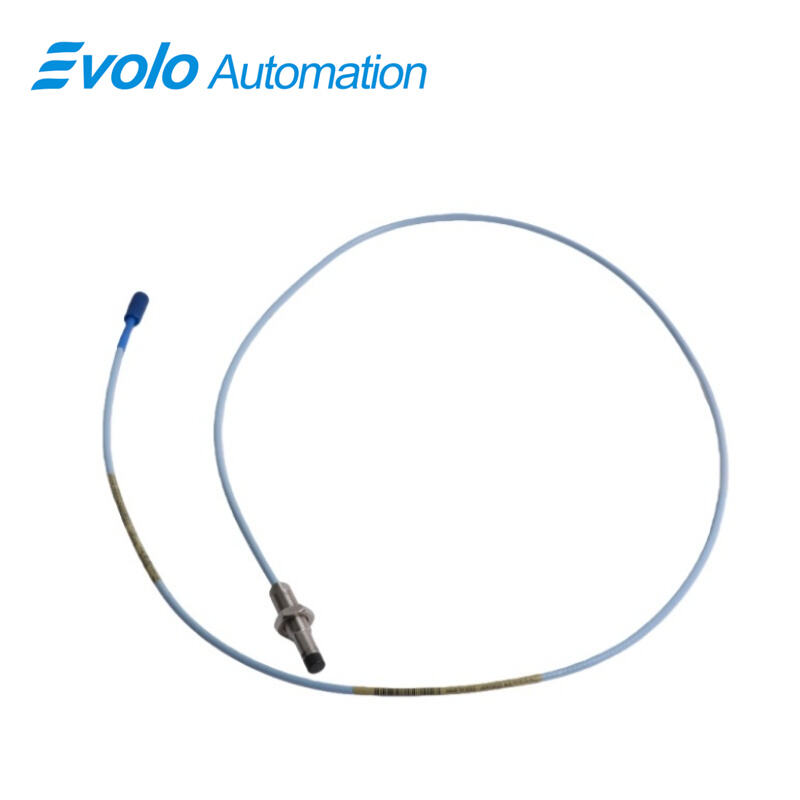

330103-01-04-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-01-04-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-01-04-10-02-05 3300 XL 8 mm Proximity Probes are advanced eddy current sensors designed for high-reliability industrial automation, machinery protection, and condition monitoring systems. As a core component of the 3300 XL 8 mm Proximity Probes family, this model delivers a highly linear output voltage that is precisely proportional to the distance between the probe tip and a conductive target surface. This enables accurate monitoring of both static position and dynamic vibration, which is essential for modern automated machinery.

Within automated process control environments, the 3300 XL 8 mm Proximity Probes are widely used for vibration measurement, axial and radial position monitoring, speed detection, and Keyphasor® reference signals. The 330103-01-04-10-02-05 probe is particularly suitable for fluid-film bearing machines such as turbines, compressors, pumps, motors, and generators commonly found in oil & gas, petrochemical, power generation, and heavy industrial automation systems.

Engineered to meet stringent industry requirements, the 3300 XL 8 mm Proximity Probes fully comply with API 670 standards for linear range, accuracy, mechanical configuration, and thermal stability. This compliance ensures reliable operation in harsh automation environments where temperature variation, vibration, and continuous operation are unavoidable. The standardized design also supports complete interchangeability between probes, extension cables, and Proximitor® sensors, eliminating the need for individual calibration and significantly reducing maintenance time in automated plants.

The 330103-01-04-10-02-05 3300 XL 8 mm Proximity Probes incorporate enhanced mechanical durability through patented design improvements. The TipLoc™ molding technology strengthens the bond between the probe tip and housing, increasing resistance to mechanical stress during installation and long-term operation. In addition, the CableLoc™ strain-relief design provides up to 330 N (75 lbf) of pull strength, ensuring secure cable attachment in vibration-intensive automation systems.

For automation applications involving lubricated or sealed machinery, optional FluidLoc™ cable technology is available. This feature prevents oil or process fluids from migrating through the cable assembly, maintaining system integrity and reducing the risk of contamination or sensor failure.

Backward compatibility with legacy 3300 series 5 mm and 8 mm systems allows the 3300 XL 8 mm Proximity Probes to be easily integrated into existing automation infrastructures. Overall, the 330103-01-04-10-02-05 model provides a robust, accurate, and automation-ready solution for continuous machinery monitoring and protection in demanding industrial environments.

Applications

Vibration Monitoring in Fluid-Film Bearing Machinery

The 330103-01-04-10-02-05 3300 XL 8 mm Proximity Probe is widely applied in radial and axial vibration monitoring of fluid-film bearing machines. With a 2 mm linear measurement range and a recommended gap setting of –9 Vdc, the probe delivers precise vibration signals required by automated condition monitoring systems. Typical applications include steam turbines, gas turbines, centrifugal compressors, large pumps, motors, and generators used in continuous industrial automation environments.

Shaft Position and Displacement Measurement

In automated rotating equipment, accurate shaft position feedback is critical for maintaining mechanical integrity. The 3300 XL 8 mm Proximity Probes provide highly stable static position measurement by converting shaft displacement into a proportional voltage output. The M10 × 1 threaded probe case and 40 mm overall case length allow flexible installation in limited mounting spaces, making this probe suitable for thrust position monitoring and shaft centerline analysis in high-speed machinery.

Keyphasor® Reference and Speed Detection

The 330103-01-04-10-02-05 probe is commonly used as a Keyphasor reference sensor for rotational speed and phase measurements. Its fast dynamic response and low output resistance of 50 Ω ensure reliable pulse detection for speed tracking, phase reference, and order analysis within automated vibration diagnostic systems and machine protection platforms.

Hazardous Area and Extreme Temperature Applications

With CSA, ATEX, and IECEx approvals, the 3300 XL 8 mm Proximity Probe is suitable for hazardous-area automation systems in oil & gas, petrochemical, and power generation industries. Its wide operating temperature range of –52°C to +177°C and robust stainless steel probe case enable dependable operation in harsh industrial environments.

Integrated Automation and Machinery Protection Systems

Designed for full compatibility with 3300 XL Proximitor sensors and extension cables, the 330103-01-04-10-02-05 probe integrates seamlessly into distributed control systems (DCS), PLC-based automation architectures, and machinery protection systems compliant with API 670. Optional FluidLoc cable technology further enhances reliability in oil-lubricated machinery by preventing fluid migration.

Specifications

Competitive Advantage

High-Precision Measurement for Critical Automation Systems

The 330103-01-04-10-02-05 3300 XL 8 mm Proximity Probe delivers a highly linear voltage output that is directly proportional to the distance between the probe tip and the target surface. With a 2 mm linear range and excellent supply sensitivity of less than 2 mV/V, it ensures stable and accurate measurement of both static position and dynamic vibration. This level of precision makes it ideal for automated vibration monitoring, shaft displacement analysis, and machinery protection systems.

API 670 Compliance and Global Certifications

A key competitive advantage of the 3300 XL 8 mm Proximity Probes is full compliance with API 670, covering mechanical configuration, accuracy, linearity, and temperature stability. In addition, the CSA, ATEX, and IECEx approvals enable safe deployment in hazardous and explosive environments, giving automation engineers confidence when designing systems for oil & gas, petrochemical, and power generation facilities worldwide.

Robust Mechanical Design for Harsh Industrial Environments

Built with a stainless steel probe case (AISI 303/304) and a PPS probe tip, the 330103-01-04-10-02-05 probe offers outstanding resistance to corrosion, vibration, and thermal stress. Its wide operating temperature range of –52°C to +177°C ensures reliable performance in extreme conditions commonly found in continuous-process automation.

Installation Flexibility and Compact Form Factor

With an M10 × 1 threaded housing, 10 mm unthreaded length, and 40 mm overall case length, this probe is optimized for installations with limited space. The miniature coaxial ClickLoc connector provides secure, vibration-resistant connections, reducing installation time and minimizing the risk of signal loss in automated systems.

Interchangeability and Reduced Maintenance Costs

The 3300 XL 8 mm Proximity Probes support full interchangeability with matching extension cables and Proximitor® sensors, eliminating the need for individual calibration or bench matching. Backward compatibility with non-XL 3300 series 5 mm and 8 mm components further protects existing automation investments and simplifies system upgrades.

Enhanced Reliability with Patented Cable and Sealing Technologies

Patented TipLoc™ and CableLoc™ technologies enhance mechanical integrity by strengthening the bond between the probe tip and cable assembly, providing up to 330 N pull strength. Optional FluidLoc™ cable design prevents oil and fluid migration, ensuring long-term reliability in lubricated machinery.
