Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-15-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
1.5 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.7x122.9x1.5cm |
|
Weight: |
0.08kg |
Description

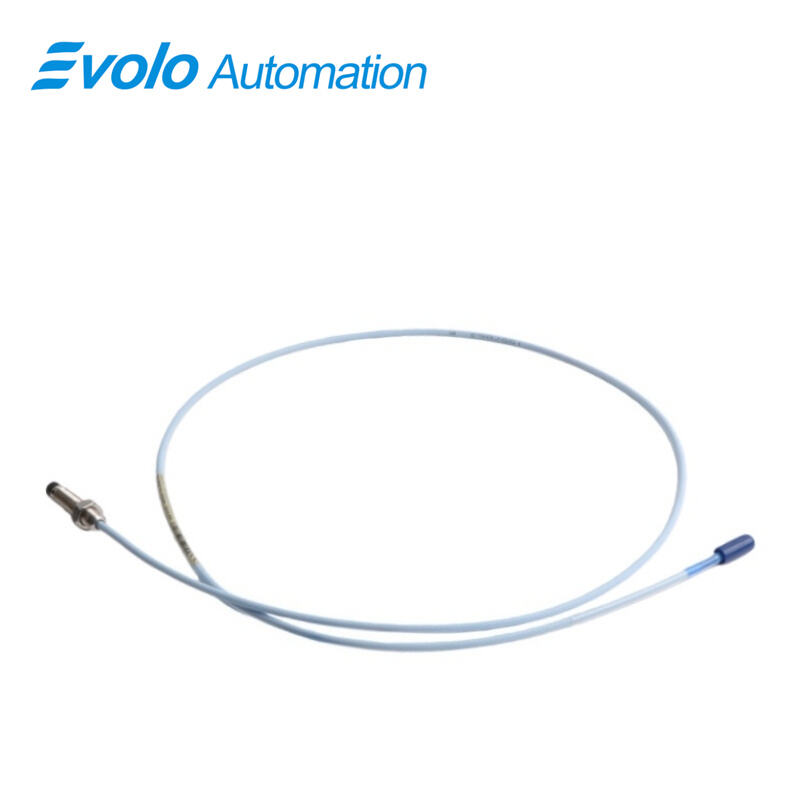

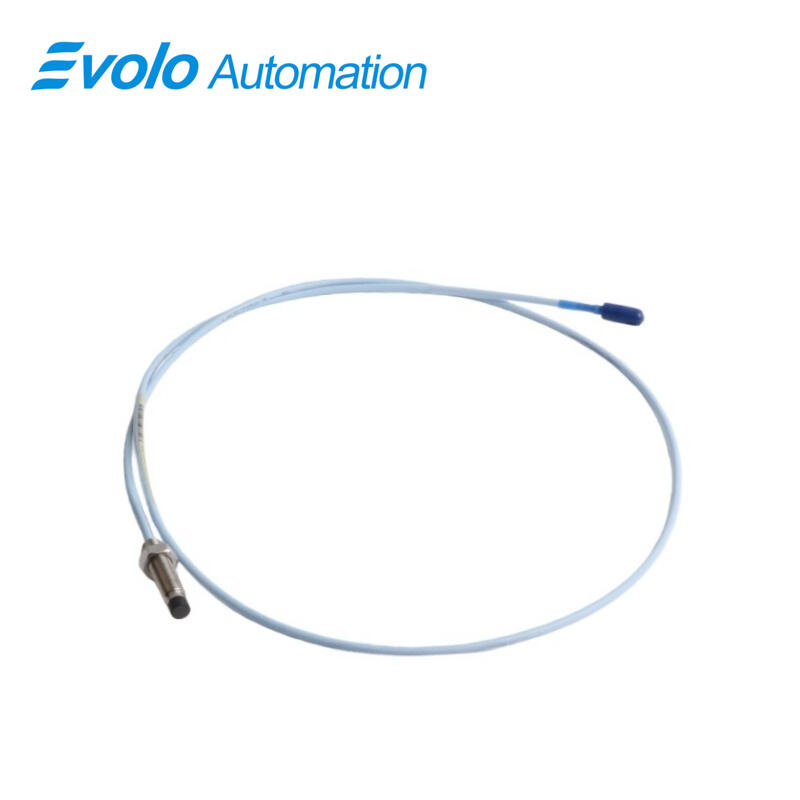

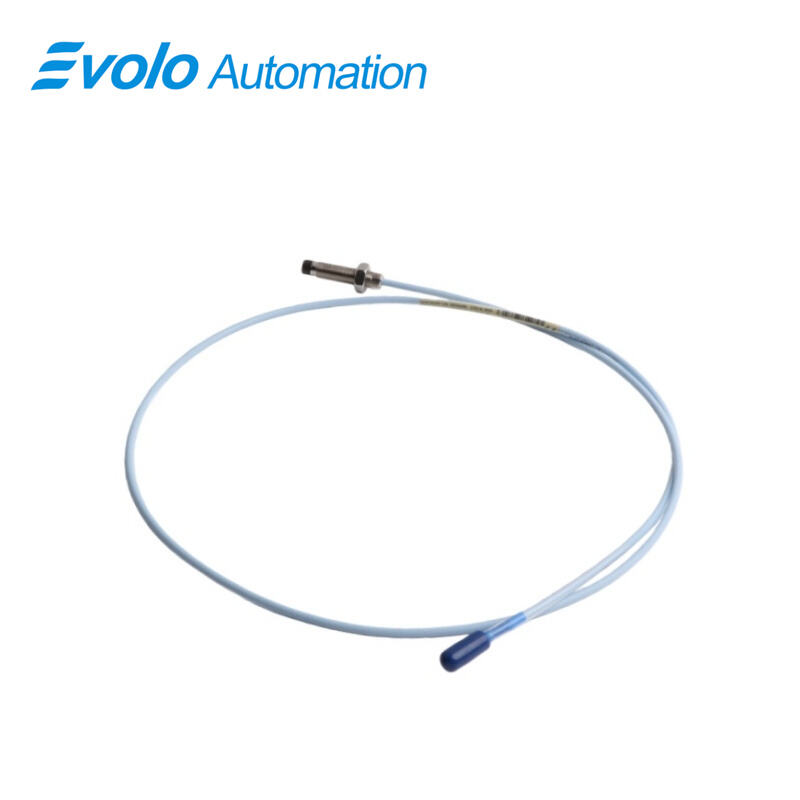

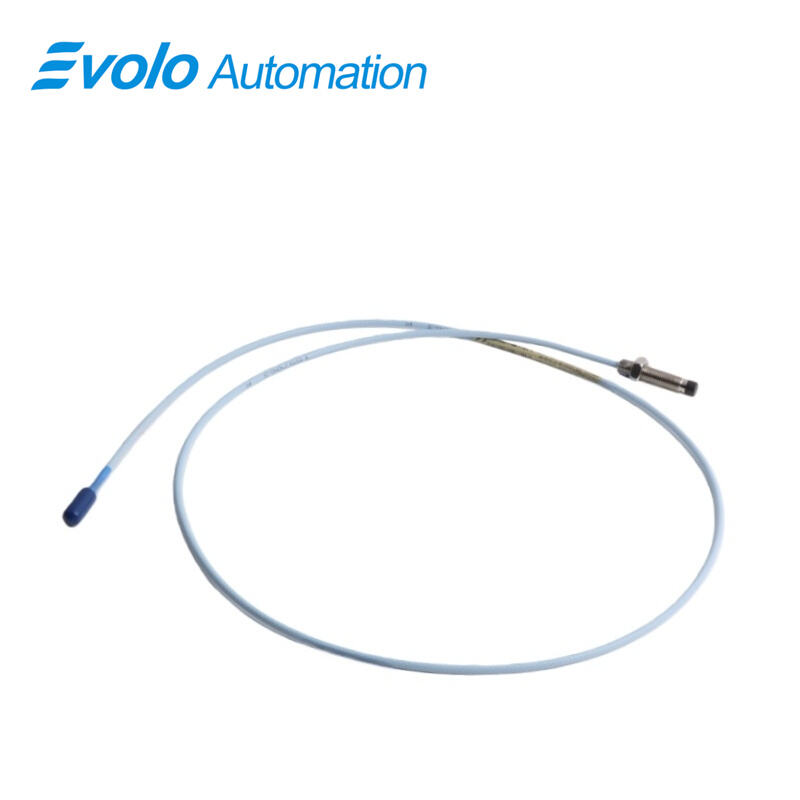

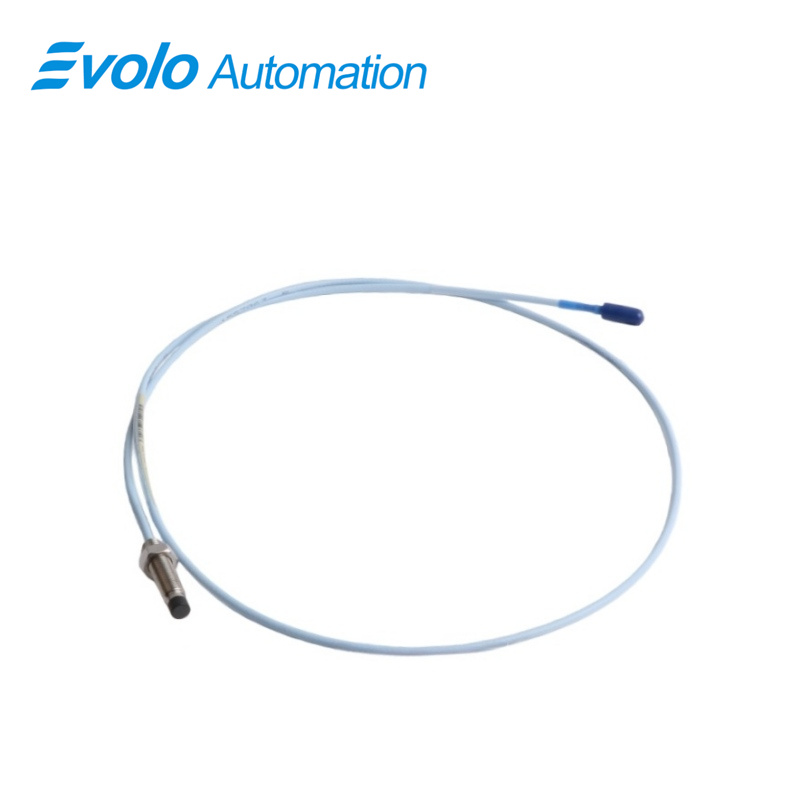

The 330101-00-15-10-02-00 3300 XL 8 mm Proximity Probe delivers precise shaft position and vibration measurements for automated machinery. With a 1.0-meter (3.3 ft) coaxial ClickLoc cable and 3/8-24 UNF threaded case, the 330101-00-15-10-02-00 3300 XL 8 mm Proximity Probe maintains a linear range of 2 mm (80 mils) and output resistance of 50 Ω. Operating between -52°C to +177°C (-62°F to +350°F), the 330101-00-15-10-02-00 3300 XL 8 mm Proximity Probe captures both static rotor positions and dynamic vibrations up to 10 kHz. Supply sensitivity is under 2 mV per volt, ensuring accurate readings across industrial voltage variations. The patented TipLoc and CableLoc designs secure the probe tip and cable, providing 330 N pull strength, while optional FluidLoc prevents oil ingress. Compatible with 3300 series Proximitor Sensors and extension cables, the 330101-00-15-10-02-00 3300 XL 8 mm Proximity Probe integrates seamlessly into 3300 Monitoring Systems, supporting Keyphasor reference, speed measurement, and rotor alignment applications, meeting API 670 mechanical and electrical requirements.
Applications
Measure Shaft Position Accurately
The 330101-00-15-10-02-00 3300 XL 8 mm Proximity Probe measures rotor positions up to 2 mm (80 mils) linear range. Its 50 Ω output ensures precise signal transmission to 3300 monitoring systems for position tracking and alignment verification.
Monitor Rotor Vibration Continuously
This probe captures dynamic vibration signals up to 10 kHz with less than 2 mV supply sensitivity per volt, enabling early detection of rotor imbalance, misalignment, or wear in automated machinery.
Provide Keyphasor Reference for Phase Measurement
By generating reference pulses for rotational speed, the 330101-00-15-10-02-00 3300 XL 8 mm Proximity Probe synchronizes vibration data with shaft rotation, supporting accurate phase analysis and zero speed detection.
Enable High-Temperature Machinery Operation
Operating between -52°C and +177°C (-62°F to +350°F), this probe allows on-line monitoring of high-temperature turbines, pumps, and compressors in industrial automation systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Secure Probe and Cable Connection
Patented TipLoc and CableLoc designs provide 330 N pull strength, reducing mechanical failures and maintaining consistent 50 Ω output under vibration stress.
Maintain Performance Across Voltage Variations
With supply sensitivity under 2 mV per volt, the probe delivers stable readings even when input voltage fluctuates, ensuring accurate automation monitoring in variable industrial conditions.
Comply with API 670 Standards
Mechanical configuration, linear range, accuracy, and temperature performance meet API 670 requirements, making the 330101-00-15-10-02-00 3300 XL 8 mm Proximity Probe suitable for critical machinery monitoring and process automation.
