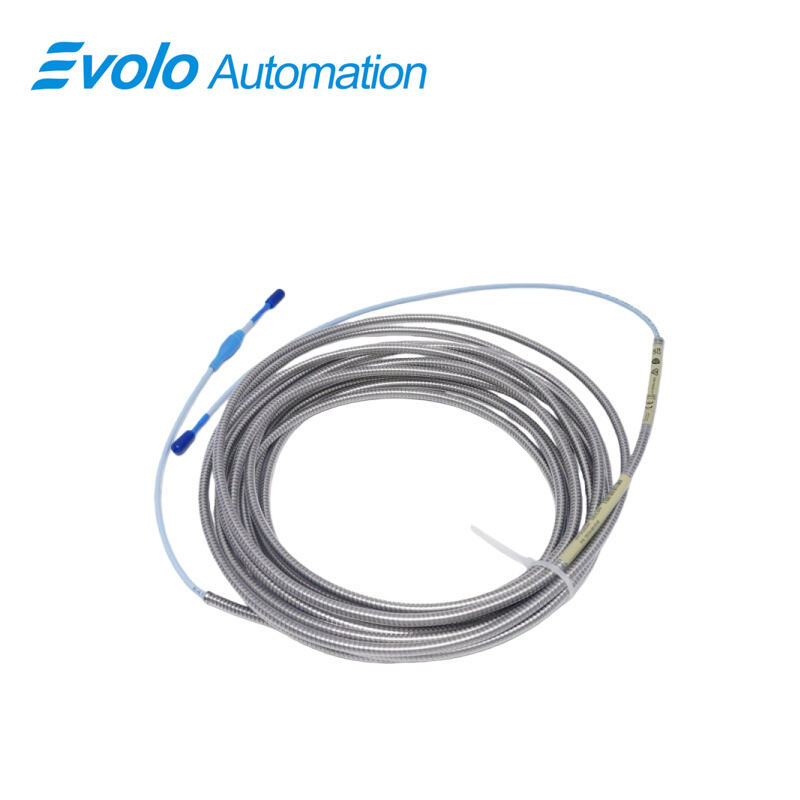

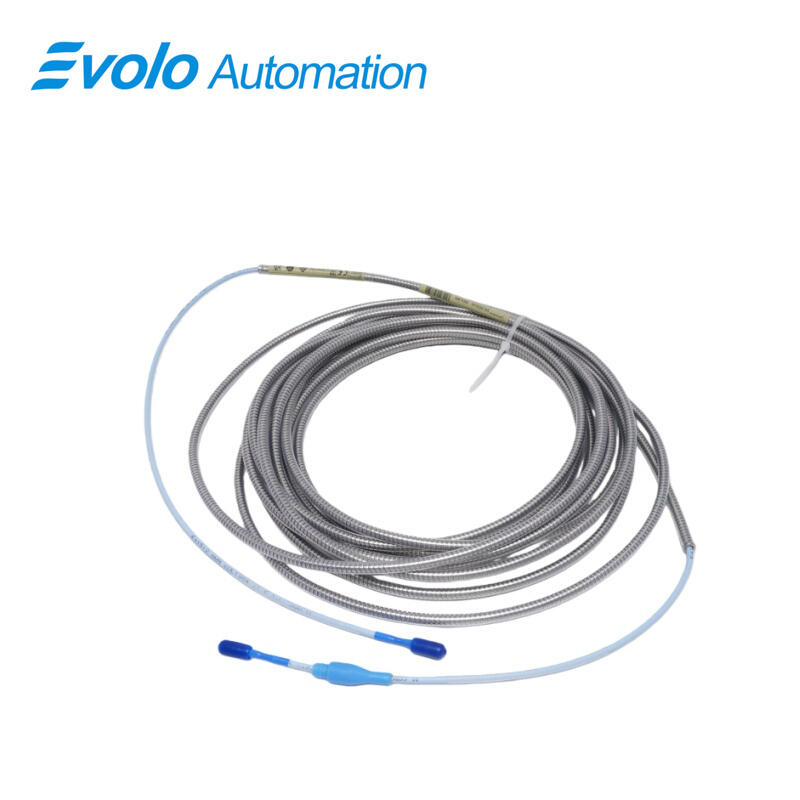

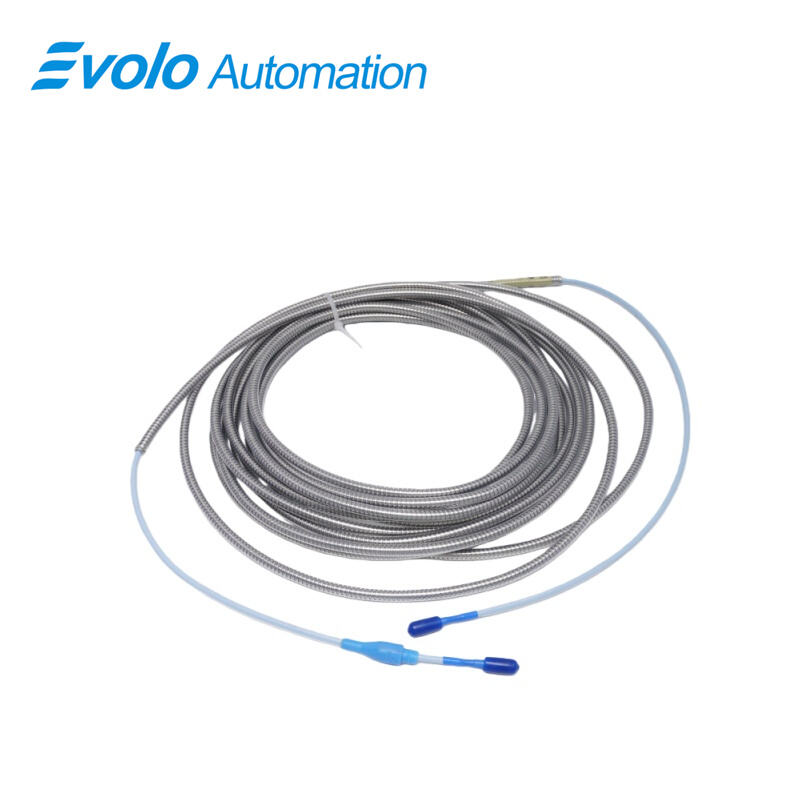

330130-085-12-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-085-12-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-085-12-05 3300 XL Standard Extension Cable is an advanced extension cable specifically designed for the 3300 XL 8 mm Proximity Transducer System, enabling precise and reliable vibration and position measurements in industrial automation environments. With a length of 8.5 meters (27.9 feet), this cable features 75 Q triaxial FEP insulation to ensure minimal signal loss and excellent resistance to harsh chemical and thermal conditions. The cable’s FluidLoc connector protector enhances sealing, preventing contamination from oil and other process fluids. Fully approved under CSA, ATEX, and IECEx standards, the 3300 XL extension cable maintains high measurement integrity across extreme industrial environments. Its output resistance of 50 Ω, low sensitivity variation (<2 mV per volt input change), and capacitance of 69.9 pF/m guarantee consistent signal transmission over long distances. The system supports field wiring of 0.2 to 1.5 mm² (16–24 AWG) and can operate with linear ranges of 2 mm (80 mils) and frequency responses up to 10 kHz, compatible with cable lengths up to 305 meters (1000 feet). Backward compatibility with non-XL 3300 series components allows seamless integration and interchangeability in existing automation setups, enhancing operational flexibility and reliability.

Applications

Vibration Monitoring of Rotating Machinery:
Used with 3300 XL probes, this extension cable enables precise vibration measurement on fluid-film bearing machines, ensuring accurate detection of imbalance or misalignment, improving predictive maintenance efficiency.

Position Measurement in Automation Systems:
Provides accurate static position data of shafts or rotating components in industrial automation systems, helping maintain process control and precision in critical operations.

Keyphasor Speed Sensing:
Works with 3300 XL probes to deliver Keyphasor signals for speed and phase reference in turbines and compressors, supporting high-speed data acquisition and control feedback loops.

Integration in API 670 Compliant Systems:
Facilitates the creation of systems meeting API 670 standards for mechanical configuration, linearity, and temperature stability, ensuring compliance in petrochemical and power generation facilities.

Harsh Environment Signal Transmission:
Designed for chemically aggressive and high-temperature environments, it transmits low-noise signals over long distances while maintaining robustness in oil, heat, or vibration-intensive areas.

Specifications

Competitive Advantage

High Signal Integrity:
Low output variation (<2 mV per volt input change) ensures minimal measurement errors, even in long cable runs up to 8.5 meters.

Durable Construction:
FEP-insulated 75 Q triaxial design resists chemical, thermal, and mechanical stress, extending operational life in harsh industrial environments.

FluidLoc Connector Protection:
Prevents leakage of oil and other liquids, safeguarding both equipment and measurement accuracy while reducing maintenance requirements.

Backward Compatibility:
Compatible with non-XL 3300 series probes and Proximitor sensors, allowing flexible upgrades without the need for system recalibration.

High-Frequency Performance:
Supports linear ranges of 2 mm and frequency response up to 10 kHz, ensuring accurate dynamic and vibration measurements even in high-speed machinery.
