Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
32000-16-05-05-080-03-02 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Probe with Connector: |
3300 XL 8 mm probe |
|
Probe Cable Length: |
0.5 m (20 in) |
|
Standoff Adapter Length (Option C Dimension): |
50 mm |
|
Probe Penetration Option (Option D Dimension): |
80 mm |
|
Fittings: |
Two plugs, one M20 fitting One cable seal grip with grommets for armored probe cable |
|
Mounting Thread Option: |
3/4-14 NPT (Required if ordering Standoff Adapter Option.) |
|
Dimension: |
37x9x8cm |
|
Weight: |
1.5kg |
Description

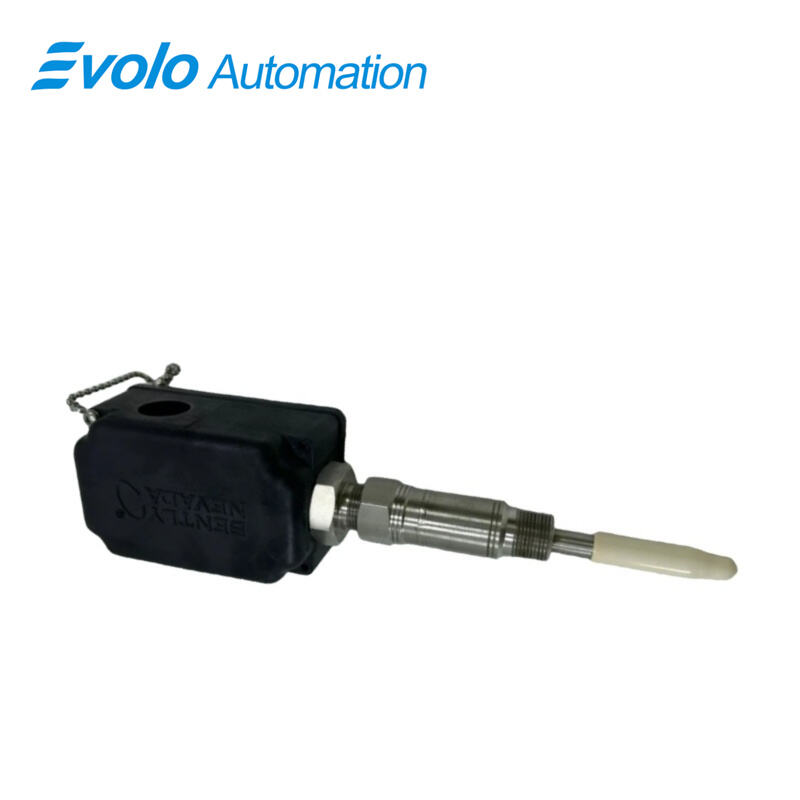

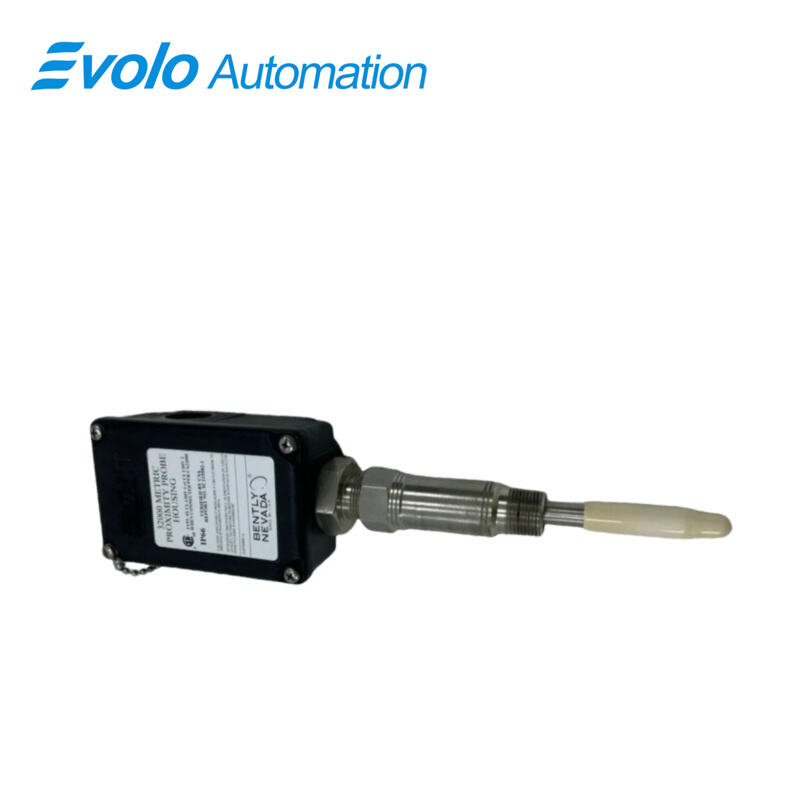

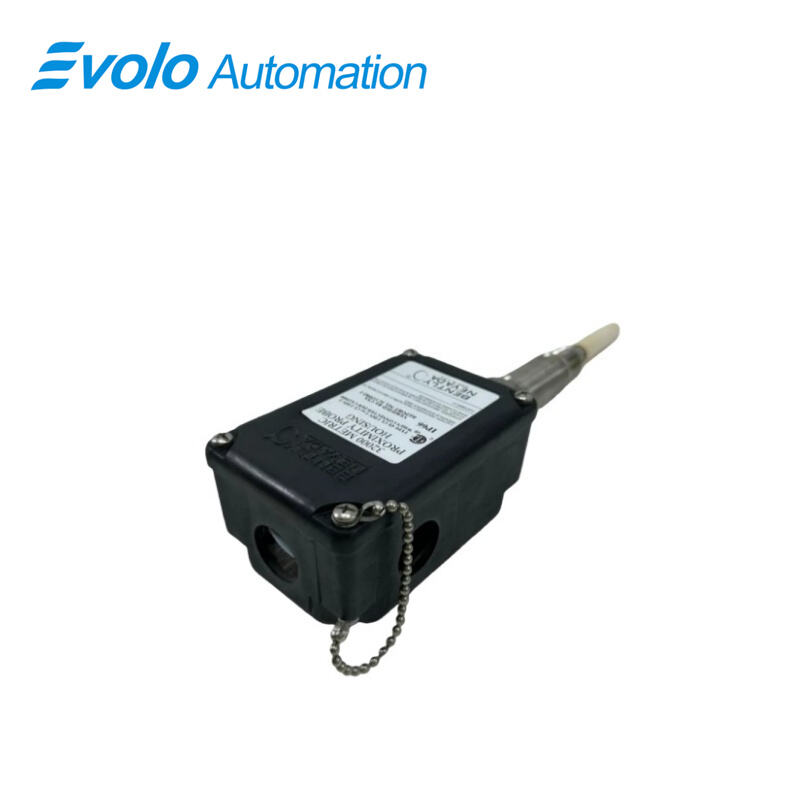

The 32000-16-05-05-080-03-02 Proximity Probe Housing Assemblies provide secure mounting for 3300 XL 8 mm probes in automation systems. Designed for radial vibration and Keyphasor measurements, the 32000-16-05-05-080-03-02 Proximity Probe Housing Assemblies feature a 0.5 m probe cable, 50 mm standoff adapter, and 80 mm probe penetration. The housing uses glass-reinforced PPS thermoplastic with conductive fibers, AISI 304 stainless steel sleeve and chain, AISI 303 stainless steel screws, and neoprene O-rings. Rated Type 4X by CSA, the 32000-16-05-05-080-03-02 Proximity Probe Housing Assemblies withstand two 4 Joule impacts at -39°C and 115°C. Fittings include two plugs, one M20 fitting, and a cable seal grip for armored probe cables. The 3/4-14 NPT mounting thread ensures proper installation. These 32000-16-05-05-080-03-02 Proximity Probe Housing Assemblies allow external access for probe gap adjustment or replacement, supporting automated monitoring while maintaining API 670 compliance.
Applications
Application – Mount 3300 XL Probes for Bearing Vibration Monitoring
Install the 32000-16-05-05-080-03-02 Proximity Probe Housing Assemblies with 3300 XL 8 mm probes to measure rotor vibration in pumps and turbines. The 50 mm standoff and 80 mm penetration ensure accurate distance readings, supporting automated condition monitoring.
Application – Adjust Probe Gap Without Machine Disassembly
The 32000-16-05-05-080-03-02 Proximity Probe Housing Assemblies allow external access to 3300 XL probes and cables, enabling quick gap adjustment for precision measurement in automated machinery.
Application – Capture Keyphasor Speed Signals
Use the 32000-16-05-05-080-03-02 Proximity Probe Housing Assemblies to mount 3300 XL probes for Keyphasor signal generation. The 0.5 m probe cable and M20 fitting facilitate reliable signal transmission for automation systems.
Specifications
|
Protection Ratings : |
Type 4X rating certified by Canadian Standards Association (CSA) |
|
Housing Material: |
Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers |
|
Sleeve Material and Retaining Chain: |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws: |
AISI 303 stainless steel |
|
O-Ring Material : |
Neoprene |
|
Recommended Torque(retaining nut) : |
29.4 N·m (260 in·lb) |
|
Housing Strength (typical): |
Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole |
|
Housing Impact Strength: |
Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F) |
Competitive Advantage
Competitive Advantage – Protect Probes in Extreme Conditions
The 32000-16-05-05-080-03-02 Proximity Probe Housing Assemblies are CSA Type 4X rated and withstand 4 Joule impacts at -39°C to 115°C, keeping 3300 XL probes operational in harsh industrial environments.
Competitive Advantage – Prevent Fluid Entry
The 32000-16-05-05-080-03-02 Proximity Probe Housing Assemblies use a cable seal grip with grommets for armored cables, preventing oil or liquid ingress while maintaining automated monitoring.
Competitive Advantage – Quick Probe Replacement
The 32000-16-05-05-080-03-02 Proximity Probe Housing Assemblies enable 3300 XL probe removal and replacement without disassembling the machine, reducing maintenance downtime for automated systems.
Competitive Advantage – High-Strength Construction
Using PPS thermoplastic with conductive fibers, stainless steel sleeves, and neoprene O-rings, the 32000-16-05-05-080-03-02 Proximity Probe Housing Assemblies maintain mechanical integrity and precise probe alignment under operational loads.
