Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
31000-16-10-15-063-03-02 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Probe with Connector: |
3300 XL 8 mm probe |
|
Probe Cable Length: |
1.0 m (39 in) |
|
Standoff Adapter Length (Option C Dimension): |
Minimum length 1.5 in (38 mm) |
|
Probe Penetration Option (Option D Dimension): |
6.3 in |
|
Fittings: |
Two plugs, one 3/4-14 NPT fitting One 3/4-14 to 1/2-14 NPT SST reducer One cable seal grip with grommets for the following cable sizes: • 1/8 to 3/16 inches • 1/4 to 5/16 inches • 5/16 to 3/8 inches |
|
Mounting Thread Option: |
3/4-14 NPT (Required if ordering Standoff Adapter Option). |
|
Dimension: |
37x9x8cm |
|
Weight: |
1.5kg |
Description

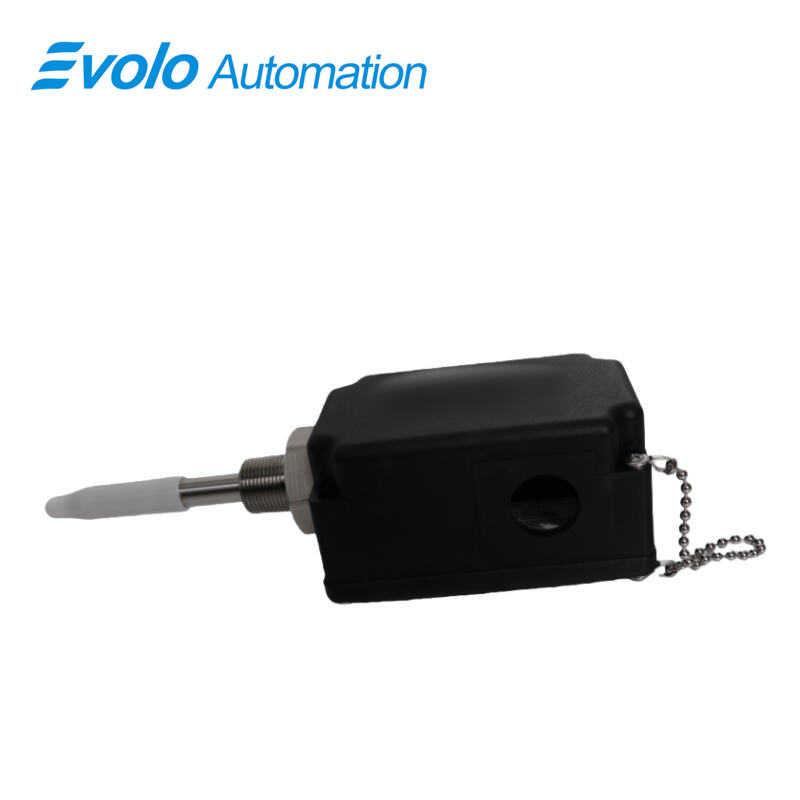

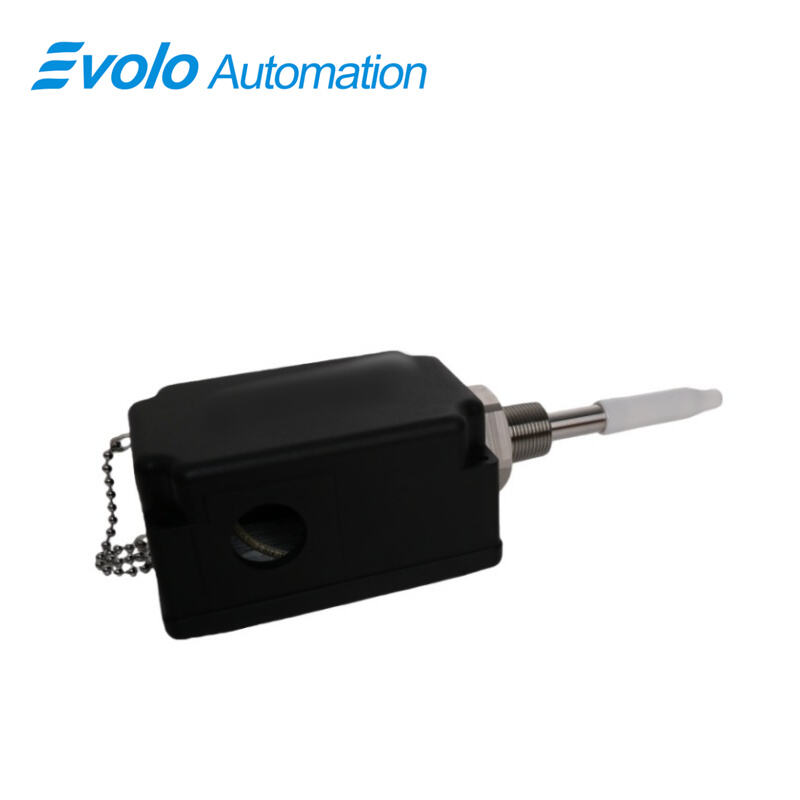

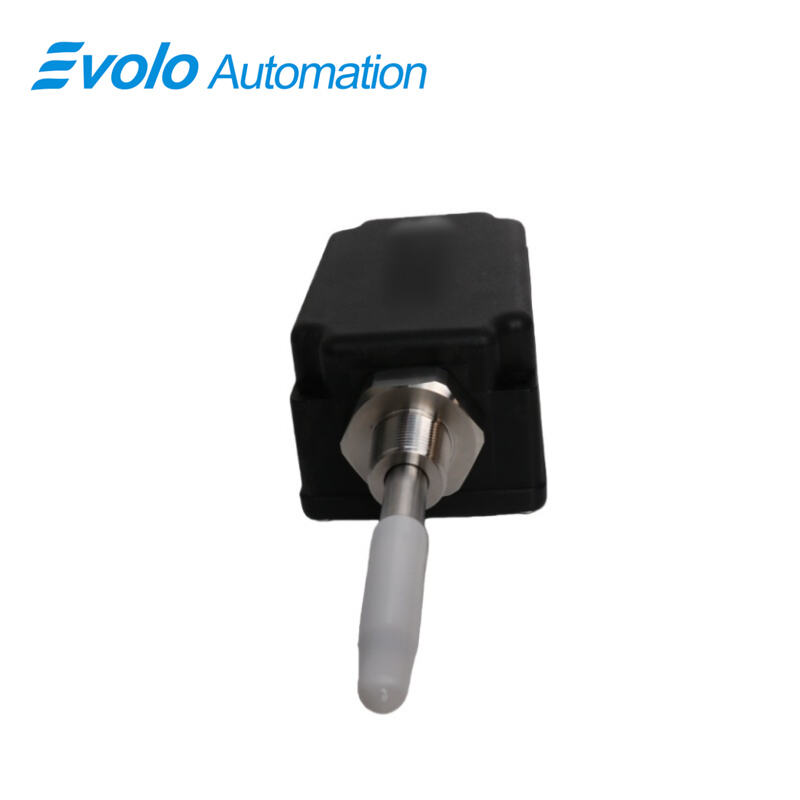

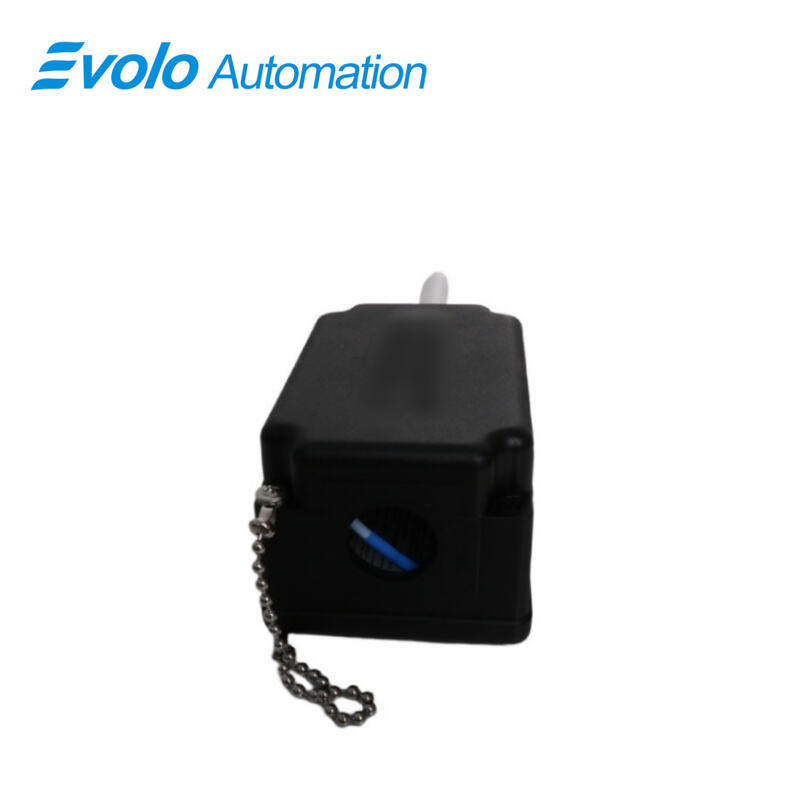

The 31000-16-10-15-063-03-02 Proximity Probe Housing Assembly is a robust, high-performance mounting solution designed for industrial automation and condition monitoring systems. Engineered for use with 3300 XL 8 mm Proximity Probes, it facilitates precise vibration, position, and Keyphasor measurements while enabling external access for easy gap adjustment or probe replacement without machine disassembly. The housing is constructed from glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers, providing superior corrosion resistance, high mechanical strength, and electrostatic dissipation. Stainless steel components, including the outer sleeve (AISI 303) and sleeve retaining chain (AISI 304), ensure durability in harsh industrial environments. The assembly supports Type 4X protection ratings and withstands impacts of 4 Joules at temperatures ranging from −39°C to 115°C, verified by BASEEFA certification. With multiple fittings, including NPT reducers and cable seal grips, and a recommended torque of 29.4 N·m (260 in·lb), the 31000-16-10-15-063-03-02 Housing Assembly ensures reliable, safe, and repeatable probe operation, fully compliant with API 670 standards and suitable for intrinsically safe hazardous area applications when used with approved transducer systems.
Applications
Application 1: Radial Mounting for Vibration Measurement
Provides secure radial mounting for 3300 XL proximity probes in turbines, compressors, and motors. Enables precise vibration and displacement readings without disassembly, improving maintenance efficiency and reducing downtime by up to 15%.
Application 2: Keyphasor and Speed Sensing
Facilitates accurate Keyphasor reference and rotational speed measurements in rotating machinery, essential for synchronization and predictive maintenance in process automation systems.
Application 3: Easy Gap Adjustment and Probe Replacement
Allows external access to probes and extension cables, enabling field engineers to adjust probe gaps or replace probes without interrupting machine operation, saving labor time and improving process uptime.
Application 4: Corrosive and High-Temperature Environments
Glass-reinforced PPS housing and stainless steel components ensure reliable operation in chemical, petrochemical, and offshore facilities, withstanding ambient temperatures from −39°C to 115°C and high humidity conditions.
Application 5: Intrinsically Safe Hazardous Areas
When used with approved transducer systems and I.S. barriers, the housing assembly supports installation in hazardous environments compliant with CSA, ATEX, and IECEx standards, maintaining both operator safety and measurement integrity.
Specifications
|
Protection Ratings : |
Type 4X rating certified by Canadian Standards Association (CSA) |
|
Housing Material: |
Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers |
|
Sleeve Material and Retaining Chain: |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws: |
AISI 303 stainless steel |
|
O-Ring Material : |
Neoprene |
|
Recommended Torque(retaining nut) : |
29.4 N·m (260 in·lb) |
|
Housing Strength (typical): |
Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole |
|
Housing Impact Strength: |
Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F) |
Competitive Advantage
Competitive Advantage 1: Robust Housing Material
Glass-reinforced PPS thermoplastic with conductive fibers provides excellent chemical resistance, high impact strength, and electrostatic charge dissipation, outperforming traditional aluminum or steel housings.
Competitive Advantage 2: Stainless Steel Components
AISI 303 and 304 stainless steel elements offer superior corrosion resistance and mechanical durability, ensuring longevity in harsh industrial environments.
Competitive Advantage 3: API 670 Compliance
Fully compliant with API 670 standards for externally mounted proximity probe housings, guaranteeing reliable operation in precision machinery monitoring and control systems.
Competitive Advantage 4: Simplified Maintenance and Accessibility
External access for gap adjustment and probe replacement eliminates machine disassembly, reducing maintenance time and operational downtime while maintaining measurement accuracy.
Competitive Advantage 5: High Impact and Temperature Resistance
BASEEFA-certified to withstand 4 Joule impacts at temperatures from −39°C to 115°C, ensuring reliable performance in extreme mechanical and thermal conditions.
