Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
21000-16-05-00-084-04-02 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Probe with Connector: |
3300 XL 8mm probe |
|
Probe Cable Length: |
0.5 m (20 in) |
|
Standoff Adapter (Option C Dimension): |
No standoff adapter |
|
Probe Penetration (Option D Dimension) : |
8.4 in |
|
Fittings : |
One 3/4-14 NPT plug only |
|
Mounting Thread: |
3/4-14 NPT |
|
Dimension: |
8.5x8.5x30.5cm |
|
Weight: |
1.1 kg |
Description

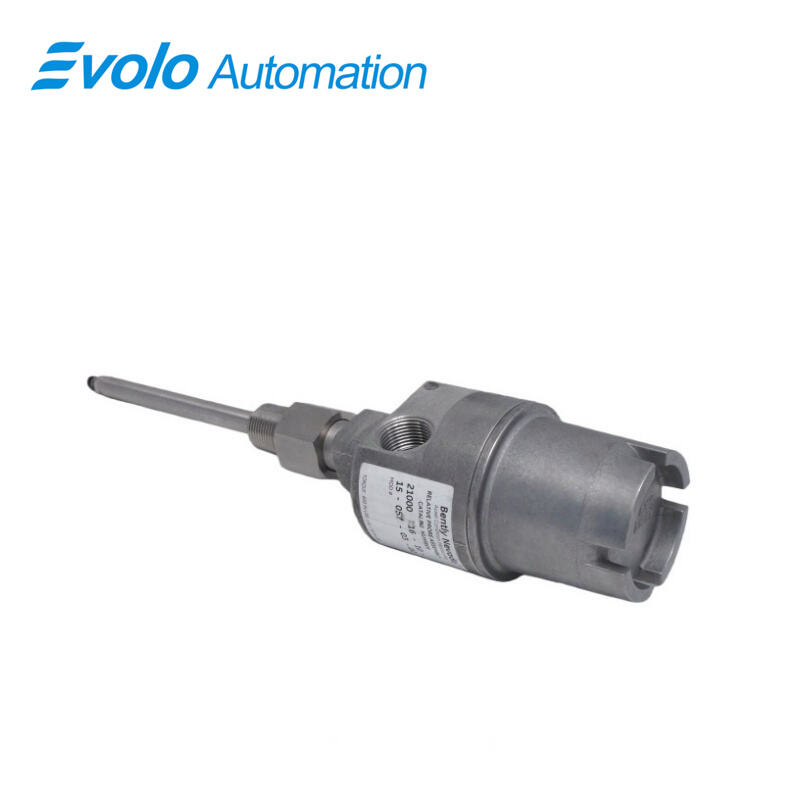

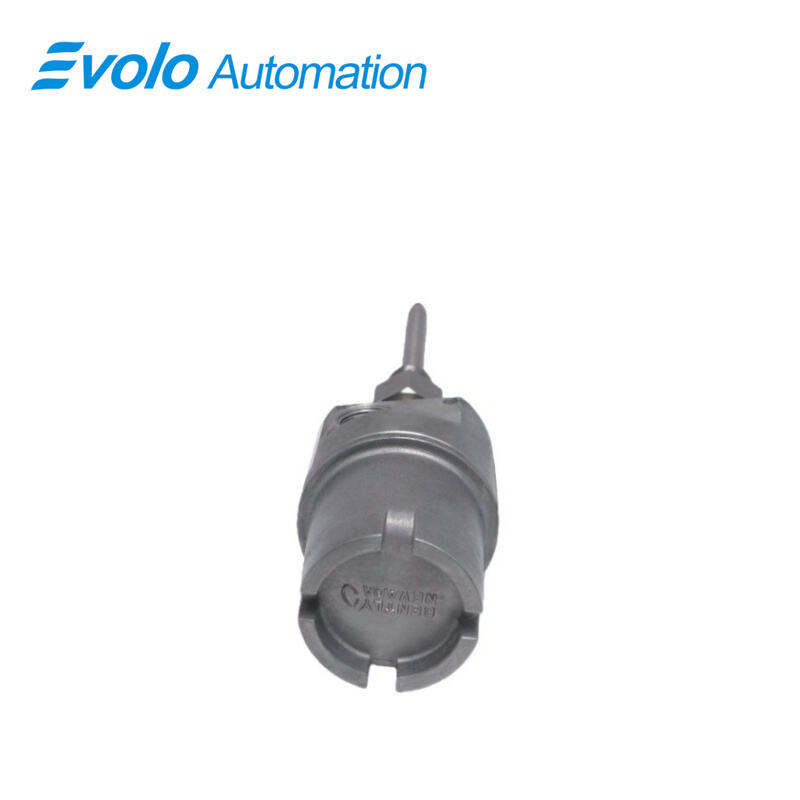

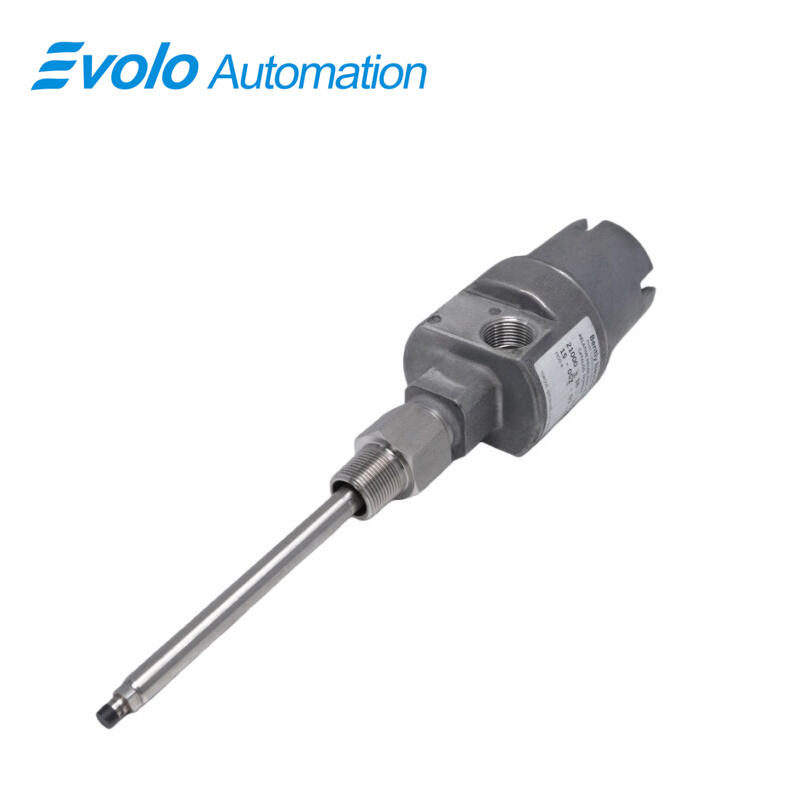

21000-16-05-00-084-04-02 Proximity Probe Housing Assemblies provide a robust external mounting solution for 3300 XL 8 mm probes used in fluid-film bearing machines and other automated systems. Each assembly includes a 0.5 m (20 in) probe cable, 8.4 in probe penetration, a 3/4-14 NPT mounting thread, and an aluminum housing with a 304 stainless steel sleeve weighing 1.1 kg (2.4 lb). The assembly meets CSA Type 4 and API 670 standards, supports conduit connections, dome covers, O-rings, and optional standoff adapters. Sleeve lengths longer than 304 mm (12 in) can use additional support to reduce vibration, ensuring precise measurement in automated monitoring systems.
Applications
Application: Radial Vibration Monitoring
21000-16-05-00-084-04-02 allows installation of 3300 XL 8 mm probes to measure radial vibration on shafts in centrifugal compressors. The 8.4 in probe penetration and 0.5 m cable provide flexibility for confined machine spaces while delivering precise eddy current readings.
Application: Axial Position Tracking
Using 21000-16-05-00-084-04-02, 3300 XL 8 mm probes can measure axial displacement on rotating machinery. The 304 stainless steel sleeve ensures the probe tip remains accurately aligned for thrust measurement on fluid-film bearings.
Application: Keyphasor and Tachometer Signals
The assembly supports Keyphasor reference and speed measurements by securing 3300 XL 8 mm probes with consistent gap settings of 1.0 mm, providing accurate phase and zero-speed signals for automated control systems.
Specifications
|
Material: |
Aluminum body with 304 stainless steel sleeve |
|
Mass (Weight): |
1.1 kg (2.4 lb) typical, without fittings |
Competitive Advantage
Competitive Advantage: Adjustable Sleeve Support
21000-16-05-00-084-04-02 accommodates sleeve lengths longer than 304 mm with optional support, minimizing vibration-induced errors and enabling long-reach probe installations.
Competitive Advantage: CSA and API Compliance
The 21000-16-05-00-084-04-02 housing meets CSA Type 4 and API 670 standards, ensuring safe use in hazardous areas while allowing external mounting of 3300 XL 8 mm probes for automated monitoring.
Competitive Advantage: Modular Installation
The assembly includes threaded ports, dome cover, O-rings, and optional standoff adapters, allowing flexible installation of 3300 XL 8 mm probes across various industrial machines and reducing setup time.
