Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
190501-00-00-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Mounting Hardware Option: |
No stud |
|
Connection Option: |
MIL-C-5015 connection interface |
|
Agency Approval Option: |
No Approvals |
|
Dimension: |
8.3x3.5x3.2cm |
|
Weight: |
0.3kg |
Description

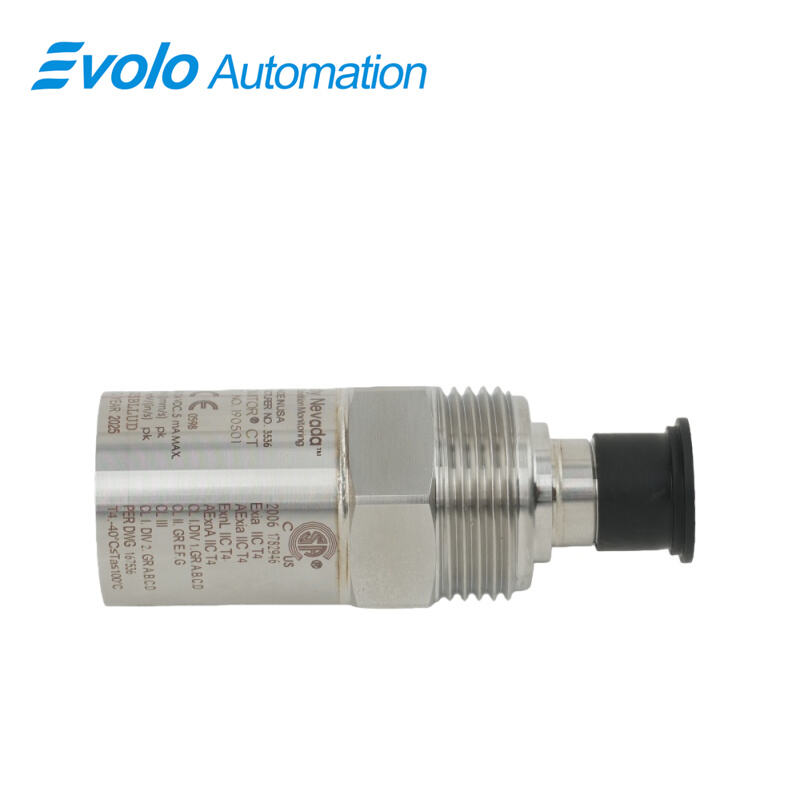

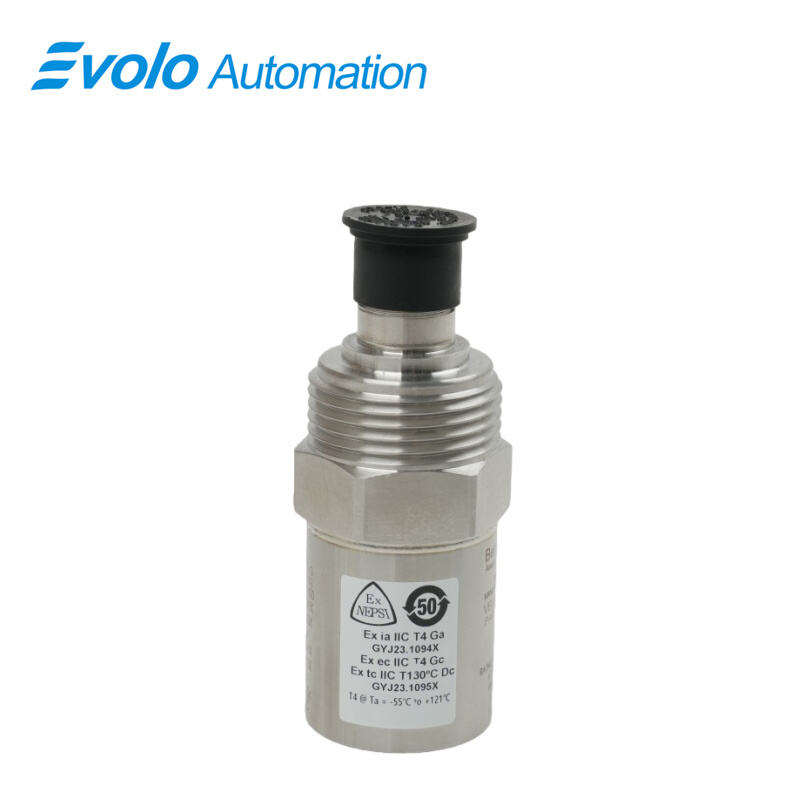

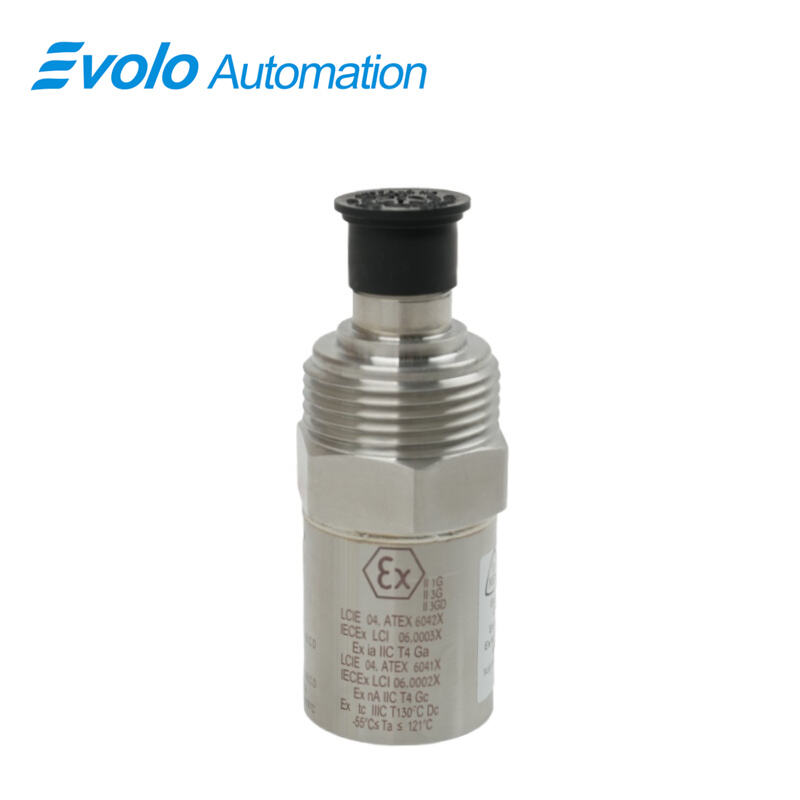

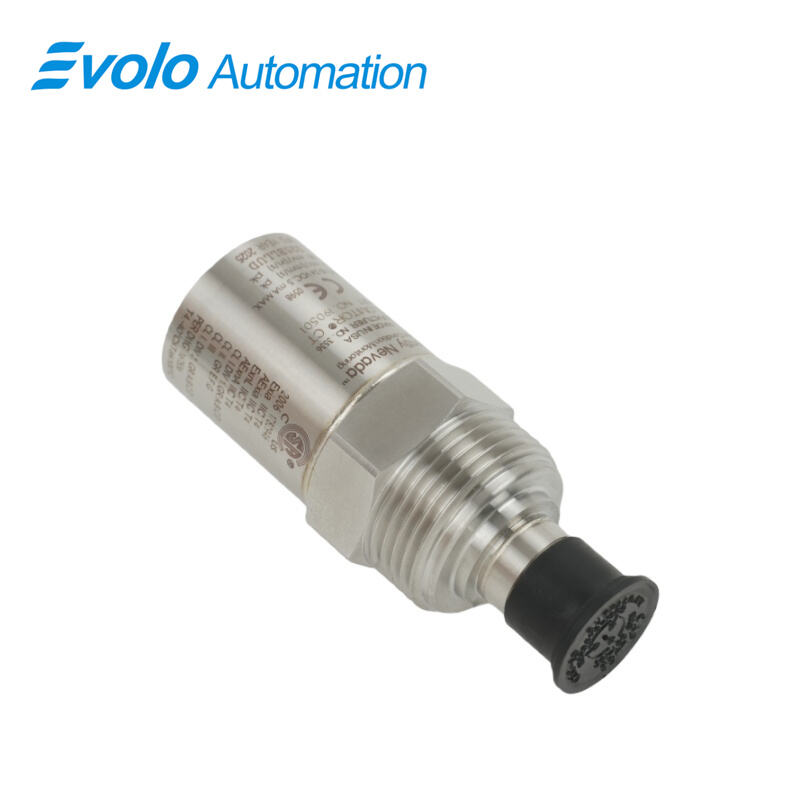

The 190501-00-00-00 Velomitor CT Velocity Transducer is designed for precise casing vibration velocity measurement in cooling tower and air-cooled heat-exchanger fan assemblies operating from 90 to 300 rpm. The 190501-00-00-00 Velomitor CT Velocity Transducer provides 3.94 mV/mm/s (100 mV/in/s) ±5% sensitivity, covering low-frequency ranges from 3 Hz to 900 Hz ±1.0 dB or 1.5 Hz to 1 kHz ±3.0 dB. Its 316L stainless steel case and MIL-C-5015 2-pin connector ensure reliable electrical connection in automated monitoring systems. The 190501-00-00-00 Velomitor CT Velocity Transducer supports any mounting orientation on 33 mm diameter surfaces and handles operating temperatures from -40°C to +85°C. With a shock limit of 5000 g pk and 100% condensing humidity tolerance, the 190501-00-00-00 Velomitor CT Velocity Transducer delivers accurate vibration data to PLC, DCS, or SCADA systems, enabling automated fan speed monitoring, vibration analysis, and predictive maintenance. Its low temperature sensitivity (-8% to +5%) ensures consistent signal output across typical operational conditions.
Applications
Measure Fan Speed in Cooling Towers: The 190501-00-00-00 Velomitor CT Velocity Transducer monitors rotational speed of fans operating between 100–300 rpm, using its 3.94 mV/mm/s sensitivity to detect variations.
Track Vibration Amplitude in Air-Cooled Heat Exchangers: Install the 190501-00-00-00 Velomitor CT Velocity Transducer on 33 mm mounting surfaces to measure vibration amplitudes from 3 Hz to 900 Hz, enabling automated detection of mechanical irregularities.
Automate Predictive Maintenance: Connect the 190501-00-00-00 Velomitor CT Velocity Transducer to PLCs or SCADA systems to trigger maintenance alerts when vibration thresholds exceed set limits, using its low temperature sensitivity (-8% to +5%).
Specifications
|
Sensitivity: |
3.94 mV/mm/s (100 mV/in/s) ±5% |
|
Frequency Response: |
3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB or 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB |
|
Temperature Sensitivity: |
-8% to +5% typical over the operating temperature range |
|
Case Material: |
316L stainless steel |
|
Connector: |
2-pin 316L stainless steel MIL-C-5015, top |
|
Mounting Torque： |
4.5 N-m ± 0.6 N-m (40 in– lbf ± 5 in-lbf) |
|
Mounting Angle： |
Any orientation |
|
Mounting Surface： |
33 mm diameter (1.3 in diameter) |
|
Operating Temperature: |
-40°C to +85°C (-40°F to +185°F) |
|
Storage Temperature: |
-40°C to +100°C (-40°F to +212°F) |
|
Shock Limit: |
5000 g pk, maximum |
|
Humidity Limit: |
100% condensing, non-submerged |
Competitive Advantage
Low-Frequency Accuracy for Automation: The 190501-00-00-00 Velomitor CT Velocity Transducer delivers precise readings from 3 Hz to 900 Hz ±1.0 dB, supporting automated vibration analysis in fan assemblies.
Flexible Mounting and Integration: The 190501-00-00-00 Velomitor CT Velocity Transducer can be mounted at any orientation with 4.5 N-m torque, making installation simple in tight or complex automated systems.
Shock and Environmental Resilience: Designed to withstand 5000 g pk shock, -40°C to +85°C operating temperatures, and 100% condensing humidity, the 190501-00-00-00 Velomitor CT Velocity Transducer ensures uninterrupted automated monitoring.
Automation-Ready Output Signal: The 3.94 mV/mm/s output from the 190501-00-00-00 Velomitor CT Velocity Transducer can be directly fed into PLC, DCS, or SCADA systems without additional conversion, simplifying integration.
Durable Mechanical Design: With a 316L stainless steel case and MIL-C-5015 connector, the 190501-00-00-00 Velomitor CT Velocity Transducer maintains secure electrical connections in automated systems under continuous operation.
