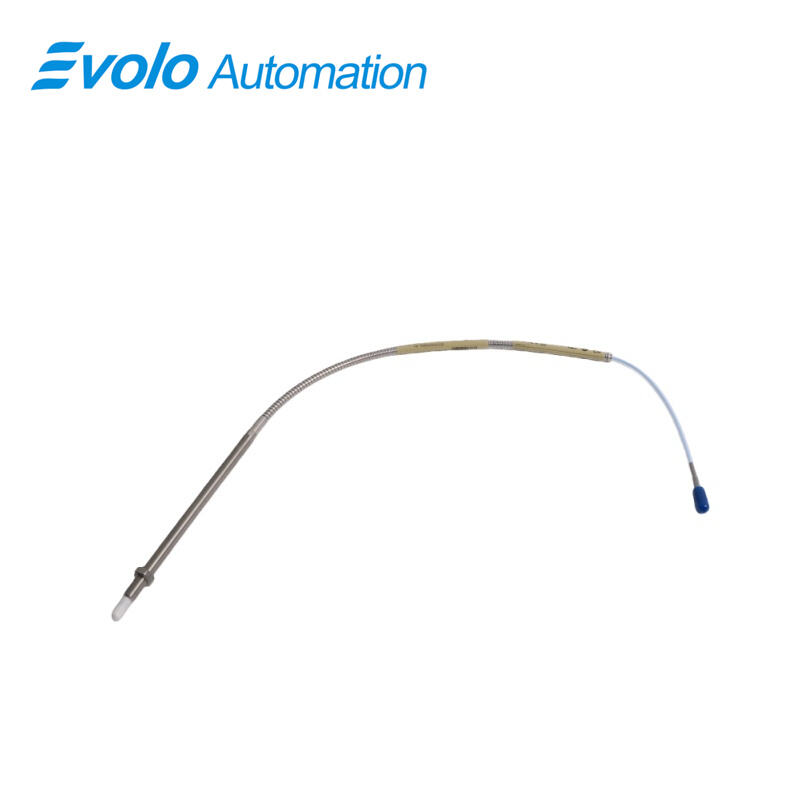

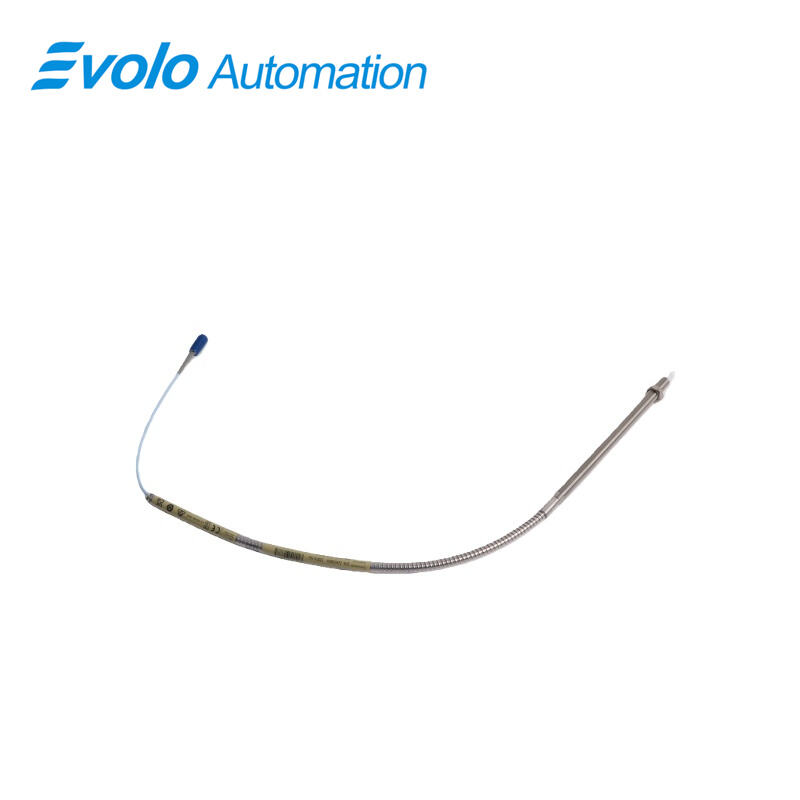

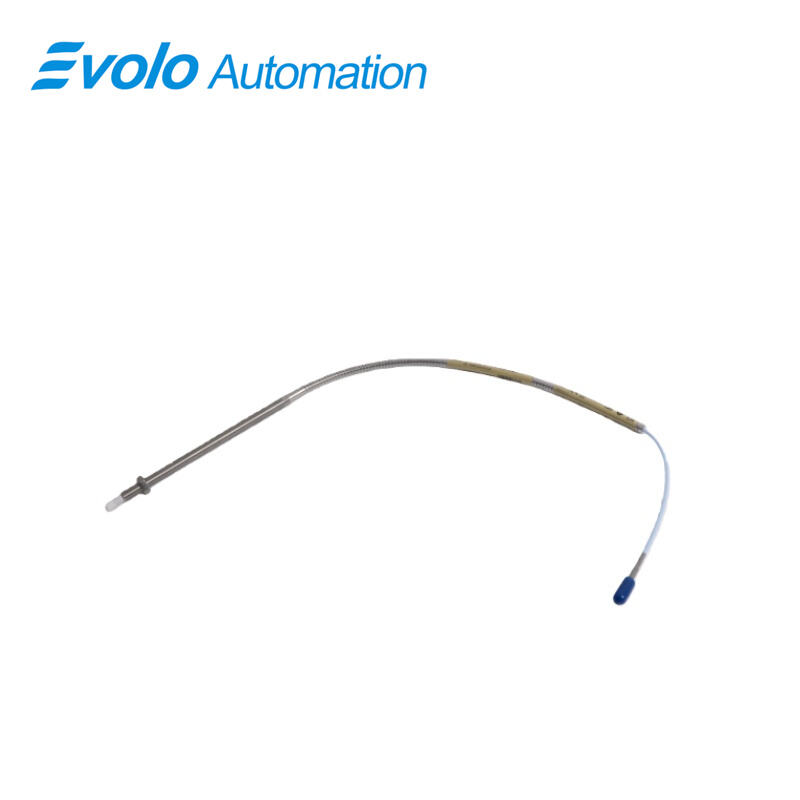

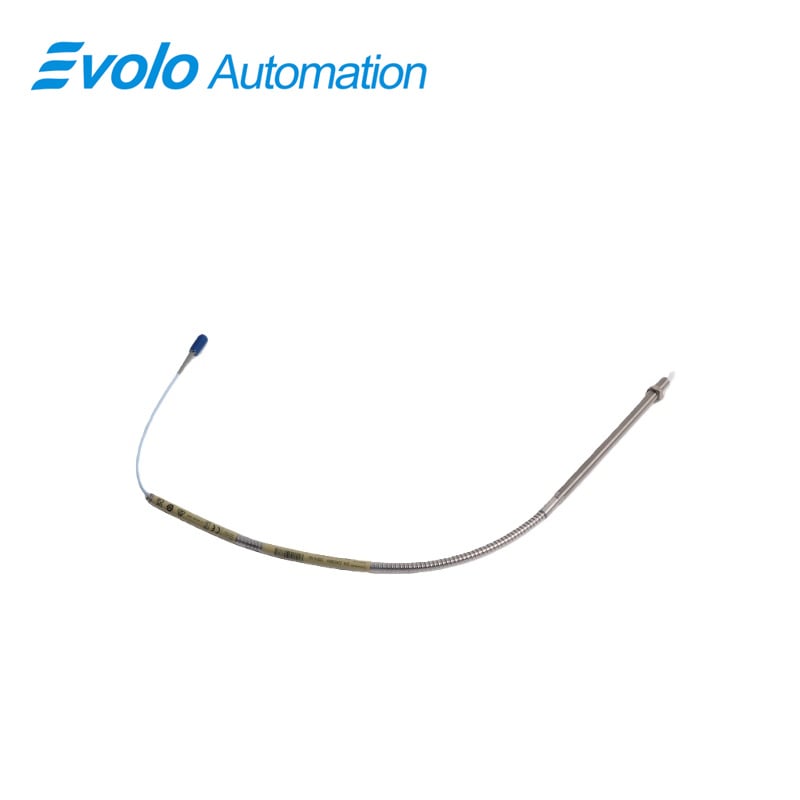

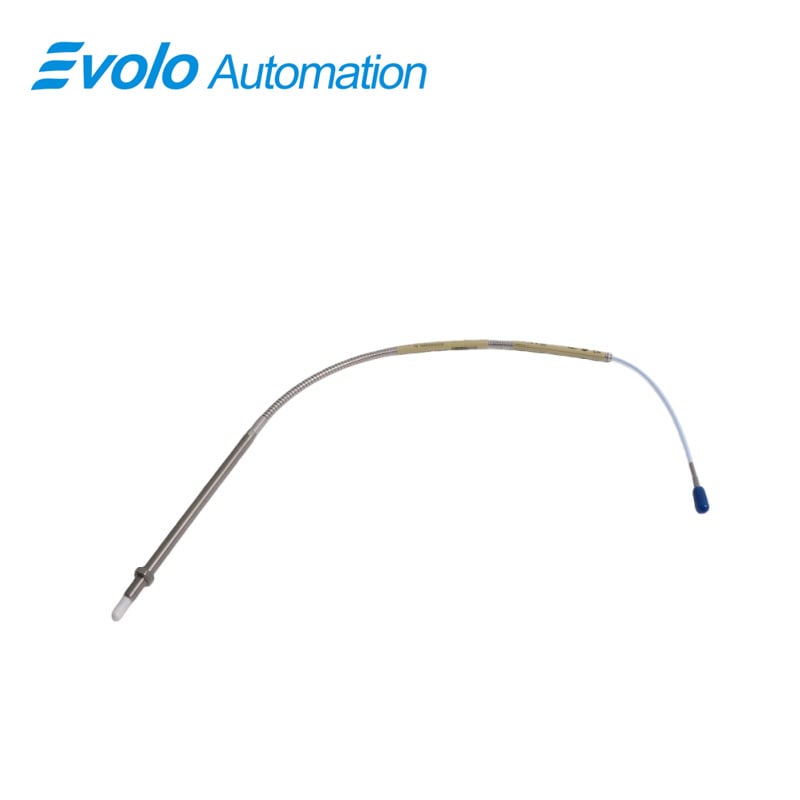

330908-00-36-05-02-05 3300 NSv Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330908-00-36-05-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detai

Description

The Bently Nevada 330908-00-36-05-02-05 represents a specialized configuration within the high-performance 3300 NSv Proximity Probes series, engineered to deliver exceptional reliability in machinery condition monitoring applications requiring a standard extended-reach form factor. This model is distinguished by its precise overall case length of 3.6 inches (approximately 91.4 mm), coupled with a concise integrated cable total length of 0.5 meter (20 inches). This unique combination provides the mechanical reach necessary to position the sensing tip accurately within deep mounting holes or through access ports, while the shorter cable length is ideal for clean, direct connections in compact control cabinets or localized junction boxes. As an advanced eddy current displacement transducer, this proximity probe generates a highly linear electrical output that faithfully corresponds to the dynamic vibration and static position of a conductive target, such as a rotating shaft, enabling precise monitoring of critical assets like turbines, compressors, and large pumps.

Durability in demanding operational environments is a cornerstone of its design. The probe body is precision-machined from AISI 304 stainless steel (SST), offering superior corrosion resistance and mechanical strength. The sensing tip is crafted from robust Polyphenylene Sulfide (PPS), a material renowned for its exceptional resistance to chemical degradation, high temperatures, and exposure to industrial lubricants and process fluids. This material synergy ensures long-term signal stability and mechanical integrity. The probe features a secure Miniature coaxial ClickLoc connector system, designed to maintain a vibration-resistant and reliable electrical connection critical for uninterrupted data transmission. Furthermore, the model carries Multiple Approvals, certifying its suitability for deployment in a wide range of industrial settings that demand compliance with international standards.

Applications

1. Monitoring in Deeply Recessed or Insulated Mounting Points

The 3.6-inch case length is ideal for applications where the probe must traverse a thick machinery casing, an insulation layer, or a protective sleeve to reach the measurement surface. This is common on large steam turbines, certain generator designs, or equipment where the sensor cannot be mounted flush to the housing. The short 0.5-meter cable is perfect when the termination point (like a local junction box) is located very close to the probe exit point.

2. High-Density Skid and Packaged Equipment Monitoring

This configuration excels on tightly packed compressor or pump skids, where individual machines are mounted close together. The extended probe body allows for flexible mounting depth, while the short cable prevents excess cable clutter, enabling neat and organized routing directly to nearby terminal blocks or transducers, simplifying installation and improving maintainability.

3. Retrofitting Legacy Systems with Specific Dimensional Requirements

For upgrading older monitoring systems that were originally designed for longer-body probes, this model serves as a direct mechanical and electrical replacement. Its 3.6-inch length and standardized connector ensure it fits existing mounting holes and interfaces, allowing for a seamless technology upgrade that improves reliability and performance without any mechanical modification to the equipment.

Specifications

Competitive Advantage

1. Optimal Reach-and-Connection Length Configuration

The specific pairing of a 3.6-inch long body with a short 0.5-meter cable offers a tailored solution that addresses common installation inefficiencies. It eliminates the need to coil and manage excess cable in situations where the monitor is nearby, reducing installation time, potential signal interference from coiled cables, and overall system clutter, while still providing the necessary mechanical reach for the sensing element.

2. Premium Material Construction for Longevity in Aggressive Environments

The use of AISI 304 stainless steel for the case and Polyphenylene Sulfide (PPS) for the tip provides a superior material combination. This offers enhanced resistance to a wider range of corrosive chemicals and extreme temperatures compared to standard probes, directly translating to a longer service life, reduced replacement frequency, and lower total cost of ownership in harsh processing environments like chemical plants or offshore platforms.

3. Certified Compatibility and Ease of Integration

As a genuine Bently Nevada component with Multiple Approvals, this probe removes guesswork and risk from the procurement and integration process. Users are guaranteed perfect electrical and mechanical compatibility with 3300 NSv and compatible legacy systems. The pre-certification also streamlines project approval processes, ensuring the component meets necessary industry and safety standards for global deployment.
