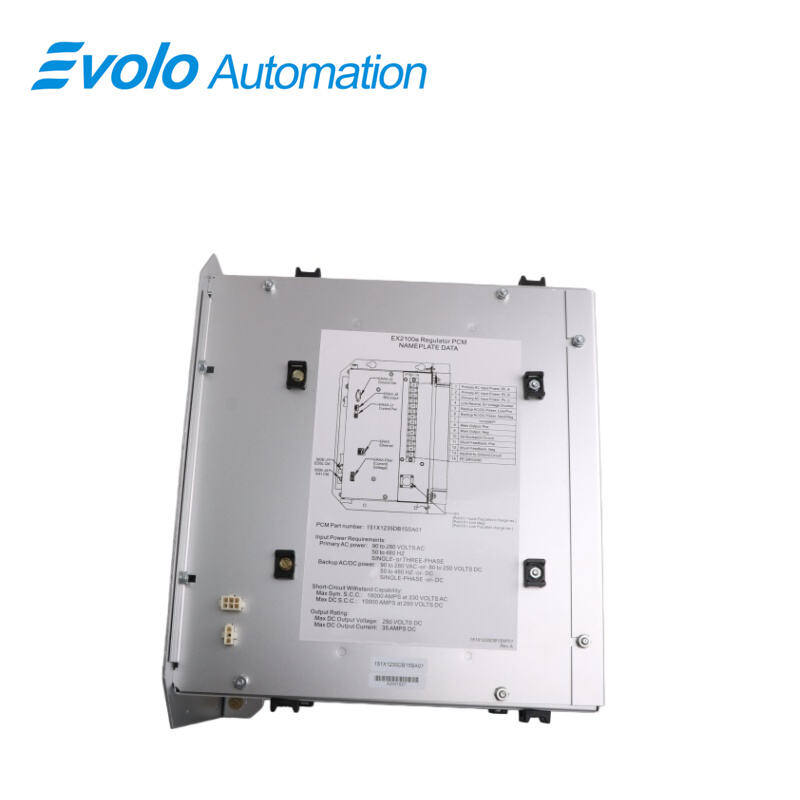

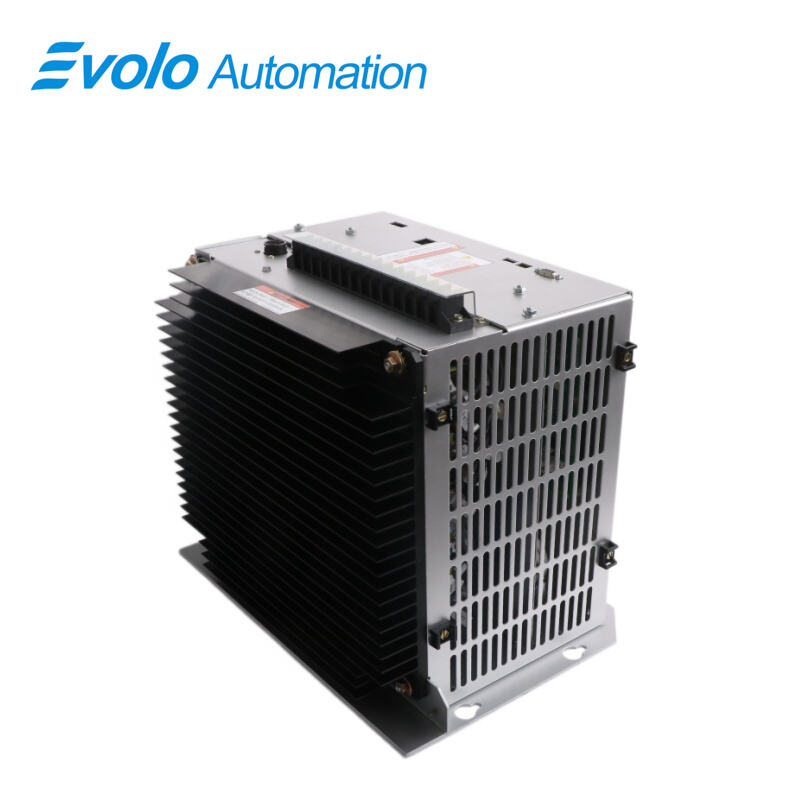

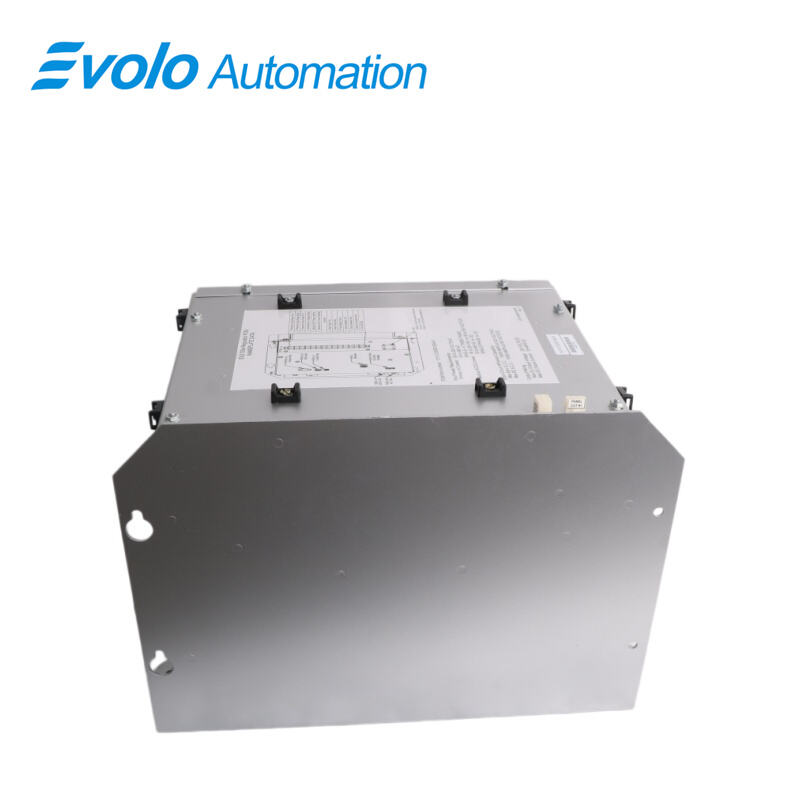

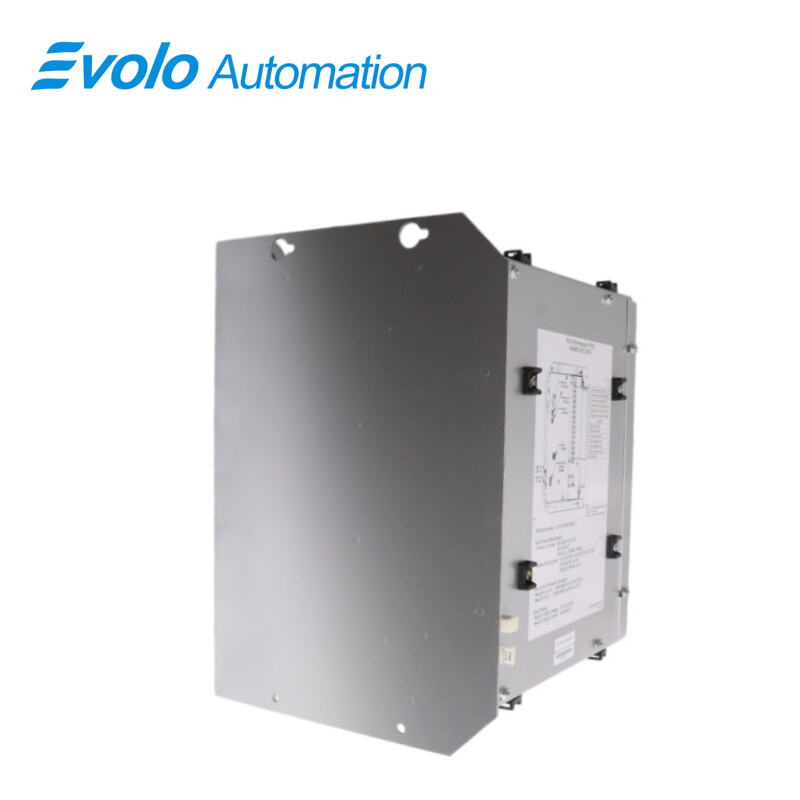

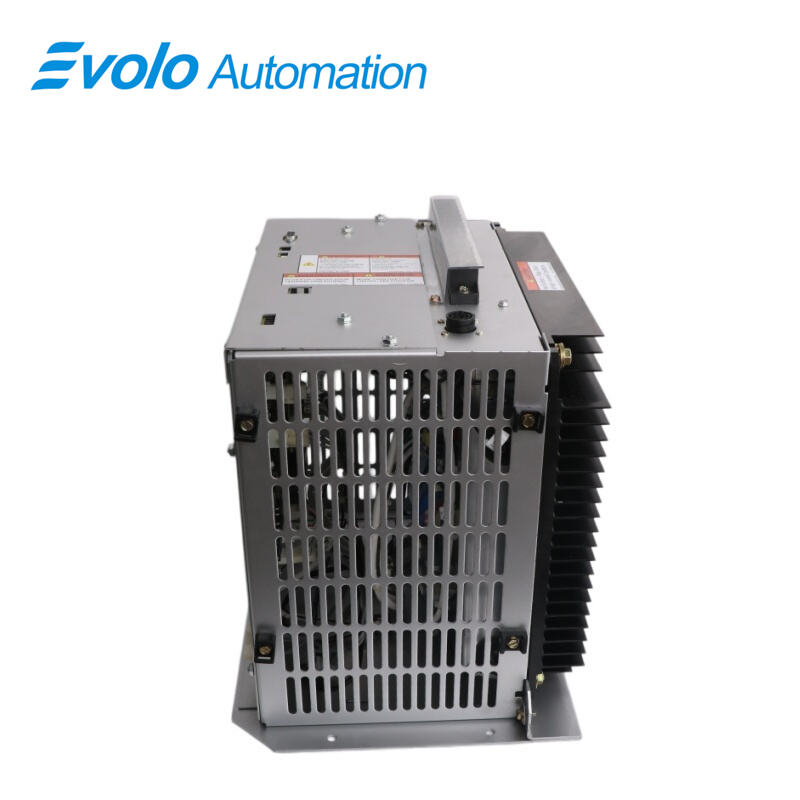

151X1235DB15SA01 Power Converter

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	151X1235DB15SA01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The 151X1235DB15SA01 is a power converter manufactured by General Electric (GE) and is widely used in various industrial automation, communications, medical, and other scenarios requiring a stable power supply. Its main function is to convert input power into specific output voltage and current, ensuring stable operation of connected devices.

Applications

Precision Semiconductor Plants: Provides ultra-stable power supply for wafer fabrication equipment, eliminating the impact of power ripple on precision etching processes through high-frequency conversion characteristics.

New Energy Battery Plants: Deployed in cell formation and sorting equipment, utilizing high-precision conversion capabilities to ensure the accuracy and reliability of battery charge/discharge test data.

Aerospace Plants: Provides power conversion for avionics test benches in extreme temperature environments, ensuring consistent power output during high and low temperature cycling tests.

Smart Car Plants: Integrated into the control system of body welding robots, balancing voltage fluctuations caused by frequent start-stop cycles of servo motors through ultra-fast response characteristics.

Features

1. Power Conversion:

Efficiently converts AC/DC input into stable output for different devices.

Supports multiple input/output configurations for industrial and commercial use.

2. High Efficiency & Low Energy Consumption:

Advanced conversion technology ensures high efficiency and reduced energy loss.

Low power consumption, suitable for energy-sensitive applications.

3. Stable Output Voltage:

Maintains steady voltage to protect equipment from fluctuations.

Ideal for precision instruments and industrial environments.

4. Multiple Protection Functions:

Includes overvoltage, overcurrent, and short-circuit protection.

Also features overload and overtemperature protection for higher reliability.

FAQ

Q: Does the 40 kHz operating frequency of the 151X1235DB15SA01 cause electromagnetic interference to surrounding equipment?
A: This PCM module has a built-in high-level EMI filter. Although it operates at a high frequency, its radiation level is strictly controlled within industrial safety standards.

Q: Why can the 151X1235DB15SA01 achieve a response time of less than 1 ms?
A: Thanks to its advanced PCM topology and high-speed sampling chip, the module can instantly compensate for load changes and prevent voltage drops.

Q: Will the 15W power consumption of the 151X1235DB15SA01 cause heat buildup in a high-temperature factory environment of +85°C?
A: The module casing is designed with high thermal conductivity materials. Even when operating at the upper temperature limit, its thermal design ensures that the core components remain within the safe operating temperature rise range.

Q: Can Modbus RTU and Ethernet IP protocols be used interchangeably in the same system for the 151X1235DB15SA01 management?
A: Yes. The 151X1235DB15SA01 supports dual-protocol concurrency, allowing the local HMI to use RTU control while the host computer performs data analysis via IP.

Q: Does the 0.5kg weight of the 151X1235DB15SA01 offer any advantages for installation in mobile control cabinets?
A: The lightweight design reduces mechanical stress on the mounting backplane, making it particularly suitable for deployment in AGVs or automated control cabinets requiring frequent movement.
