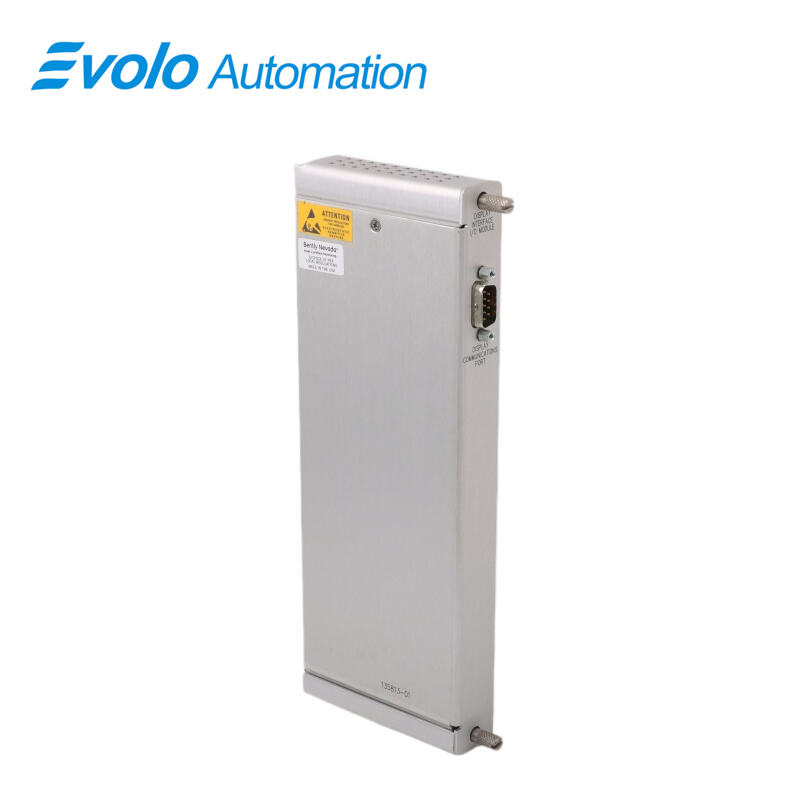

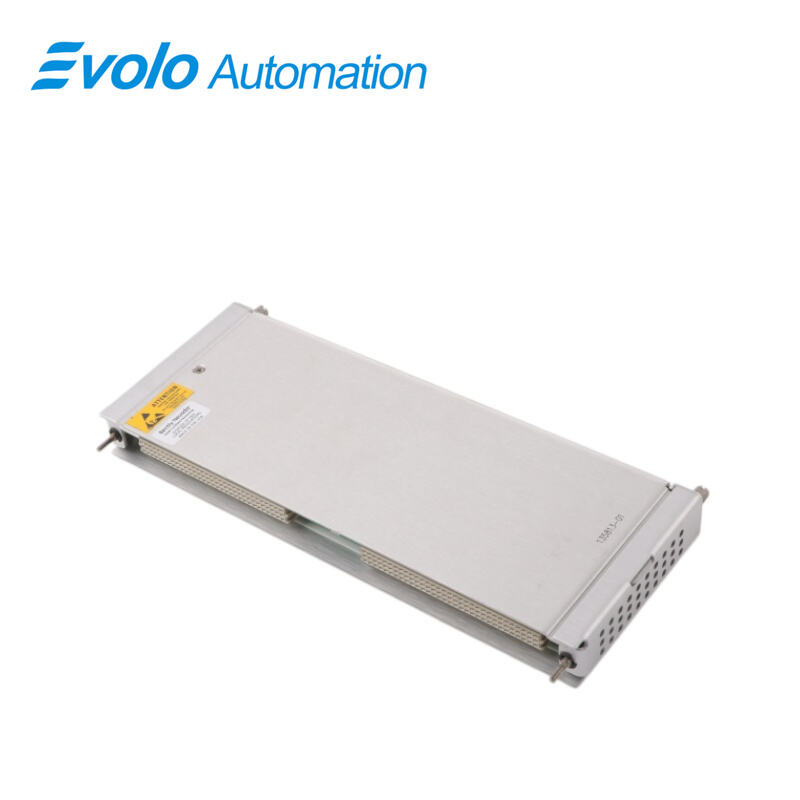

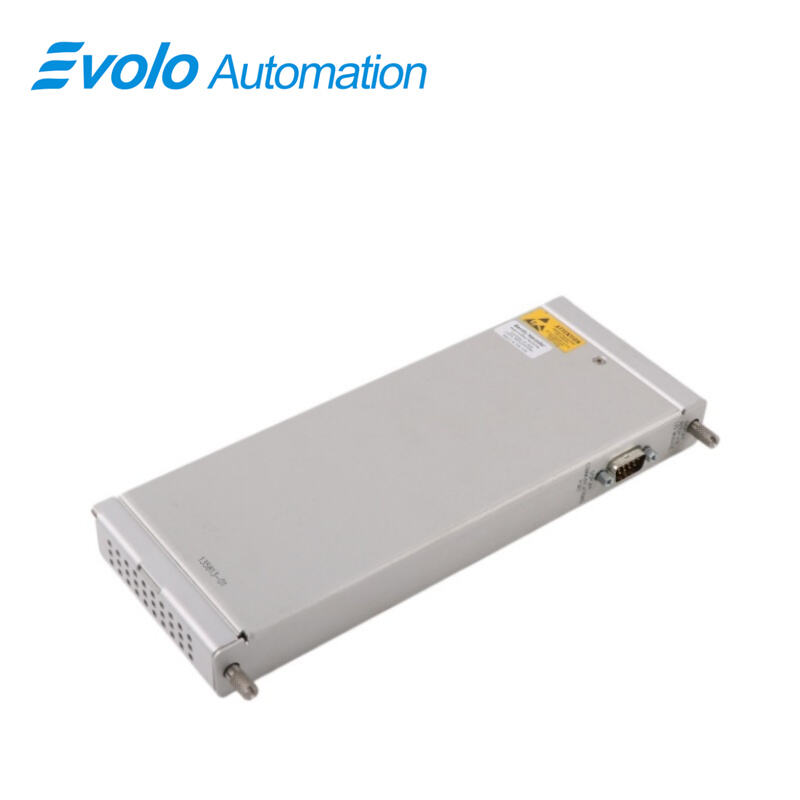

135813-01 Display Interface I/O Module

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	135813-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

135813-01 is a Display Interface I/O Module manufactured and designed by Bently Nevada as part of the 3300 Series used for machinery vibration monitoring systems. The module integrates digital and analog input/output channels, allowing it to interact with various peripherals such as sensors, switches, and actuators. Simultaneously, it offers display functionality through technologies like LED, LCD, or graphical screens, which provide real-time information on system status, performance metrics, or alerts. Often designed with robust communication protocols, such as Modbus, Ethernet, or RS232/RS485, these modules seamlessly connect to central processors or control units, ensuring reliable data exchange. Additionally, many modules are programmable, enabling customization for specific applications and enhancing their adaptability to different environments. Built to endure industrial conditions, these modules are typically housed in rugged, often IP-rated enclosures to withstand dust, moisture, and temperature extremes.

Applications

Real-Time Vibration Monitoring
The Bently Nevada 135813-01 Display Interface I/O Module processes 12 input channels with an input impedance of 20 kΩ and a voltage range of +10.0 V to -24.0 V. The 135813-01 Module provides real-time display of system status, orbit, and vibration metrics for turbines, compressors, and industrial machinery.

Remote Display Installation
The Bently Nevada 135813-01 Display Interface I/O Module supports face, panel, 19-inch EIA rack, or independent wall mounting. The 135813-01 Module can operate up to 100 feet away from the 3500 System, or 4000 feet with external power supply, enabling flexible automated monitoring setups.

Transducer Signal Integration
The Bently Nevada 135813-01 Display Interface I/O Module delivers 24 Vdc transducer power and 0–12 Vdc voltage compliance with 550 Ω output impedance. The 135813-01 Module allows connection to multiple sensors, switches, and actuators for automated data acquisition in industrial systems.

Programmable Data Communication
The Bently Nevada 135813-01 Display Interface I/O Module uses Modbus, Ethernet, or RS232/RS485 protocols to send digital and analog data. The 135813-01 Module integrates with SCADA or control systems, supporting automated process monitoring and display updates.

Specifications

Competitive Advantage

Flexible Mounting Options
The Bently Nevada 135813-01 Display Interface I/O Module supports front-panel, rack, panel, or independent mounting. The 135813-01 Module allows operators to customize display placement without interrupting 3500 System operations.

High-Resolution Channel Monitoring
The Bently Nevada 135813-01 Display Interface I/O Module provides 12 channels with ±1% amplitude accuracy and frequency support at 50 or 60 Hz. The 135813-01 Module ensures precise vibration and process monitoring for automated industrial maintenance.

Durable Industrial Design
The Bently Nevada 135813-01 Display Interface I/O Module is housed in rugged enclosures capable of withstanding -30 °C to +65 °C, dust, and moisture. The 135813-01 Module provides long-term, automated operation in harsh industrial environments.

Integrated Display Functionality
The Bently Nevada 135813-01 Display Interface I/O Module incorporates LED, LCD, or graphical screens for real-time monitoring. The 135813-01 Module enables operators to track performance metrics, alarms, and system alerts directly on the module without additional equipment.

Efficient Data Exchange
The Bently Nevada 135813-01 Display Interface I/O Module communicates via Ethernet, Modbus, or RS232/RS485. The 135813-01 Module ensures fast, automated data transfer to central processors, supporting continuous machine monitoring and automated decision-making.
