Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
10014/H/F |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Description |
Specification |
|
Model |
10014/H/F |
|
Part name |
Communication Module |
|
Dimensions |
4.1x18.6x12.9cm |
|
Weight |
0.3 kg |
|
Power requirements |
5 V DC @ 35 mA; 24 V DC @ 35 mA (typical) |
|
Communication ports |
Integrated high-speed physical interface, supports multi-node networking |
|
Supported protocols |
Modbus RTU/ASCII, RS-485, proprietary secure communication protocol |
|
Certifications |
CE, TÜV, UL |
|
Operating temperature range |
-25°C to +60°C |
|
Storage temperature range |
-40°C to +85°C |
|
Ripple rejection |
< 50 mV p-p |
Description

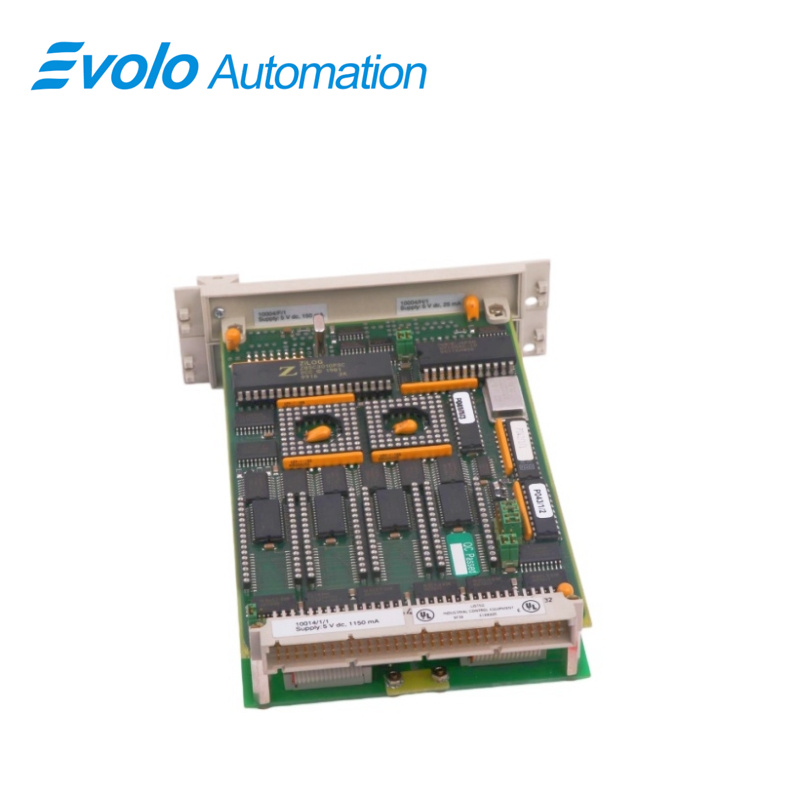

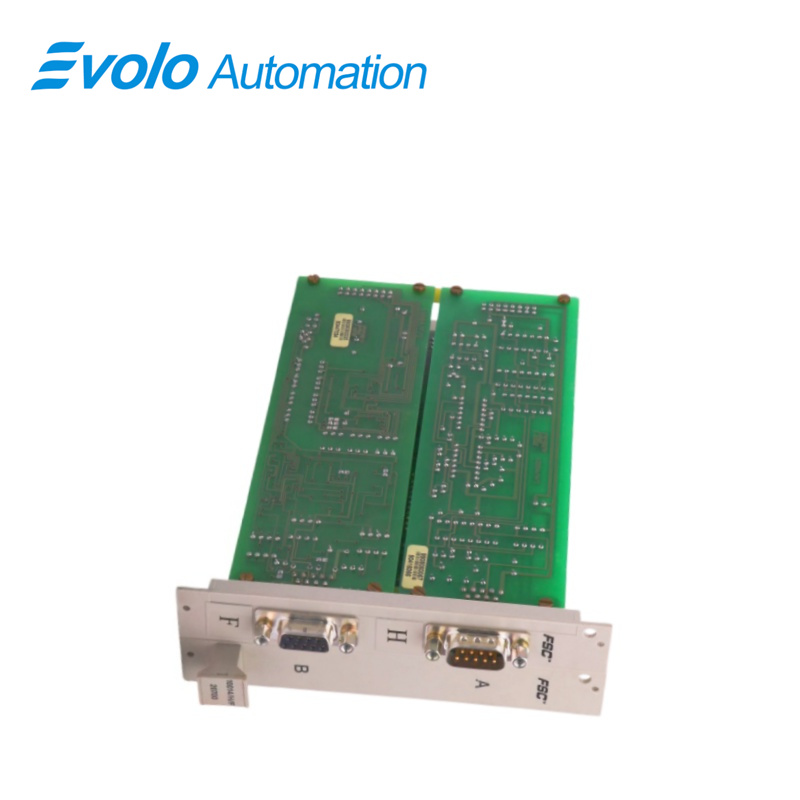

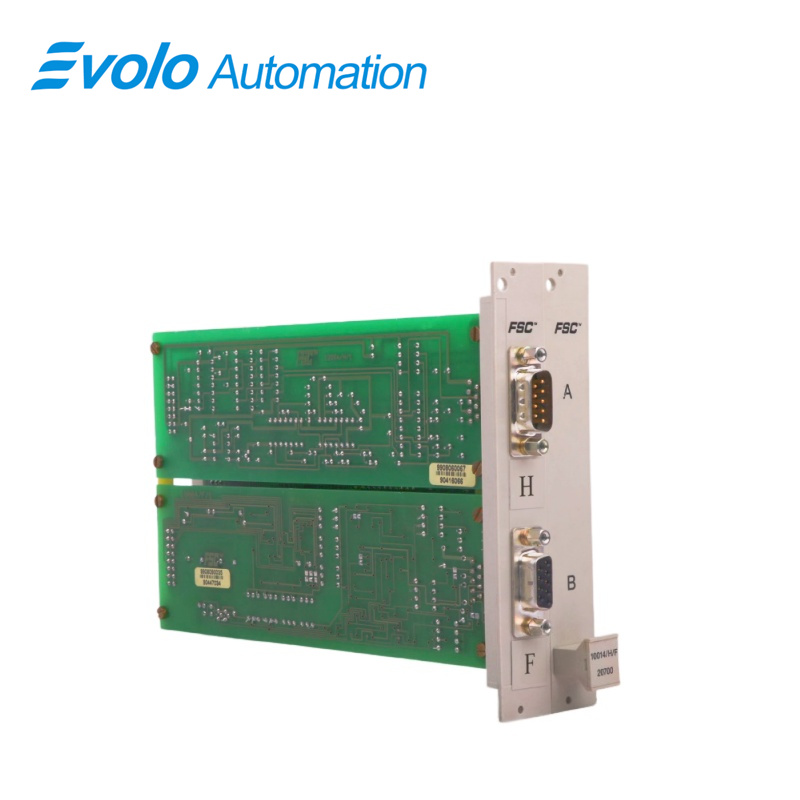

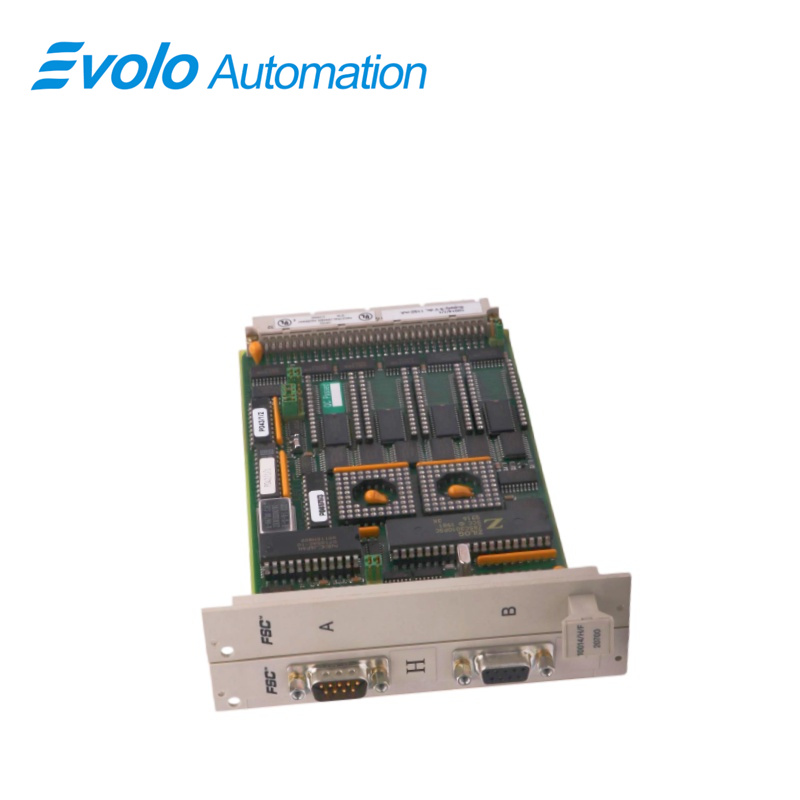

The Honeywell 10014/H/F is a high-performancecommunication module used for industrial automation control systems. It enables efficient data transmission and connectivity between devices, and is widely used in various industrial sectors.
Applications
Chemical plants: Explosion-proof signals between controller, safety barriers, actuators.
Refineries: Flow data between cracking unit, pumps, and control valves.
Power plants: Status exchange between turbine trip system and emission control units.
Steel plants: Temperature and pressure data between gas analyzer and burner system.
Pulp and paper mills: Speed signals between VFDs and drying speed controllers.
Key Features
Interface Functionality: Facilitates communication between central parts and connected RS232 devices.
Tri-State RS232 Interface: Ensures robust and reliable communication.
Flash Memory: Equipped with current FLASH technology for efficient operation.
Compatibility: Pin-to-pin compatibility with its successor model (10024/H/F).
FAQ
Q: What are the typical power requirements of the 10014/H/F module?
A: 5 V DC @ 35 mA and 24 V DC @ 35 mA.
Q: What are the characteristics of the physical communication interface of the 10014/H/F module, and does it support networking?
A: Integrated high-speed physical interface supporting multi-node networking.
Q: Which communication protocols are supported by the 10014/H/F module?
A: Modbus RTU/ASCII, RS-485, and proprietary secure communication protocols.
Q: Which certifications has the 10014/H/F module obtained?
A: CE, TÜV, and UL certifications.
Q: What is the ripple rejection specification of the 10014/H/F module?
A: Less than 50 mV p-p.
