Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-25-10-02-00 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
2.5 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Dimension: |
18x18x2cm |
|
Weight: |
0.1kg |
Description

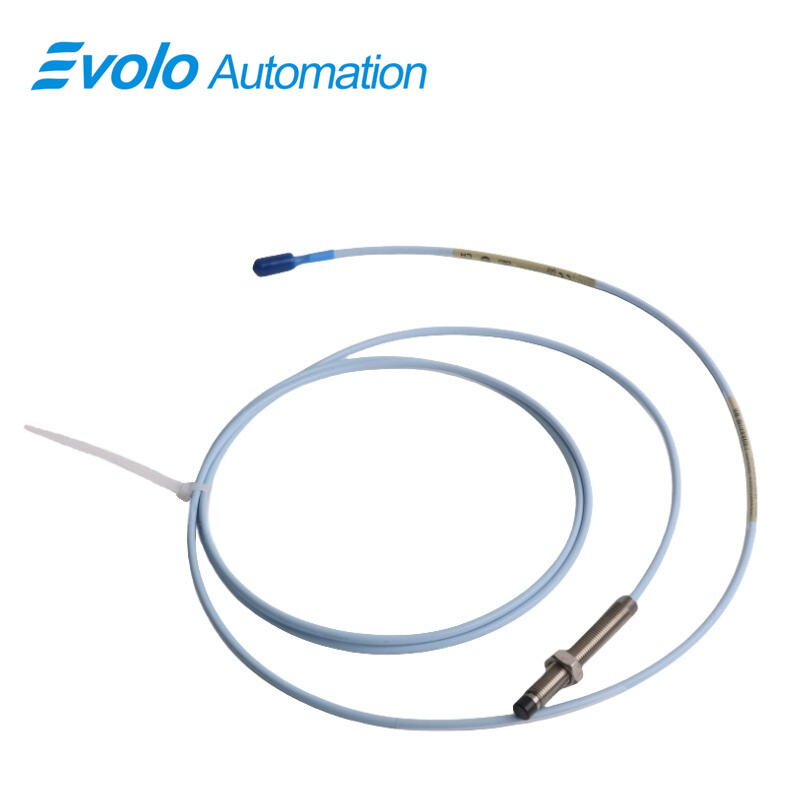

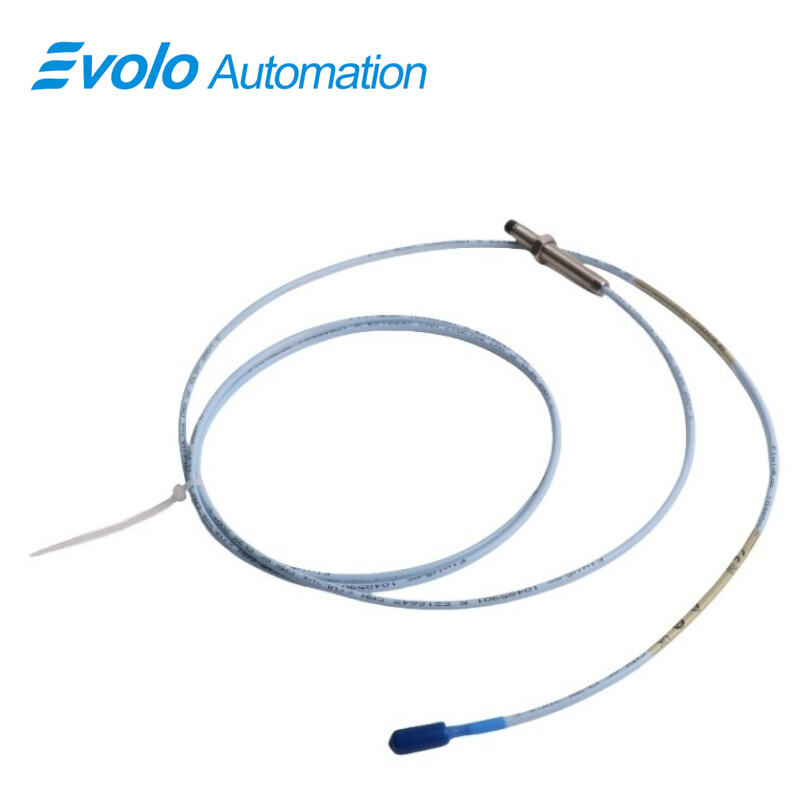

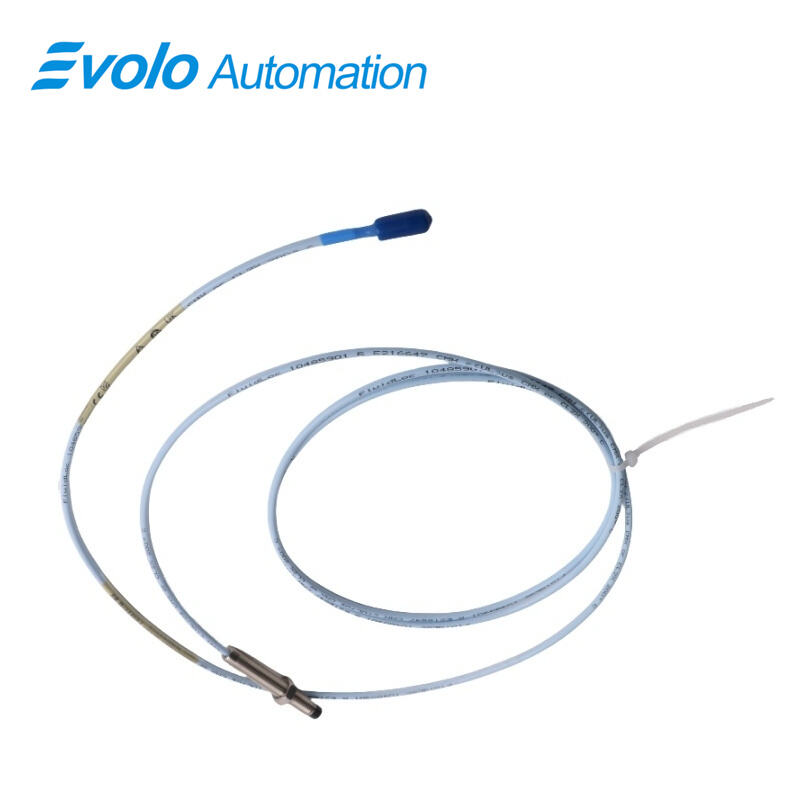

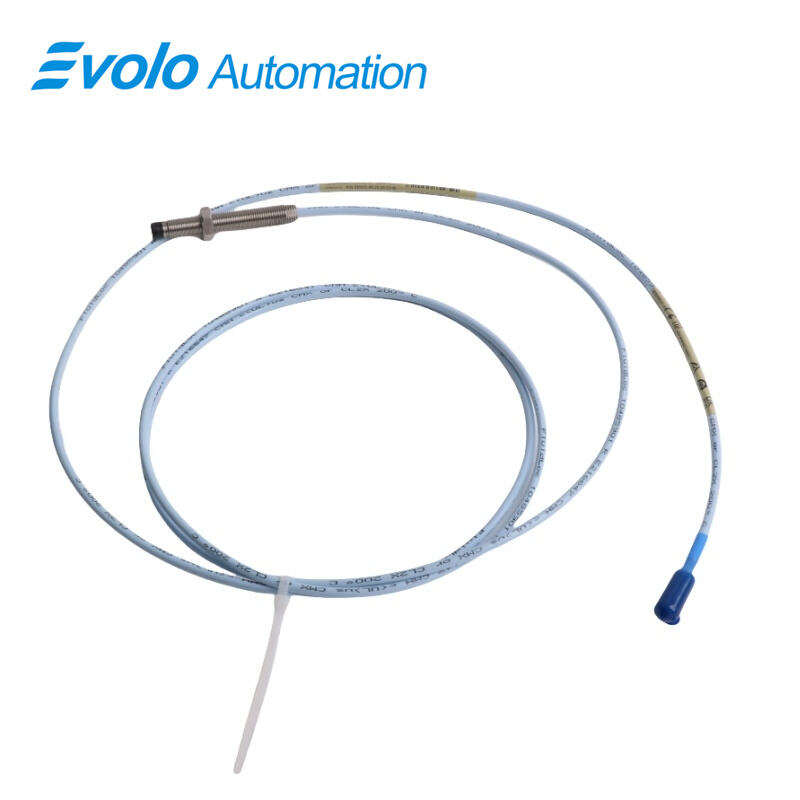

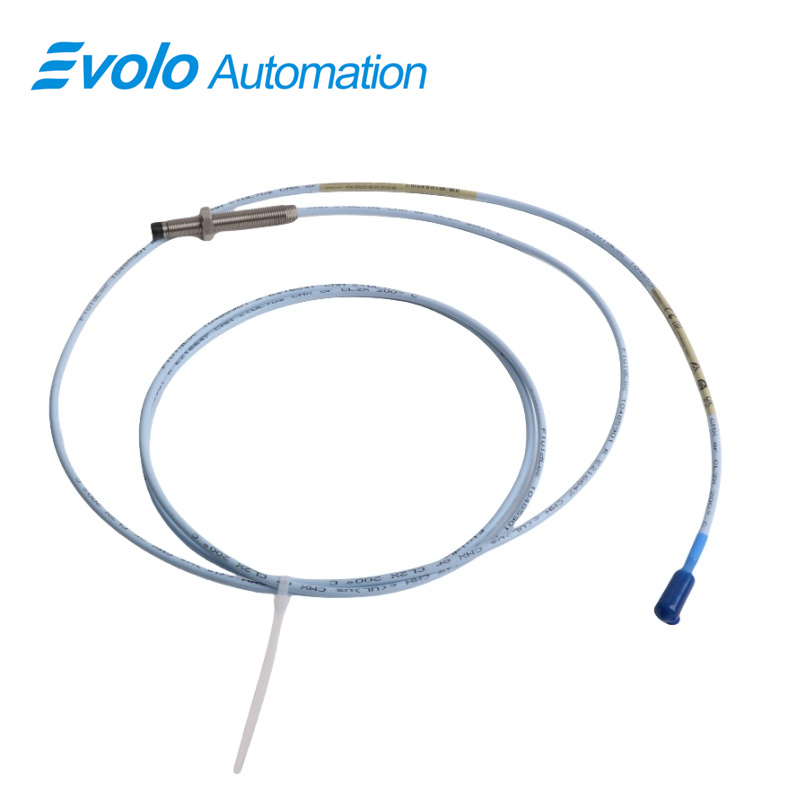

The 330101-00-25-10-02-00 3300 XL 8 mm Proximity Probe is a high-performance eddy current proximity sensor specifically engineered for industrial automation and rotating machinery condition monitoring. This 3300 XL 8 mm Proximity Probe converts variations in the distance between the probe tip and the target conductive surface into a stable, proportional analog voltage output, making it ideal for continuous online monitoring systems. The model is capable of accurately measuring both static position parameters and dynamic vibration signals, serving as a critical sensing component for equipment health management within automated control systems.
In industrial automation applications, the 330101-00-25-10-02-00 3300 XL 8 mm Proximity Probe is widely used for vibration monitoring, shaft position measurement, Keyphasor reference signals, and speed detection on fluid-film bearing machinery such as steam turbines, compressors, and pump trains. As a key member of the 3300 XL 8 mm Proximity Probe family, it delivers excellent linear range performance, measurement accuracy, and temperature stability. The probe meets the stringent requirements of API 670 for critical machinery protection and can be seamlessly integrated into DCS, PLC, and online condition monitoring platforms.
The 3300 XL 8 mm Proximity Probe system supports full interchangeability among probes, extension cables, and Proximitor sensors, enabling rapid deployment without the need for individual bench calibration. This design significantly improves installation efficiency and simplifies maintenance in automated environments. In addition, the 3300 XL probe is backward compatible with legacy 3300 series 5 mm and 8 mm proximity probes, providing enhanced flexibility for automation system upgrades and retrofit projects.
From a mechanical design perspective, the 330101-00-25-10-02-00 3300 XL 8 mm Proximity Probe incorporates an improved TipLoc molding process that strengthens the bond between the probe tip and the probe body. The associated cable features a patented CableLoc design with increased pull strength, enhancing reliability under demanding industrial automation conditions. Furthermore, the optional FluidLoc cable technology effectively prevents oil and other process fluids from migrating through the cable interior, ensuring long-term stable operation of automated equipment.
Applications
The 330101-00-25-10-02-00 3300 XL 8 mm Proximity Probe is primarily used in industrial automation systems for rotating equipment condition monitoring and machinery protection. In critical assets such as steam turbines, compressors, centrifugal pumps, and motors equipped with fluid-film bearings, this 3300 XL 8 mm Proximity Probe enables continuous online measurement of shaft displacement, shaft vibration, and rotational speed, delivering stable analog input signals to DCS or PLC platforms. Its 2 mm linear measurement range combined with low supply sensitivity ensures high measurement accuracy even under high-speed operation and fluctuating load conditions. The standard 1.0-meter cable with a ClickLoc miniature coaxial connector simplifies routing between control cabinets and field-mounted sensors, making it especially suitable for predictive maintenance and condition monitoring in power generation, petrochemical, metallurgical, and process industries.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
The 330101-00-25-10-02-00 3300 XL 8 mm Proximity Probe offers clear competitive advantages among comparable automation sensing solutions. Its wide operating temperature range allows reliable performance in harsh industrial environments, maintaining signal stability under both high- and low-temperature conditions. Optimized output resistance and extension cable capacitance minimize signal attenuation and electromagnetic interference, significantly improving data integrity in automated control systems. The 3300 XL 8 mm Proximity Probe supports full interchangeability among probes, extension cables, and Proximitor sensors, enabling component replacement without on-site calibration and substantially reducing maintenance effort and downtime. In addition, the patented TipLoc and CableLoc designs enhance mechanical robustness and connection reliability, delivering superior long-term stability and service life for continuously operating industrial automation equipment.
