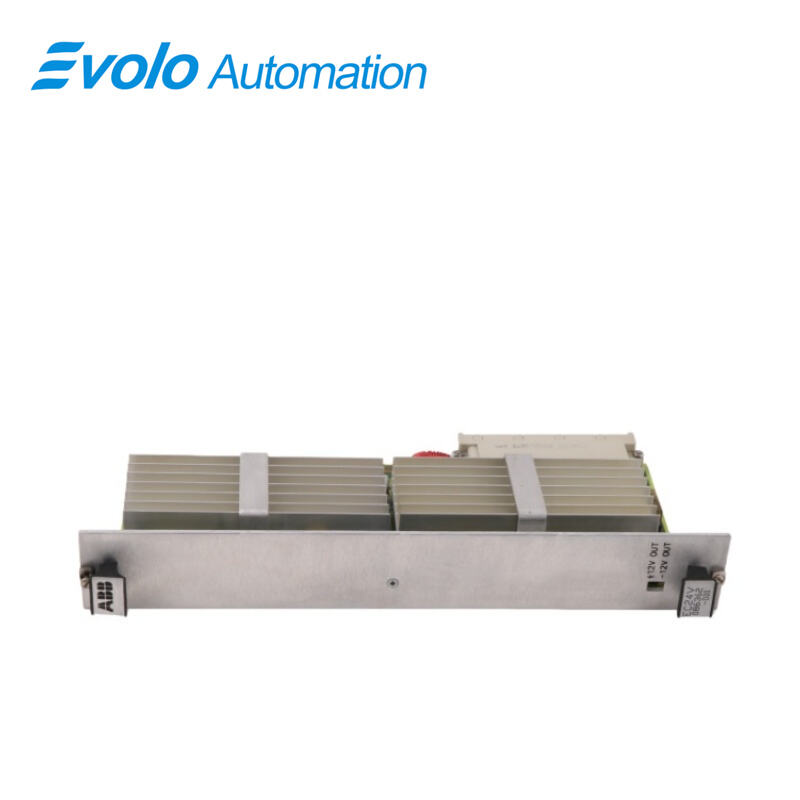

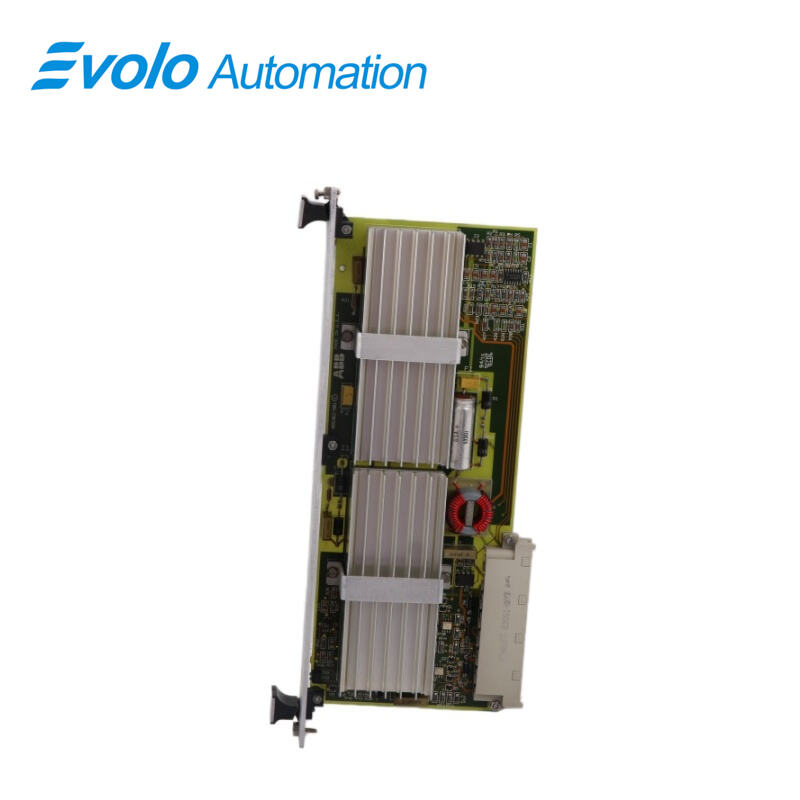

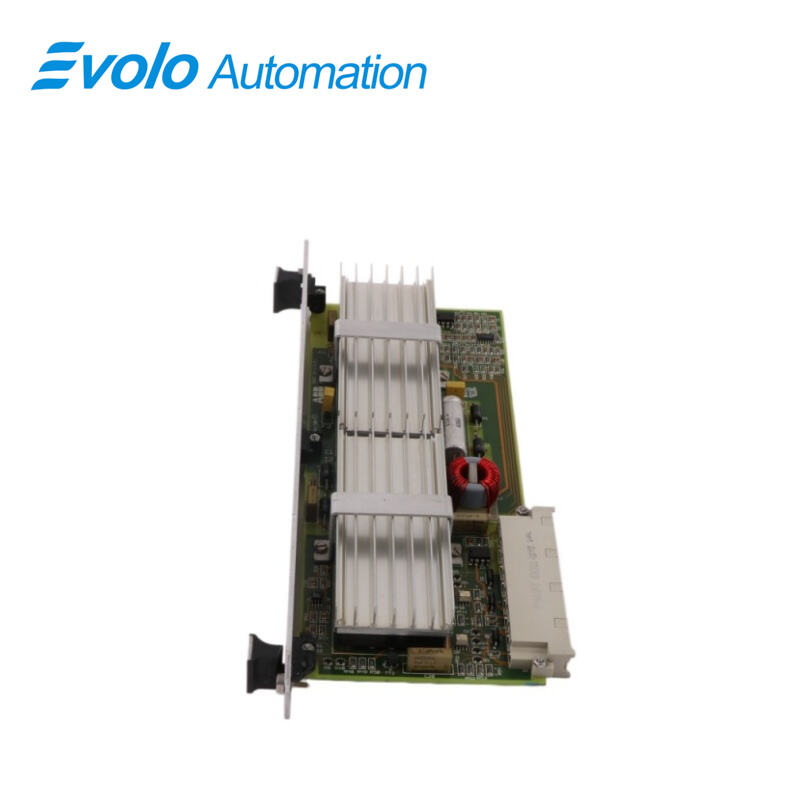

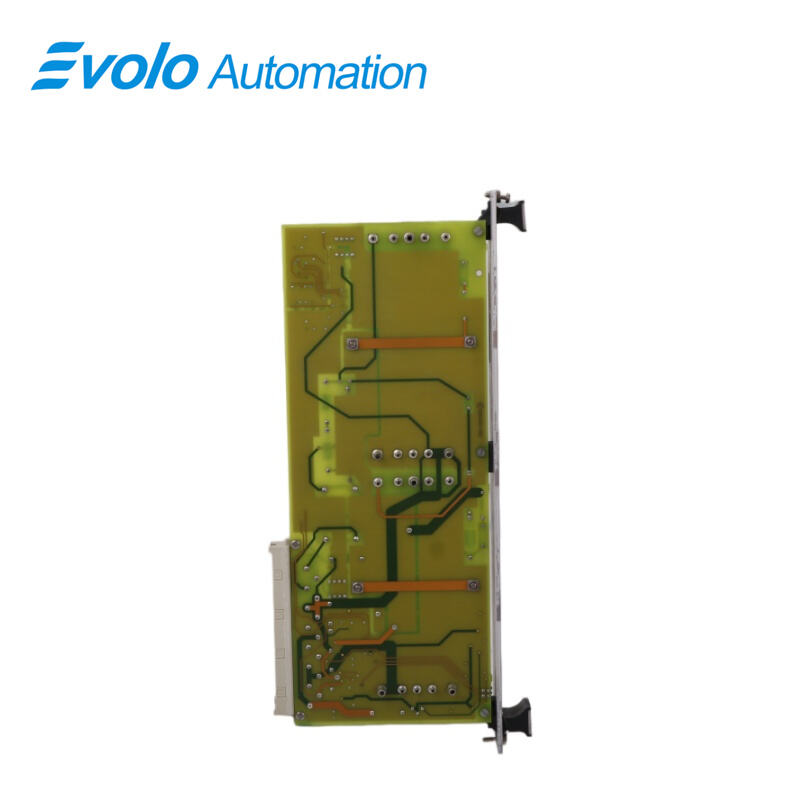

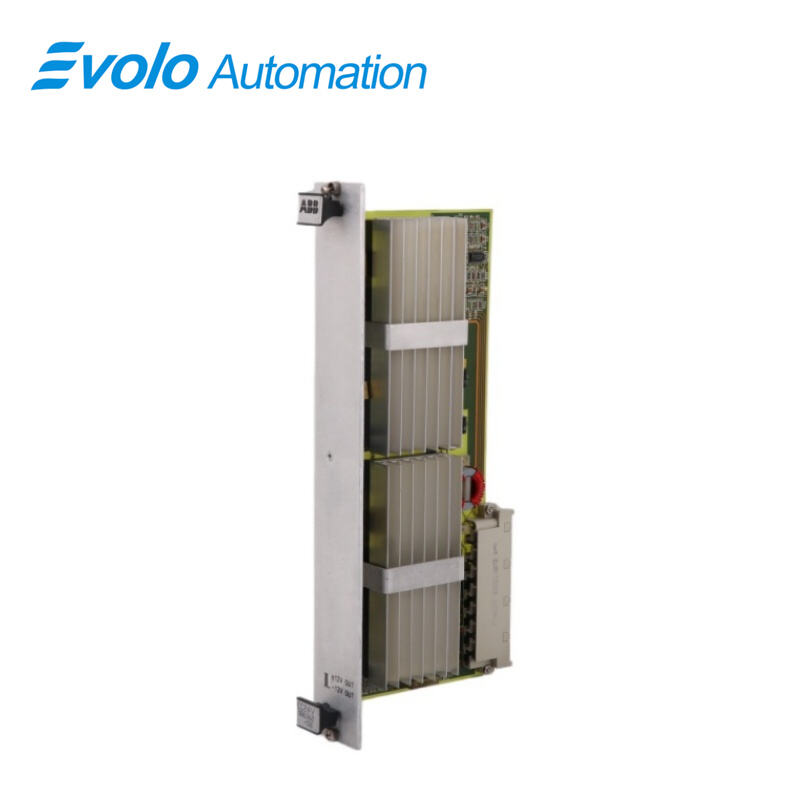

086362-001 Control Board

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	086362-001
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The ABB 086362-001 Control Board is a core power supply solution for industrial automation. This module employs an advanced topology design, efficiently converting input AC power into a stable DC output, with a maximum output power of 3kW per module. Its unique cooling duct design, combined with an industrial-grade metal casing, ensures a conversion efficiency of over 95% even under extreme operating conditions ranging from -20℃ to +70℃. The module's built-in intelligent temperature control system automatically adjusts the fan speed according to the load, keeping noise levels below 55dB during full-load operation. It is widely used in metallurgical production lines, intelligent warehousing systems, rail transit traction systems, and other scenarios with extremely high requirements for power continuity.

Applications

Pulp & Paper: This is Accuray's most classic application scenario. Used in QCS (Quality Control System) to provide core DC power for scanning racks and sensors.

Petrochemical: Integrated into the cabinet of a distributed control system (DCS), providing stable operating voltage for control boards.

Metallurgy: In rolling mills or continuous production lines, as part of the drive system or control interface board.

Rubber & Plastics: Used in automated control systems for monitoring process parameters such as material thickness and weight.

Functions

The 086362-001 module is specifically designed for complex electromagnetic environments. Its core advantage lies in its modular, hot-swappable structure, reducing maintenance and replacement time by 70% compared to traditional power supplies. The built-in digital signal processor (DSP) monitors voltage fluctuations in real time, and with adaptive filtering algorithms, the output ripple coefficient can be controlled within 0.5%. It supports Modbus RTU and CANopen dual-bus communication, allowing engineers to view the module's operating status in real time via host computer software, including 12 key parameters such as input voltage, output current, and internal temperature. It is particularly suitable for SCADA systems requiring redundant power supply, supporting N+1 and 2N redundancy configurations.

Competitive Advantage

The 086362-001 module's innovation lies in its quadruple protection system: a varistor and fuse protection on the input side, an integrated active current limiting circuit on the output, and a multi-dimensional monitoring network composed of temperature sensors. The nano-coating technology used gives the PCB board moisture and dust resistance, with an MTBF (Mean Time Between Failures) exceeding 200,000 hours. Compatible with all ABB PLC systems, it enables rapid networking via the PROFIBUS-DP interface. For redundancy, it supports parallel current sharing, allowing up to eight units to be used in parallel, with a total output power expandable to 24kW. Particularly noteworthy is its intelligent diagnostic function; when an output overload or short circuit is detected, the module automatically enters current-limiting mode and triggers an alarm signal, effectively preventing system downtime.

FAQ

Q: Is 086362-001 new or refurbished?

A: All our products are original and brand new with a 1-year warranty.

Q: How many days will the 086362-001 arrive in my hands if I place the order now?

A: As soon as we receive the payment, we will ship the product immediately. It usually takes 3–5 days from China to your hands.

Q: Can you ship the 086362-001 to my country?

A: Please don't worry. We can ship the goods worldwide.

Q: What payment method do you use?

A: We usually use T/T (Telegraphic Transfer), and the payment can typically be received within 1–2 days.

Q: Can I contact you by email?

A: You can contact me online to get my email address.
