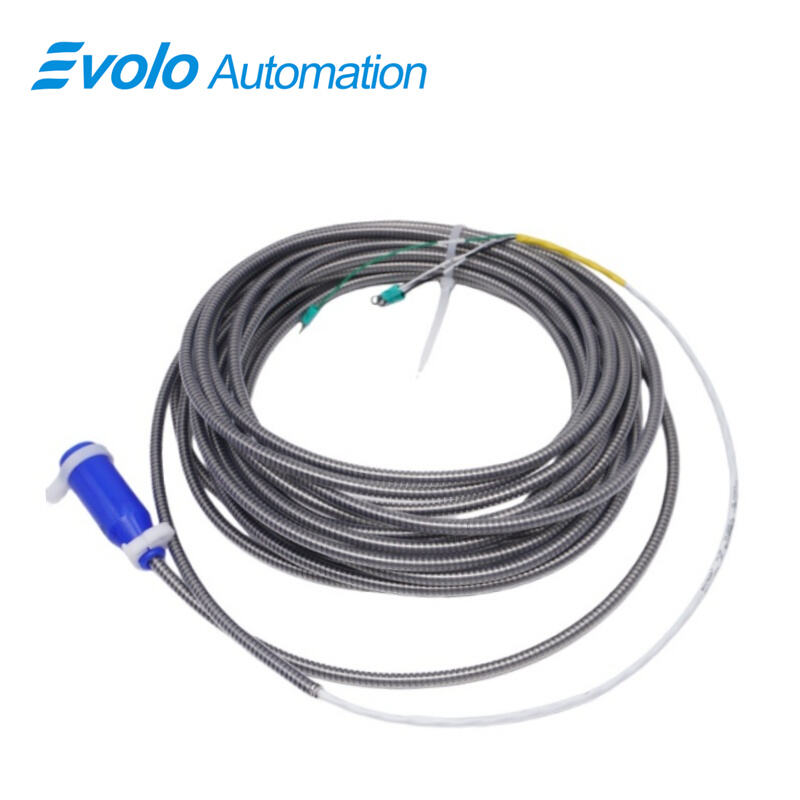

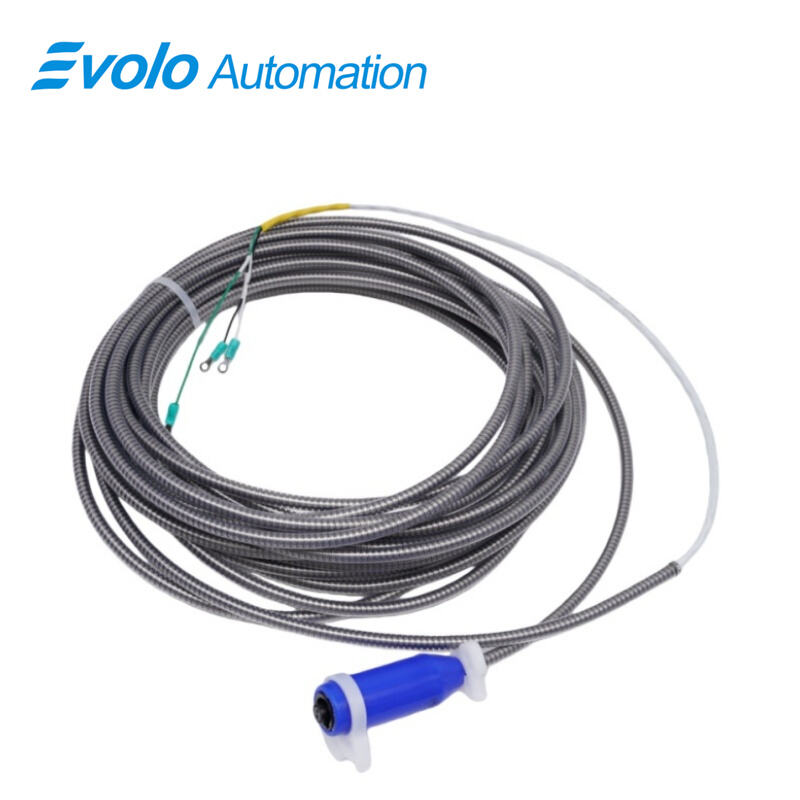

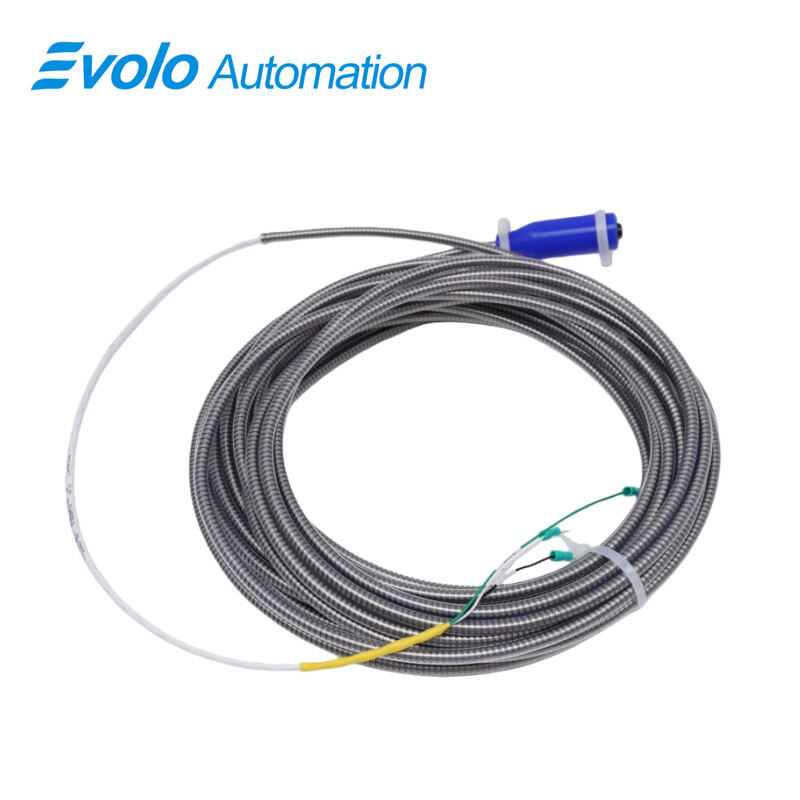

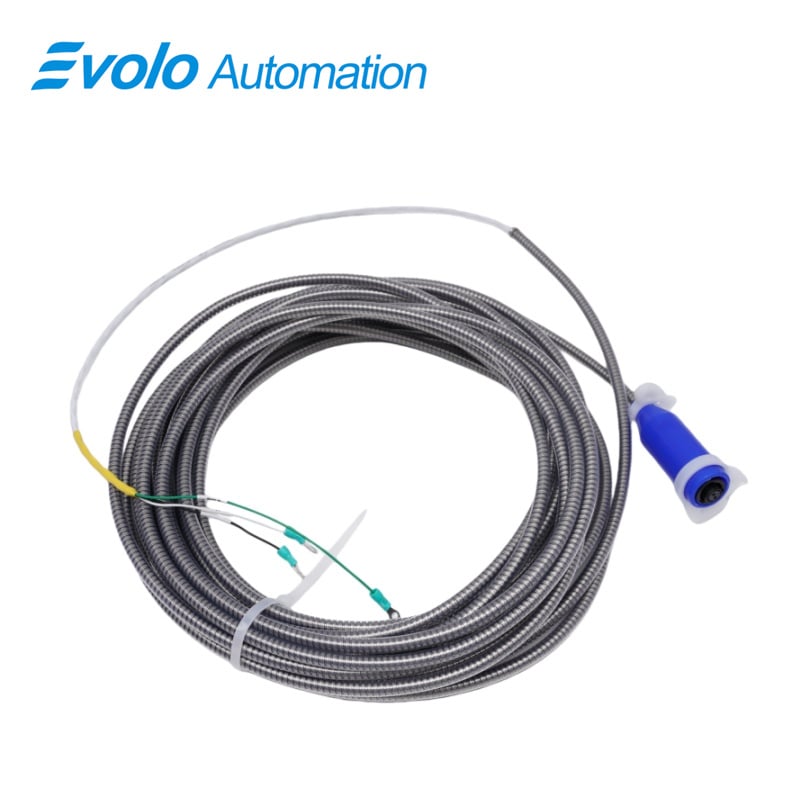

106765-16 Interconnect Cable
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
106765-16 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 106765-16 Interconnect Cable is a precision-designed industrial interconnect cable developed for reliable signal transmission in industrial automation and control systems. As a 16-inch interconnect cable, the 106765-16 model is optimized for cabinet-level wiring, machinery panels, and control enclosures where stable analog and digital signal integrity is essential. This interconnect cable uses multi-conductor industrial signal cable construction with three tinned copper conductors, ensuring consistent electrical performance and long-term corrosion resistance in harsh automation environments. With an 18–22 AWG wire gauge range and high-grade PVC or FEP insulation, the 106765-16 interconnect cable supports low-level signal transmission while maintaining excellent dielectric strength. The foil shield with integrated drain wire enhances EMI and RFI protection, making this interconnect cable suitable for noise-sensitive automation systems such as PLC interfaces, I/O modules, and distributed control systems. Designed with a pre-terminated straight industrial connector, the 106765-16 interconnect cable simplifies installation, reduces wiring errors, and improves maintenance efficiency in industrial automation applications.
Key Functions
Applications
Industrial Control Cabinet Wiring
The 106765-16 interconnect cable is widely used in industrial control cabinets for connecting PLCs, I/O modules, and signal conditioning devices. With a rated voltage of up to 300 V and an operating temperature range from -20 °C to +85 °C, this interconnect cable ensures stable signal transmission in densely packed control panels. The 16-inch overall length allows precise routing between components, reducing excess cable slack and improving airflow inside automation cabinets.
Machinery and Automation Equipment Signal Transmission
In automated machinery panels, the 106765-16 interconnect cable supports analog and digital low-level signals between sensors, controllers, and monitoring units. The three-conductor design and foil shielding provide effective noise suppression in environments with variable frequency drives and motors, improving system accuracy and reducing signal distortion in industrial automation systems.
Official Specifications
Quick Detail
|
Overall Length: |
16 in (406.4 mm) |
|
Cable Type: |
Multi-conductor industrial signal cable |
|
Wire Gauge: |
18–22 AWG (typical) |
|
Number of Conductors: |
3 conductors |
|
Conductor Material: |
Tinned copper |
|
Insulation Material: |
High-grade PVC or FEP |
|
Dimension: |
32x32x5cm |
|
Weight: |
1.2kg |
Specifications
|
Stranding: |
Solid |
|
Core Count: |
1 |
|
Cable Type: |
Shielded |
|
Temperature Range: |
-40°C to +85°C |
|
Shielding Type: |
Foil shield with drain wire |
|
Jacket Material: |
Industrial PVC |
|
Connector Type: |
Pre-terminated industrial connector |
|
Connector Orientation: |
Straight |
|
Rated Voltage: |
Up to 300 V |
|
Operating Temperature: |
-20 °C to +85 °C |
Frequently Asked Questions
What is the model number?
The listed model number is 106765-16.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
Enhanced Signal Integrity and Noise Immunity
The 106765-16 interconnect cable features tinned copper conductors combined with foil shielding and a drain wire, delivering measurable EMI and RFI attenuation for low-level industrial signals. Compared to unshielded interconnect cables, this design significantly reduces electrical noise interference, improving data stability and control precision in automation systems.
Installation Efficiency and Reliability
With a pre-terminated industrial connector and straight orientation, the 106765-16 interconnect cable reduces installation time by up to 30 percent compared to field-terminated cables. The medium-flex industrial PVC jacket provides a balance between durability and flexibility, ensuring long service life in fixed or light-movement applications while maintaining RoHS compliance for modern industrial automation standards.
