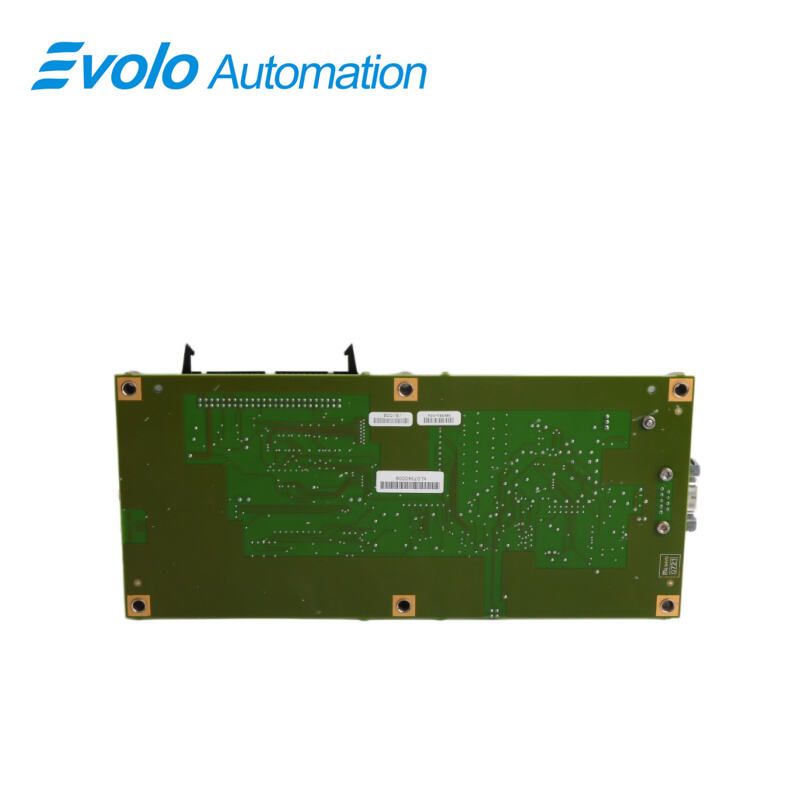

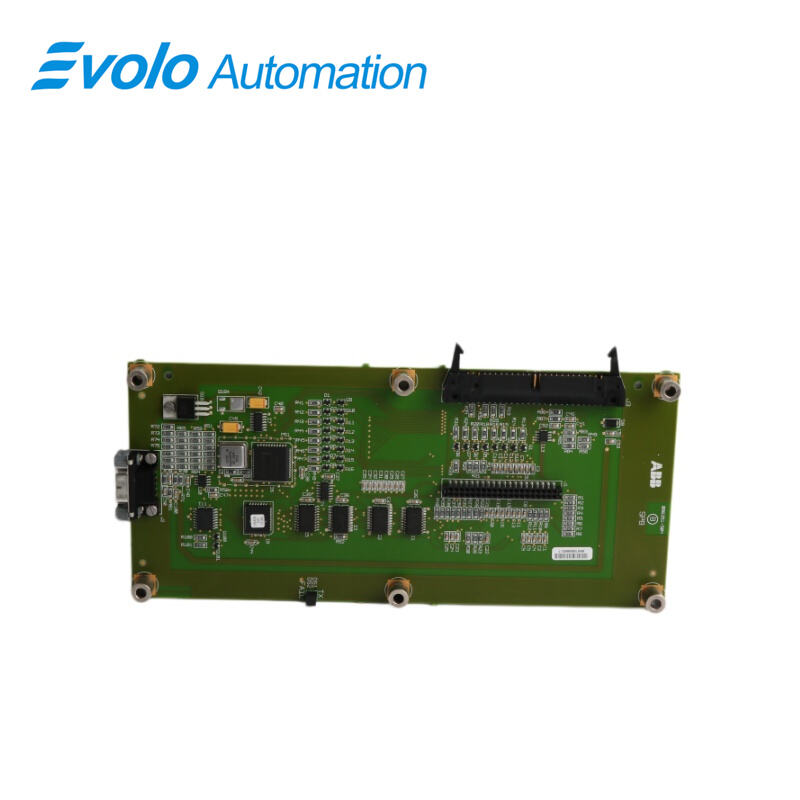

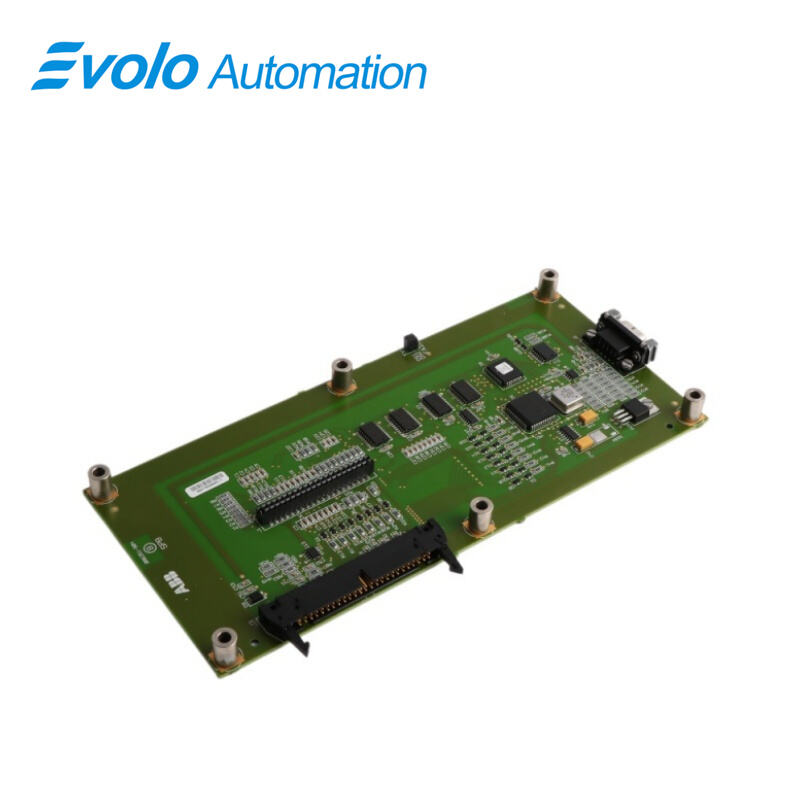

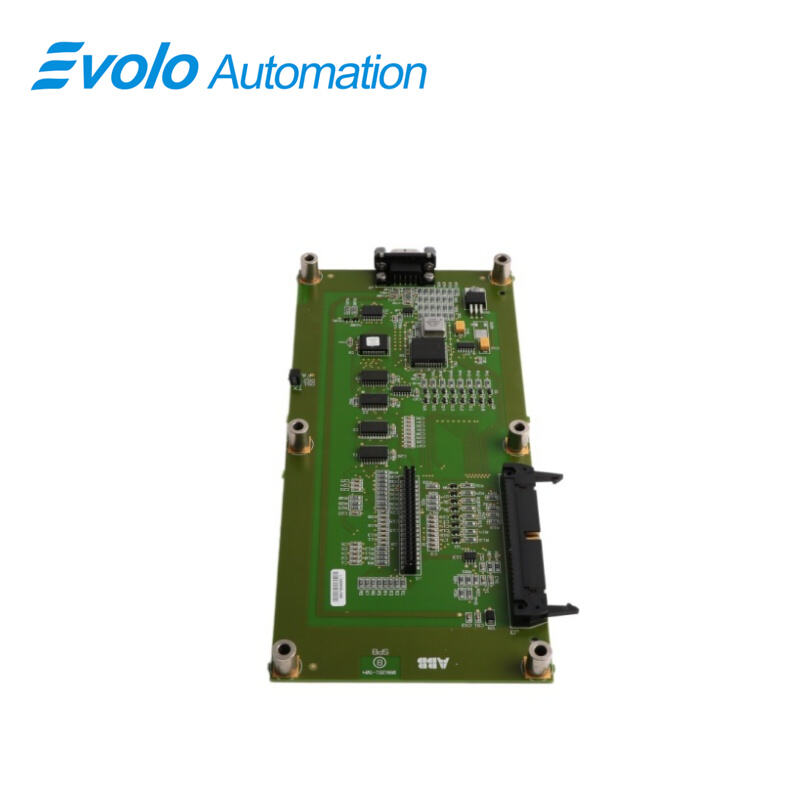

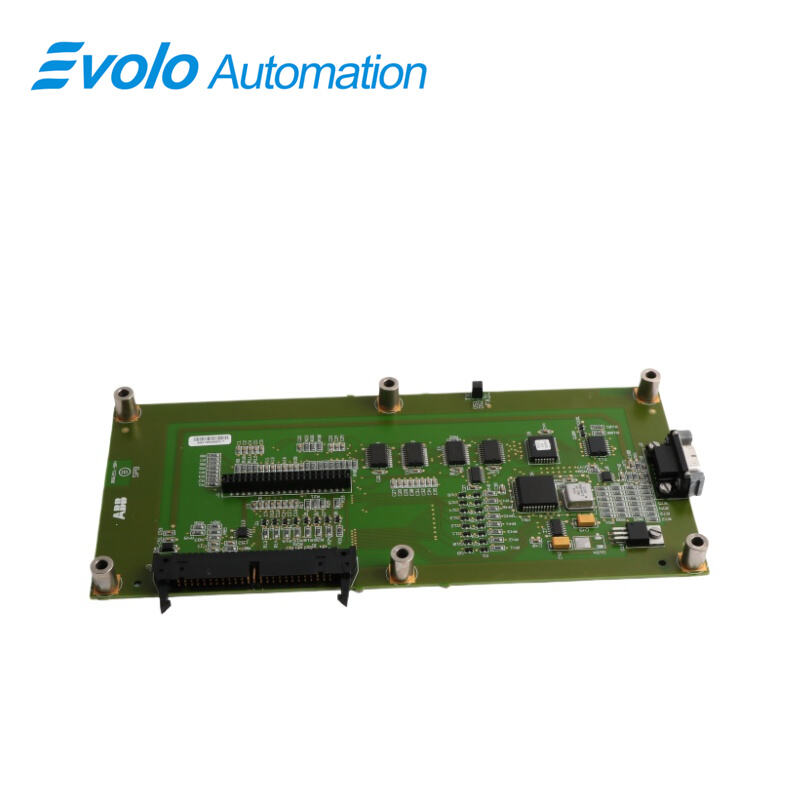

086351-504 Printed Circuit Board

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	086351-504
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 086351-504 Printed Circuit Board is a high-performance I/O module designed for demanding industrial automation environments. This board is engineered to withstand challenging operational conditions, featuring an IP20 protection rating for indoor use, while protection can be enhanced with enclosures in dusty or humid environments. It operates reliably across a wide temperature range of 0°C to +55°C and can be safely stored between -20°C and +70°C, with humidity tolerance from 5% to 95% RH (non-condensing). The design also meets the IEC 60068-2-6 standard for vibration resistance, supporting frequencies from 5 Hz to 500 Hz at 2 g amplitude, ensuring robust performance in high-vibration industrial applications.

Applications

1. Industrial Robot System

Scenario: Automotive welding, assembly, and painting production lines.

Function:

Expands the I/O points of the robot controller, connecting pneumatic grippers, photoelectric sensors, and safety light curtains.

Enables signal interaction between the robot and PLCs/HMIs.

2. Automated Production Line

Scenario: Packaging, logistics, and food processing.

Function:

Controls conveyor belt motors, sorting robotic arms, and weighing sensors.

Collects analog signals such as temperature, pressure, and flow rate.

Functions

Digital Inputs (DI): 16 channels, 24V DC, receives external switch signals (e.g., sensors, buttons).

Digital Outputs (DO): 16 channels, 24V DC, controls external devices (e.g., solenoid valves, relays).

Communication Interface: Supports DeviceNet, Profibus DP, or EtherNet/IP, seamlessly integrated with ABB controllers (e.g., IRC5, AC500).

Diagnostic Functions: LED indicators display channel status, power supply, and communication faults.

Competitive Advantage

1. High Reliability Design

Isolation Protection: Optical isolation between channels prevents signal interference or short circuits.

Redundant Power Supply: Supports dual power input (optional), improving system stability.

Hot-Swapping: Some models support hot-swapping for easy maintenance.

2. Intelligent Diagnostics and Maintenance

LED Status Indicators:

Green: Channel normal.

Red: Channel fault or overload.

Yellow: Communication interruption or power failure.

Remote Monitoring: Module status can be read in real time via ABB RobotStudio or PLC programming software.

3. Compatibility and Expandability

Multi-protocol Support: Compatible with mainstream industrial buses such as DeviceNet, Profibus, EtherNet/IP, and Modbus TCP.

Modular Design: Can be used in combination with other DSQC series modules (such as the DSQC 658 analog module).
