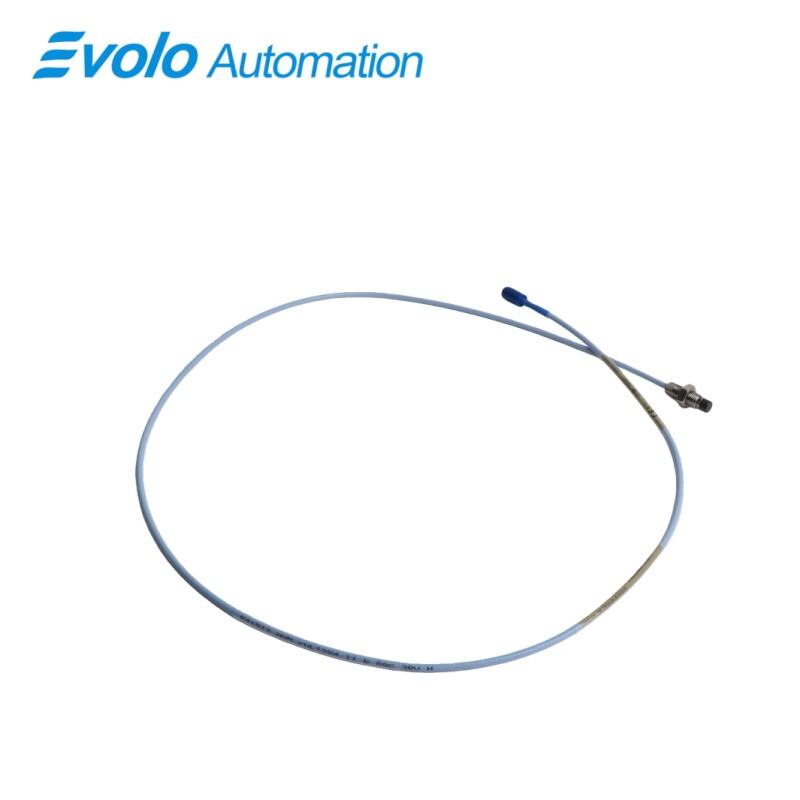

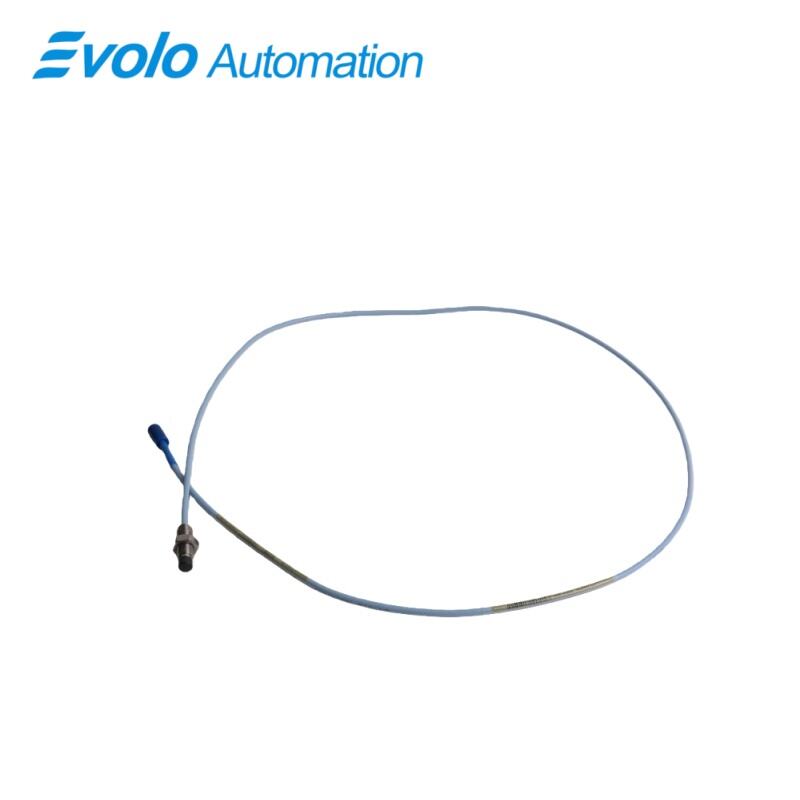

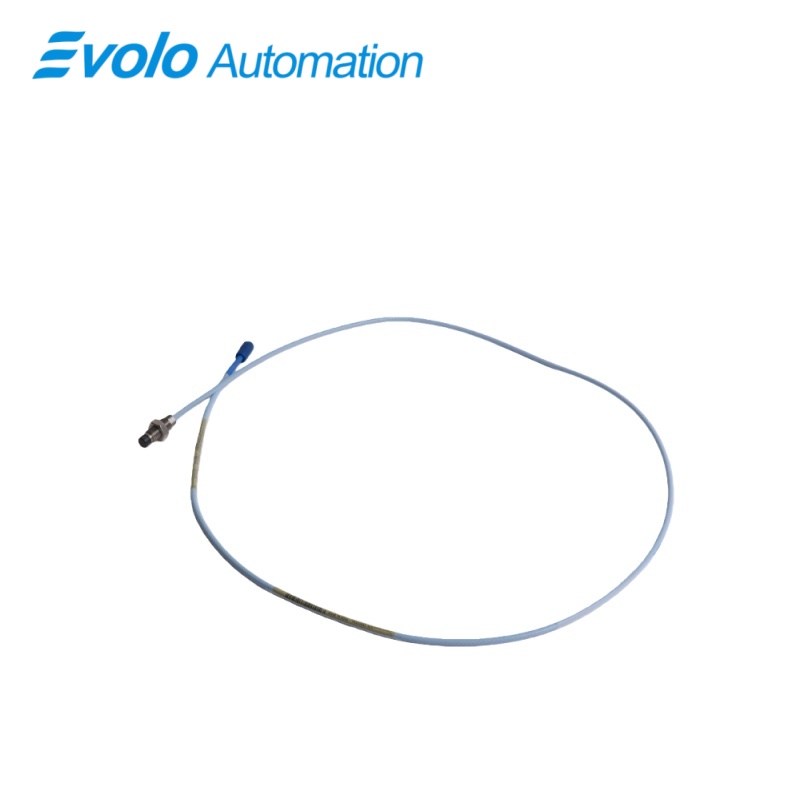

330101-00-10-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-10-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-10-10-02-05 3300 XL 8 mm Proximity Probe is a highly specialized eddy current sensor designed for the most spatially constrained industrial monitoring environments. As a premier component of the Bently Nevada 3300 XL series, the 330101-00-10-10-02-05 3300 XL 8 mm Proximity Probe provides critical data on shaft vibration and axial position, ensuring the health of high-speed rotating machinery. This specific 330101-00-10-10-02-05 3300 XL 8 mm Proximity Probe configuration is defined by its 1.0-inch overall case length and 0-inch unthreaded length, making it the most compact "stubby" probe available for modern Machinery Protection Systems (MPS).

Internally, the 330101-00-10-10-02-05 3300 XL 8 mm Proximity Probe utilizes advanced material science, featuring a probe tip made of Polyphenylene Sulfide (PPS). This tip is bonded to the stainless steel case via the patented TipLoc molding method, preventing tip detachment even under extreme thermal cycling or pressure. Furthermore, the 330101-00-10-10-02-05 3300 XL 8 mm Proximity Probe includes the CableLoc design, which provides a robust 75-pound pull strength to the integral 1.0-meter coaxial cable. This ensures that the 330101-00-10-10-02-05 3300 XL 8 mm Proximity Probe remains operational in high-vibration zones where inferior sensors might suffer from connector fatigue.

The 330101-00-10-10-02-05 3300 XL 8 mm Proximity Probe is fully compliant with API 670 standards, offering a linear range of 80 mils (2 mm) and a standard sensitivity of 200 mV/mil. This 330101-00-10-10-02-05 3300 XL 8 mm Proximity Probe also features the "05" Agency Approval option, granting it certifications for ATEX, IECEx, and CSA hazardous area classifications. Consequently, the 330101-00-10-10-02-05 3300 XL 8 mm Proximity Probe is the ideal choice for oil and gas applications where explosive vapors are present. With its ClickLoc connector and gold-plated contacts, the 330101-00-10-10-02-05 3300 XL 8 mm Proximity Probe guarantees 100% signal integrity and interchangeability without the need for complex field calibration.

Applications

The 330101-00-10-10-02-05 is primarily applied in ultra-compact bearing housings where mounting depth is extremely limited. Its 1.0-inch fully threaded profile allows maintenance engineers to install the probe in thin-walled casings or specialized brackets often found on smaller centrifugal pumps and industrial fans. In these scenarios, the probe monitors radial vibration to detect early signs of shaft misalignment or bearing wear, preventing unplanned downtime in balance-of-plant equipment.

In the power generation sector, this 3300 XL 8 mm probe is utilized for monitoring the auxiliary systems of gas and steam turbines. Due to its exceptional temperature resistance (up to +178°C), it can be placed in close proximity to hot lubricating oil lines and steam seals. It serves as a reliable axial position monitor, providing real-term feedback to the control system regarding rotor thrust. This ensures that the turbine remains within safe operational tolerances during rapid load changes or thermal expansion phases.

For offshore oil and gas platforms, the 330101-00-10-10-02-05 is used within specialized probe housings to monitor the vibration of large compressors. The "05" agency approval ensures safety in Zone 0 and Zone 1 environments. The probe’s PPS tip and stainless steel body are resistant to the corrosive salt-air atmosphere and synthetic lubricants, maintaining a stable 50 Ω output and consistent scale factor for accurate long-distance signal transmission to the monitoring rack.

Specifications

Competitive Advantage

Patented TipLoc and CableLoc Durability The 330101-00-10-10-02-05 incorporates Bently Nevada's exclusive TipLoc technology, which creates a monolithic bond between the probe tip and the body. Combined with CableLoc—which prevents the cable from being pulled out of the probe head—this sensor offers a significantly longer service life than competitors. This mechanical robustness reduces the risk of probe failure during high-vibration events or maintenance handling.

Ultra-Short "Stubby" Configuration for Tight Spaces With a total case length of only 1.0 inch, this model provides a major advantage in installations where standard probes are too long. It eliminates the need for bulky external spacers or specialized adapters, simplifying the mechanical layout of the machine casing. Despite its small size, it maintains the full performance specifications and 80-mil linear range of the larger 3300 XL series probes.

Global Multi-Agency Safety Compliance The "05" approval option provides a "triple-crown" of certifications, including CSA, ATEX, and IECEx. This allows global operators to stock a single part number for their facilities worldwide, ensuring compliance with international hazardous area regulations. This universality simplifies spare parts inventory management and ensures that the vibration monitoring system meets the highest safety standards for intrinsic safety.
