Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
IS200EPBPG1ACD 151X1207BC02SA01 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Part Number: |
IS200EPBPG1ACD 151X1207BC02SA01 |
|
Manufacturer: |
General Electric |
|
Series: |
Mark VI |
|
Product Type: |
Exciter Power Backplane Board |
|
Power Redundancy: |
Supports M1, M2, and C controller redundant power inputs |
|
Input Voltage: |
125 VDC (battery) or 115/230 VAC (control network) |
|
DC Voltage Rails: |
+5 VDC (logic), ±15 VDC (analog), +24 VDC (relay/interface) |
|
Auxiliary 125 VDC Supply: |
For field contacts and de-excitation circuits |
|
External Connectors: |
Multiple D-SUB interfaces |
|
Operating Temperature: |
-30°C to +70°C |
|
Storage Humidity: |
5% to 95% (non-condensing) |
Description

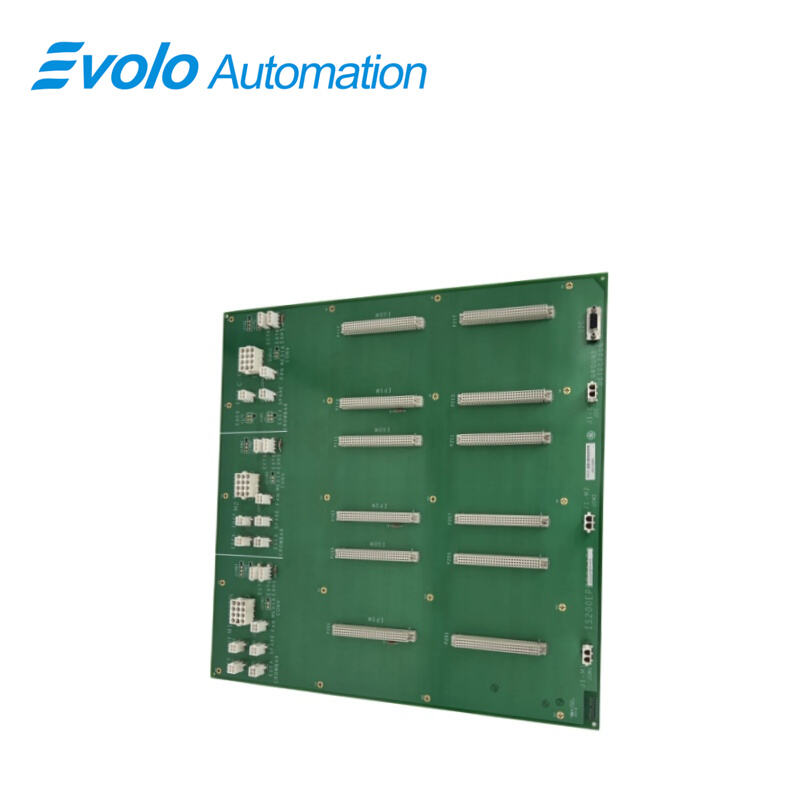

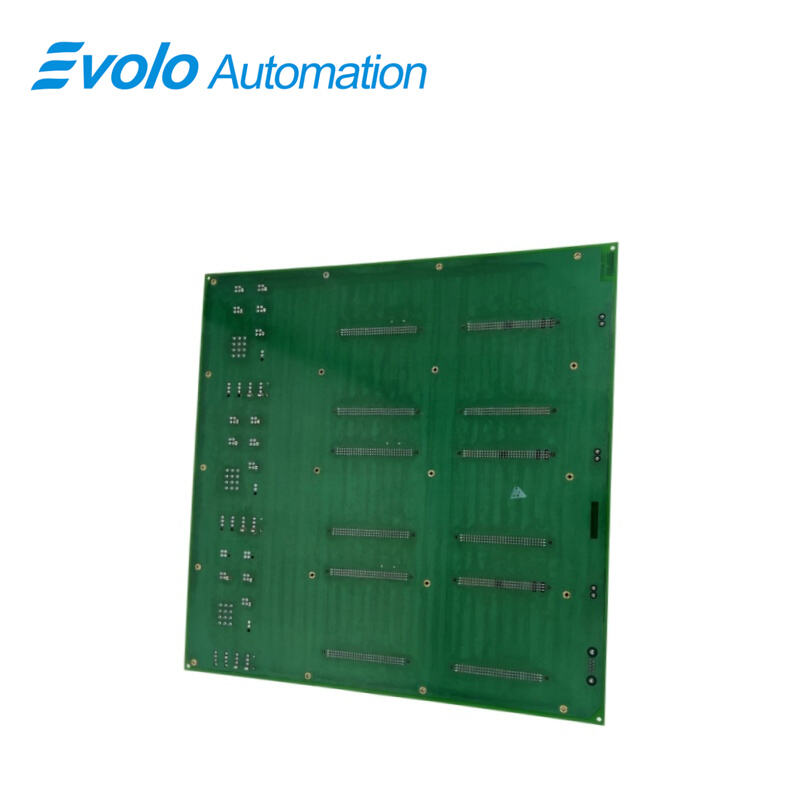

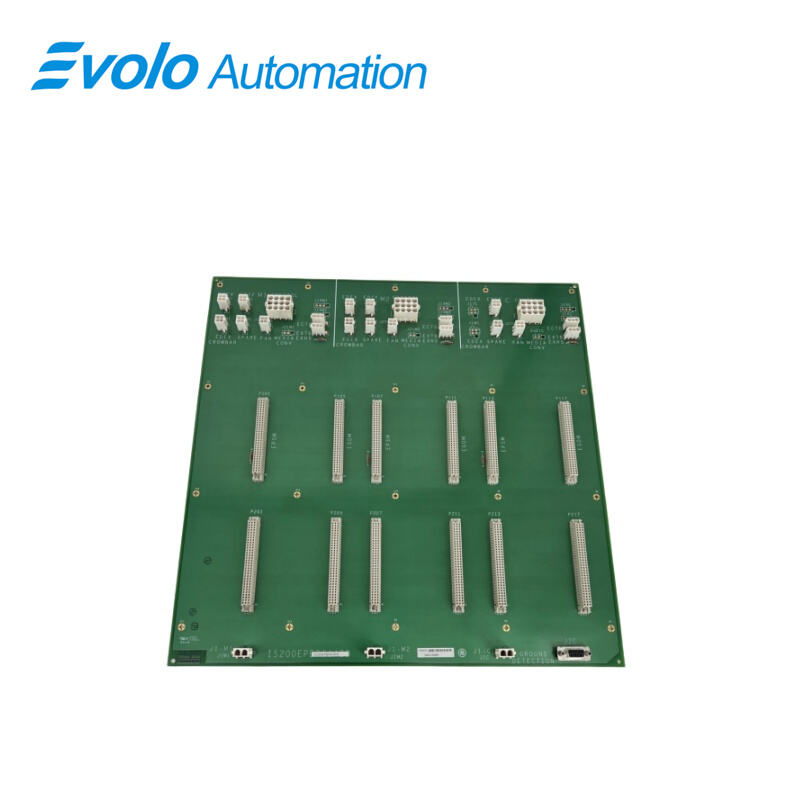

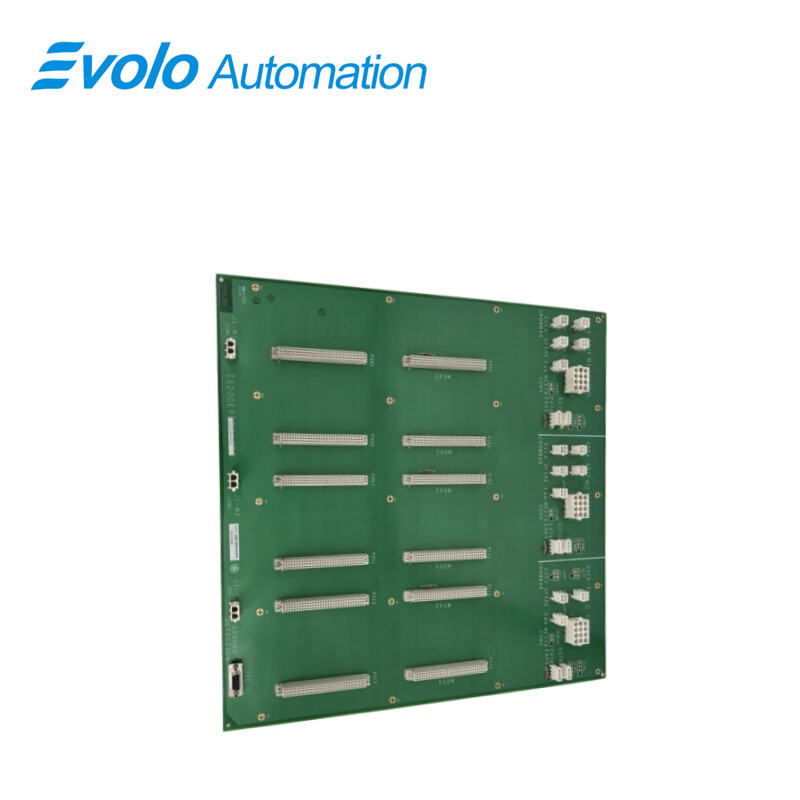

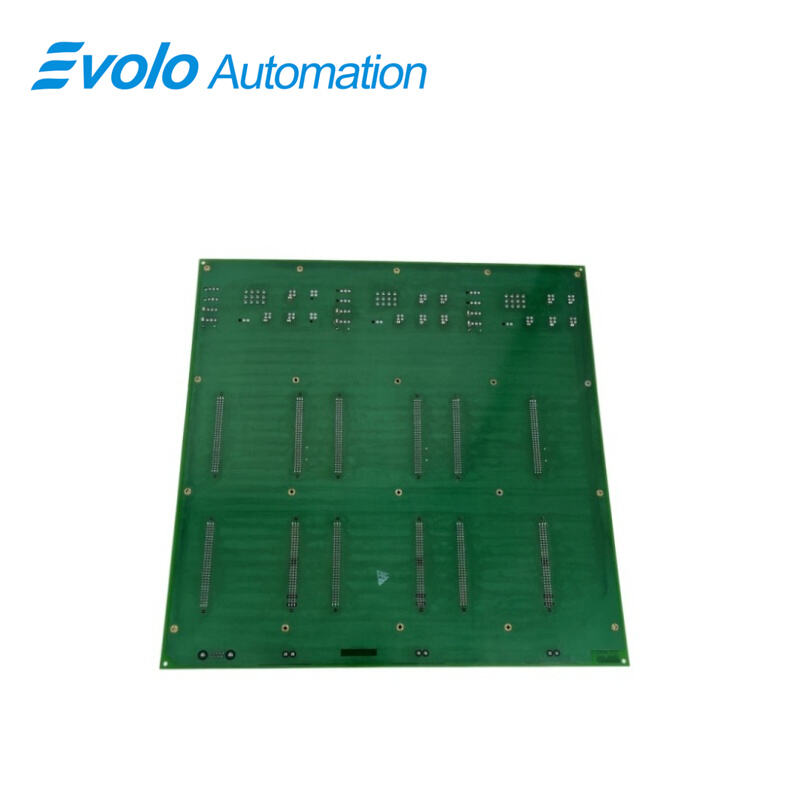

IS200EPBPG1ACD 151X1207BC02SA01 is an Exciter Power Backplane component developed by General Electric. This board is for GE EX2100 Excitation Control System. EPBP, which stands for Exciter Power Backplane, is the functional acronym or abbreviation used in GE documentation and manuals. M1, M2, and C Control are all represented on this backplane.
Applications
Large power plants: GE EX2100/EX2100e static excitation systems for 300MW and above thermal power units or hydropower stations.
Critical load power plants: Excitation control for nuclear power plant emergency power systems and large synchronous motors (such as compressor drives).
Global energy infrastructure: Core hardware for the GE Mark VI/VIe control platform in the energy sector.
Feature
1.The backplane allows many attached modules to communicate with one another via a variety of DIN connectors. These modules include the following:
2.EPSM Power Supply
Exciter Ground Detector Modules(EGDM)
EDEX
EDCF
3.The EPBP backplane board is divided into four pieces.The M1 Control, M2 Control, C Control, and Main Connection Area are all part of the M1 Control. The backplane configuration is depicted in Figure 3-2 of the GEH-6632 GE Publication.The product handbook for the IS200EPBPG1A GEI-100463 has more detailed information.
Frequently Asked Questions
Q: What is IS200EPBPG1ACD 151X1207BC02SA01?
A: IS200EPBPG1ACD 151X1207BC02SA01 is an Exciter Power Backplane component developed by General Electric.
Q: What does EPBP in IS200EPBPG1ACD 151X1207BC02SA01 stand for?
A: EPBP stands for Exciter Power Backplane Board.
Q: How to Obtain IS200EPBPG1ACD 151X1207BC02SA01?
A: We provides IS200EPBPG1A as well as other turbine control products. Contact John request a quote at +86-18150117685.
