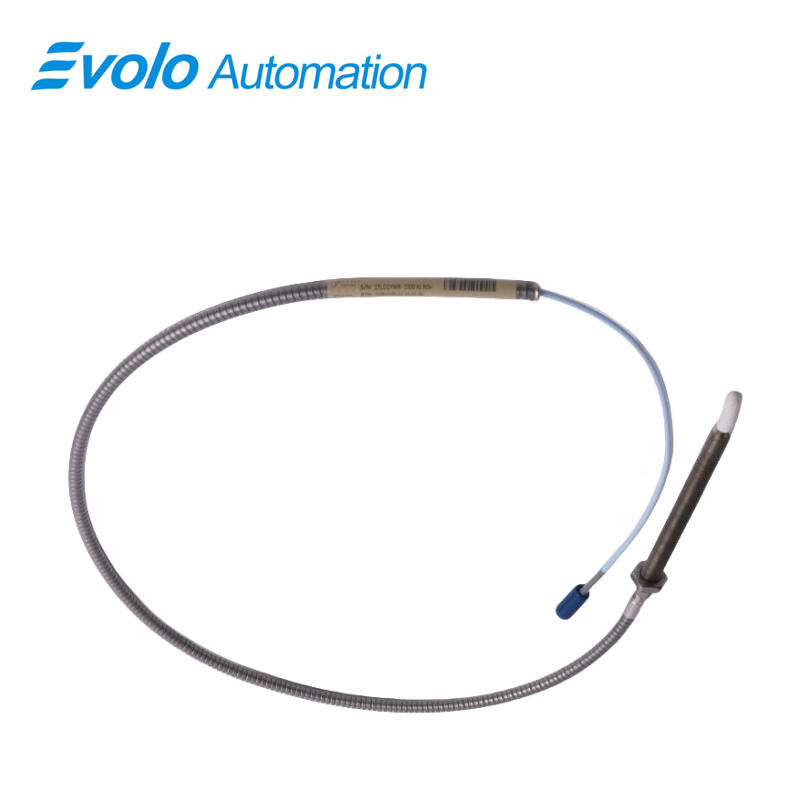

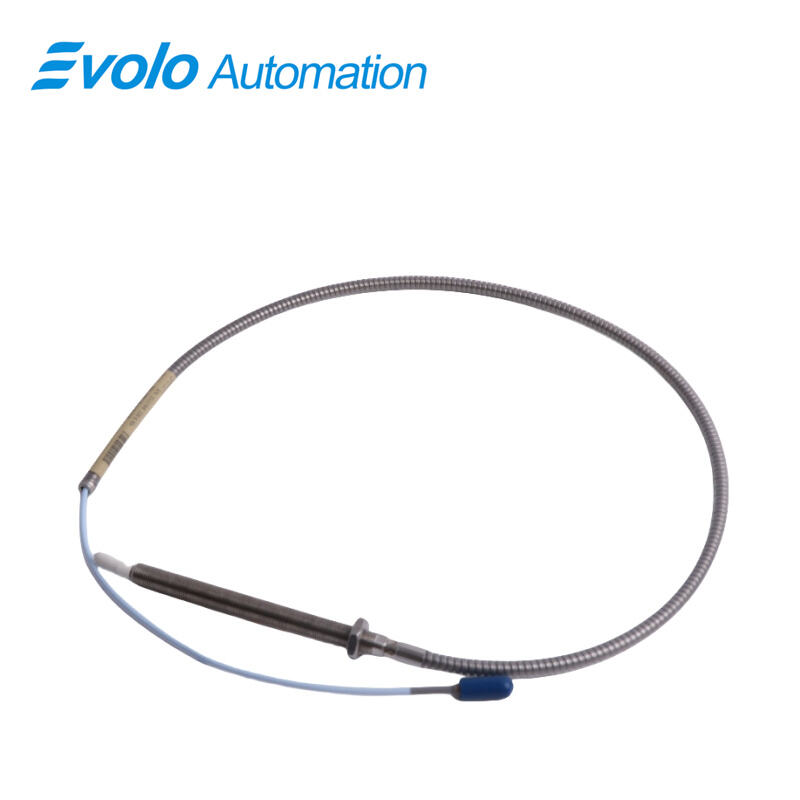

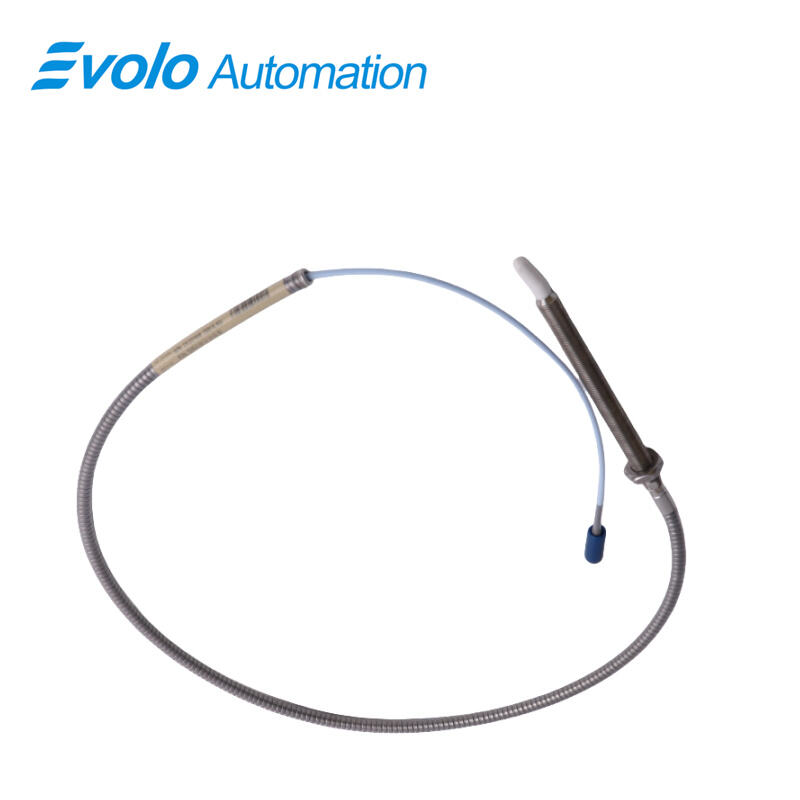

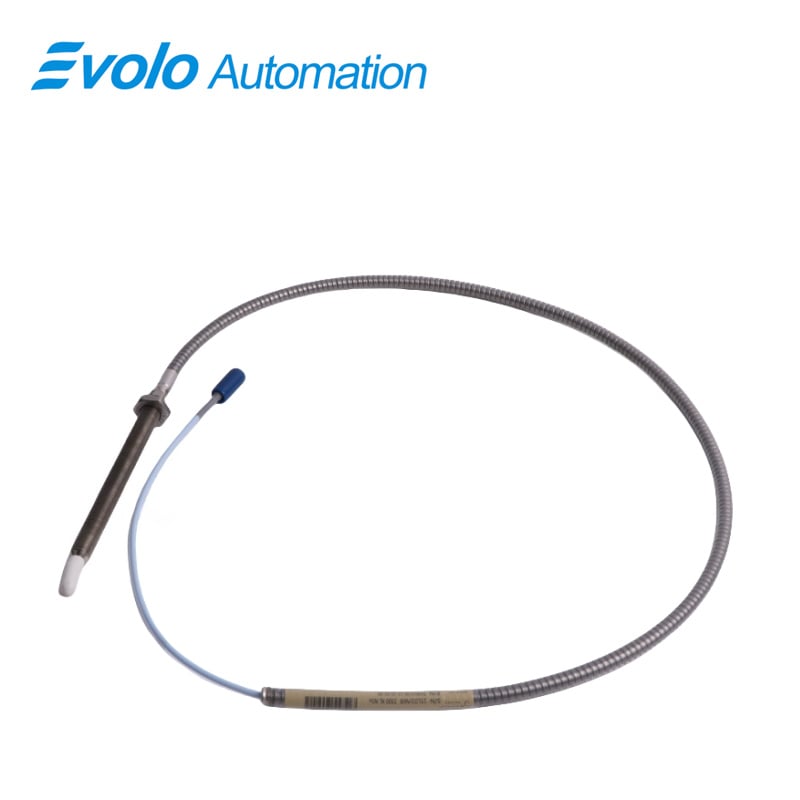

330910-00-12-10-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330910-00-12-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330910-00-12-10-02-00 3300 NSv Proximity Probe is a compact eddy-current measurement probe engineered for rotating machinery vibration, displacement, and shaft position monitoring in industrial automation, predictive maintenance, and centrifugal compressor applications. As part of the 3300 XL NSv Transducer System, model 330910-00-12-10-02-00 enables high-fidelity non-contact measurements for small target diameters and tight mounting geometries where standard 5 mm or 8 mm probes cannot be installed. With a 1.5 mm linear range, 50 Ω output resistance, and recommended 1.0 mm gap setting, the probe provides reliable static and dynamic data for radial vibration, axial thrust position, tachometer, and Keyphasor reference functions used across compressor control, turbine diagnostic, and industrial condition monitoring ecosystems. Its −52°C to +177°C thermal envelope supports high-temperature compressor housings and refrigeration skid applications. Constructed from AISI 304 stainless steel with PPS tip material and miniature ClickLoc connectors, the 330910-00-12-10-02-00 improves operational durability through enhanced pull strength, chemical resistance, and reduced installation clearance. Backward compatibility with legacy 3300 RAM systems allows modernization without full system replacement, lowering integration cost and facilitating continuous asset protection in petrochemical, LNG, power-generation, and industrial process environments focused on uptime, reliability, and automation performance.

Applications

Application 1 Small-Shaft Vibration Monitoring
The 330910-00-12-10-02-00 supports radial vibration measurement on shafts below 51 mm diameter due to its NSv small-target characteristics and 1.5 mm linear range, improving diagnostics for compact compressor rotors.

Application 2 Thrust and Axial Position Detection
Accurate non-contact axial displacement data improves thrust bearing protection logic for centrifugal refrigeration and process compressors, reducing bearing failure risk in continuous-duty industrial automation systems.

Application 3 Tachometer and Zero-Speed Sensing
Stable proportional output voltage enables zero-speed, startup, and overspeed detection critical for compressor control modules and safety interlocks in petrochemical and HVAC applications.

Application 4 Keyphasor Phase Reference
Phase and synchronous speed measurement supports advanced vibration diagnostics, orbit analysis, and balancing workflows used in condition monitoring platforms and online predictive maintenance programs.

Application 5 Tight-Mount and Restricted-Sideview Installations
The NSv form factor solves clearance-limited geometries, enabling installation where counterbore, rearview, or sideview constraints prevent the use of standard 3300 XL probes, improving retrofit performance.

Specifications

Competitive Advantage

Advantage 1 Reduced-Clearance Compatibility
Designed for small targets and constrained mounting spaces, the 330910-00-12-10-02-00 reduces mechanical integration barriers in compressor skid automation and retrofit projects.

Advantage 2 Backward System Compatibility
Electrical and mechanical compatibility with legacy 3300 RAM components lowers upgrade cost and avoids full transducer system replacement during modernization.

Advantage 3 Enhanced Temperature and Chemical Resistance
−52°C to +177°C temperature range and PPS tip chemistry allow deployment in gas compression environments with exposure to refrigerants, hydrocarbons, and thermal cycling.

Advantage 4 Improved Connection Reliability
ClickLoc and CableLoc connection technologies provide high pull strength and reduced connector failure risk under vibration, enhancing uptime and signal stability.

Advantage 5 Higher Diagnostic Resolution for Small Targets
NSv scale factor characteristics improve sensitivity for miniature rotor and thrust surfaces, increasing the resolution of predictive maintenance models and vibration analytics.
