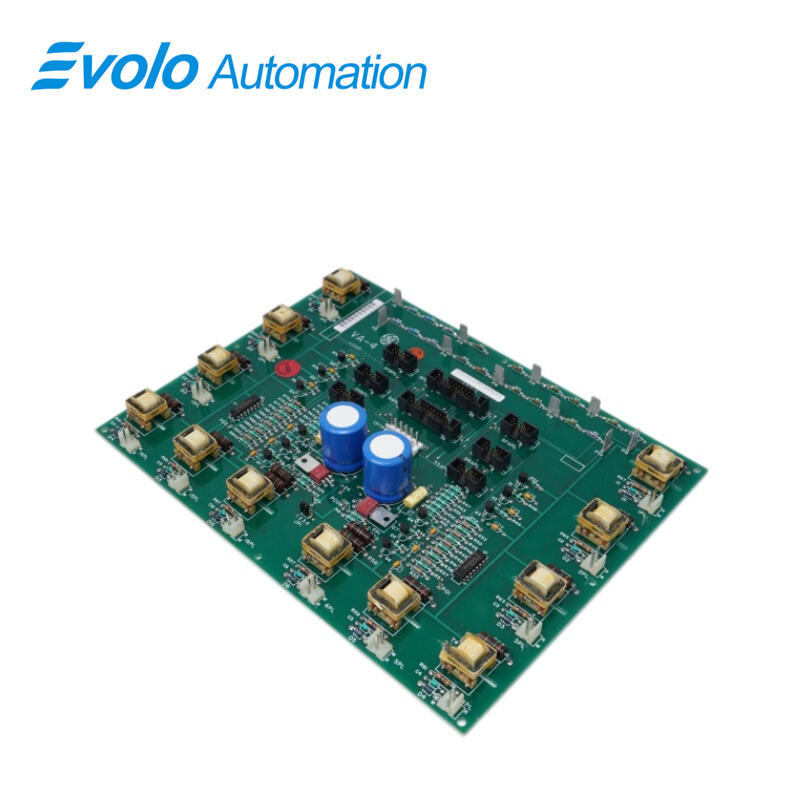

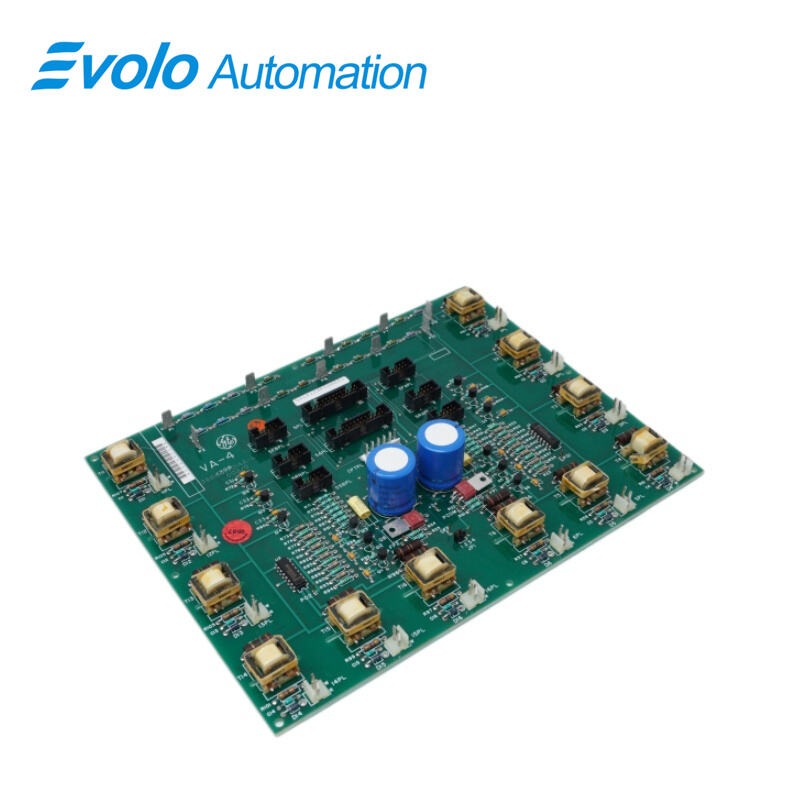

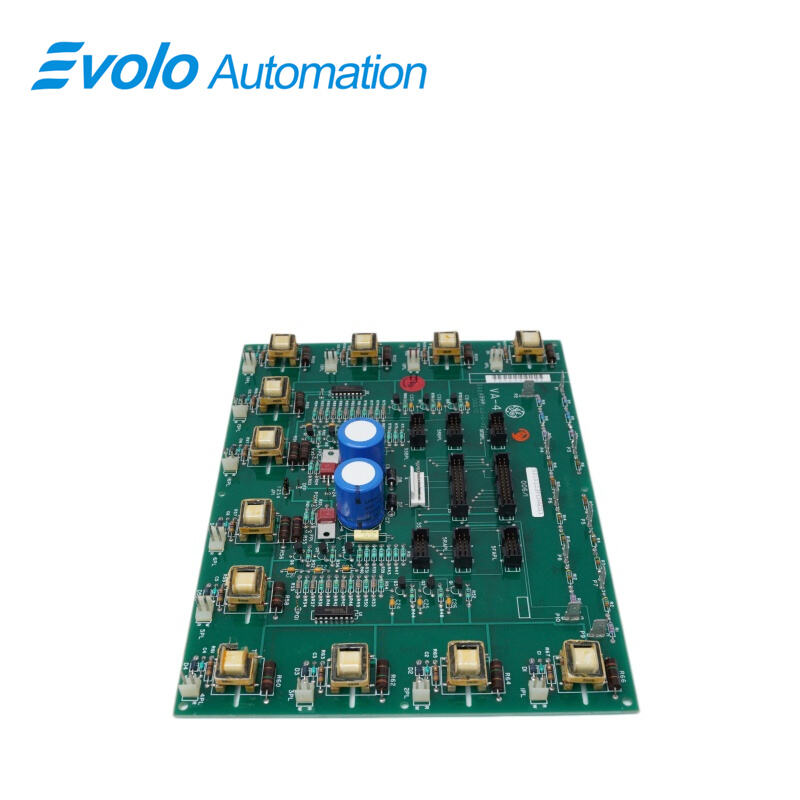

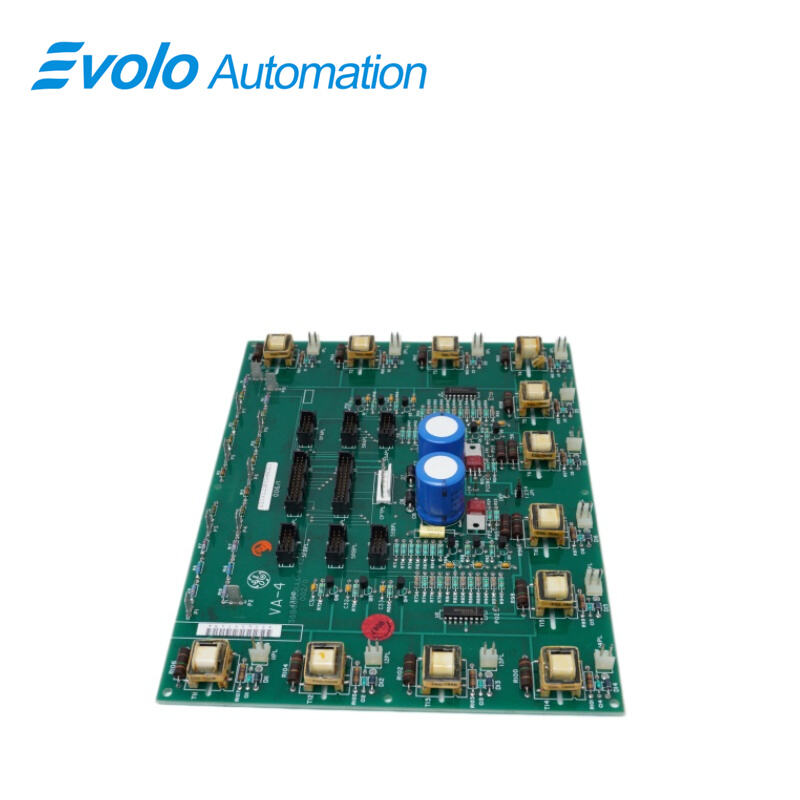

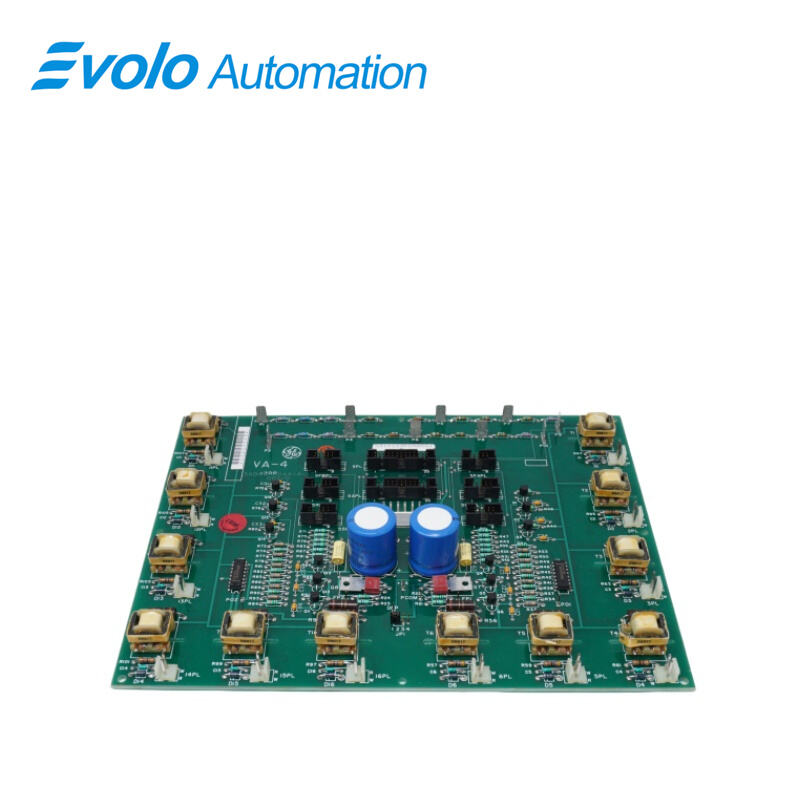

531X123PCHACG1 Power Connection Board

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	531X123PCHACG1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The GE 531X123PCHACG1 Power Connection Board is engineered to provide precise voltage and current supply, essential for the stable operation of industrial control systems, ensuring reliability and efficiency in various manufacturing environments.

Applications

Intelligent Logistics Warehouse: Powers control cabinets in automated sorting systems, enabling remote monitoring of power status via communication interfaces.

Precision Textile Factory: Supplies core power for multi-axis looms, ensuring synchronized operation of sensors and actuators during continuous production.

Food Processing Plant: Used in automated packaging drive units, with wide voltage design handling grid fluctuations from frequent equipment start-stop cycles.

Semiconductor Packaging and Testing Plant: Provides stable power for precision test equipment, with protection mechanisms preventing surge damage to sensitive chip modules.

Replacement

Before you begin:

check the area surrounding the drive for unsafe conditions

look for wet floors, ungrounded electrical outlets, and missing safety ground connections

inspect the tools you plan to use and use only hand tools that are approved for electrical environments

look for missing or worn insulation

locate all the emergency power-off switches associated with the drive

make sure you have easy access to the switches in case of emergency

do not perform the replacement procedure alone

it is best to become familiar with the electrical wiring used to supply power to the drive

only then can you be sure that all power is disconnected from the drive

Troubleshooting and Maintenance Recommendations

Troubleshooting: If there is no power output, first check if the input protection circuit has been triggered due to overcurrent or short circuit; reading the MODBUS register through the RS-485 interface can quickly locate the fault code.

Maintenance Recommendations: It is recommended to check the shielding connection of the communication cable every six months to ensure that RS-485 long-distance transmission is not interfered with; regularly clean the heat dissipation channels to ensure that heat can be dissipated in a timely manner when operating at full load at +55°C.

FAQ

Q: What is the function of the 531X123PCHACG1?
A: The 531X123PCHACG1 acts as a renewal board for power connection boards.

Q: Is the 531X123PCHACG1 designed for one board specifically?
A: No, the 531X123PCHACG1 is compatible with multiple boards.

Q: Will the 531X123PCHACG1 be damaged if the mains voltage suddenly spikes?
A: This board has built-in comprehensive overvoltage protection, automatically cutting off or suppressing voltage spikes to protect core circuitry.

Q: Is the 531X123PCHACG1 compatible with 50Hz or 60Hz power grids in different countries?
A: Fully compatible, it supports a wide voltage range of 100V to 240V AC and dual-frequency operation.

Q: How can I remotely monitor the operating temperature or load of the 531X123PCHACG1?
A: Through RS-232 or RS-485 interfaces, the host system can read onboard sensor data for real-time power monitoring.
