Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
YXU169B |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Part Number |
YXU169B |
|
Product Type |
Press Transform Unit Board |
|
Dimensions |
37×9×2.5 cm |
|
Weight |
0.46 kg |
|
Operating Voltage |
24 VDC |
|
Input Current |
5 mA |
|
Response Time |
< 1 ms |
|
Load Capacity |
Up to 10 A |
|
Communication Interface |
RS-485 (Modbus RTU) |
|
Protection Rating |
IP20 |
|
Operating Temperature Range |
-20°C to +55°C |
Description

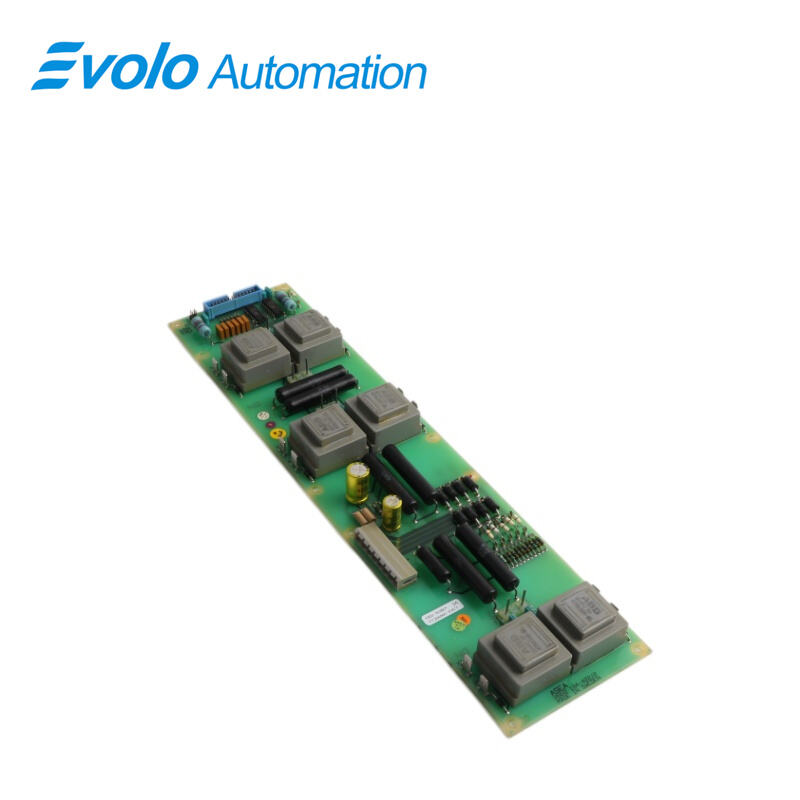

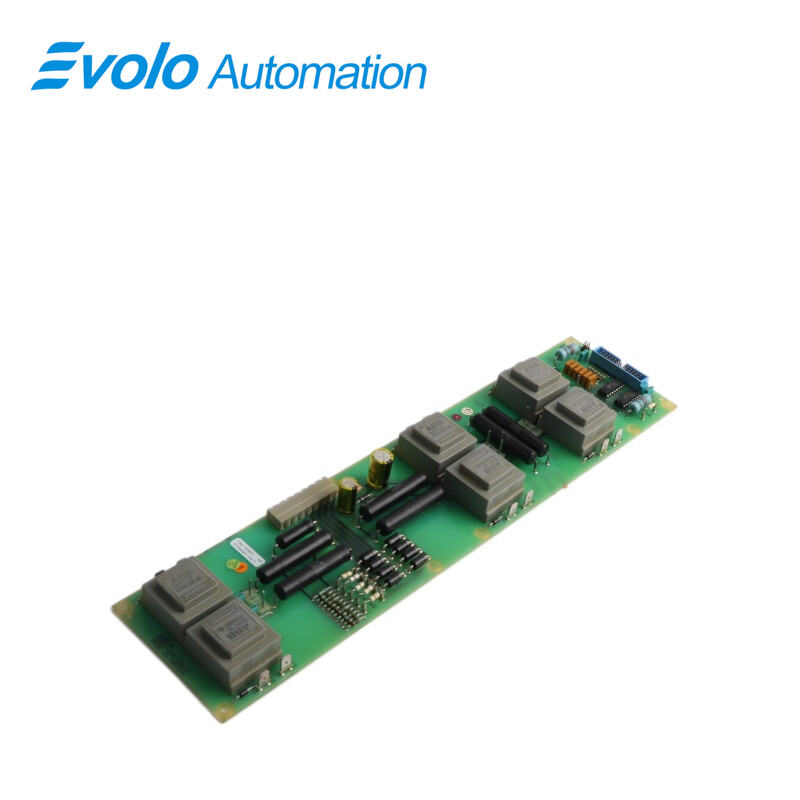

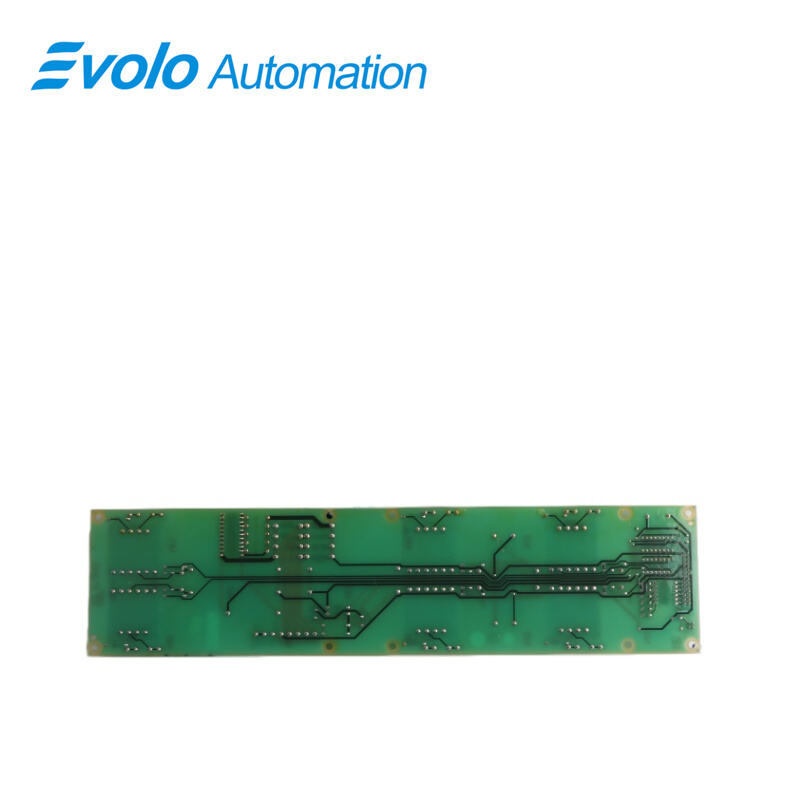

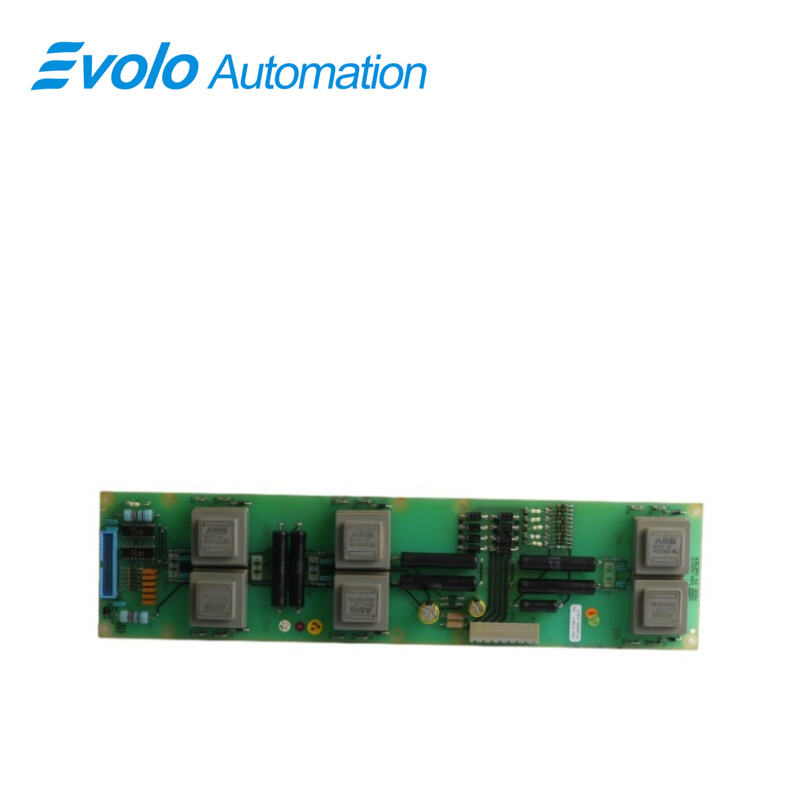

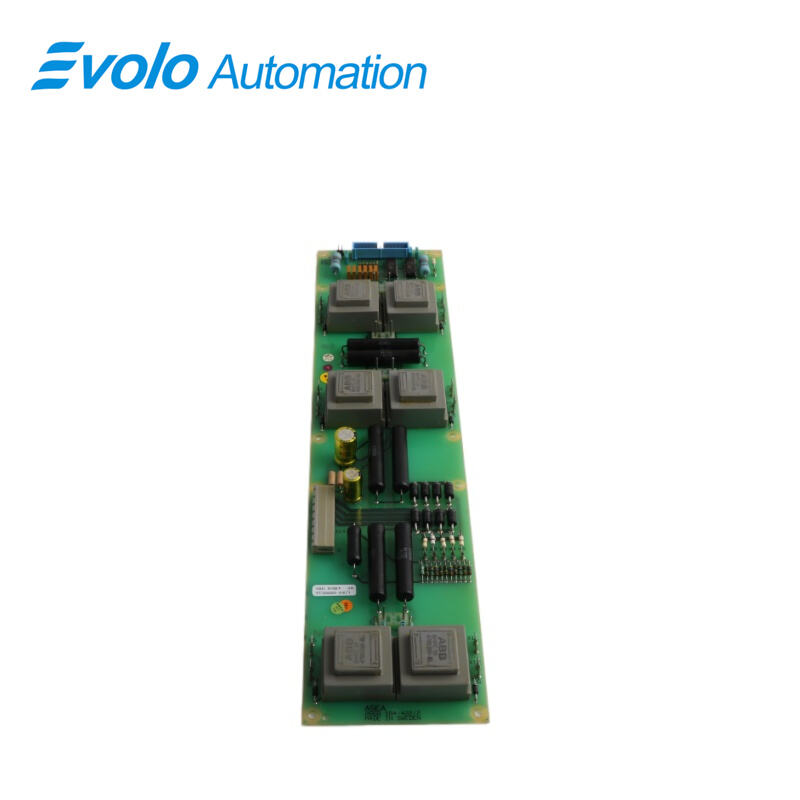

The ABB YXU169B Press Transform Unit Board is a compact and robust device designed for precise control in industrial environments. It integrates advanced semiconductor technology and supports real-time data exchange, ensuring efficient and reliable operation.
Applications
Precision stamping plant: Used to control the slide pressure of a press, ensuring consistent workpiece forming during high-speed stamping.
Automotive parts plant: Used in hydraulic forming production lines, driving solenoid valves with high load capacity to achieve precise pressing of body structural parts.
Plastic products plant: Integrated into the injection molding machine control system, monitoring injection pressure pulses to effectively prevent flash or material shortages.
Smart furniture plant: Enables multi-point synchronous pressure monitoring in wood hot-pressing composite production lines, improving the bonding quality of boards.
Textile machinery plant: Used to control the pressure rollers of dyeing and finishing equipment, ensuring uniform stress on fabrics during processing.
Features
FAQ
Q: What is the significance of YXU169B <1 ms response time for pressure control?
A: Enables instant detection of pressure spikes, preventing overpressure damage and process defects.
Q: Can YXU169B 10 A load directly drive solenoid valves?
A: Yes. The 10 A rating allows direct driving of most industrial solenoid actuators without intermediate relays.
Q: How is RS-485 stability ensured when multiple YXU169B units are networked?
A: Uses Modbus RTU with strong anti-interference, supporting stable long-distance multi-node communication.
Q: Does YXU169B support voltage fluctuation at 24 VDC?
A: Yes. It maintains stable triggering under typical small fluctuations in 24 VDC industrial supplies.
Q: Can YXU169B operate in sub-zero environments?
A: Yes. It works down to -20°C for cold-region and cold-chain industrial applications.
