Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
WEB-600 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
WEB-600 |
|
Product Type |
Series Controller |
|
Processor |
IBM PowerPC 440, 524 MHz |
|
Memory |
128 MB DDR RAM & 128 MB Serial Flash |
|
Optional Memory |
256 MB DDR RAM (NPM-256) |
|
Battery Backup |
5 minutes typical |
|
Shutdown Initiation |
Within 10 seconds |
|
Real-Time Clock Backup |
Up to 3 months via battery |
|
Ethernet Ports |
2 × 10/100 Mbps (RJ-45) |
|
RS-232 Ports |
1 × RS-232 (9-pin D-shell) |
|
RS-485 Ports |
1 × RS-485 non-isolated |
|
Operating System |
QNX RTOS |
|
Java Virtual Machine |
IBM J9 JVM |
|
Software Support |
NiagaraAX 3.1 or later |
|
Chassis Material |
Plastic |
|
Mounting Type |
DIN rail or screw mount |
|
Cooling Method |
Internal air convection |
|
Dimensions |
16 × 12.2 × 6.1 cm |
|
Operating Temperature |
0°C to 50°C |
|
Storage Temperature |
0°C to 70°C |
|
Humidity Range |
5% to 95% RH non-condensing |
|
Approvals |
RoHS, BTL, UL 916, CSA C22.2 No.205-M1983, CE, FCC Part 15 Class A, C-Tick |
Description

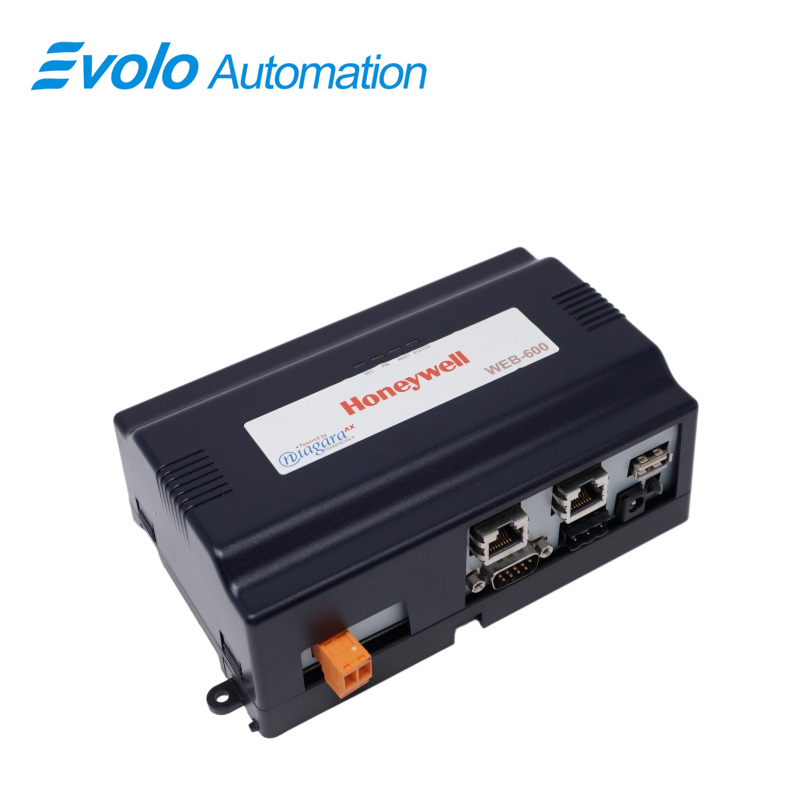

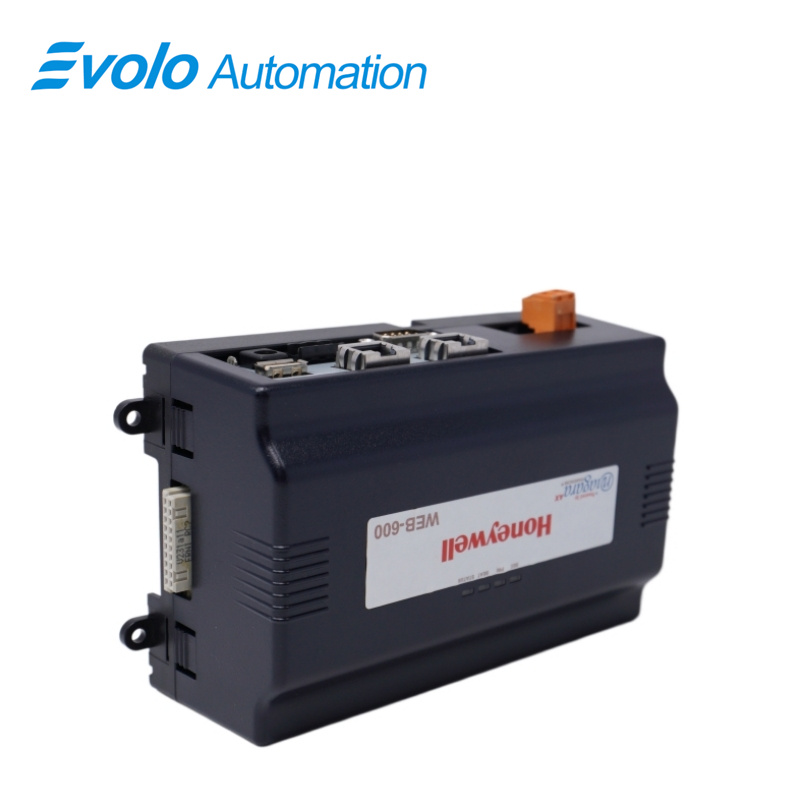

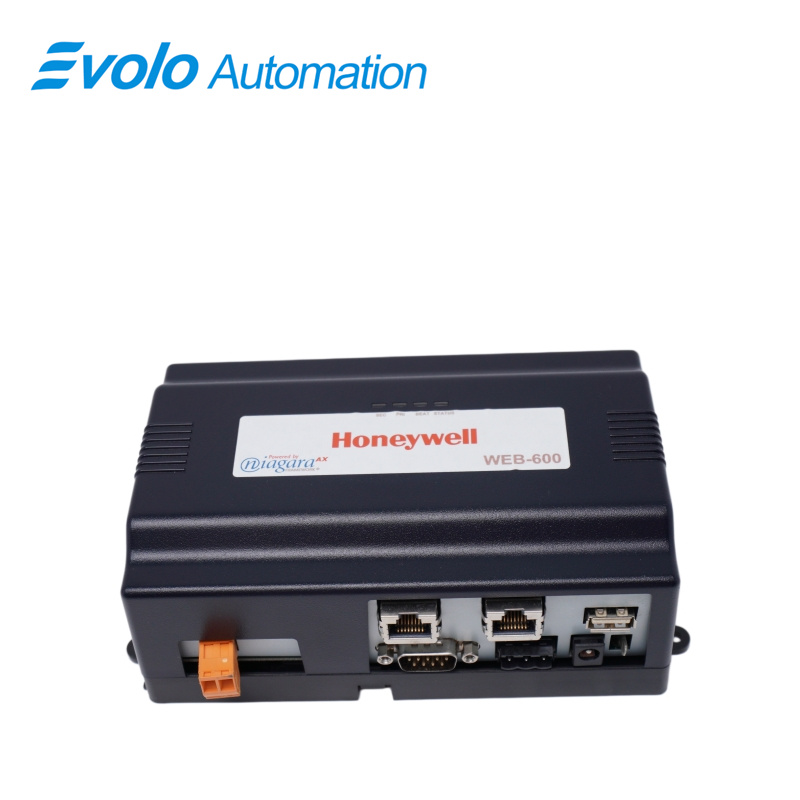

The Honeywell WEB-600 is a networked Series Controller that connects to and manages external devices within a building. This module allows users to view live feeds via a web browser, automatically run pre-defined programs to adjust ventilation and air conditioning, record on-site data, send alarms, and connect to expansion cards and various communication networks.
Applications
Smart Building Equipment Plants: Acts as an IoT gateway for centralized control of HVAC, lighting, and elevator systems through the NiagaraAX platform.
Precision Electronics Plants: Monitors and regulates cleanroom temperature and humidity for stable production environments.
Automotive Parts Factories: Connects workshop instruments and collects energy consumption data across production lines.
Pharmaceutical Processing Plants: Provides traceable monitoring for cold-chain storage and critical process support systems.
Large Data Centers: Backup power protection helps preserve monitoring data during power interruptions.
FEATURES
Embedded PowerPC Platform@ 524MHz
Supports open and legacy protocols
QNX Real-time Operating System
Web User interface (standard) serves rich graphical browser presentations
Run stand-alone control, energy management, and integration applications within the WEB-600E series controllers
Supports two optional communications boards
Optional 16 and 34 point I/O Modules
BEFORE INSTALLATION
1. Unpack the controller.
2. Inspect contents of the package for damaged or missing components.
3. Check the equipment and report any damage to a Honeywell representative at once and return any damaged components for immediate repair or replacement.
4. Read all of these instructions and ensure they are understood.
FAQ
Q: What processor does WEB-600 use?
A: It uses an IBM PowerPC 440 processor (524 MHz).
Q: What is the default memory configuration of WEB-600?
A: It includes 128 MB DDR RAM and 128 MB serial flash.
Q: How many Ethernet interfaces does WEB-600 have?
A: It has 2 × 10/100 Mbps RJ-45 Ethernet ports.
Q: What operating system runs on WEB-600?
A: It runs QNX RTOS.
Q: What material is the enclosure of WEB-600 made of?
A: It uses a plastic housing.
