Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	TU810V1 3BSE013230R1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Parameter	Value
Model	TU810V1 3BSE013230R1
Module Type	Compact Module Termination Unit
Function	2x8 signal terminals, single I/O
Dimensions (D x H x W)	17 x 6.5 x 6.4 cm
Weight	0.2 kg
Supply Voltage	50 V
Degree of Protection	IP20 (per WEEE category)
Connection Type	Terminal block
Number of Channels	16
Maximum Current per I/O Channel	2 A
Maximum Current Process Connection	5 A
Acceptable Wire Sizes	Solid: 0.2–4 mm²; Stranded: 0.2–2.5 mm²; 24–12 AWG
Dielectric Test Voltage	500 V a.c.
Mounting	Both directions; Horizontal: 55°C (131°F), Vertical: 40°C (104°F)
Compatible I/O Modules	AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO840, DO880, DP820, DP840
RoHS Compliance	Following EU Directive 2011/65/EU
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries	0

Description

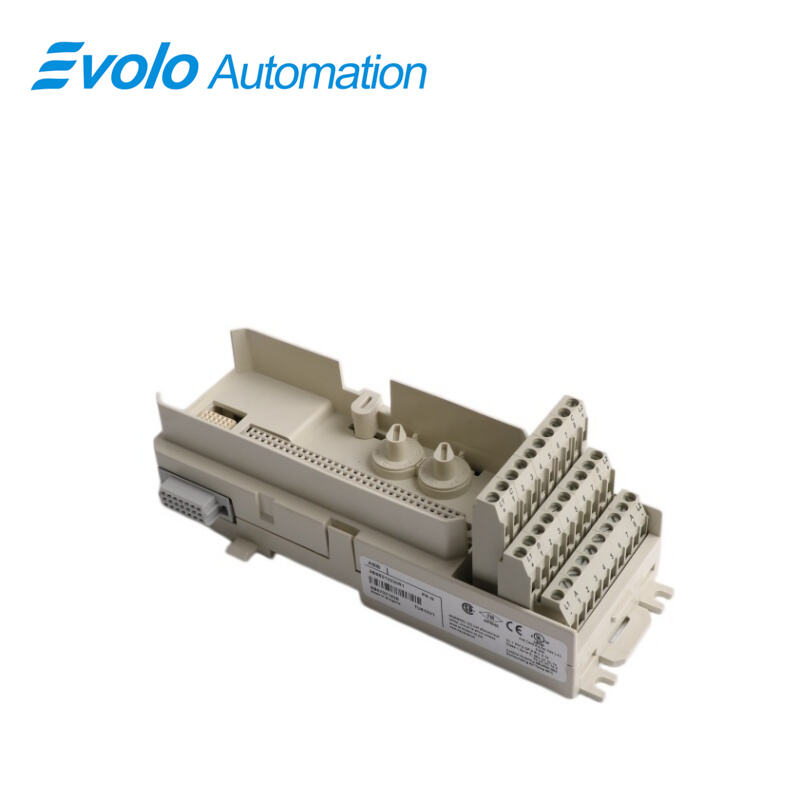

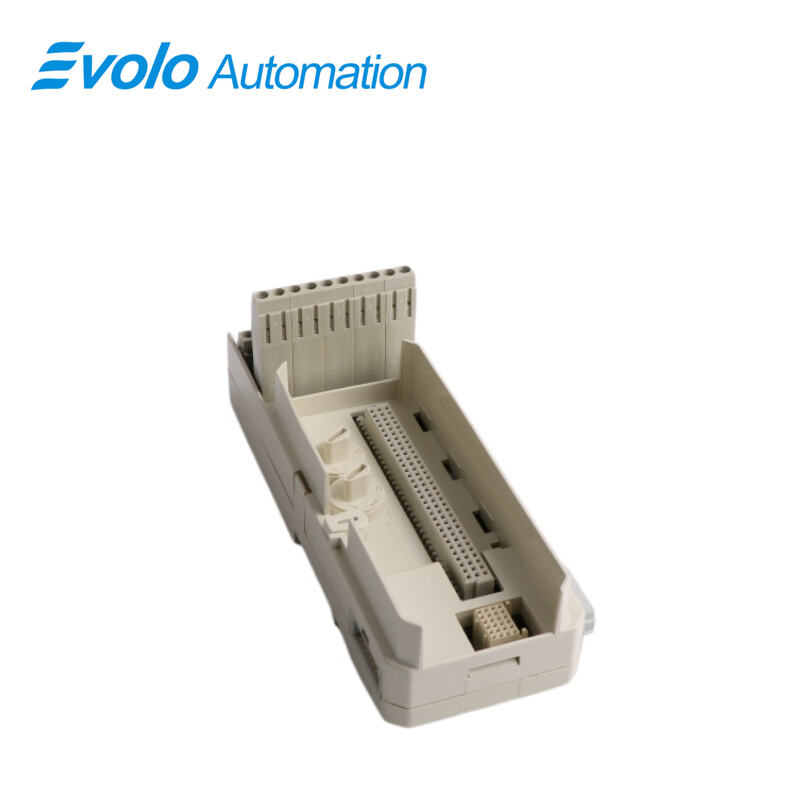

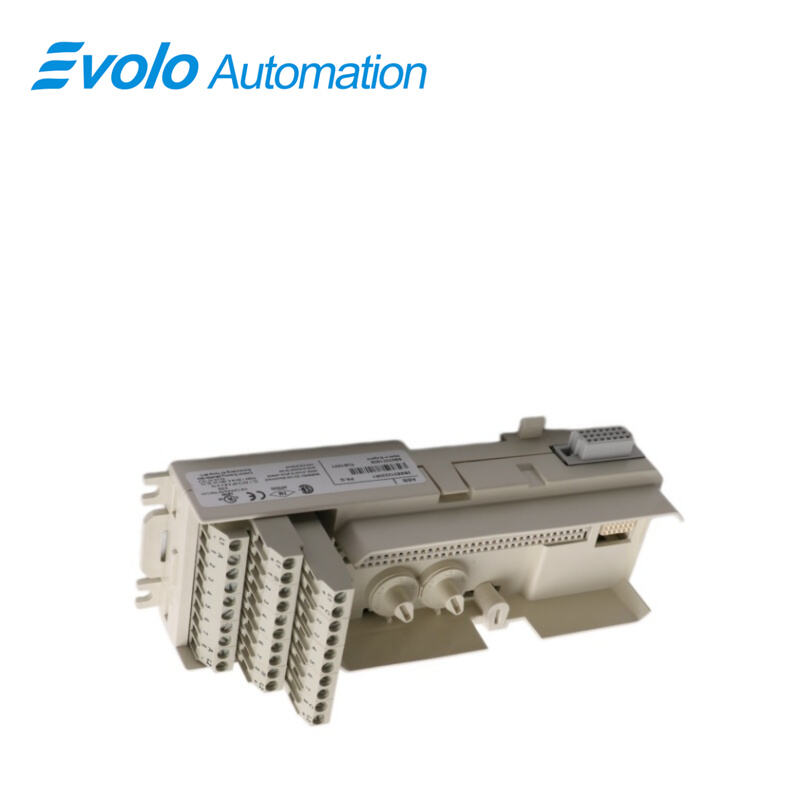

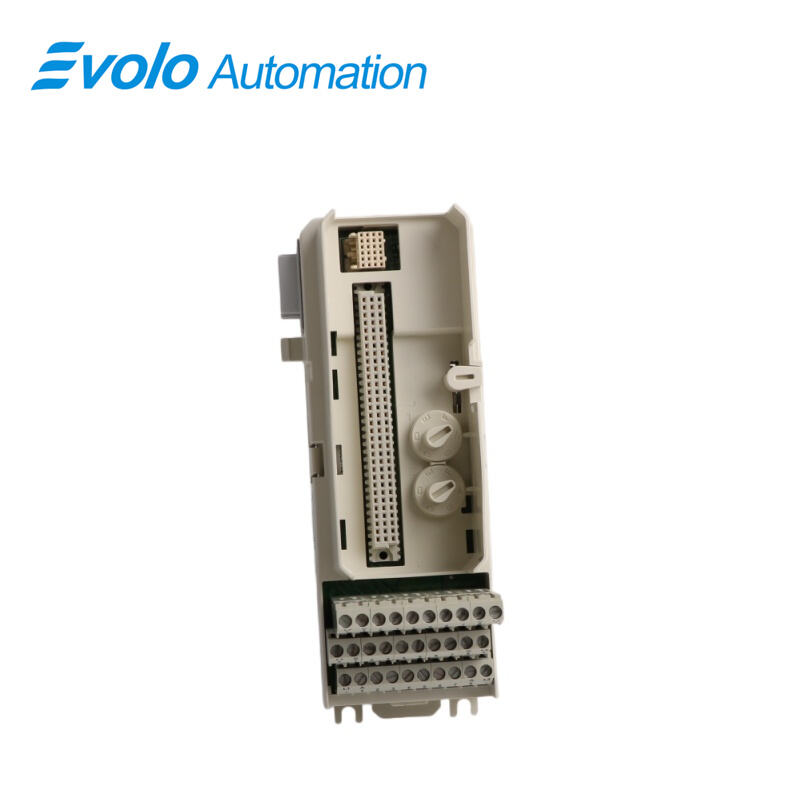

The TU810V1 3BSE013230R1 is a 16channel 5oV compact module termination unit (MTU) for the S80ol/O. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus. The MTU distributes the ModuleBus to the I/O module and to the neat MTU. It also generates the correct address to the I/O module by shifting the cutgoing position signals to the next MTU. Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.

Environmentand certification

CE Mark	Yes
Electrical Safety	EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
Hazardous Location	C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine Certification	ABS, BV, DNV-GL, LR
Operating Temperature	0 to +55°C (+32 to +131°F); approvals issued for +5 to +55°C
Storage Temperature	-40 to +70°C (-40 to +158°F)
Pollution Degree	Degree 2, IEC 60664-1
Corrosion Protection	ISA-S71.04: G3
Relative Humidity	5–95 %, non-condensing
Max Ambient Temperature	55°C (131°F), vertical mounting 40°C (104°F)
Mechanical Operating Conditions	IEC/EN 61131-2
EMC	EN 61000-6-4, EN 61000-6-2
Overvoltage Categories	IEC/EN 60664-1, EN 50178
Equipment Class	Class I (earth protected)
RoHS Compliance	EN 50581:2012
WEEE Compliance	DIRECTIVE/2012/19/EU

Applications

Automated manufacturing plants: Used for sensor signal aggregation and modular management.

Process manufacturing plants: Connect to field instruments in industries such as petroleum, chemical, and pharmaceutical.

Power plants/substations: Integrated into control cabinets, supporting distributed I/O communication.

Features and benefits

Compactinstallaticn of l/0 modules using cne-wire connections

Up to 16 channels of field signas and process power connections

Connecticns to ModuleBus andl/Omodules

Mechanical keying prevents insertion of the wrong l/O madule.

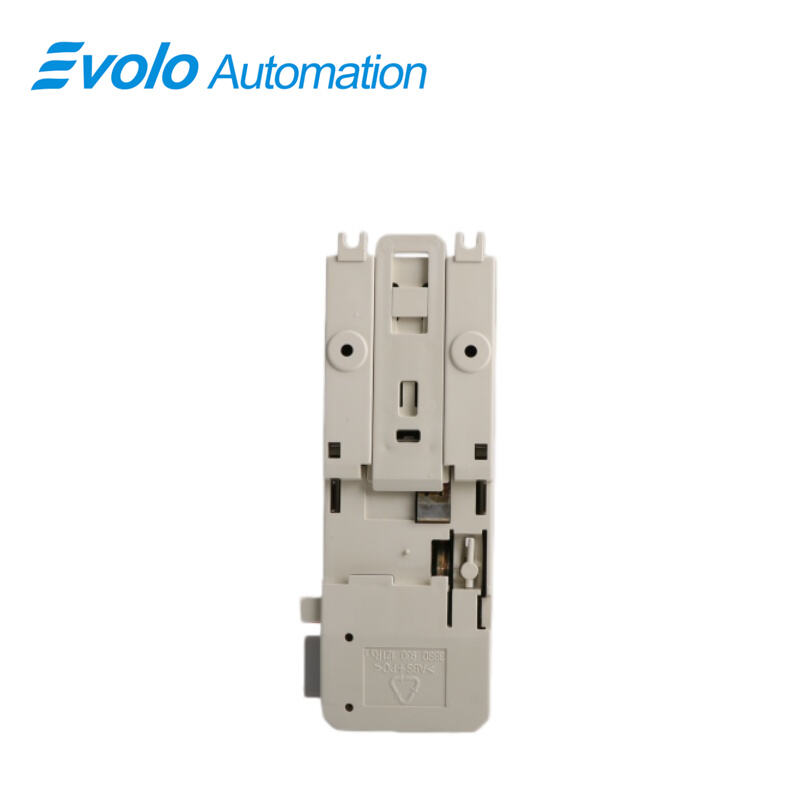

Latching device to blN rail for grounding

DIN rail mcunting

FAQ

Q: Does TU810V1 3BSE013230R1 require power?
A: No. It is a passive unit, distributing signals and process power only through terminal blocks.

Q: Which I/O modules does TU810V1 3BSE013230R1 support?
A: It is compatible with most S800 16-channel modules, including AI810, AI815, AI820, DI810, and DO810.

Q: What is the "mechanical key" configuration on TU810V1 3BSE013230R1?
A: The mechanical key prevents operators from inserting the wrong I/O module into the wired socket, providing physical error prevention.

Q: Will socket damage in TU810V1 3BSE013230R1 affect the entire bus?
A: Yes. It integrates part of the ModuleBus; if the socket communication pins are damaged, all downstream modules may lose connection.

Q: What is the difference between the XC version and the standard version of TU810V1 3BSE013230R1?
A: This model is the standard version. The XC version (extreme environment type) has an additional conformal coating for enhanced corrosion resistance.
