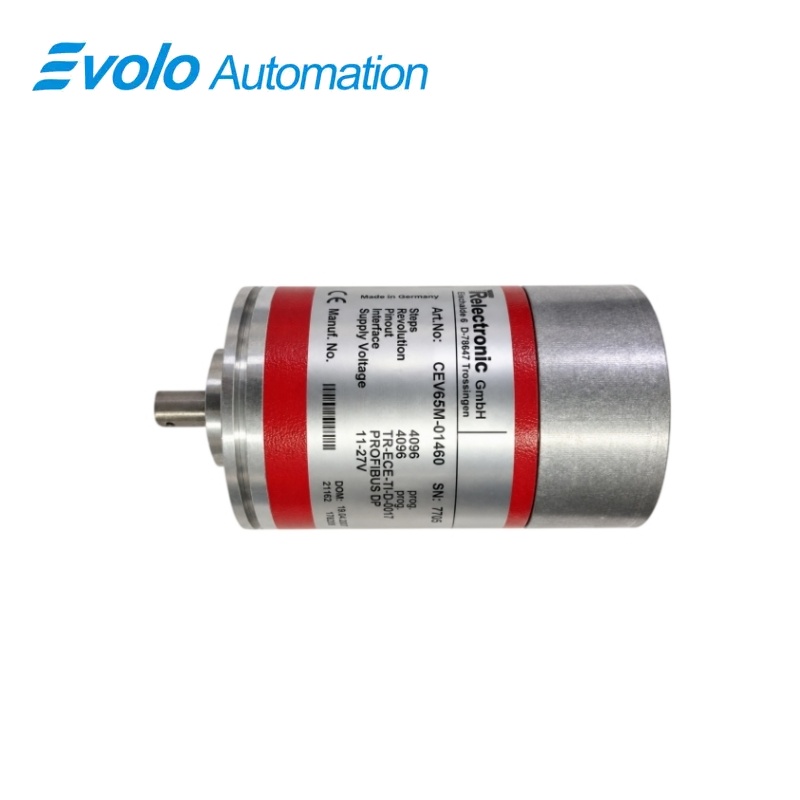

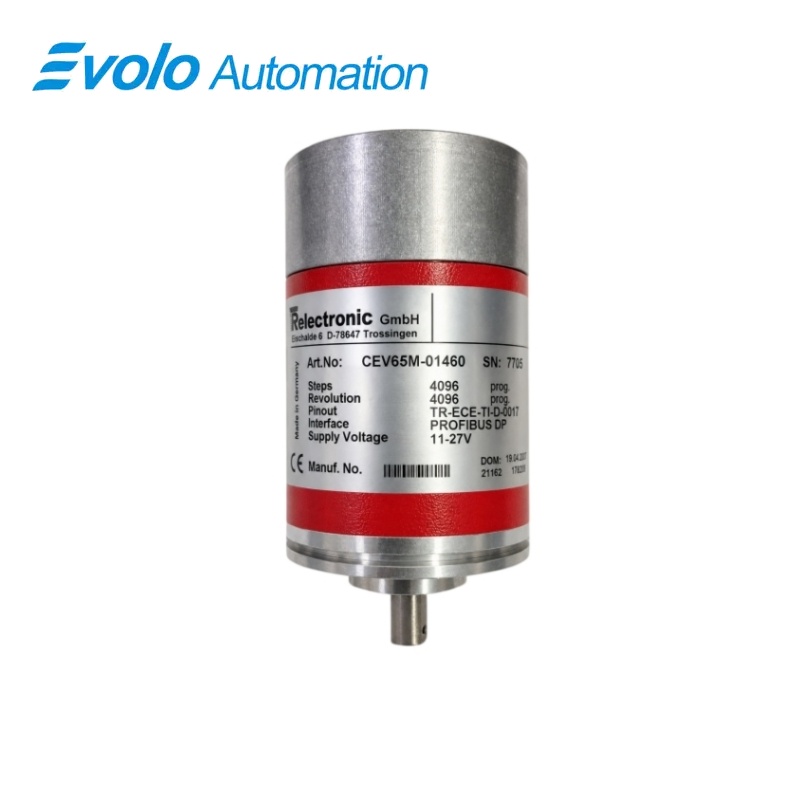

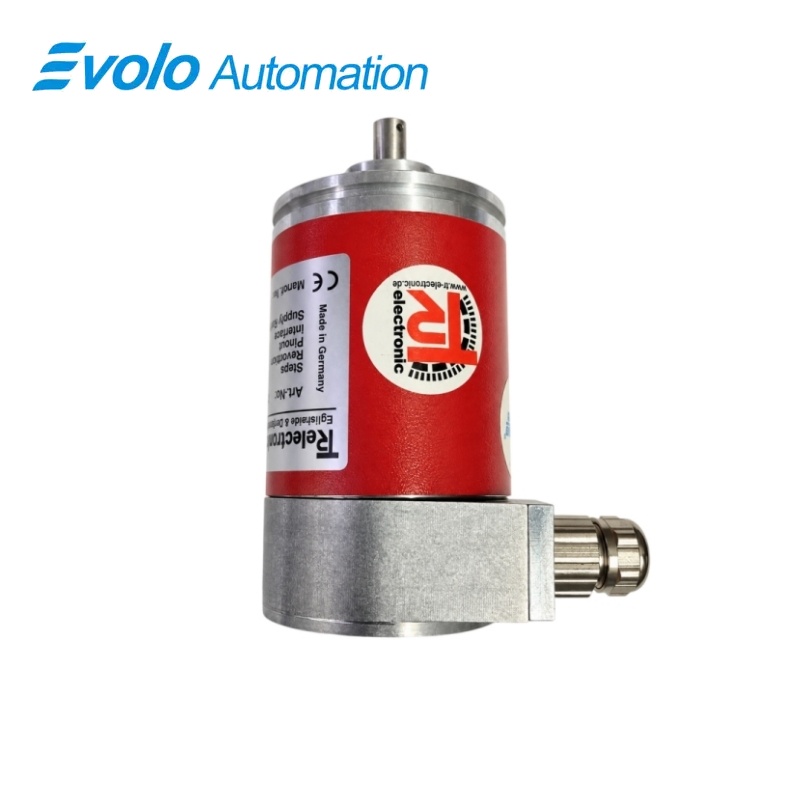

TR-Electronic CEV65M-01460 PROFIBUS-DP Multi-Turn Absolute Encoder
Manufacturer: TR-Electronic
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Hot Selling Models
- Recommended Products
Overview
- Verify the flange and shaft geometry against the machine coupling.
- Reserve a PROFIBUS address from 3 to 99 and match the project configuration.
- Enable the terminating resistor only at the final bus station.
- Keep shaft loads and rotational speed within the specified mechanical limits.
TR-ELECTRONIC ABSOLUTE ENCODER
TR-Electronic CEV65M-01460 PROFIBUS-DP Multi-Turn Absolute Encoder
CEV65M-01460 combines a 4096-step, 4096-revolution measuring range with PROFIBUS-DP communication in an IP65 encoder housing.
At a Glance
| Brand | TR-Electronic |
|---|---|
| Model | CEV65M-01460 |
| Product Type | Multi-Turn Absolute Encoder |
| Core Function | Programmable absolute position feedback |
| Application | Industrial shaft position measurement |
Exact Identification
Order number CEV65M-01460, configured as CEV65M 4096/4096 PB.
Electrical Setup
Use an 11–27 V DC supply and the three radial PG9 cable entries.
Mechanical Fit
Match the ZB36 flange and 10FL/19.5 shaft configuration before installation.
Product Overview
TR-Electronic CEV65M-01460 is a programmable single-/multi-turn absolute encoder configured for 4096 steps per revolution and 4096 revolutions.
The encoder communicates through PROFIBUS-DP V0 with PNO Encoder Profile Class 2 and supports programmable resolution, counting direction, gear function, velocity parameters, limit switching and electronic preset.
Key Functions
Configured Absolute Measuring Range
The supplied configuration provides 4096 distinct positions per revolution across 4096 revolutions.
PROFIBUS-DP Integration
The encoder supports transmission rates from 9.6 to 12000 kbit/s and uses PNO Encoder Profile Class 2.
Programmable Commissioning
Resolution, output code, counting direction, preset, limit switch, gear function and velocity parameters can be configured through the fieldbus device.
Official Specifications
| Configured Measuring Range | 4096 steps per revolution across 4096 revolutions |
|---|---|
| Supply Voltage Range | 11–27 V DC |
| Typical Nominal Current | 120 mA when unloaded |
| Output Electrical Level | RS-485 |
| PROFIBUS Transmission Rate | 9.6–12000 kbit/s |
| Communication Cycle Time | 250 µs |
| PNO Encoder Profile | Class 2 |
| Connection Arrangement | 3 × PG9, radial direction |
| Flange Configuration | ZB36 |
| Shaft Configuration | 10FL/19.5 |
| Maximum Mechanical Speed | 6000 rpm |
| Permissible Shaft Load | Maximum 40 N axial and 60 N radial |
| Typical Mass | 0.7 kg |
| Configured Operating Temperature | -20 °C to +70 °C |
| Protection Rating | IP65 |
| Vibration Resistance | Up to 100 m/s² at 50–2000 Hz |
| Shock Resistance | Up to 1000 m/s², 11 ms half-sine |
| Relative Humidity | 98%, non-condensing |
Frequently Asked Questions
How should I power CEV65M-01460 during installation?
Provide 11 to 27 V DC; the nominal current is typically 120 mA when unloaded.
Which PROFIBUS profile should I configure for CEV65M-01460?
Use PNO Encoder Profile Class 2 with PROFIBUS-DP V0 communication.
How do I set the node address on CEV65M-01460?
Set the PROFIBUS station address from 3 to 99 with the two BCD address switches.
When should I enable bus termination on CEV65M-01460?
Enable the terminator only when the encoder is the last station on the PROFIBUS line.
What configured measuring range does CEV65M-01460 provide?
The configured variant provides 4096 steps per revolution across 4096 revolutions.
Can CEV65M-01460 run at 6000 rpm?
The mechanical speed must not exceed 6000 revolutions per minute.
What environmental limits apply to CEV65M-01460?
The configured version is rated IP65 for operation from -20 °C to +70 °C.
