Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
TK-ORC161 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
TK-ORC161 |
|
Product Type |
Relay Discrete Output Module |
|
Dimensions |
3.5 × 14 × 14.5 cm |
|
Weight |
0.28 kg |
|
Number of Outputs |
16 N.O. (individually isolated contacts) |
|
Output Voltage Range |
10–265 VAC (47–63 Hz) / 5–150 VDC |
|
Load Capability (DC) |
5–30 VDC @ 2.0 A; 48 VDC @ 0.5 A; 125 VDC @ 0.25 A |
|
Load Capability (AC) |
125 VAC @ 2.0 A; 240 VAC @ 2.0 A |
|
Minimum Load Current |
10 mA per point |
|
Maximum Off-State Leakage Current |
1.5 mA per point |
|
Contact Resistance (Initial) |
30 MΩ |
|
Switching Frequency |
Max 1 operation / 3 s (0.3 Hz at rated load) |
|
Bounce Time |
1.2 ms (mean) |
|
Expected Contact Life |
300k cycles (resistive) / 100k cycles (inductive) |
|
Output Delay Time |
10 ms max (ON/OFF) |
|
Power Dissipation |
4.5 W @ 60°C |
|
Thermal Dissipation |
15.35 BTU/hr |
|
Power Rating (DC resistive) |
60 W (30 VDC), 24 W (48 VDC), 31 W (125 VDC) |
|
Power Rating (AC resistive) |
250 W (125 VAC), 480 W (240 VAC) |
|
Power Rating (AC inductive) |
250 VA (125 VAC), 480 VA (240 VAC) |
|
Power Rating (DC inductive) |
60 VA (30 VDC), 24 VA (48 VDC), 31 VA (125 VDC) |
|
Fault State Configuration |
Hold last state / ON / OFF (default OFF) |
|
Program Mode State |
Configurable per point (Hold / ON / OFF) |
|
Fusing |
Not protected (external fused RTP recommended) |
|
Isolation Voltage |
250 V max continuous; 2546 VDC tested for 1 s |
|
Backplane Current |
See Module Power Consumption Data |
|
Terminal Block |
TC-TBCH, 36-position |
Description

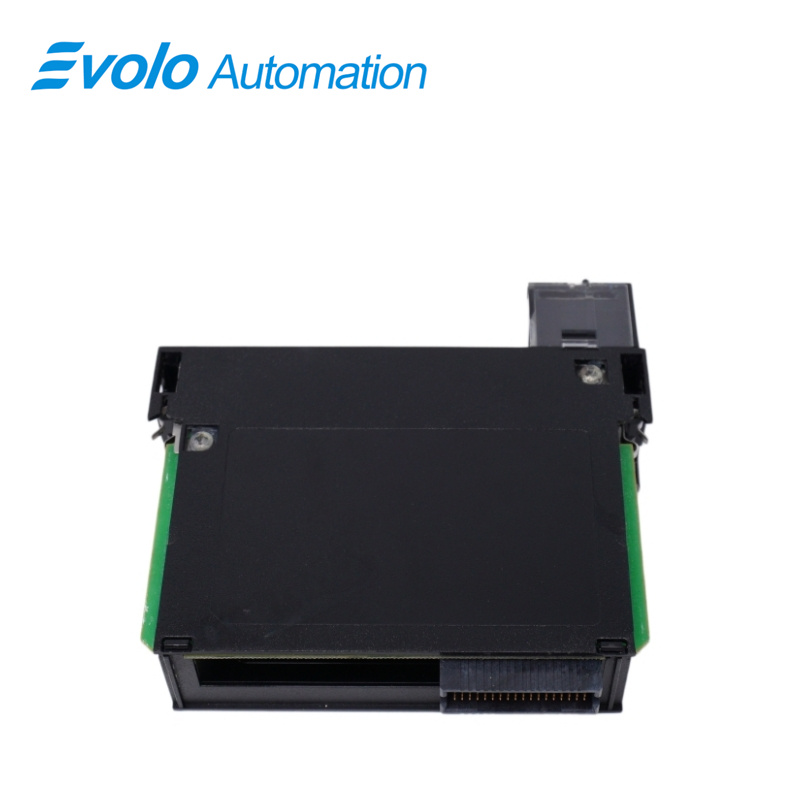

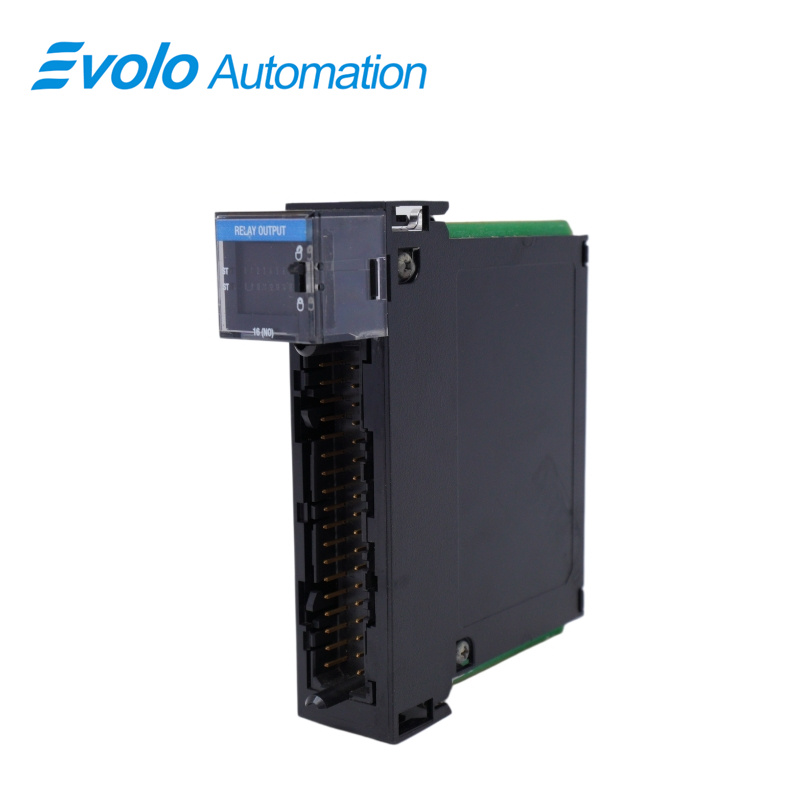

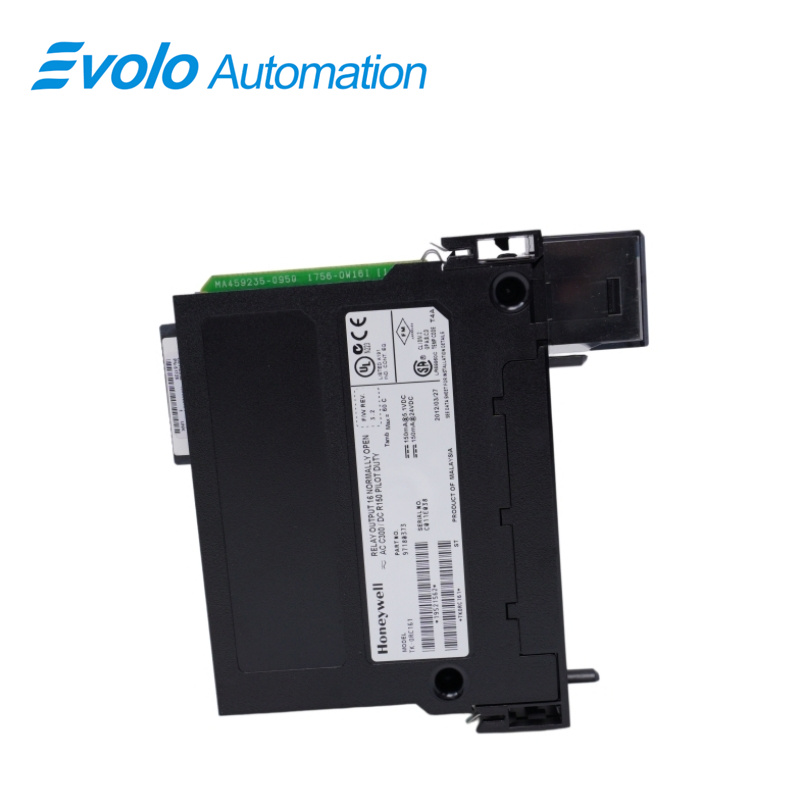

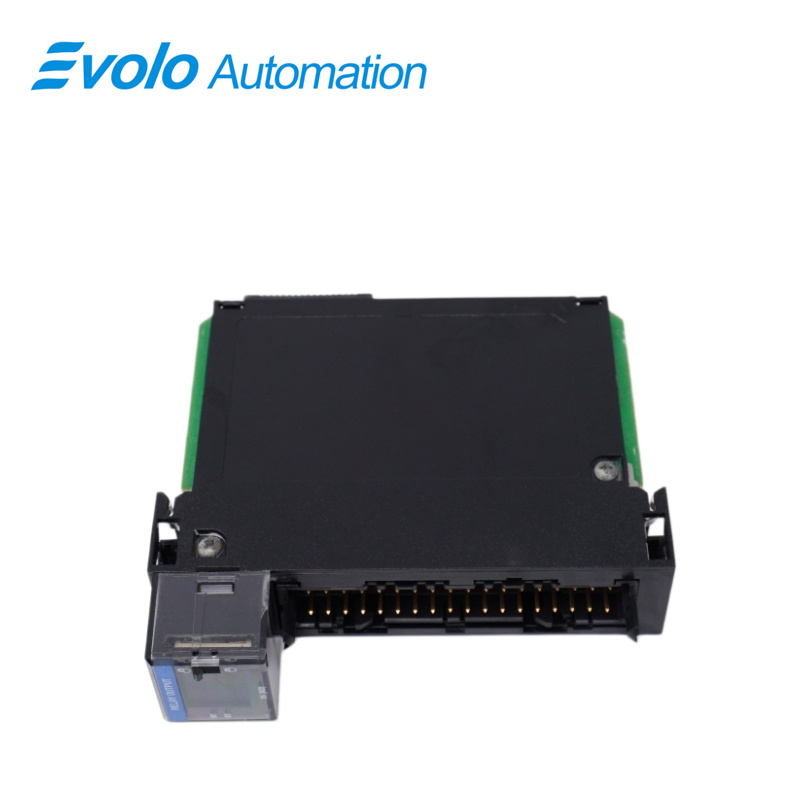

The Honeywell TK-ORC161 is a Relay Discrete Output Module. This module is primarily installed in the factory's automation control cabinet. It receives digital on/off signals from the main control box and uses internal relay hardware to activate external circuits.
Applications
Chemical Plants: Safety interlock and explosion valve control.
Power Plants: Breaker trip and unit alarms.
Refineries: Equipment start/stop and pipeline valves.
Steel Mills: Furnace motors and heavy drive control.
Cement Plants: Conveyor feeding and fan control.
Troubleshooting
Contact Sticking or Inability to Disconnect: External inductive load or arc discharge may shorten contact life (300k/100k cycles). Check output impedance; if sticking occurs, replace module and add DC freewheeling diode or AC RC snubber.
False Triggering After Low-Power Load Connection: Off-state leakage current up to 1.5 mA may keep high-impedance loads (e.g., LED indicators) slightly active. Add a parallel bleeder resistor to eliminate residual current effects.
Intermittent Open Circuit or Failure to Close: Minimum operating load is 10 mA per channel. Low-current dry contacts may fail due to contact oxidation; ensure load current meets requirement.
FAQ
Q: How many normally open outputs does TK-ORC161 have?
A: It has 16 independently isolated normally open (N.O.) contacts.
Q: What is the AC output voltage range of TK-ORC161?
A: The AC output voltage range is 10–265 VAC (47–63 Hz).
Q: What is the initial contact resistance of TK-ORC161?
A: The initial contact resistance is 30 MΩ.
Q: What is the rated power of TK-ORC161 under 240 VAC resistive load?
A: The rated power is 480 W.
Q: What is the heat dissipation of TK-ORC161 during operation?
A: The heat dissipation is 15.35 BTU/hr.
