Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
TC-CCN013 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
TC-CCN013 |
|
Product Type |
ControlNet Interface Module |
|
Dimensions |
18.8 × 9.1 × 4.1 cm |
|
Weight |
0.49 kg |
|
Operating Voltage |
24 VDC (±10%) |
|
Current Consumption |
970 mA @ 5.1 VDC; 1.7 mA @ 24 VDC |
|
Operating Temperature |
-40°C to +70°C |
|
Data Transfer Rate |
100 Mbps Ethernet |
|
Isolation Voltage |
1500 VAC |
|
MTBF |
>150,000 hours |
|
Media Type |
Single media |
Description

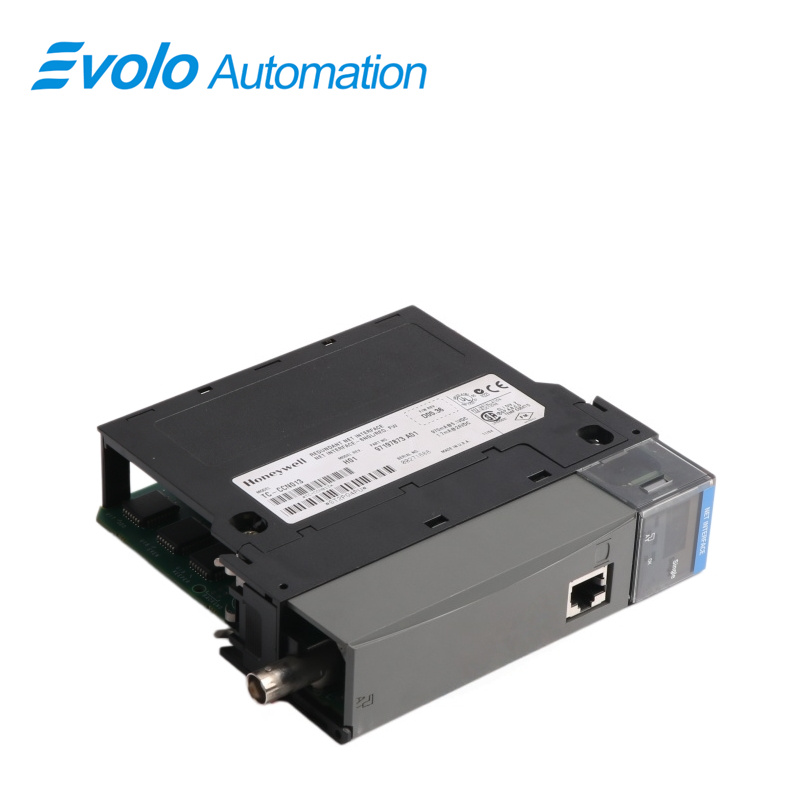

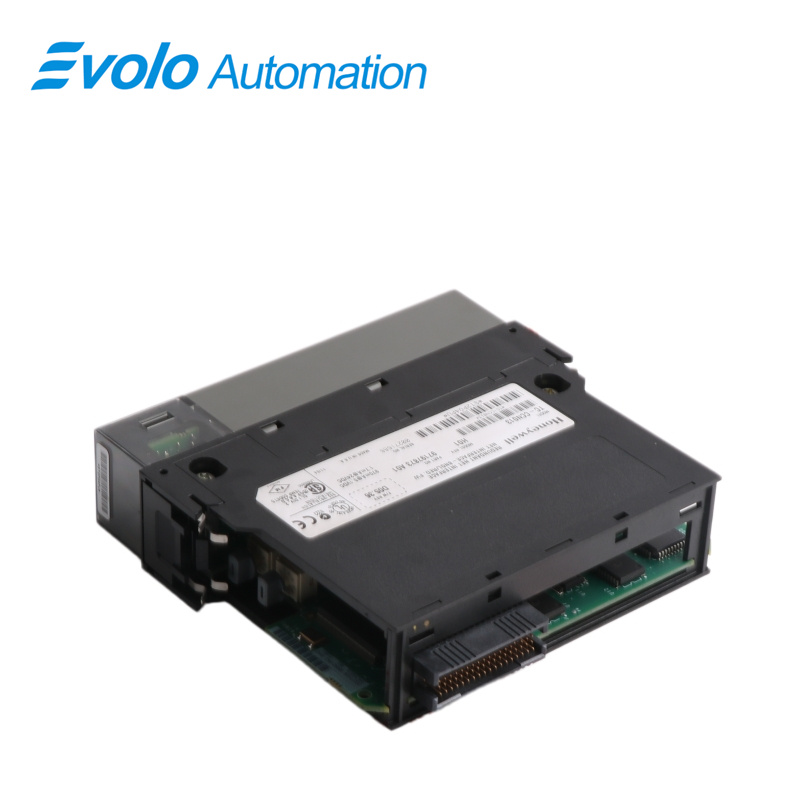

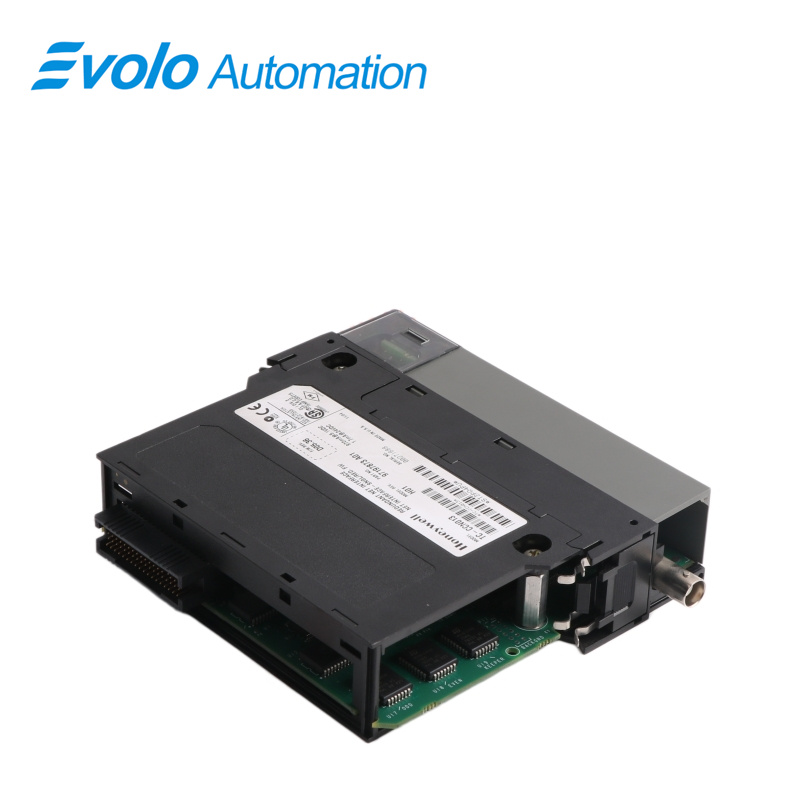

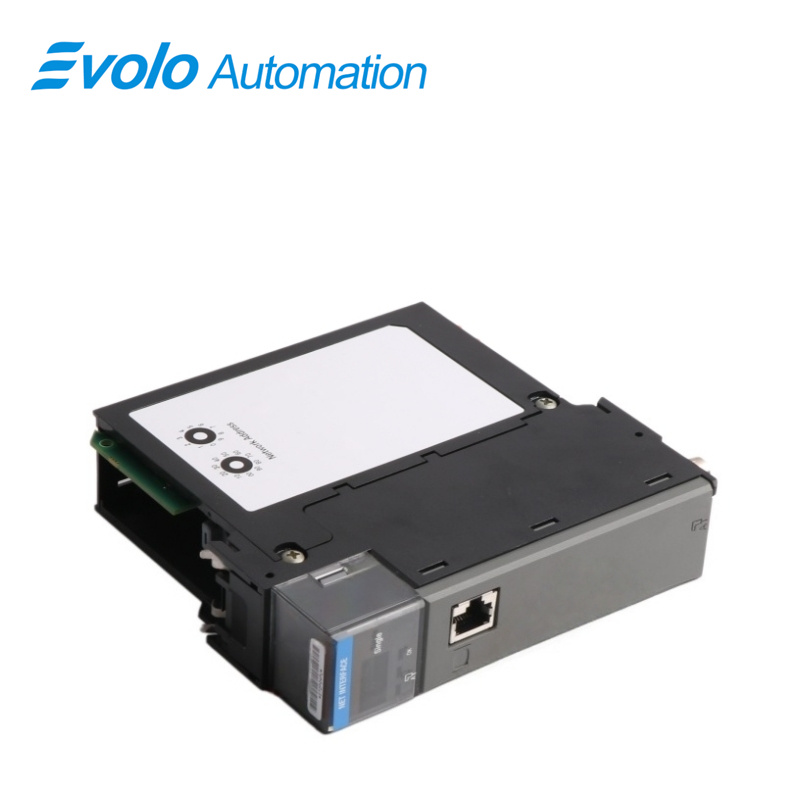

The Honeywell TC-CCN013 is a ControlNet Interface Module for industrial automation control systems. It is responsible for establishing a physical data channel between the main processing units, input/output racks, and field nodes of the control system, enabling different hardware chassis to be brought together via network cables to achieve long-distance information transmission.
Applications
Semiconductor wafer fabs: High-speed data collection for real-time wafer testing in cleanrooms.
Biopharmaceutical plants: High isolation protects control networks from surge interference in production areas.
Automotive assembly plants: Wide temperature tolerance ensures stable use in welding robot cabinets.
Rail transit equipment plants: Long-life design supports traction testing and substation automation systems.
New energy battery plants: Simplified networking reduces wiring in large battery test systems.
Paper and fiber plants: Wide-voltage support stabilizes operation under heavy machine load fluctuations.
Key Features
Triple redundancy design: The module adopts TMR architecture to ensure high reliability of communication links, and single point failure does not affect system operation.
High-speed communication capability: Supports 100Mbps Ethernet communication to meet the data transmission requirements of real-time control systems.
Strict safety certification: Passed SIL 3 certification, suitable for the most stringent safety-critical application scenarios.
Wide operating temperature range: -40°C to +70°C operating temperature range, adapt to various harsh industrial environments.
FAQ
Q: What is the operating voltage of TC-CCN013?
A: Its operating voltage is 24 VDC (±10%).
Q: What is the current consumption of TC-CCN013 at 5.1 VDC power supply?
A: Its current consumption is 970 mA.
Q: What is the data transmission rate of TC-CCN013?
A: Its Ethernet data transmission rate is 100 Mbps.
Q: What is the mean time between failures (MTBF) of TC-CCN013?
A: Its MTBF is greater than 150,000 hours.
Q: What is the isolation voltage of TC-CCN013?
A: Its isolation voltage is 1500 VAC.
