Overview
Place of Origin: |
USA |
Brand Name: |
ICS TRIPLEX |
Model Number: |
T9451 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
T9451 |
|
Product Type |
Digital Output Module |
|
Channels |
8 Channel |
|
Output Voltage |
24 VDC |
|
Isolation |
Isolated Commoned |
|
Backplane Voltage Range |
18–32 VDC |
|
Output Voltage Range (at 0.5 A) |
18–32 VDC |
|
Max Backplane Current |
165 mA |
|
Max Continuous Output Current per Channel |
0.5 A |
|
Max Total Module Current |
4 A (all 8 channels) |
|
Power Consumption |
3 W |
|
Heat Dissipation |
10.2 BTU/hour |
|
Scan Time |
1.174 ms / 2.202 ms |
|
Operating Temperature Range |
-25 °C to +70 °C |
|
FTA Compatibility |
T9851 (single) / T9852 (redundant / TMR) Digital Output FTA |
|
Mounting Type |
Plug-in module for I/O base system |

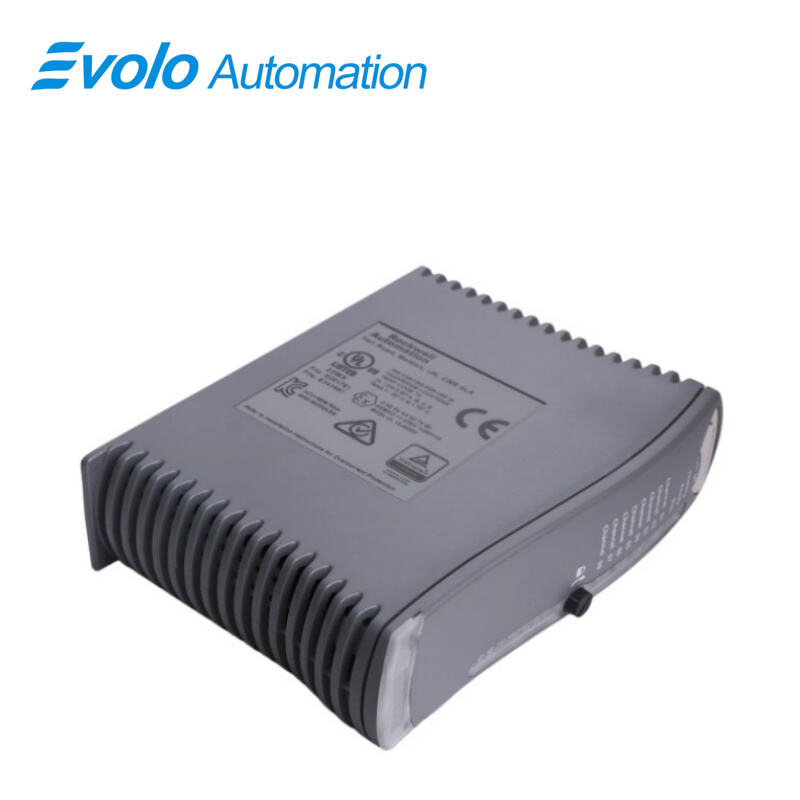

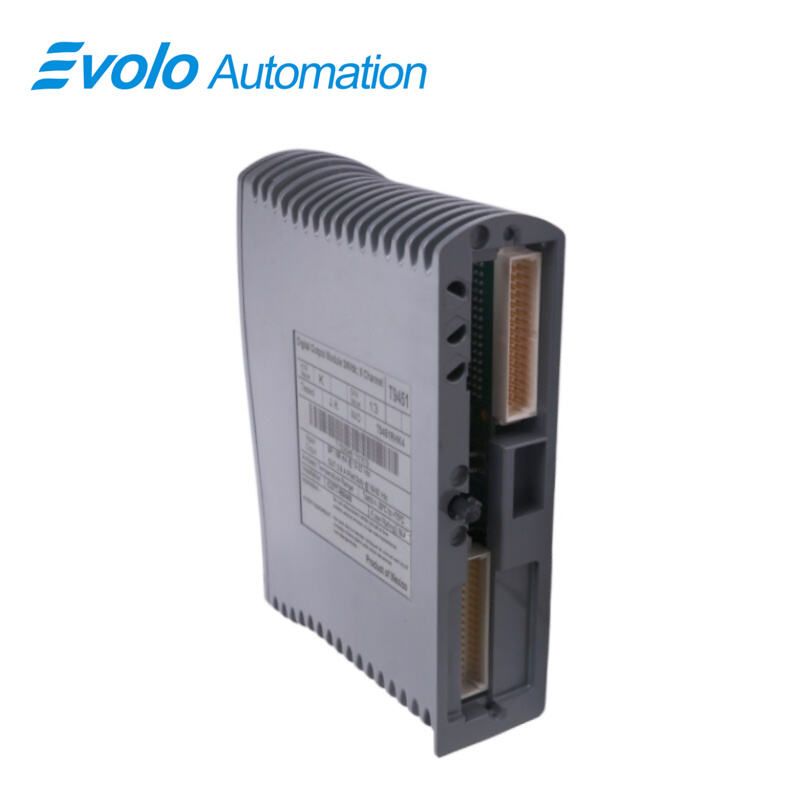

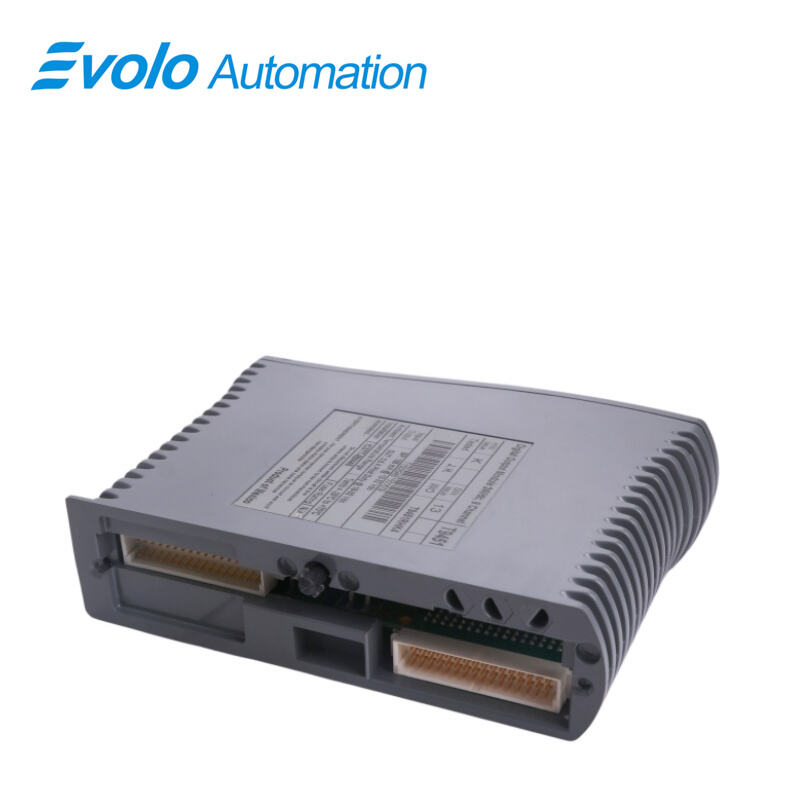

Description
The ICS TRIPLEX T9451 is a digital output module used in industrial automation and control systems to receive and process digital output signals. It is commonly used in various applications to monitor device status, switch status, and sensor data.
Applications
Oil & Gas Refineries: High-reliability ESD valve and safety interlock control.
Supercritical Thermal Power Plants: High-speed ETS and boiler protection alarm and relay output.
Offshore Drilling Platforms: Distributed valve actuator control in harsh salt-fog environments.
Automated Chemical Packaging Plants: High-frequency digital output for solenoid and cylinder control.
Rail Transit Signal Systems: Safe switching control for switch machines and signal power lines.
Panel Status LED Diagnostic Guide

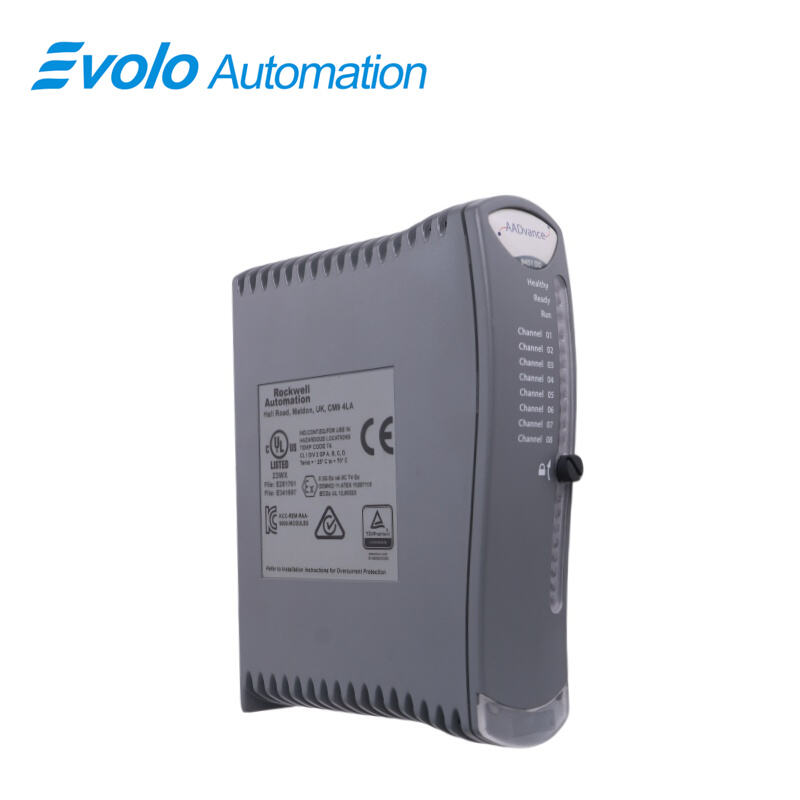

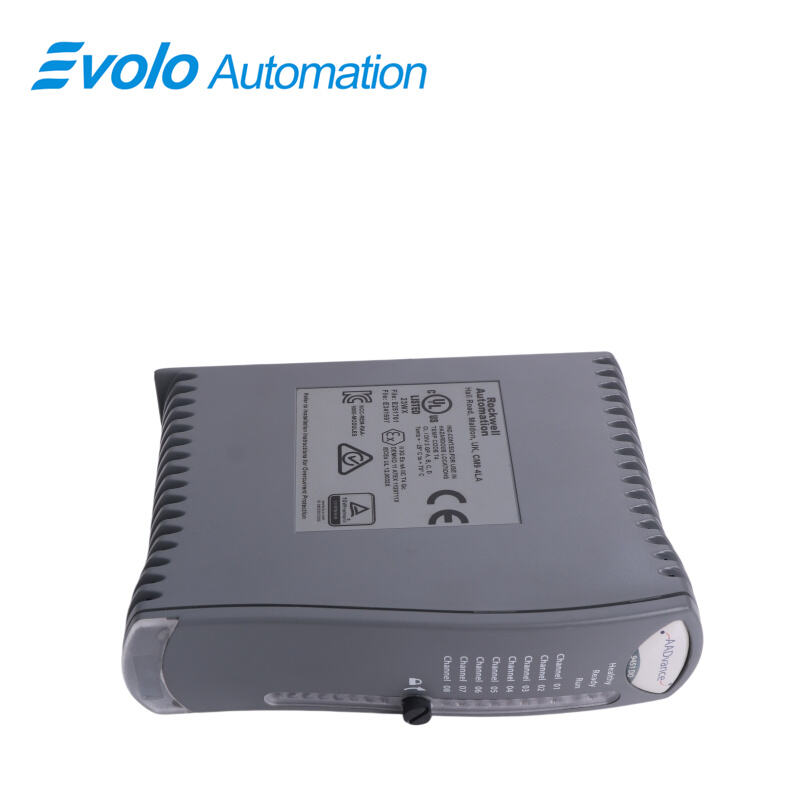

The T9451 front panel provides LEDs for quick field diagnostics:
HEALTHY (Health, Green/Red): Green indicates normal operation; red/off indicates internal failure (e.g., shorted output FET or abnormal voltage rail), with automatic shutdown and required replacement.
READY / RUN (Green): Firmware loaded and active communication with T9110 processor.
Channel Status LEDs (1–8, Green/Yellow/Blinking):
Solid Green: Channel outputting 24V signal.
Off: Channel in normal OFF state.
Flashing Yellow/Solid: Field fault detected (coil break, short circuit, or excessive loop impedance), requiring wiring inspection.
FAQ
Q: What backplane voltage range can T9451 tolerate under unstable DC supply conditions?
A: 18–32 VDC wide range, resistant to industrial power fluctuations.
Q: How does T9451 perform under 0.5 A full-load output conditions?
A: Stable 18–32 VDC output at 0.5 A per channel.
Q: What are the power consumption and backplane current of T9451?
A: 165 mA max backplane current and 3 W total power consumption.
Q: What thermal performance does T9451 provide in high-temperature enclosures?
A: 10.2 BTU/h low heat dissipation, stable up to 70°C environments.
Q: What scan times does T9451 support for safety control applications?
A: 1.174 ms and 2.202 ms dual-mode scan timing.
