Overview

Place of Origin:	USA
Brand Name:	ICS TRIPLEX
Model Number:	T9110
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Model	T9110
Product Type	Processor Module
Dimensions	4.1 x 12.5 x 16.5 cm
Weight	0.44 kg
Compatibility	ICS TRIPLEX control systems; compatible with various industrial control systems
Communication Interfaces	Ethernet; RS485
Power Supply	24 VDC (18–32 VDC allowable range)
Power Consumption	6 W
Operating Temperature Range	-20 °C to 60 °C
Storage Temperature Range	-30 °C to 80 °C
Memory (RAM)	256 MB DRAM
Non-Volatile Storage	64 MB Bulk Flash

Description

The ICS TRIPLEX T9110 Processor Module forms the heart of the system,controlling all operations. It utilizes three high-performance processors for increased reliability and redundancy.

Applications

Oil & Gas Extraction & Refining Plants: Real-time ESD control and gas monitoring logic processing.

Thermal & Nuclear Power Plants: Safety interlocking and turbine/boiler protection logic execution.

Large Petrochemical Plants: High-reliability distributed processing and isolation for continuous production lines.

Offshore & Onshore Drilling Platforms: Safe control and explosion-proof integration in harsh environments.

Rail Transit Signal Control Systems: Logic processing for train control and dispatch safety signals.

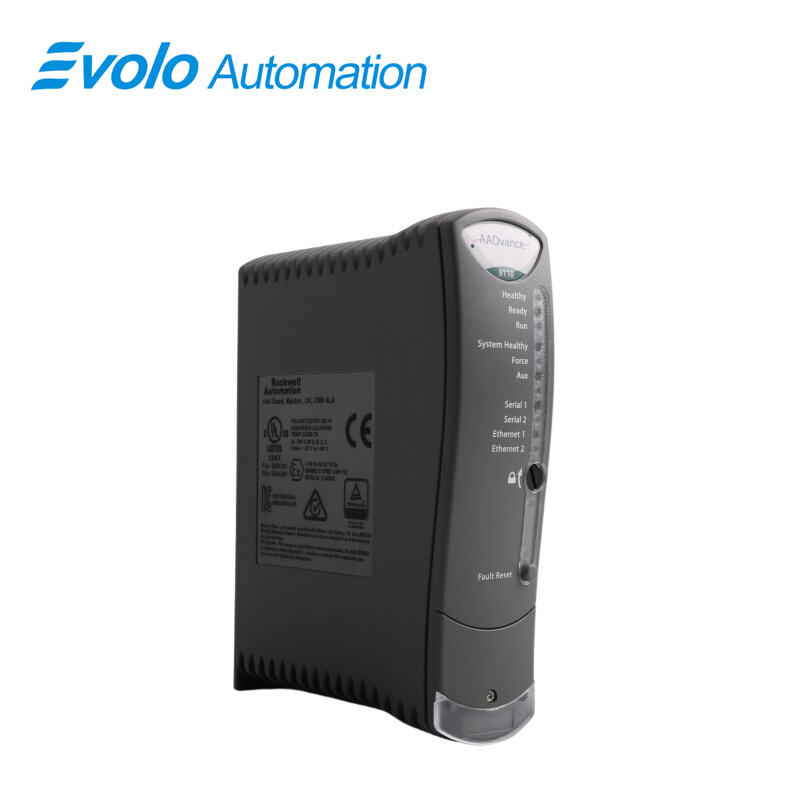

Panel Status LED Diagnostic Guide

HEALTHY (Health, Green/Red): Green indicates normal self-test; red or flashing indicates internal fault and shutdown protection.

READY (Ready, Green): Firmware loaded and system ready or running user logic.

RUN (Running, Green): Solid light indicates active control execution state.

FORCE (Force, Yellow): Indicates forced I/O conditions applied via maintenance software.

Installation

1. Examine the coding pegs on the T9100 processor base unit and make sure they complement the sockets on the rear of the processor module

2. Place the processor module on to the coding pegs. Make sure the slot on the head of the module locking screw is vertical and then push the module home until the connectors are fully mated.

3. Using a broad (9mm) flat blade screwdriver turn the module locking screw clockwise to lock.

FAQ

Q: Can T9110 fully integrate with existing ICS TRIPLEX control systems?
A: Yes. It is natively compatible and designed for ICS TRIPLEX integration.

Q: Can T9110 operate stably on 24V DC in unstable power environments?
A: Yes. Supports 18–32 VDC wide input range for stable operation.

Q: Is T9110’s 256 MB DRAM sufficient for complex control logic?
A: Yes. 256 MB DRAM supports high-density multi-task processing.

Q: How does T9110 retain data during power loss?
A: Uses 64 MB non-volatile Flash storage without battery backup.

Q: What temperature range can T9110 withstand?
A: Operating range -20°C to 60°C; storage -30°C to 80°C.
