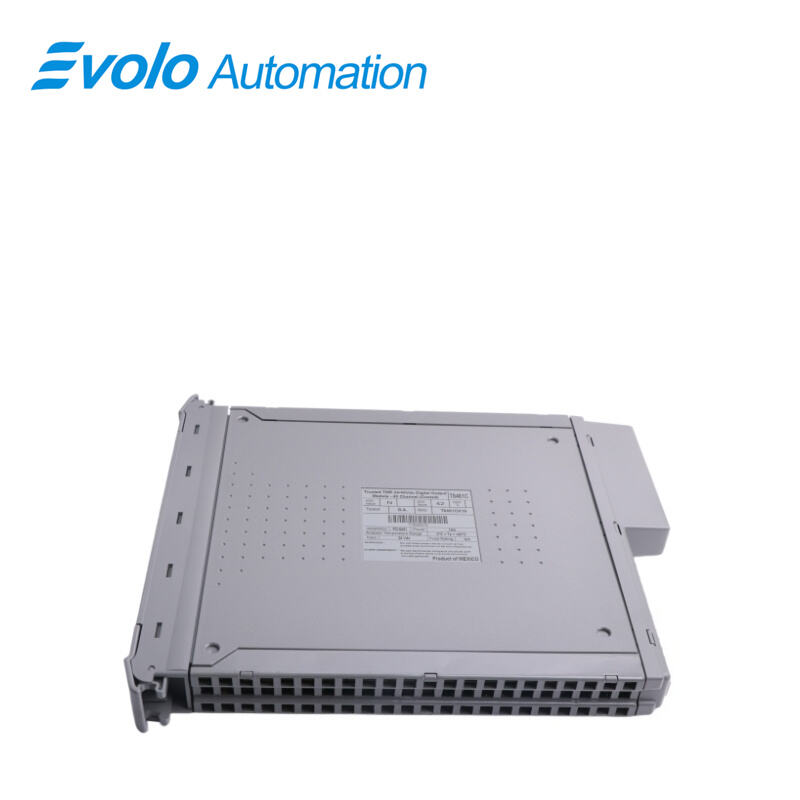

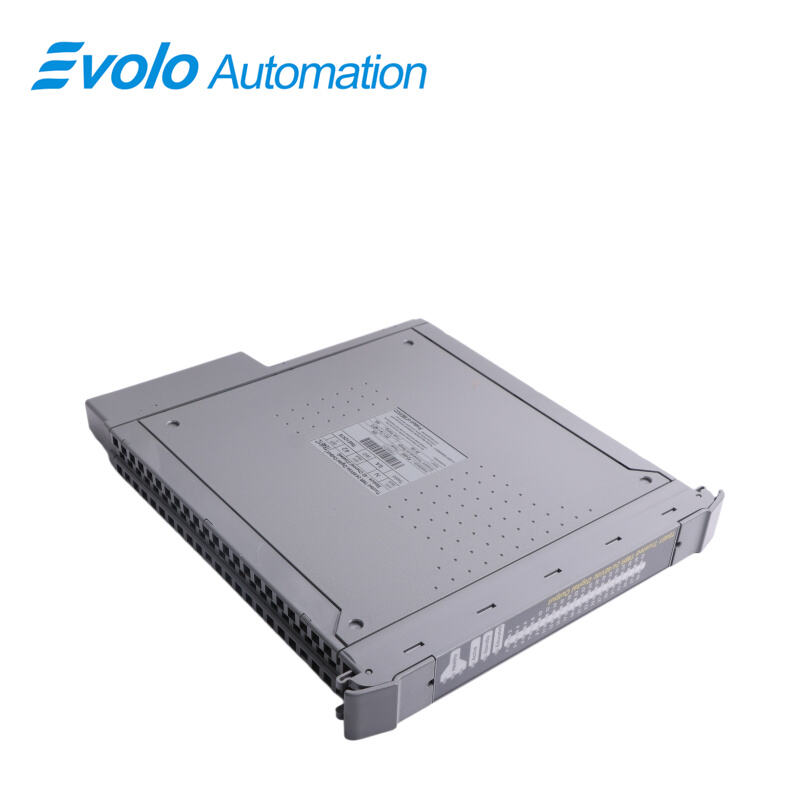

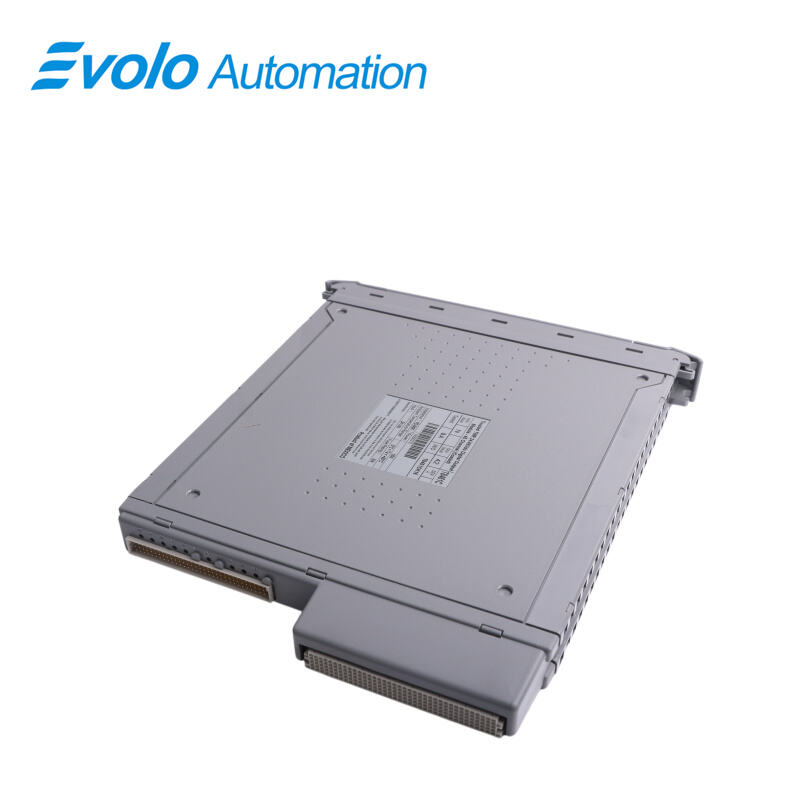

Overview
Place of Origin: |
USA |
Brand Name: |
ICS TRIPLEX |
Model Number: |
T8461C |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
T8461C |
|
Part Name |
Trusted TMR 24V DC / 48V DC Output Module |
|
Backplane (IMB) Supply Voltage |
20 to 32 Vdc |
|
Backplane Power |
26 W |
|
Field Supply Voltage |
18 to 58 Vdc |
|
Maximum Field Current |
30 A |
|
Field Supply Power Dissipation (Max Power Group Current) |
36 W |
|
System Supply Power Dissipation |
26 W |
|
Module Location |
T8100 / T8300 I/O module slot |
|
Power Groups |
5 groups (8 channels per group) |
|
Number of Outputs |
40 channels |
|
Isolation (Power Group to Power Group) |
50 V reinforced (continuous); type tested at 1411 Vdc for 60 s |
|
Isolation (Field Common) |
50 V reinforced (continuous); 250 V basic (fault); type tested at 2436 Vdc for 60 s |
|
Channel-to-Channel Isolation |
None |
|
Fusing |
Not user serviceable |
|
Output On-State Resistance |
1.6 Ω |
|
Maximum Continuous Current per Channel |
0.75 A |
|
Minimum On-State Load Current |
25 mA |
|
Current Measurement Range |
0 to 1.35 A (±5% / ±5 mA) |
|
Voltage Measurement Range |
0 to +58 Vdc (±2 Vdc) |
|
Maximum Withstanding Voltage |
-1 to +60 Vdc |
|
Channel-to-Channel Crosstalk |
< 1% |
|
Maximum Load Capacitance |
500 µF |
|
Output Short Circuit Protection |
Electronic latching |
|
Event Resolution |
1 ms |
|
Time Stamp Accuracy |
±10 ms |
|
Operating Temperature |
0°C to +60°C (+32°F to +140°F) |
|
Storage Temperature |
-25°C to +70°C (-13°F to +158°F) |
|
Relative Humidity |
10–95% RH (non-condensing) |
Description
The ICS Triplex T8461C is a Trusted TMR 24V DC/48V DC Output Module, designed for high-integrity safety and control systems where fault tolerance and reliability are critical. It is part of the Trusted product line, widely used in industries.
Applications
Nuclear Power: Controls reactor isolation valves with dual-voltage safety circuits.
Deepwater Oil & Gas: Drives high-load ESD hydraulic valves over long distances.
Fine Chemicals: Monitors reactors using precise current and voltage measurement.
Metal Smelters: Records faults with high-precision event sequencing.
Gas Compression: Protects compressors with isolation and short-circuit protection.
Features
40 TMR output channels per Module.
Comprehensive, automatic diagnostics and self-test.
Automatic line monitoring per channel to detect open circuit and short circuit field wiring and load faults.
2500V impulse withstand opto/galvanic isolation barrier.
Automatic overcurrent protection (per channel), no external fuses required.
Onboard Sequence of Events (SOE) reporting with 1 ms resolution.
Module can be hot-replaced online using dedicated Companion (adjacent) Slot or SmartSlot (one spare slot for many Modules) configurations.

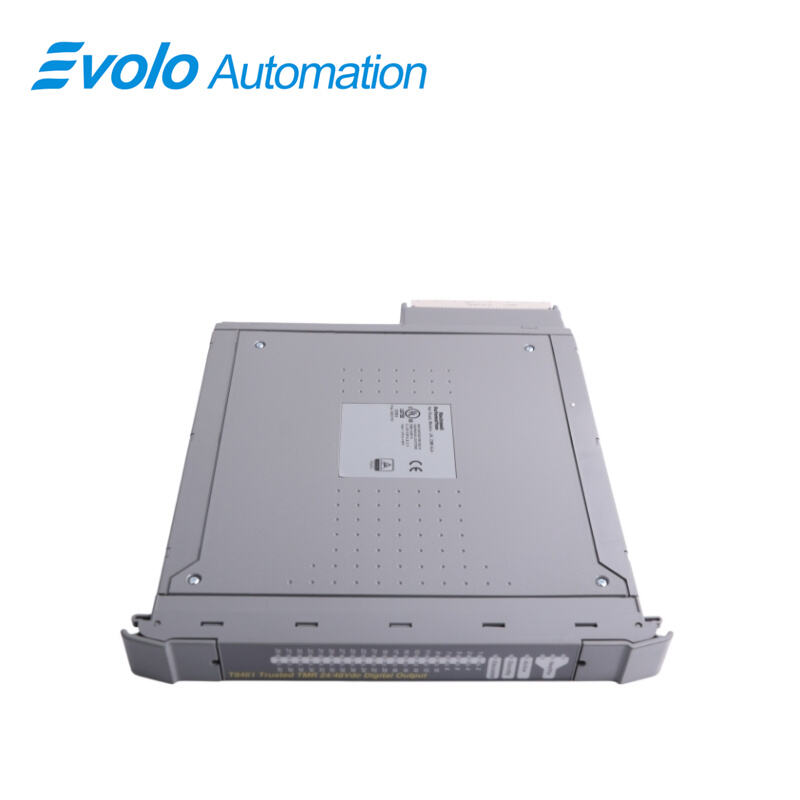

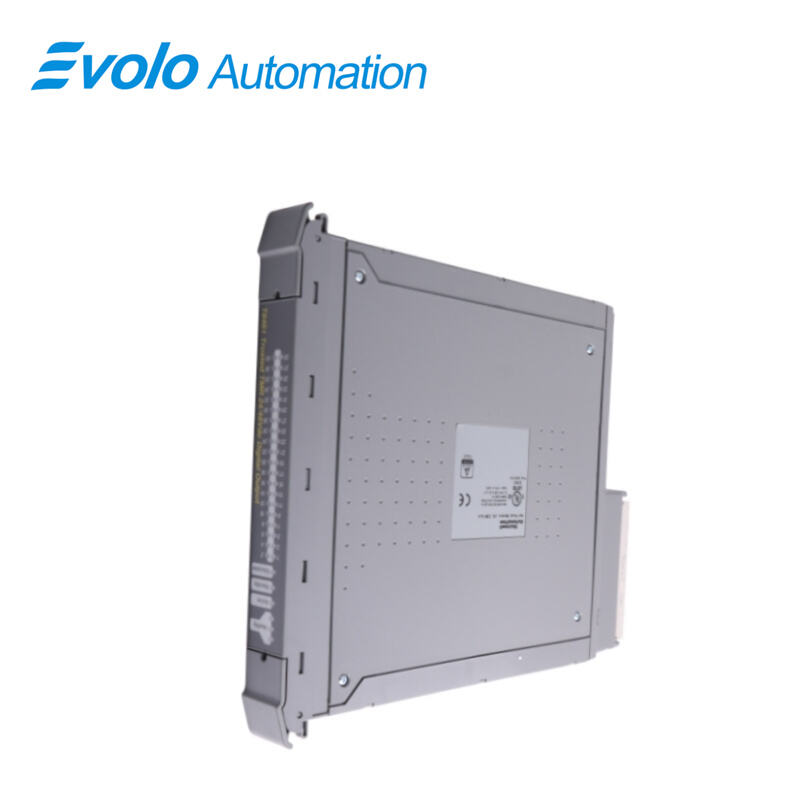

Front Panel output status light-emitting diodes (LEDs) for each channel indicate output status and field wiring faults.
Fault Detection/Testing
Extensive diagnostics automatically detect module faults and verify critical circuits.
TMR architecture provides fault tolerance, allowing operation to continue after a single fault without process interruption.
Faults are indicated via front panel status LEDs and reported to the TMR processor.
Under normal operation, all three LEDs are green. When a fault occurs, one LED flashes red, and the module should be investigated and replaced if necessary.
FAQ
Q: What are the field supply voltage range and maximum total current of the T8461C output module?
A: Field supply is 18–58V DC (24V/48V compatible), max total current 30 A.
Q: Where should the T8461C digital output module be installed in system topology?
A: It must be installed in T8100 or T8300 I/O slots.
Q: How are channels and load ratings defined in the T8461C module?
A: 40 channels in 5 groups (8 each), 0.75 A max per channel, 25 mA minimum load.
Q: What short-circuit protection does the T8461C module provide?
A: Electronic latching protection locks outputs during faults, no replaceable fuses.
Q: What are the measurement ranges of the T8461C module?
A: Current 0–1.35 A (±5% or ±5 mA), voltage 0–58V DC (±2V DC).
