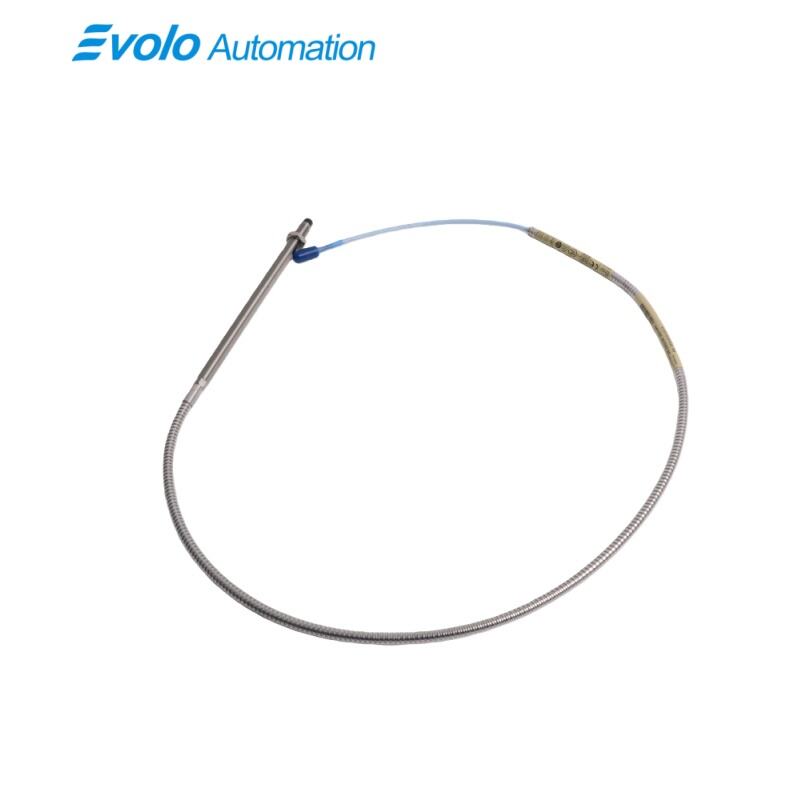

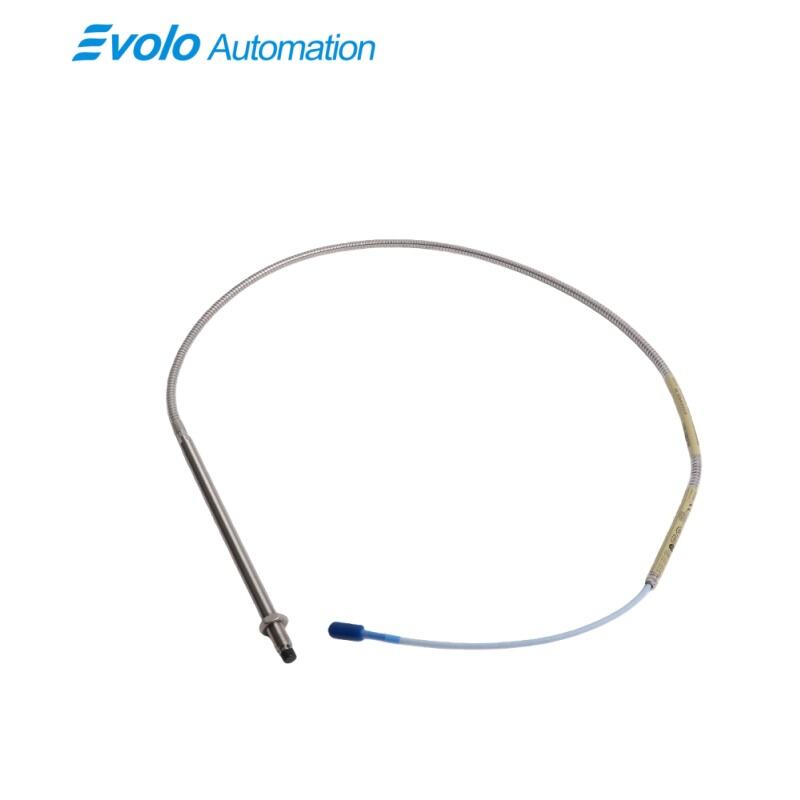

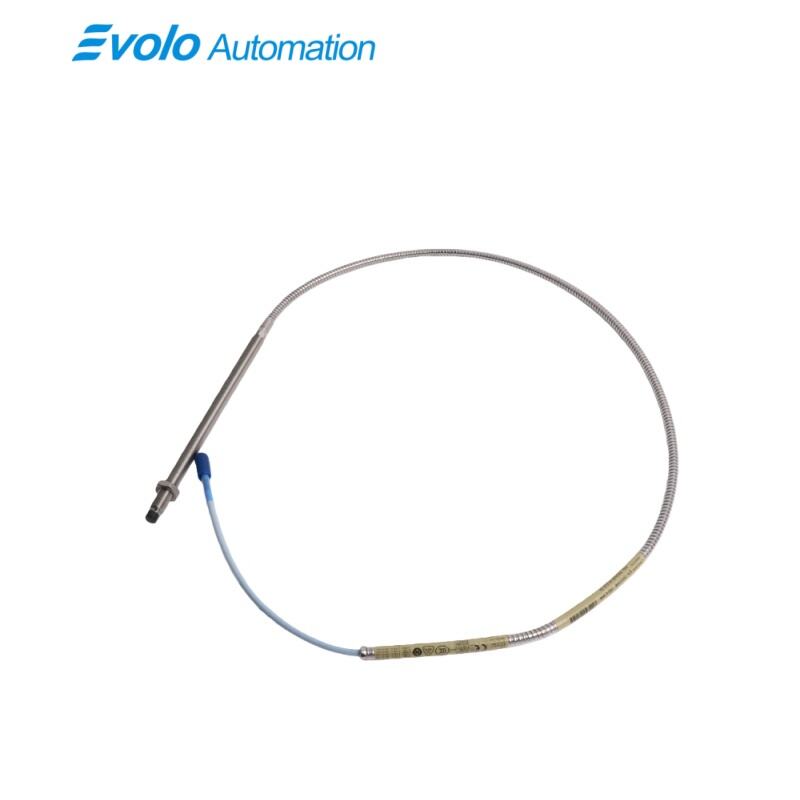

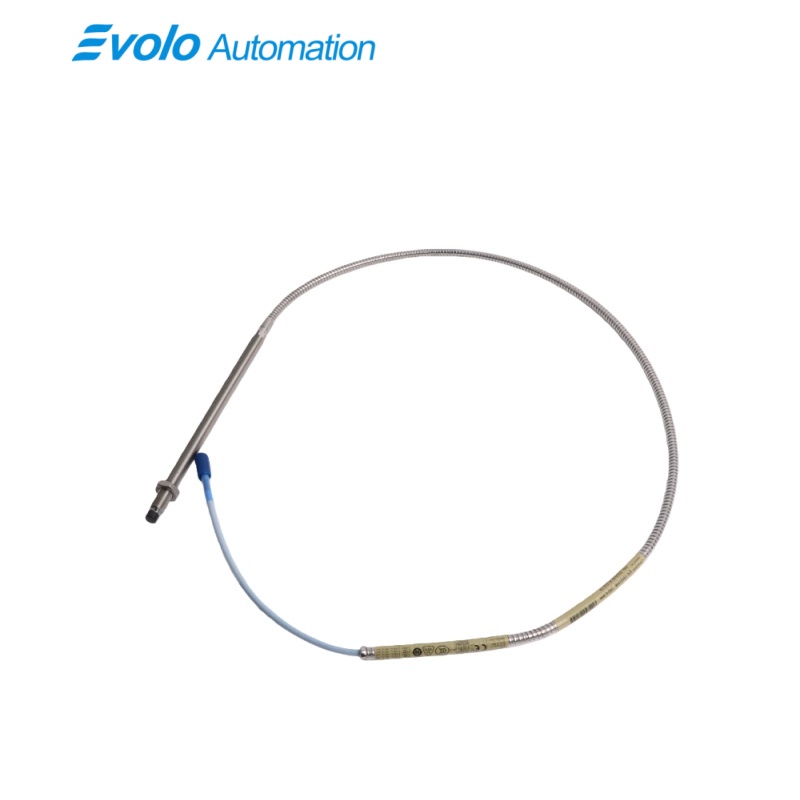

330104-00-10-20-12-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-10-20-12-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-10-20-12-05 3300 XL 8 mm Proximity Probe is a premier, factory-integrated eddy current transducer from Bently Nevada, representing the pinnacle of precision displacement and vibration sensing for industrial machinery protection. Manufactured in the USA, this ready-to-install proximity probe is a cornerstone of the acclaimed 3300 XL monitoring system, engineered to convert minute physical gaps between its probe tip and a conductive target surface into a highly linear and stable DC voltage signal. This critical functionality enables continuous, high-fidelity monitoring of both dynamic shaft vibration and static axial position, providing indispensable data for the predictive maintenance and protection of high-value assets like turbines, compressors, and large pumps. The 3300 XL 8 mm Proximity Probe is specifically configured for demanding installations where long cable runs and hazardous area compliance are mandatory requirements.

A key feature of this specific model is its integrated 2.0-meter (6.6 feet) FluidLoc cable, which is factory-terminated with a secure Miniature coaxial ClickLoc connector. The FluidLoc cable construction offers superior resistance to a wide spectrum of industrial fluids, including oils, coolants, and mild chemicals, ensuring long-term jacket integrity and signal reliability in wet or washdown environments. Furthermore, this probe is certified with major international hazardous area approvals including CSA, ATEX, and IECEx, authorizing its direct use in classified explosive atmospheres without the need for external protective conduits, thereby simplifying installation in oil & gas refineries and chemical processing plants.

Applications

This probe is fundamental for continuous vibration and position monitoring on critical rotating equipment in hazardous locations, such as gas compressors on offshore platforms or pumps within refinery process units. Its integrated 2.0-meter FluidLoc cable and CSA/ATEX/IECEx certifications allow for direct, compliant installation in Zone 1/2 areas, providing essential data for machinery protection systems (API 670 compliant) while ensuring personnel and facility safety.

The configuration is ideal for applications requiring a moderate cable run from the probe to a junction box or bulkhead pass-through, particularly in environments exposed to fluid contamination. Its 2-meter integrated FluidLoc cable reduces the need for an immediate splice in tight or dirty locations, offering a more reliable, sealed connection path for signal transmission in industries like pulp & paper, marine, or food & beverage where washdowns are common.

For retrofit projects and system upgrades in existing plants, this specific probe model offers a direct replacement solution that enhances both safety and performance. Its compatibility with the 3300 XL ecosystem allows for a straightforward swap with older probes, immediately upgrading the loop with hazardous area certification and fluid-resistant cabling without modifying the existing mounting hardware or system architecture.

Specifications

Competitive Advantage

1. Factory-Integrated, Certified Solution for Hazardous & Fluid-Exposed Environments

Unlike probes requiring separate cable assembly, this model comes as a complete, factory-sealed unit with a 2-meter FluidLoc cable and pre-installed ClickLoc connector, ensuring optimal signal integrity from day one. Crucially, it carries multiple international explosion-proof certifications (CSA, ATEX, IECEx), providing a pre-certified, plug-and-play solution for hazardous area monitoring that eliminates compliance uncertainty and reduces installation complexity and cost.

2. Extended Operational Resilience in Extreme Thermal and Chemical Conditions

Engineered to perform reliably in harsh settings, the probe boasts a wide operating temperature range from -45°C to +157°C. Combined with the fluid and chemical-resistant properties of the integrated FluidLoc cable, this construction ensures long-term durability and stable output signals in environments plagued by extreme temperature swings, oil mist, moisture, and corrosive agents, significantly reducing sensor failure rates and maintenance needs.

3. Unmatched System Integration Flexibility and Inventory Simplicity

As a genuine 3300 XL series component, it offers guaranteed plug-and-play compatibility with the entire ecosystem of monitors, cables, and accessories. This full interchangeability, with no need for matching or recalibration, drastically simplifies spare parts inventory, streamlines maintenance procedures, and allows for rapid field replacement. This flexibility secures long-term system scalability and protects investments in monitoring infrastructure.
