Overview
Place of Origin: |
USA |
Brand Name: |
ICS TRIPLEX |
Model Number: |
T8310C |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
T8310C |
|
Part Name |
Expander Processor |
|
Dimensions |
3 × 30.2 × 26.5 cm |
|
Weight |
1.28 kg |
|
Power Supply |
Dual redundant +24 Vdc from expander chassis backplane |
|
Power Dissipation |
45 W |
|
Data Transfer Rate |
250 Mbps |
|
Standby Support |
Automatic and manual repair strategies with standby module configuration |
|
Connection Method |
Connected via TC-301 hot link cable and T8312 expander interface adapter |
|
Communications Cable |
TC-301 communication cable between controller and expander assemblies |
|
LED Indicators (Health) |
Three LEDs: green = healthy; red = fault |
|
LED Indicators (Active/Standby) |
Green = active mode; steady green = standby mode |
|
LED Indicators (TxRx) |
Green = receive; red = transmit; amber = both; off = no activity/failure |
Description

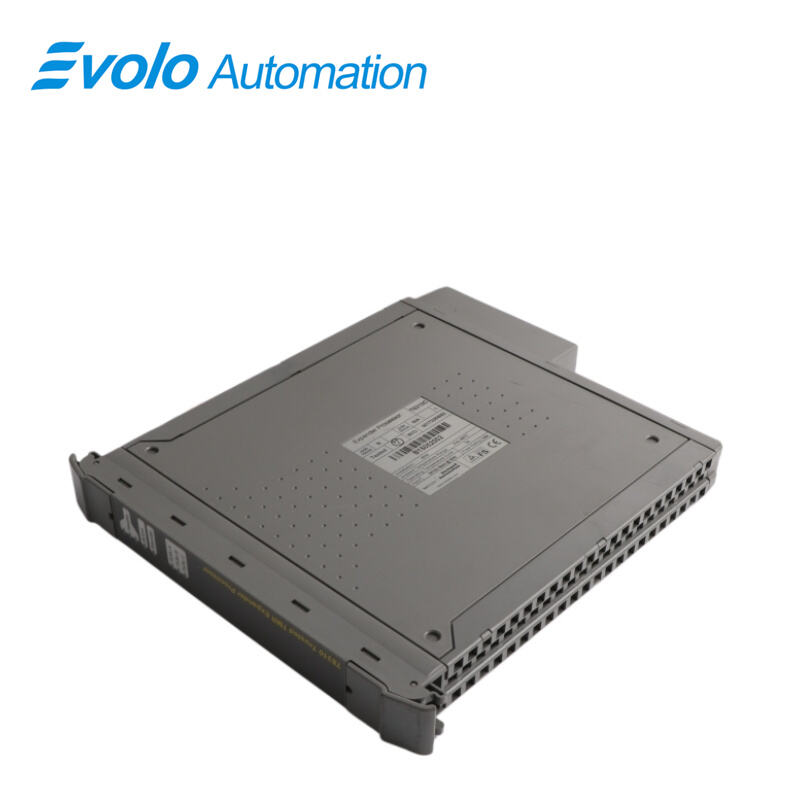

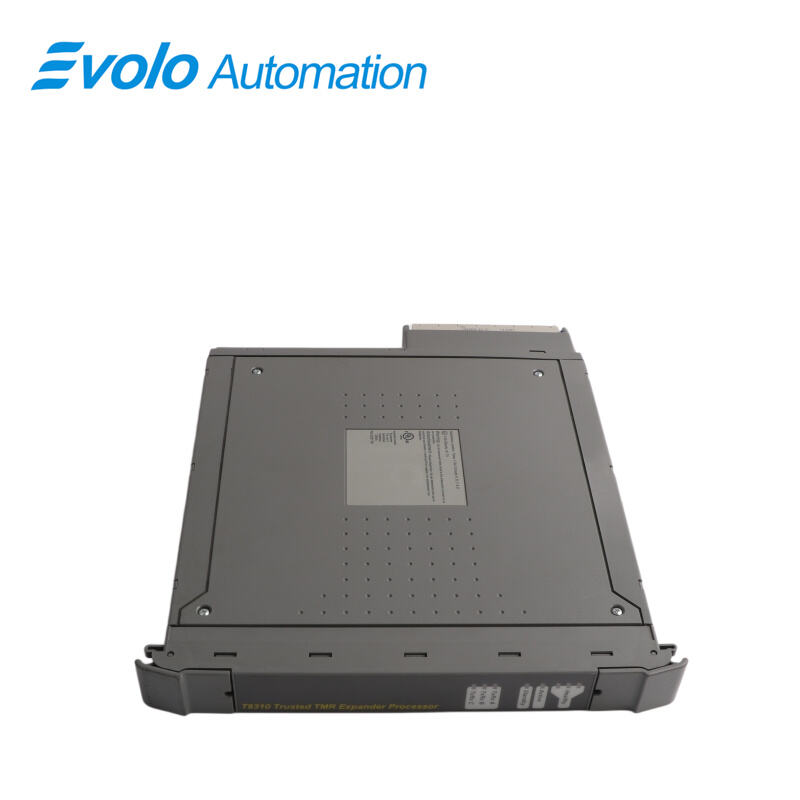

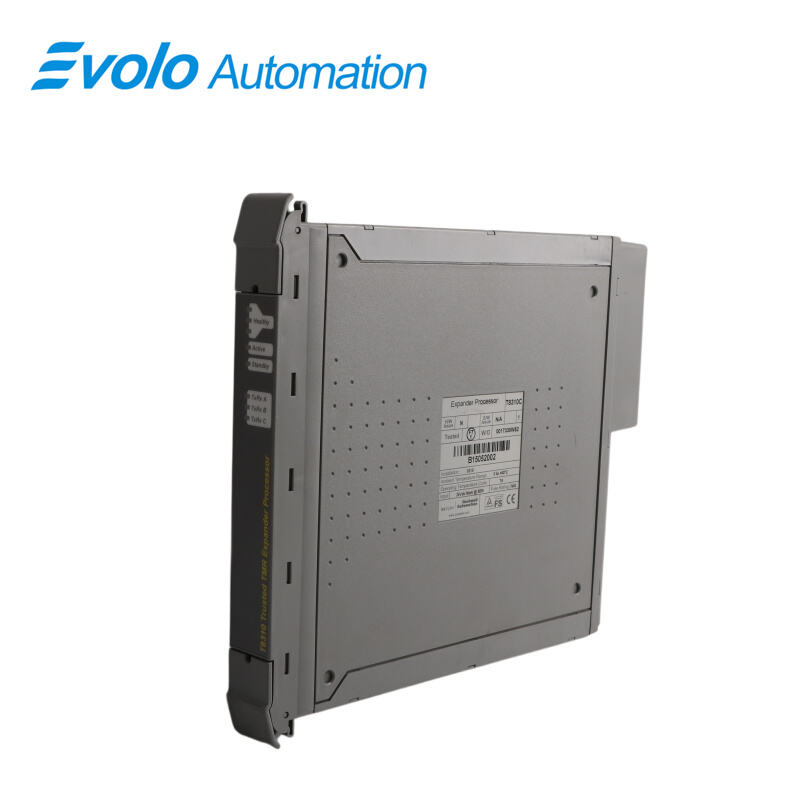

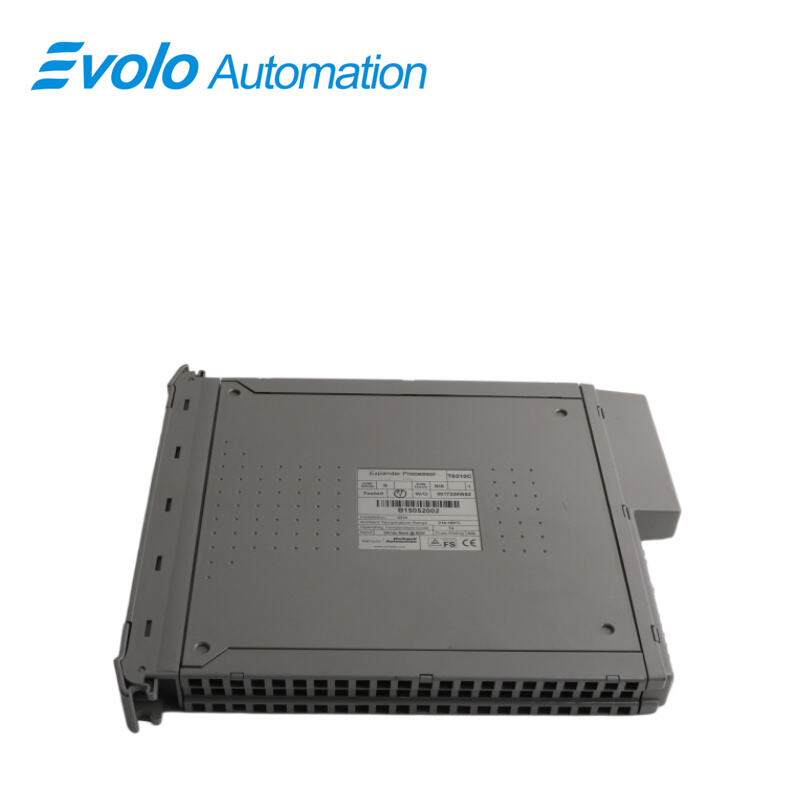

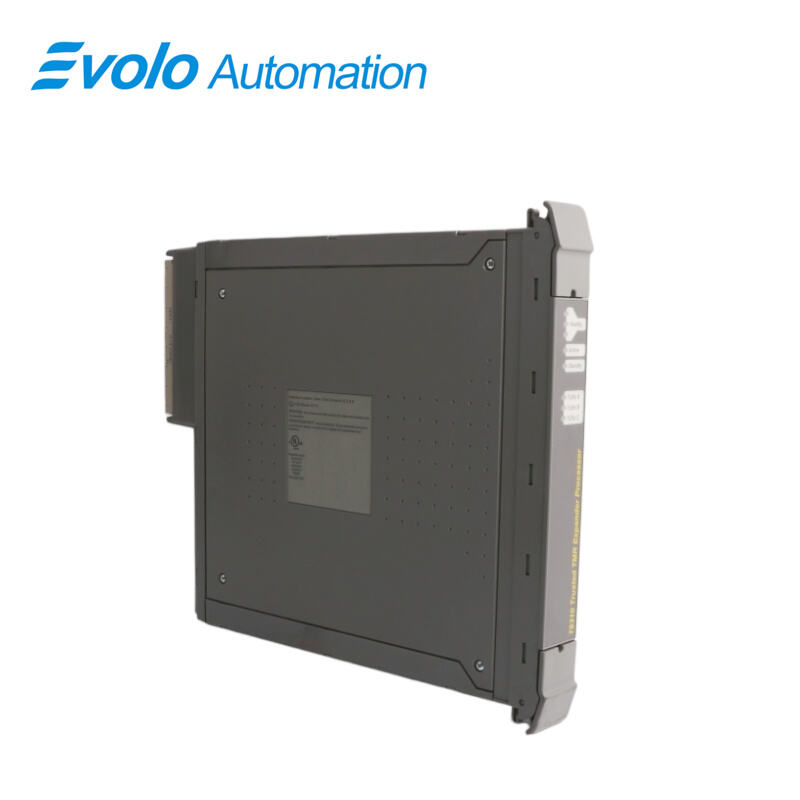

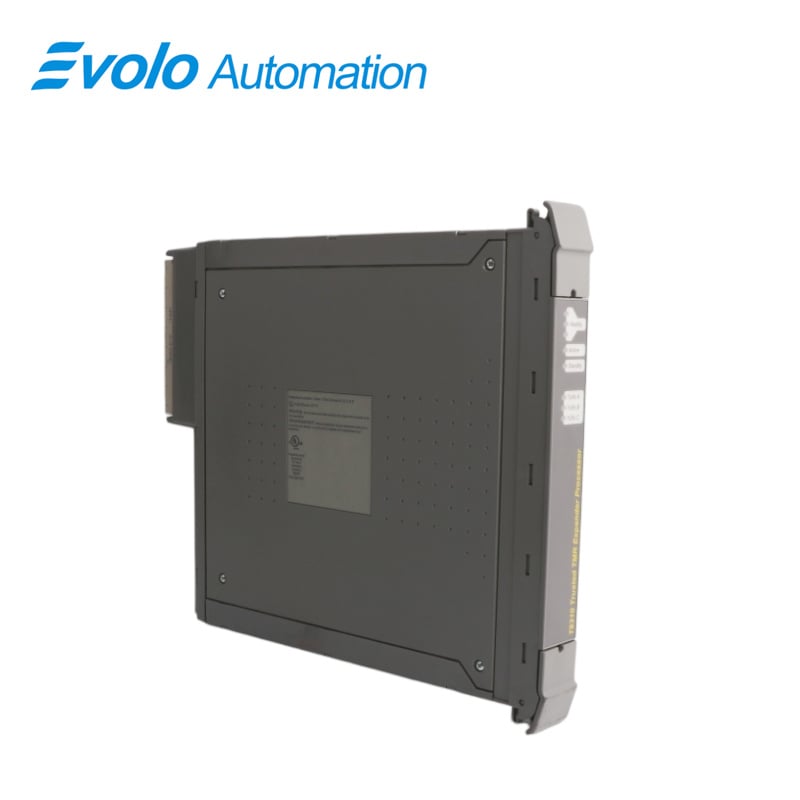

The ICS TRIPLEX T8310C Trusted TMR Expander processor is a highly reliable industrial-grade processor specifically designed for redundant systems. It expands I/O modules to implement a Triple Module Redundancy (TMR) architecture. This processor improves system reliability by connecting multiple I/O modules together, ensuring continued system operation in the event of a failure.
Applications
Petrochemical Refineries: Remote SIS cabinets with redundant 24V supply for high-speed interlock data transfer.
Thermal Power Plants: FSSS expansion racks with hot-swap recovery ensuring stable trip circuits under faults.
Coal Gasification Plants: Gasifier control islands using TC-301 and T8312 for long-distance harsh-environment communication.
Offshore Platforms: Compact cabinets with Tx/Rx indicators for fast local network diagnostics.
Steel Plants: Acquisition stations with reinforced backplanes resisting EMI and voltage surges.
Features
Triple Module Redundancy (TMR): Employs a TMR architecture to improve system reliability and prevent single points of failure.
High Performance: Utilizes a high-performance processor to ensure rapid system response.
Flexible Expansion: Supports multiple I/O modules, allowing for flexible expansion as needed.
Industrial-Grade Design: Suitable for harsh industrial environments.
Safe and Reliable: Features multiple safety functions to ensure safe and stable system operation.
FAQ
Q: If T8310C detects an internal fault, will the system freeze?
A: No. It supports Standby mode with automatic/manual switchover for uninterrupted operation.
Q: What is required for cross-rack communication of T8310C?
A: TC-301 hot-link cable and T8312 interface adapter.
Q: What does the 250Mbps rate of T8310C enable?
A: High-speed transfer of many I/O signals with near-zero latency.
Q: Will T8310C shut down if one 24V supply fails?
A: No. Dual-redundant 24V design keeps it running.
Q: How to identify Active vs Standby on T8310C?
A: LED status: flashing = Active, steady = Standby.
