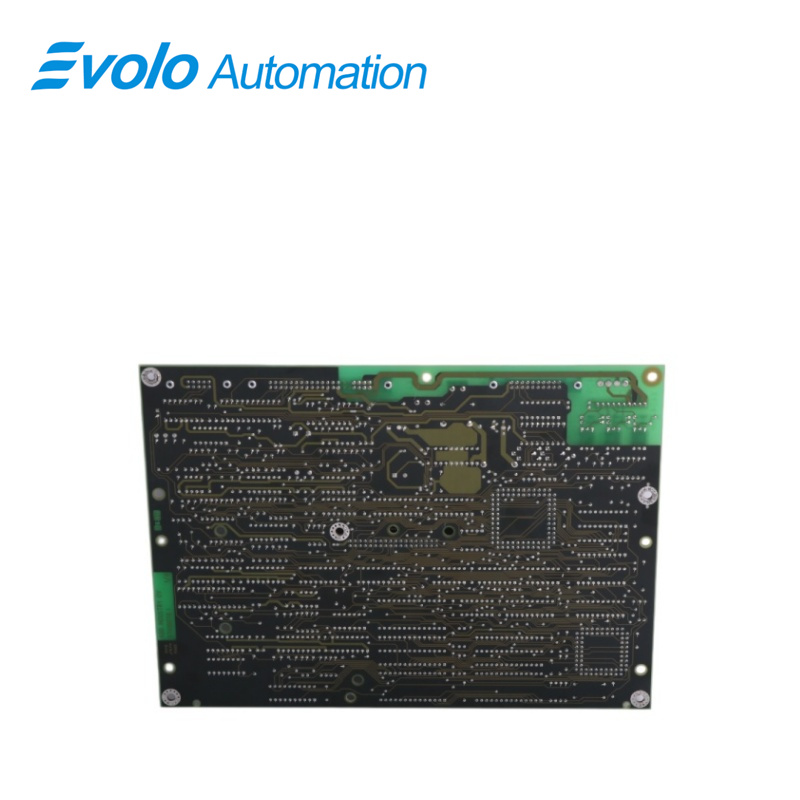

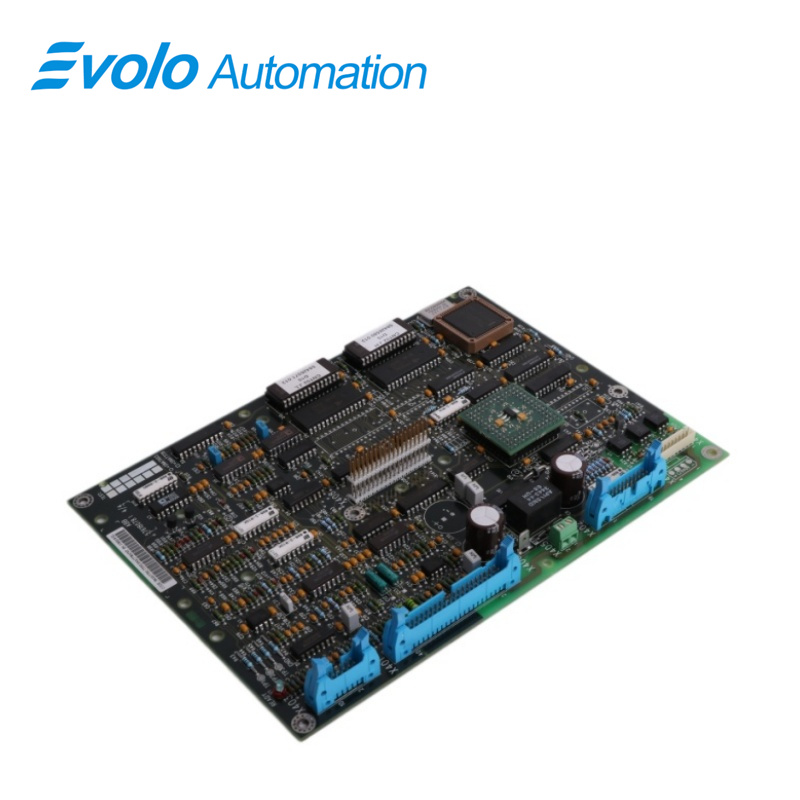

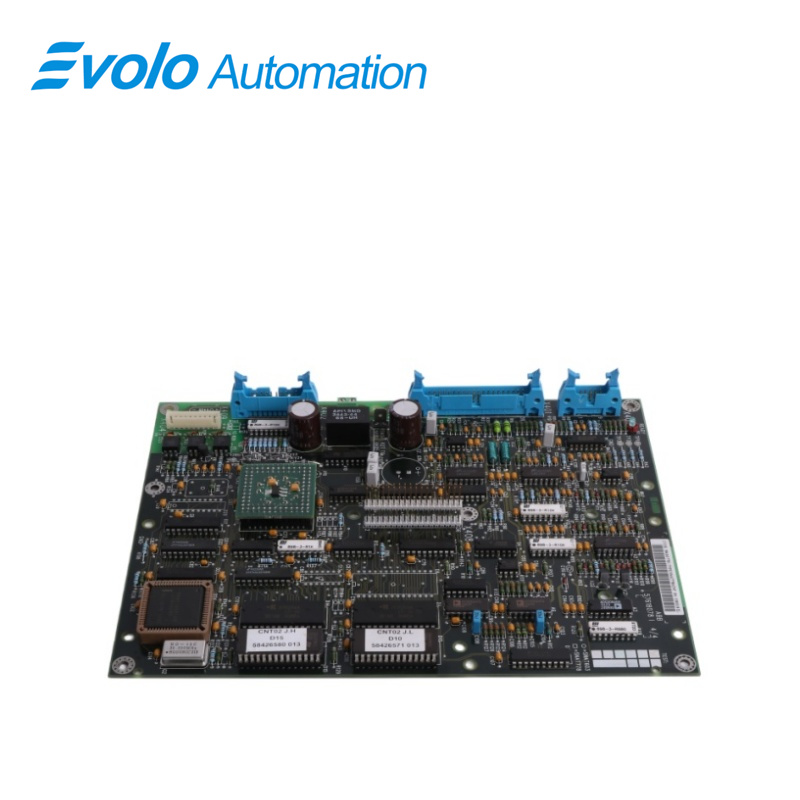

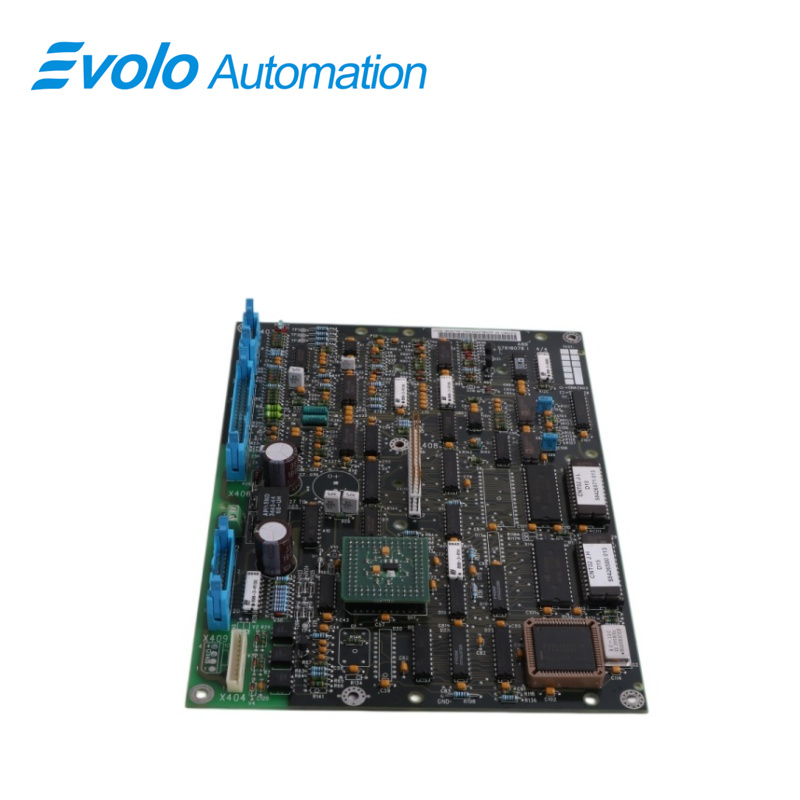

SNAT7780 Motor Control Card

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	SNAT7780
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

ABB SNAT7780 is a Motor Control Card designed by ABB specifically for industrial automation and motor drive systems. As an integral component of the ABB drive series, it integrates multiple functions such as motor protection, logic control, signal acquisition and communication linkage, adapting to the control needs of various industrial motors and drive equipment.

Applications

Precision CNC machine tool factory: Utilizing an ultra-fast response time of ≤10ms, ensuring high-precision positioning and cutting of multi-axis linkage motors.

Automated robot factory: As the core drive control unit for robot joint motors, supporting high-speed Ethernet collaboration.

Industrial fan manufacturer: Relying on comprehensive phase loss and overheat protection, ensuring the safety of large ventilation systems during continuous operation.

Conveyor line system integration factory: Combining Ethernet communication to achieve synchronous logic control of multiple motors in large-scale logistics sorting lines.

New energy vehicle production line: Providing stable 24VDC motor control logic in high-intensity assembly lines, preventing voltage fluctuation interference.

Functions

Motor Protection: Integrates overload, short circuit, phase loss, voltage and temperature protection. Monitors motor status in real time and triggers alarms or shutdown to prevent damage and reduce maintenance.

Logic Control: Supports programmable control for start/stop, speed regulation, and forward/reverse operation. Parameters can be customized for different industrial applications.

Signal Acquisition: Collects current, voltage, and temperature in real time and sends data to the monitoring system for fault diagnosis and optimization.

Competitive Advantage

Industrial-grade durability: Uses high-quality components and flame-retardant housing with strong anti-interference, vibration resistance, and temperature tolerance. It operates stably in harsh environments such as strong EMI, extreme temperatures, and dust, ensuring long service life and low failure rate.

Efficient operation: Features simple configuration logic, supports parameter batch import/export, online editing, and backup, enabling fast setup and reducing engineering workload and deployment time.

Safe and easy maintenance: Built-in fault diagnosis quickly identifies issues in modules or motors. The structure is designed for easy installation and maintenance, with fault logging and early warning to reduce operational risks.
