Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
SNAT603CNT SNAT 603 CNT REV: D |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
SNAT603CNT SNAT 603 CNT REV: D |
|
Product Type |
Control Board |
|
Input Voltage |
15–60 V DC / 120–125 V DC / 240 V AC |
|
Output Voltage |
220 V AC |
|
Output Frequency |
50 kHz |
|
Operating Temperature |
-20°C to +55°C |
|
Storage Temperature |
-40°C to +70°C |
|
Dimensions |
25 x 10 x 5 cm |
|
Weight |
0.5 kg |
Description

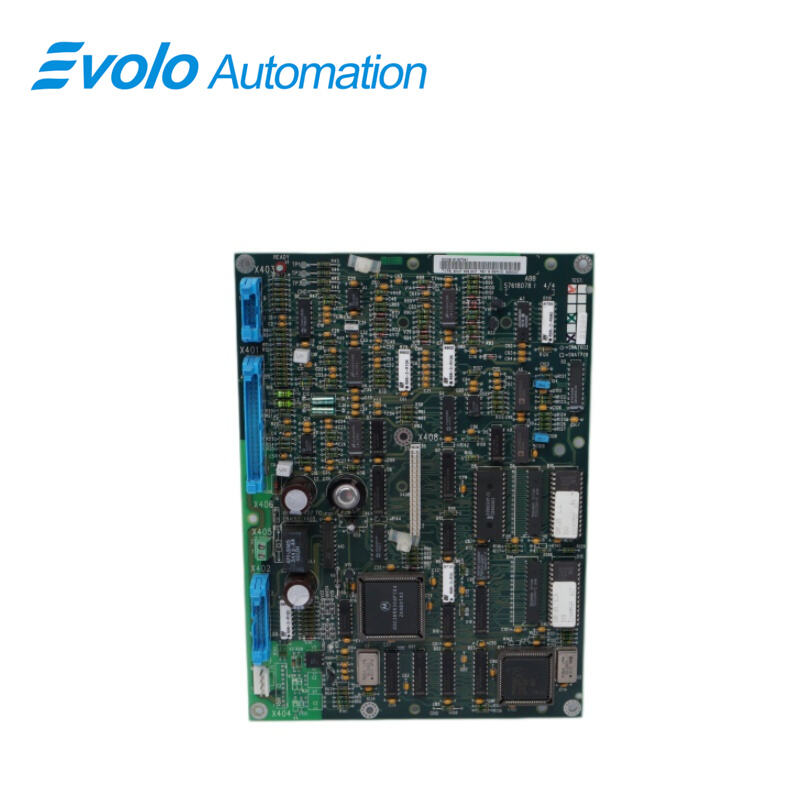

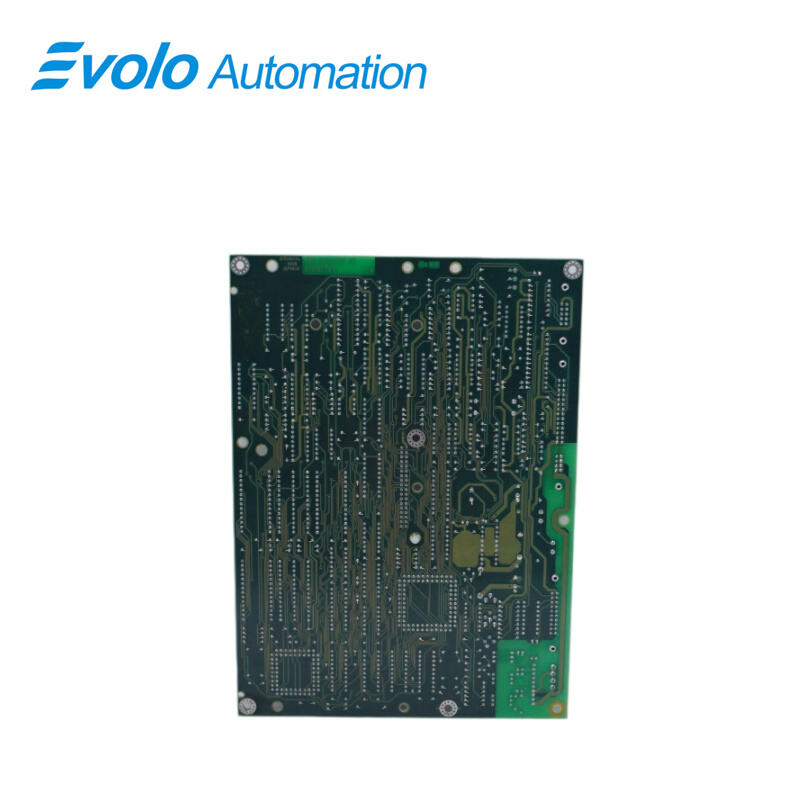

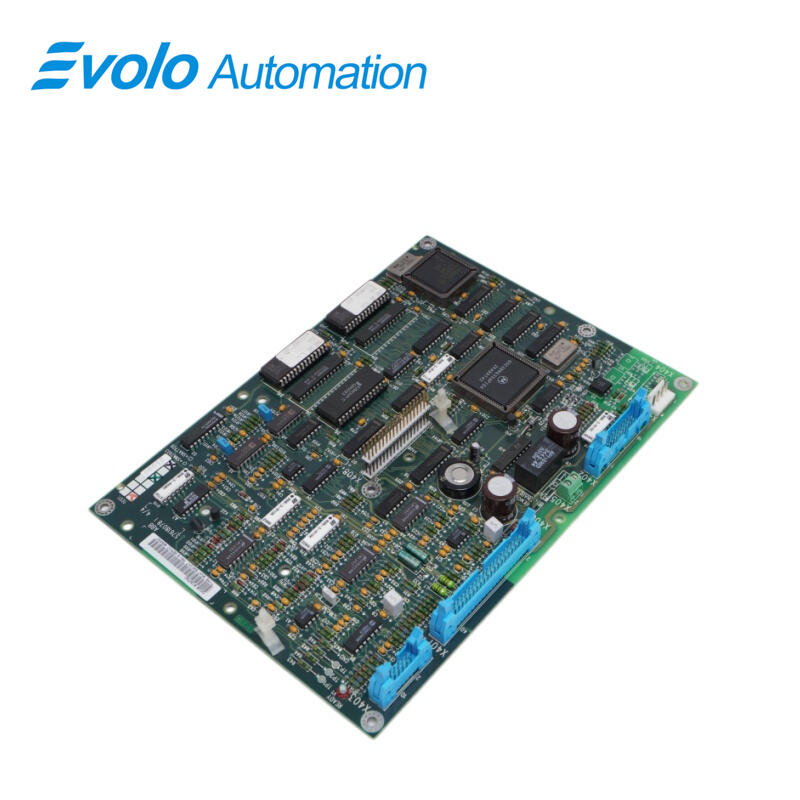

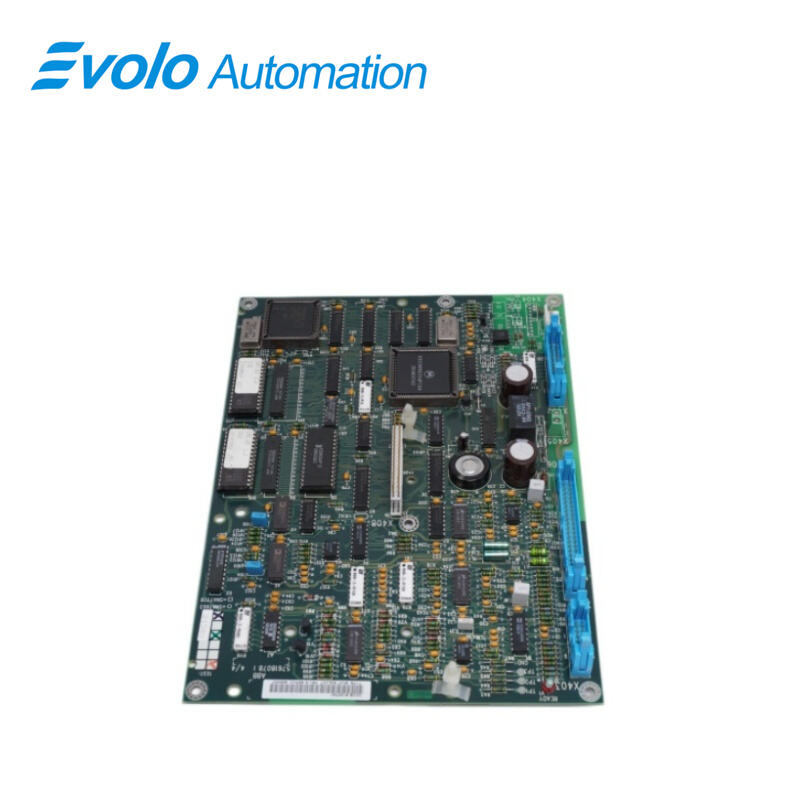

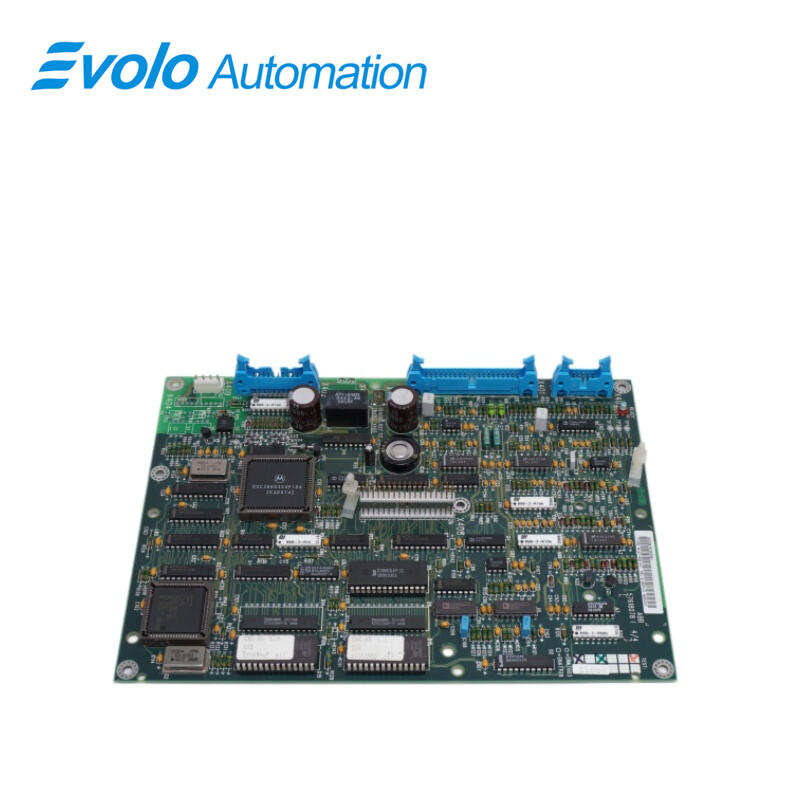

The SNAT603CNT SNAT 603 CNT REV: D is a control board from the AC800M series, designed for reliable performance in demanding industrial environments. Its compact and rugged construction makes it suitable for use in Class G3 (harsh) environments.
Applications
Specialty metallurgical plants: Used for logic signal processing in control systems of high-frequency induction heating or electric arc furnaces.
Power conversion plants: Serves as the high-frequency control core in DC/AC inverters and power conversion devices.
Rail transit equipment plants: Suitable for multi-voltage signal interfaces in locomotive traction control cabinets.
Semiconductor equipment plants: High-frequency pulse generation and timing control in precision manufacturing environments.
Paper machinery plants: Integrated into high-speed paper machine drive chains, responsible for microsecond-level real-time logic execution.
Features
High Performance: Engineered for demanding, high-performance industrial applications.
Robust Design: Built to endure harsh conditions in industrial environments.
Compact Design: Facilitates easy integration into various automation systems.
High-Speed operation: Delivers fast response times with a 50 kHz output frequency.
Industrial Certifications: Compliant with CE and RoHS safety and quality standards.
FAQ
Q1: Can SNAT603CNT SNAT 603 CNT REV: D accept multiple voltage inputs simultaneously?
A1: No. Select correct terminals/jumpers per site power system. Mixing inputs may damage the power module.
Q2: Cable requirements for 50 kHz output of SNAT603CNT SNAT 603 CNT REV: D?
A2: Use twisted-pair shielded cable and short wiring to reduce high-frequency capacitance loss.
Q3: Why is weight only 0.5 kg?
A3: SNAT603CNT SNAT 603 CNT REV: D uses switching power supply and SMT integration, keeping 0.5 kg while supporting 220V output.
Q4: Suitable for high-humidity tropical use?
A4: Yes, up to 55°C. Prevent condensation in cabinet or use moisture-proof coating version.
Q5: Power on after -40°C storage?
A5: No. Warm to above -20°C first and ensure no condensation before powering on.
