Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
SNAT6030BEB SNAT 6030 BEB |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
SNAT6030BEB SNAT 6030 BEB |
|
Product Type |
Control Board (Stromberg Drives) |
|
Operating Voltage |
690 V AC |
|
Motor Protection Rating |
63 A |
|
Output Power |
250 kW |
|
Communication Interface |
Profibus DP |
|
Operating Temperature |
-25°C to +60°C |
Description

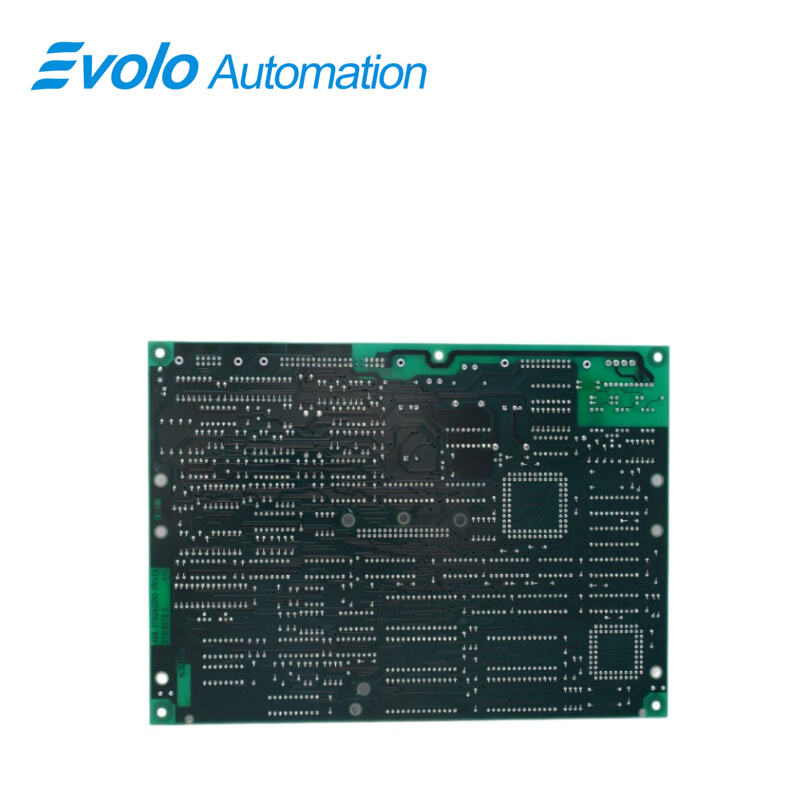

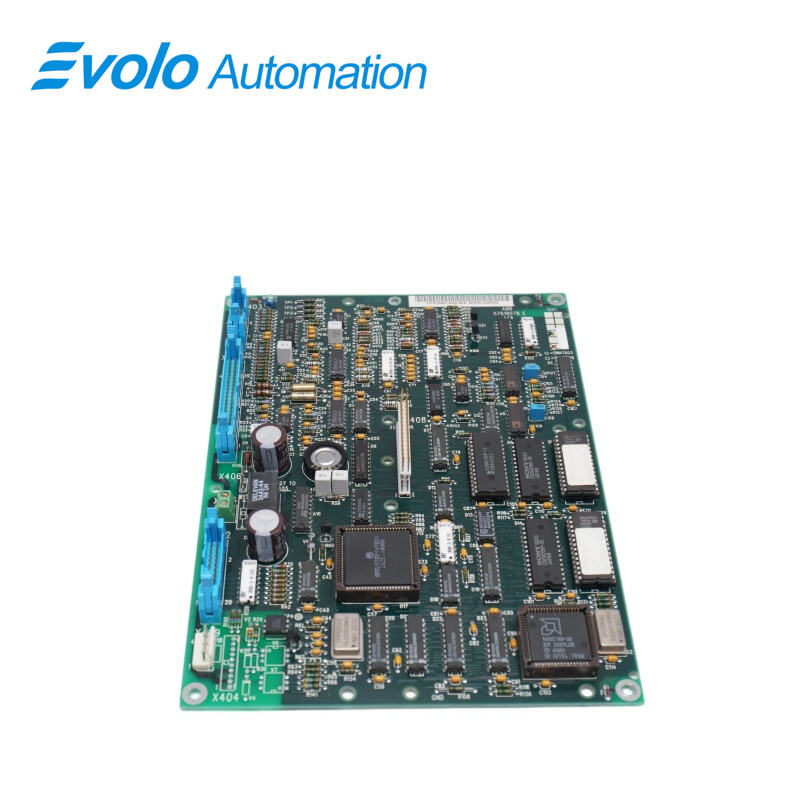

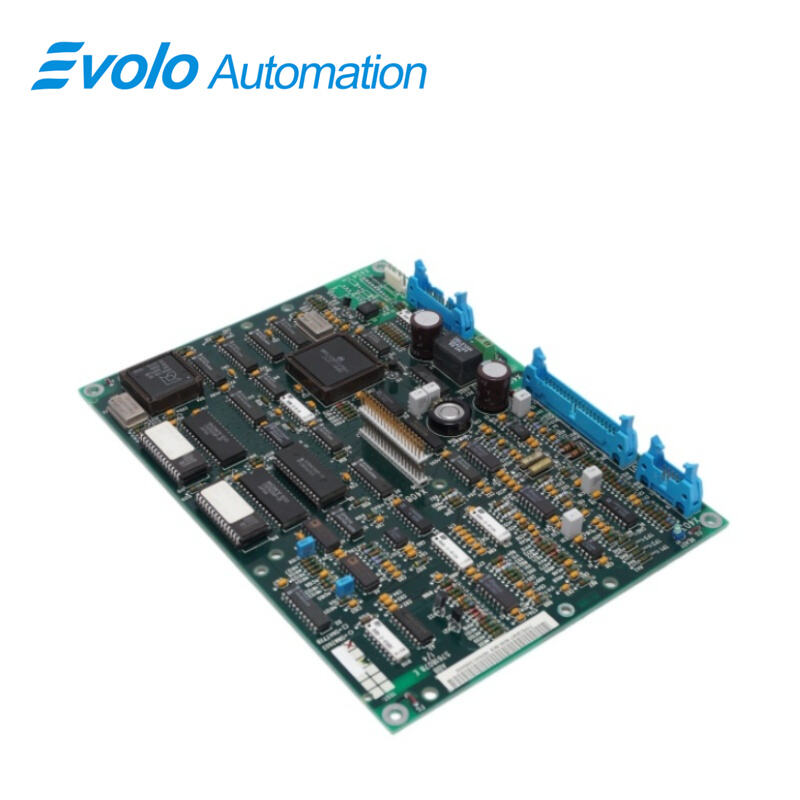

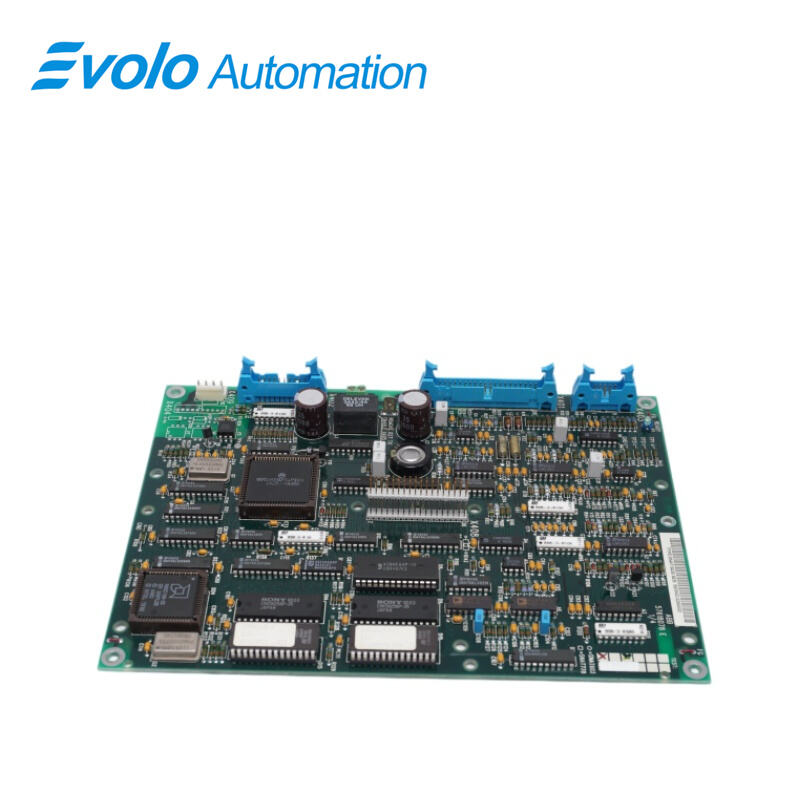

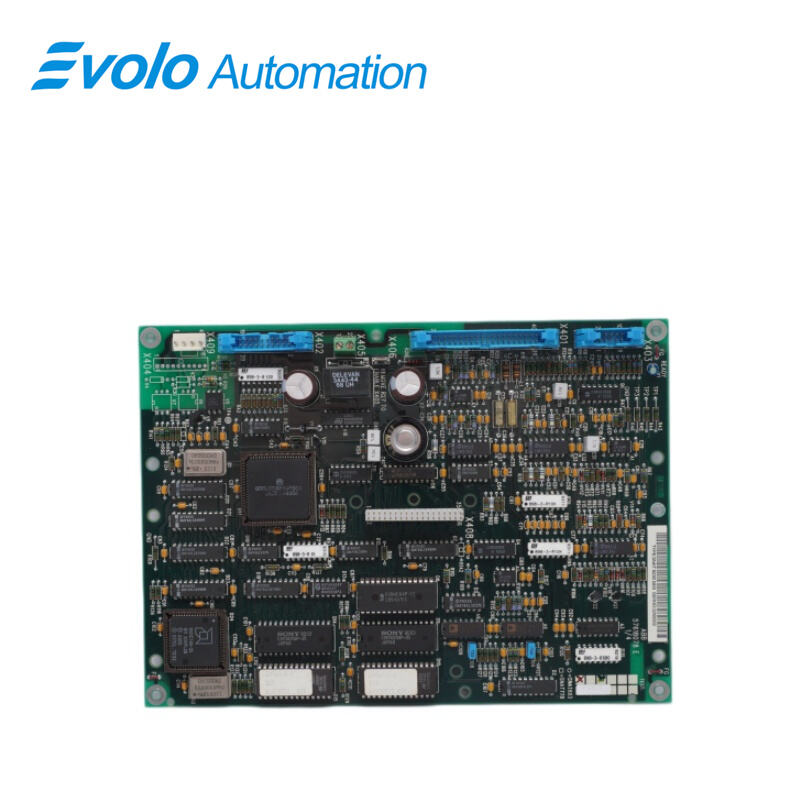

The SNAT6030BEB SNAT 6030 BEB is a high-precision Control Board specifically engineered for the legacy Stromberg Drives series. This sophisticated printed circuit board (PCB) serves as a central intelligence unit, managing critical drive parameters such as speed regulation, current loops, and system logic. It is designed to bridge the gap between user commands and power execution, ensuring smooth and stable motor control in heavy-duty industrial applications.
Applications
Mining plants: Large winches and conveyor systems for high-altitude or frigid regions (-25°C).
Heavy steel mills: Driving 250kW rolling mills under a 690V high-voltage power grid.
Deep-sea drilling plants: Utilizing their excellent anti-interference capabilities for power distribution control of offshore platforms.
Pulp and paper mills: Synchronizing multiple high-power drives via Profibus DP.
Cement plants: Integrated into rotary kiln drive systems, providing 63A-level motor overload protection.
Maintenance
Troubleshooting: If the system reports "communication interruption," please check the Profibus DP connector and shield grounding; if the driver stops due to overcurrent, verify the 63A protection value's action record through the control board.
Maintenance Recommendations: For 690V high-voltage environments, regularly check the board insulation distance and bracket tightness; check the cooling ducts annually to prevent dust accumulation from affecting temperature rise stability under high-power operation.
FAQ
Q1: Does SNAT6030BEB SNAT 6030 BEB support 50Hz and 60Hz 690V systems?
A1: Yes. The SNAT6030BEB features frequency self-adaptation, adapting to different industrial power grid standards worldwide.
Q2: How to read fault codes via Profibus DP on SNAT6030BEB SNAT 6030 BEB?
A2: You can configure messages in the master station (such as a Siemens PLC) via GSD files to read the register status mapped to the control board in real time.
Q3: Does 250kW in SNAT6030BEB SNAT 6030 BEB refer to continuous output power?
A3: Yes. This control board is electrically and thermally optimized for heavy-duty operation at 250kW.
Q4: Will SNAT6030BEB SNAT 6030 BEB still operate if the ambient temperature reaches -30°C?
A4: Its rated minimum temperature is -25°C. If the ambient temperature is even lower, it is recommended to install a heater inside the cabinet to ensure that electronic components do not become brittle.
