Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
SNAT601TAI |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
SNAT601TAI |
|
Product Type |
Control Board |
|
Dimensions |
26.5 x 14 x 1.1 cm |
|
Weight |
0.26 kg |
|
Input Voltage Range |
120–240 V AC |
|
Power Consumption |
10 W |
|
Communication Interface |
RS-485 Modbus |
|
Operating Temperature |
-10°C to +50°C |
|
Storage Temperature |
-20°C to +60°C |
|
Protection Rating |
IP20 |
Description

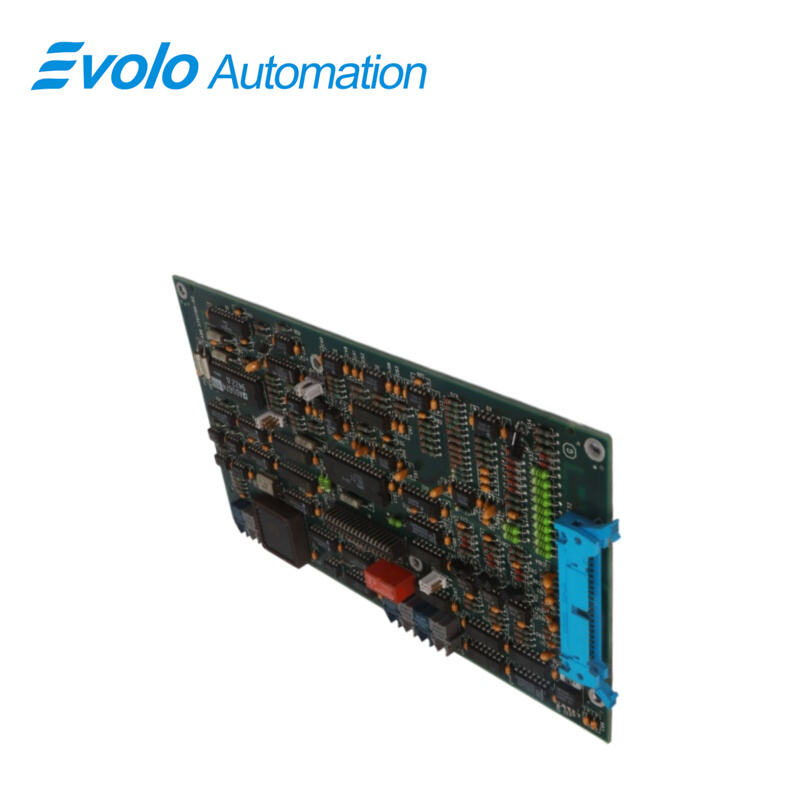

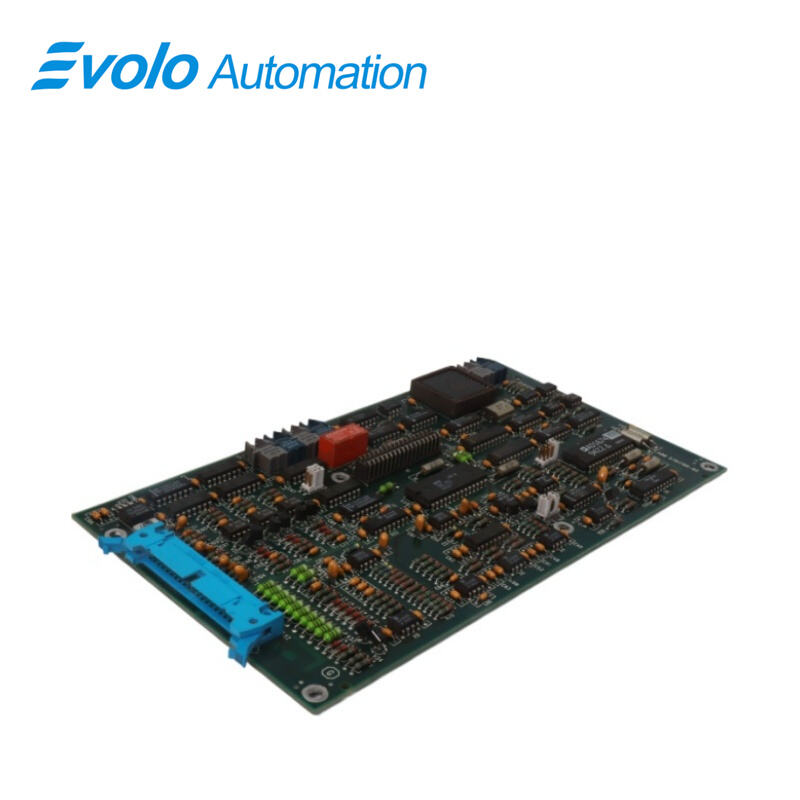

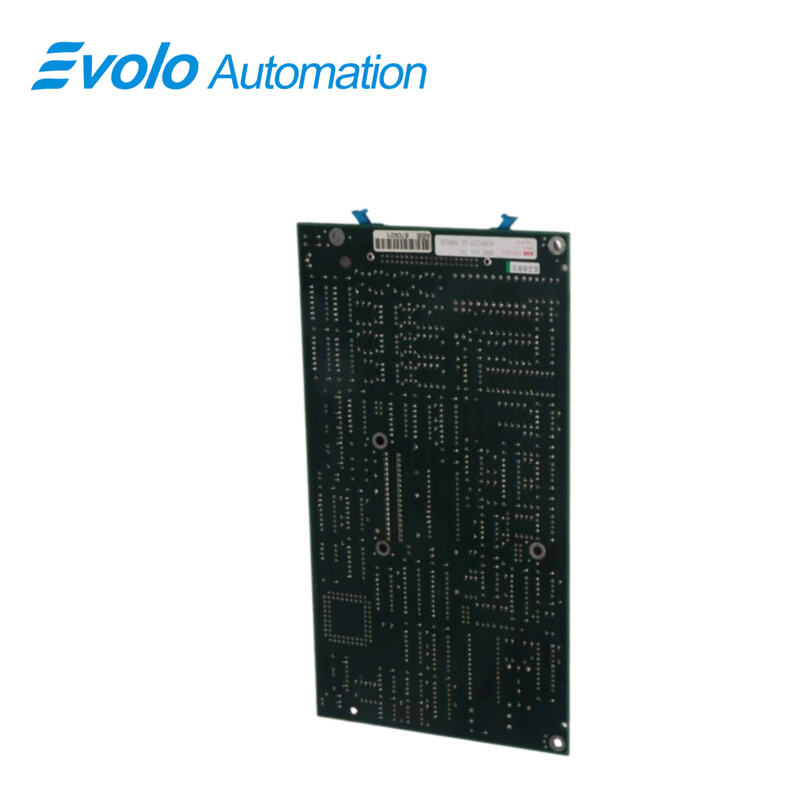

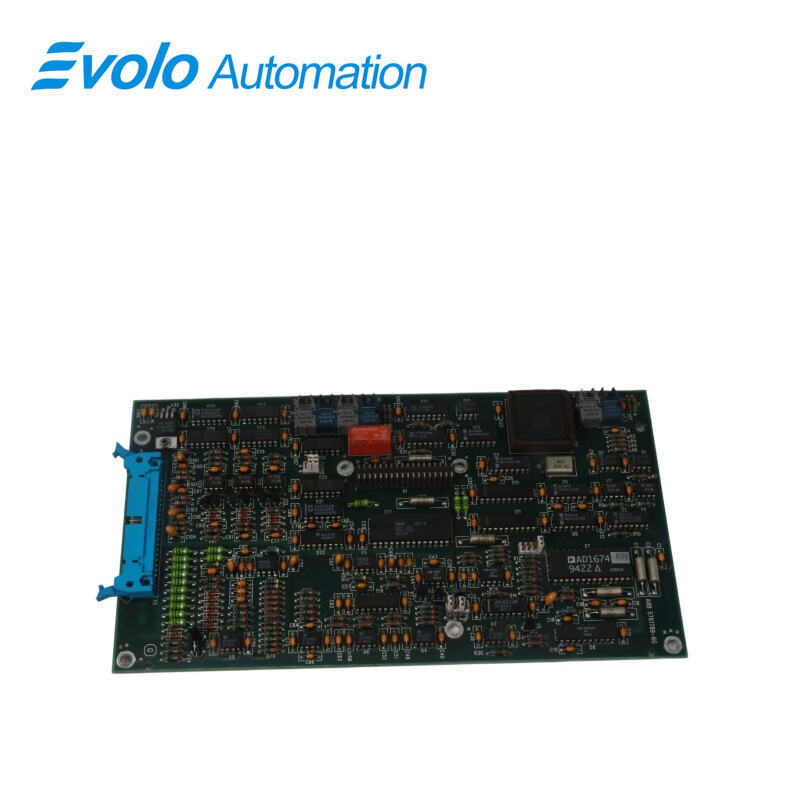

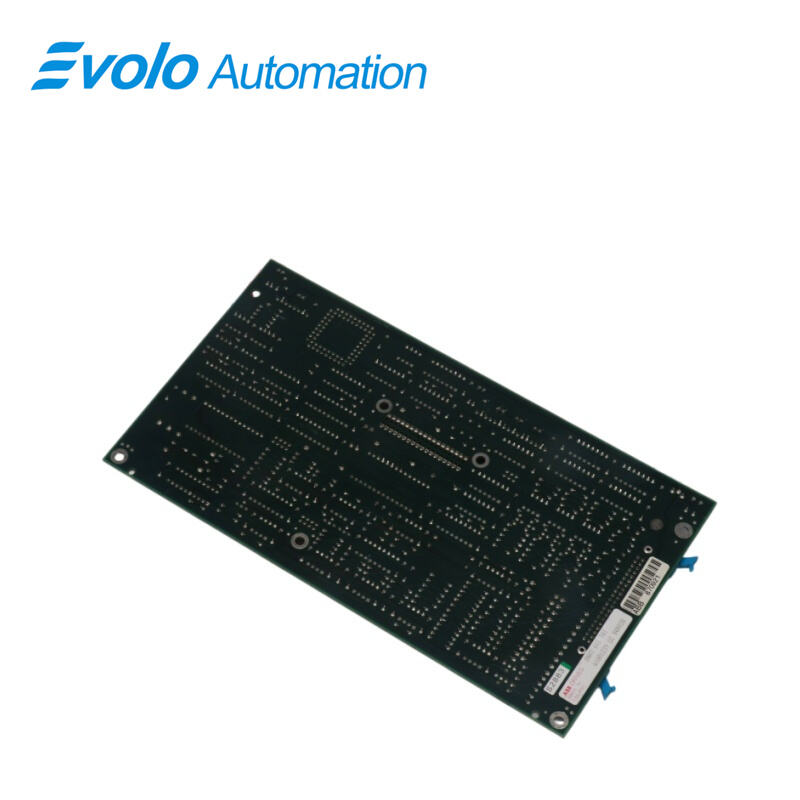

The SNAT601TAI is a specialized Control Board designed to function as a vital signal processing and interface hub within industrial DC drive systems. This board is engineered to manage critical feedback loops, providing the necessary link between primary control units and field-level power components. It excels in signal conditioning, ensuring that high-precision data—such as speed, current, and voltage feedback—is accurately transmitted to the main processor for real-time adjustments.
Applications
Large steel mills: Used for real-time signal acquisition and feedback in medium-to-high power rolling mill drive systems.
Paper and packaging plants: Ensure the consistency of driver logic control in multi-axis synchronous production lines.
Non-ferrous metal plants: Responsible for high-precision current monitoring and control interfaces in rectifier systems.
Mining hoist plants: Integrated into hoist control cabinets, responsible for safety monitoring of critical operating states.
Petrochemical plants: Provide stable speed control signal processing in complex automation chains.
Maintenance
Troubleshooting: If the system reports "Feedback signal lost," check if the connectors on the SNAT601TAI are oxidized; if a logic alarm occurs, verify if the onboard reference voltage test points are normal.
Maintenance Recommendations: Regularly check the board surface for signs of corrosion or moisture; use anti-static tools when cleaning to avoid damaging highly sensitive integrated circuits.
FAQ
Q1: How do I set Modbus address on SNAT601TAI?
A1: Via DIP switches or configuration software (baud rate and station ID).
Q2: Does SNAT601TAI 120V–240V input support DC?
A2: No, it is AC-only; DC input may damage the unit.
Q3: Does SNAT601TAI need installation support due to 1.1 cm thickness?
A3: Yes, use card slots or multi-point fixing for stability.
Q4: Is SNAT601TAI communication port lightning protected?
A4: Basic surge protection included; external RS-485 isolator recommended in high-risk areas.
Q5: Can SNAT601TAI operate at +60°C storage limit?
A5: No, operating limit is +50°C; above that requires forced cooling.
