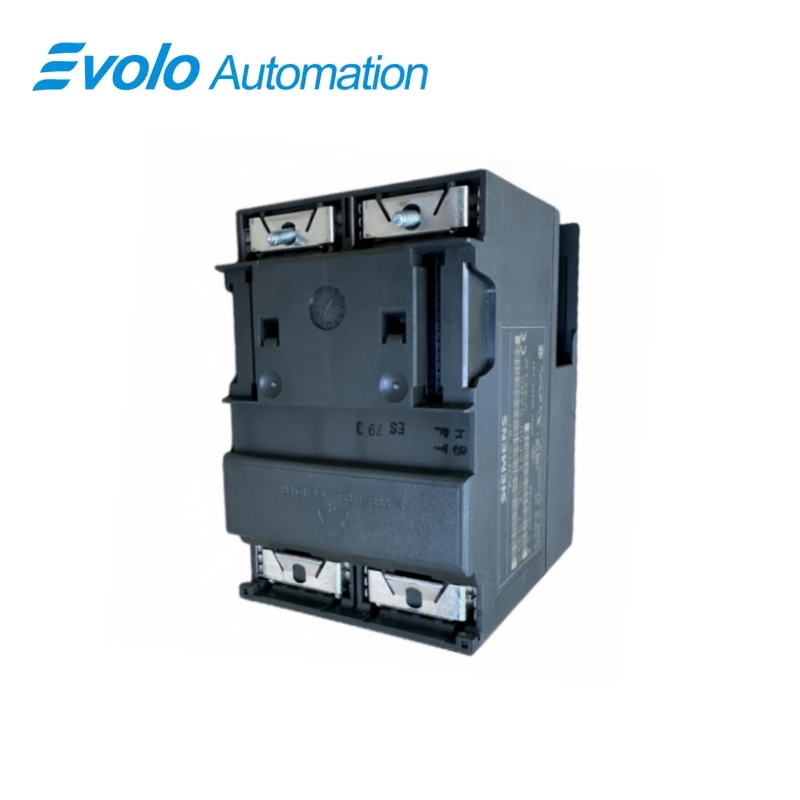

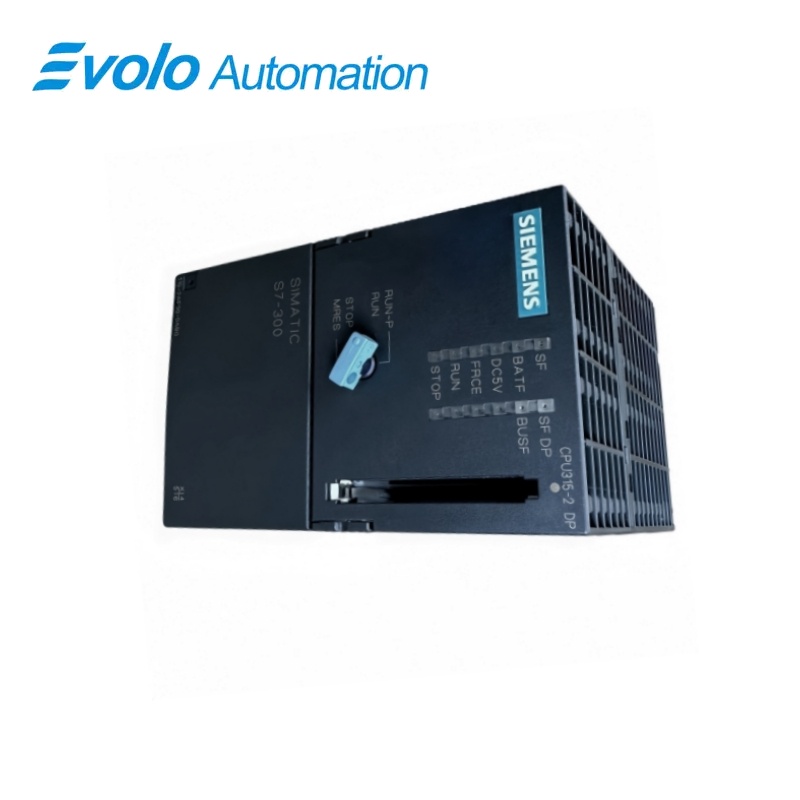

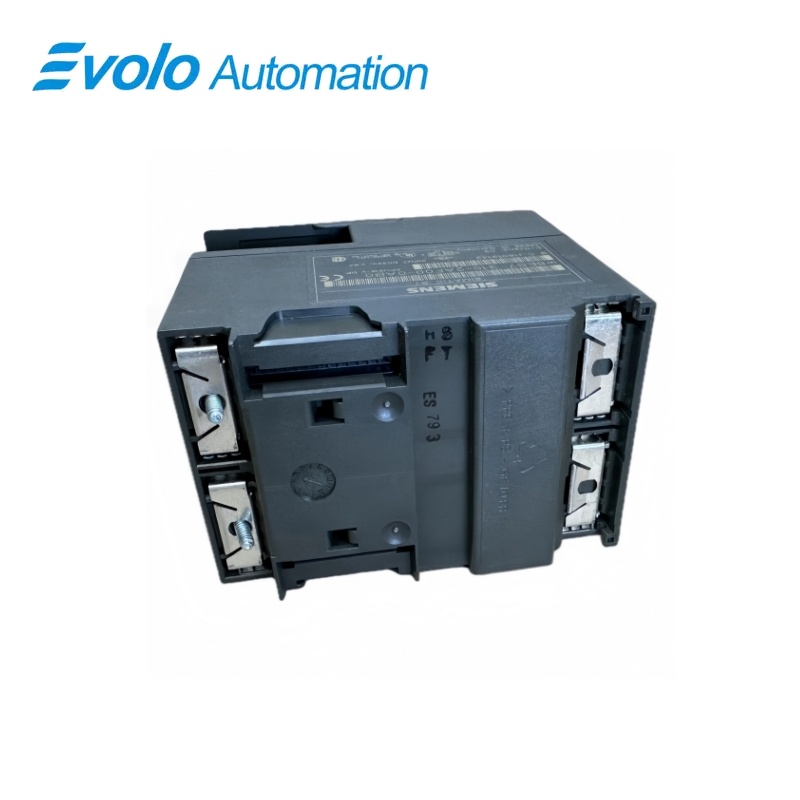

Siemens SIMATIC S7-300 6ES7315-2AF00-0AB0 CPU 315
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7315-2AF00-0AB0 CPU 315
Official Siemens identification and specifications for 6ES7315-2AF00-0AB0, prepared for accurate replacement matching and quotation.
At a Glance
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7315-2AF00-0AB0 |
| Product Type | SIMATIC S7-300 CPU 315-2 DP |
| Core Function | Executes control logic and operates as a PROFIBUS DP master or slave |
| Application / Compatible Series | SIMATIC S7-300 and C7-626 DP control systems |
Exact Identification
Match the complete Siemens article number 6ES7315-2AF00-0AB0 and the photographed hardware revision.
Integrated 24 V DC power supply
Integrated 24 V DC power supply
Configuration Check
SIMATIC S7-300 configuration; confirm rack, connectors and revision before replacement.
Product Overview
6ES7315-2AF00-0AB0 is officially identified by Siemens as SIMATIC S7-300, CPU 315 CPU WITH INTEGRATED 24 V DC POWER SUPPLY, 48 KBYTES, 16KAW, 0.3MS/KAW, CLOCK, 2ND INTERFACE MASTER.
The complete article number 6ES7315-2AF00-0AB0 should be matched against the installed SIMATIC S7-300 hardware, nameplate and project documentation. Similar CPU or PS307 revisions can differ in memory, interfaces, I/O or lifecycle status.
Key Functions
Model-Specific Configuration
6ES7315-2AF00-0AB0: Integrated 24 V DC power supply.
System Interface
6ES7315-2AF00-0AB0: Complete article-number replacement matching.
Replacement Control
6ES7315-2AF00-0AB0: Official Siemens product identification.
Official Specifications
| Work Memory | 48 KB |
|---|---|
| Basic Instruction Performance | 0.3 ms per 1,000 instructions |
| Load Memory Medium | S7-300 Memory Card (MC) |
| Non-Retain Support | No |
| Supply Voltage | 24 V DC |
| Controller Clock | Integrated |
| Communication Interfaces | MPI and PROFIBUS DP |
| PROFIBUS DP Operating Mode | DP master or DP slave |
Frequently Asked Questions
Can 6ES7315-2AF00-0AB0 operate as either a PROFIBUS DP master or slave?
Yes. The second interface can be configured for either DP master or DP slave operation in the PROFIBUS network.
Which memory medium is required when replacing 6ES7315-2AF00-0AB0?
Use the S7-300 Memory Card generation specified for this CPU and preserve the original project backup before exchanging hardware.
What network settings should be checked before installing 6ES7315-2AF00-0AB0?
Record the MPI address, PROFIBUS address, bus parameters and master/slave configuration from the existing STEP 7 project.
How much user program memory is available in 6ES7315-2AF00-0AB0?
The integrated work memory is 48 KB, so the restored project must fit within that capacity.
Which compact control system used 6ES7315-2AF00-0AB0 as its integrated CPU?
Siemens identifies this CPU generation in the C7-626 DP control system.
What should technicians verify after mounting 6ES7315-2AF00-0AB0 in an S7-300 rack?
Check the 24 V DC supply, module seating, memory card, rack configuration and both communication interfaces before placing the controller in RUN.
How should a PROFIBUS fault be diagnosed on 6ES7315-2AF00-0AB0?
Read the diagnostic buffer, check the bus-fault indicators, confirm slave addresses and inspect the PROFIBUS cable, connectors and terminating resistors.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7315-2AF00-0AB0
- Match the complete article number 6ES7315-2AF00-0AB0 without shortening the suffix.
- Confirm the installed SIMATIC S7-300 CPU or PS307 family and hardware revision.
- Verify Integrated 24 V DC power supply.
- Confirm included front connectors, memory card and accessories in the written quotation.
