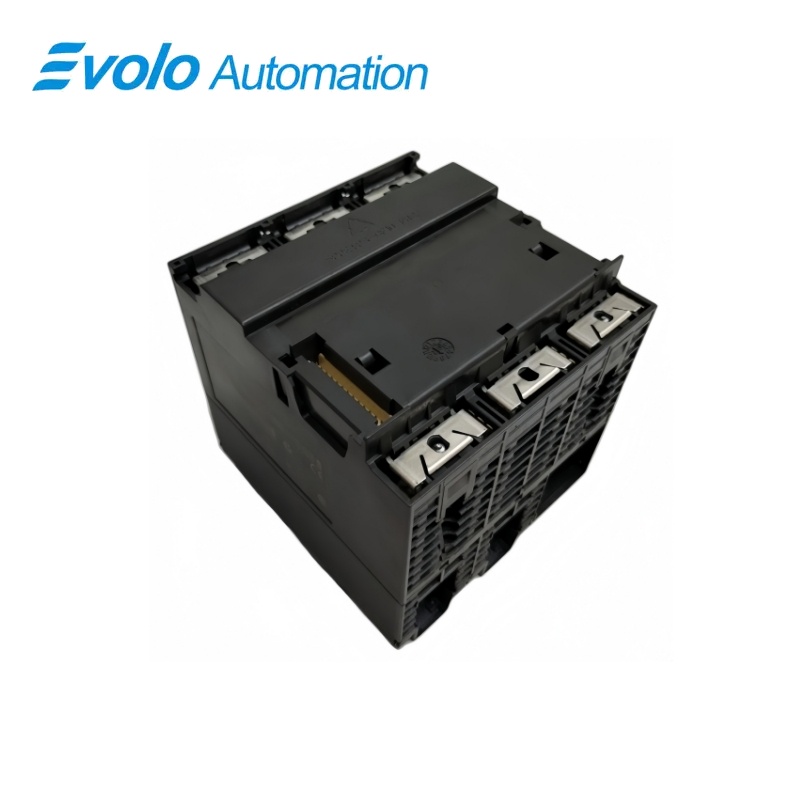

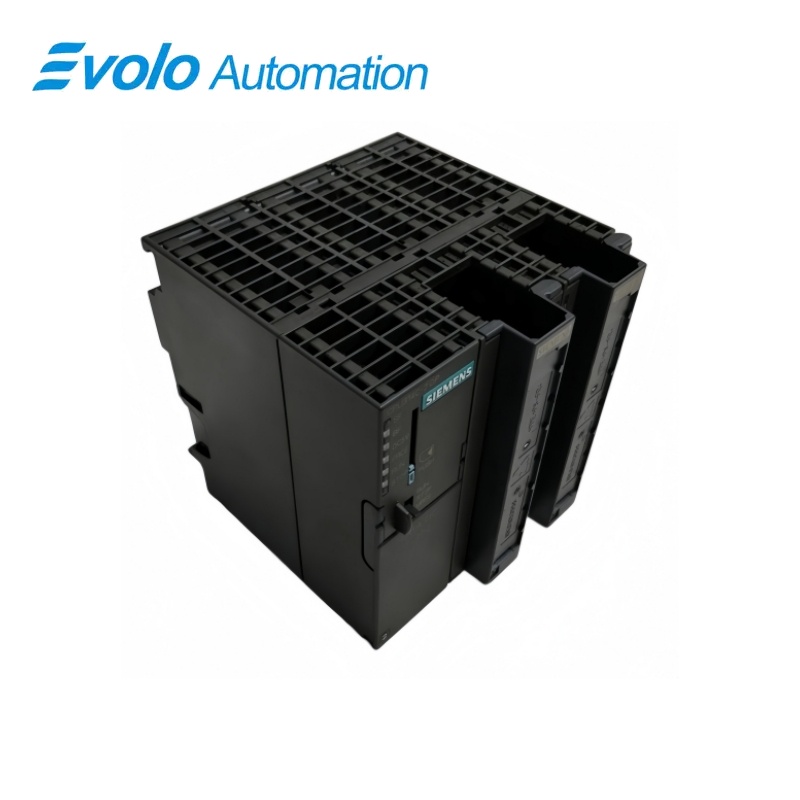

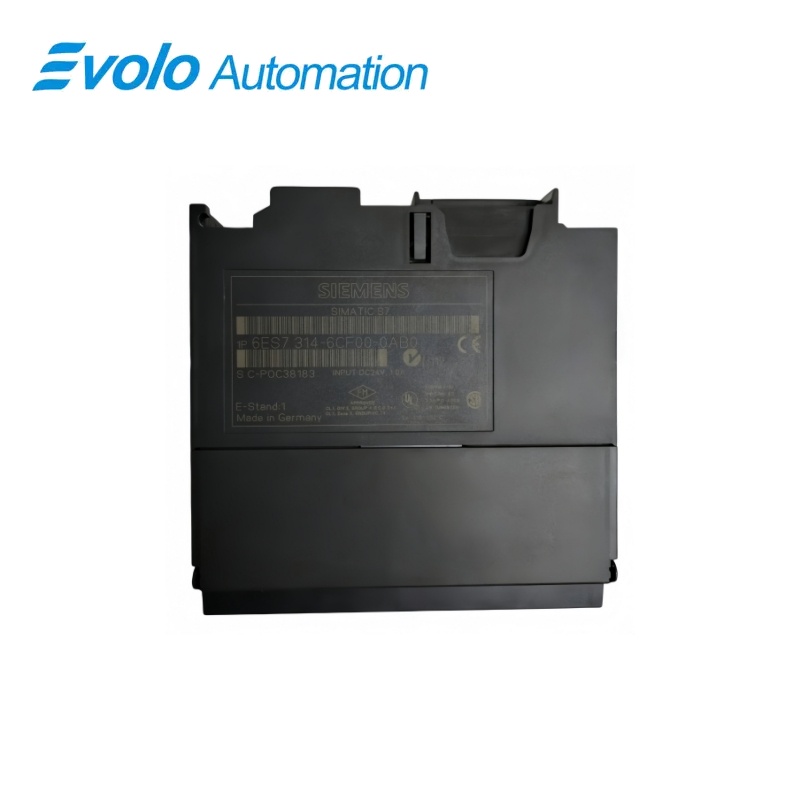

Siemens SIMATIC S7-300 6ES7314-6CF00-0AB0 CPU 314C-2 DP
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
6ES7314-6CF00-0AB0 CPU 314C-2 DP
Siemens compact S7-300 controller with integrated signal channels, technology functions and PROFIBUS DP.
At a Glance
| Manufacturer | Siemens |
|---|---|
| Article Number | 6ES7314-6CF00-0AB0 |
| Product Type | SIMATIC S7-300 CPU 314C-2 DP |
| Core Function | Executes control logic with onboard I/O and PROFIBUS DP |
| Application / Compatible Series | Compact SIMATIC S7-300 automation systems |
Match the complete article number and installed hardware version.
Confirm the installed interfaces, connectors and wiring.
Back up and verify the matching engineering project before replacement.
Product Overview
6ES7314-6CF00-0AB0 is officially identified by Siemens as SIMATIC S7-300, CPU 314C-2DP COMPACT CPU WITH MPI, 24 DI/16 DO, 4AI, 2AO, 1 PT100, 4 FAST COUNTERS (60 KHZ), INTEGRATED DP INTERFACE, INTEGRATED 24V DC POWER SUPPLY, 48 KBYTE WORKING MEMORY, MICRO MEMORY CARD REQUIRED.
The complete article number 6ES7314-6CF00-0AB0 should be matched against the installed SIMATIC S7-300 hardware, nameplate and project documentation. Similar CPU or PS307 revisions can differ in memory, interfaces, I/O or lifecycle status.
Key Functions
Model-Specific Configuration
6ES7314-6CF00-0AB0: Integrated I/O: 24 DI / 16 DO / 4 AI / 2 AO.
System Interface
6ES7314-6CF00-0AB0: 4 high-speed COUNTERS (60 KHZ).
Replacement Control
6ES7314-6CF00-0AB0: Interfaces: MPI, PROFIBUS DP.
Official Specifications
| Working Memory | 48 KB |
|---|---|
| Firmware Version | V1.0.5 |
| Instruction Processing | 0.1 ms per 1,000 instructions |
| Integrated Digital Inputs | 24 |
| Integrated Digital Outputs | 16 |
| Integrated Analog Inputs | 4 channels plus 1 Pt100 input |
| Integrated Analog Outputs | 2 |
| High-Speed Counters | 4 channels, up to 60 kHz |
| Pulse Outputs | 4 channels, up to 2.5 kHz |
| Controlled Positioning | 1 channel |
| Integrated Controller | PID control function |
| Communication Interfaces | MPI and PROFIBUS DP |
| PROFIBUS DP Role | Master or slave |
| Direct Data Exchange | Send and receive supported |
| Multi-Tier Expansion | Up to 31 modules |
| Mounting Dimensions | 120 x 125 x 130 mm |
| Rated Supply Voltage | 24 V DC |
| Power Loss | 14 W typical |
Frequently Asked Questions
Which STEP 7 release supports 6ES7314-6CF00-0AB0?
Engineering support starts with STEP 7 V5.1 SP4 for this hardware and firmware generation.
How are the integrated I/O channels addressed on 6ES7314-6CF00-0AB0?
Use the CPU hardware configuration to assign the onboard digital and analog addresses before downloading the project.
Can 6ES7314-6CF00-0AB0 operate as a PROFIBUS DP master or slave?
Yes. The integrated DP interface supports both roles when configured accordingly in the STEP 7 project.
Which fast technology tasks can 6ES7314-6CF00-0AB0 handle?
Four high-speed counter channels, four pulse outputs, one positioning channel and integrated PID control are available.
What should be checked in the 24 V DC wiring for 6ES7314-6CF00-0AB0?
Confirm the permissible supply range, protective devices and load wiring before applying power to the CPU and integrated outputs.
What changes must be reviewed before replacing 6ES7314-6CF00-0AB0 with a later hardware revision?
Compare firmware support, working-memory size, the hardware catalog entry and the existing I/O and DP configuration.
How can 6ES7314-6CF00-0AB0 be expanded in a multi-tier station?
The documented S7-300 arrangement supports multi-tier expansion up to 31 modules when the required interface modules and racks are used.
Compatibility & Ordering Notes
Compatibility Checklist for 6ES7314-6CF00-0AB0
- Match the complete article number 6ES7314-6CF00-0AB0 without shortening the suffix.
- Confirm the installed SIMATIC S7-300 CPU or PS307 family and hardware revision.
- Verify Integrated I/O: 24 DI / 16 DO / 4 AI / 2 AO.
- Confirm included front connectors, memory card and accessories in the written quotation.
